Briggs & Stratton 030222-0 - 5,000 Watt PowerBoss

Model: 030222-0 - 5,000 Watt PowerBoss

Save Part Not Listed?
product name

Popular Parts

Popular Parts

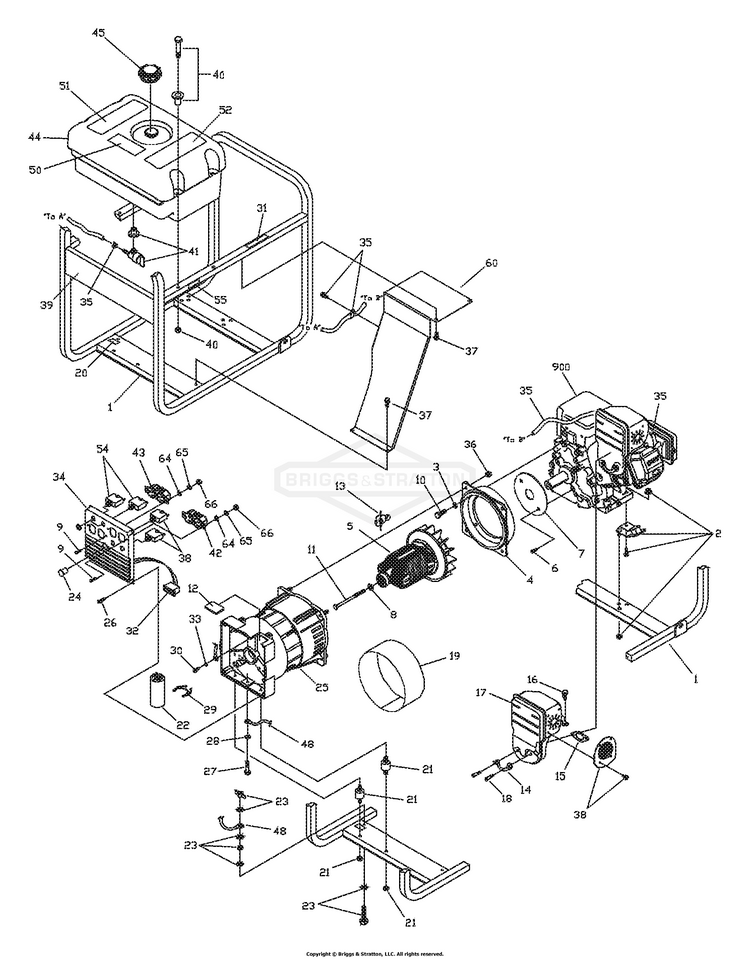

Main Unit (196328)

...
...
1
CRADLE BS-B196036GS
...
2
KIT,Vibration Mount BS-194150GS
...
4
ADAPTER, Engine/Alt, Sincro BS-189750GS
...
5
ASSY, Rotor, Sincro (Includes Item 13) BS-191311GS
...
7
DISK, Engine Air BS-B4260GS
...
8
WASHER, 22.2 OD X 8.4 ID x 3 BS-96796GS
...
11
HHCS, 5/16 - 24 x 7.44" BS-187365FGS
...
12
COVER, RBC Opening BS-189758GS
...
13
ASSY, Diode/Varistor BS-A1816GS
...
14
TAB, Locking BS-695400
...
15
GASKET, Muffler BS-794818
...
16
SCREW BS-695312
...
17
MUFFLER BS-794949
...
18
SCREW, Shoulder BS-695399
...
19
COVER, Stator BS-189755GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
CAPACITOR, 35, UF BS-A1817AGS
...
23
KIT, Grounding Hardware BS-196454GS
...
24
CAP BS-189824GS
...
25
ASSY, Rotor, Sincro BS-191311GS
...
29
CLIP, Capacitor BS-189754GS
...
30
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
31
DECAL, Caution Hot Muffler BS-191436GS
...
32
HOUSING, Plug, 6-Pin BS-196436GS
...
34
PNL, CNTRL, SRV BS-196390GS
...
35
LINE, Fuel BS-791745
...
36
NUT, Nylok, M8 - 1.25 BS-49820GS
...
37
SCREW, Self Drill 12-14 x 7/8" BS-B2153GS
...
38
BREAKER-CIRCUIT 20A BS-209872GS
...
39
DECAL, Panel BS-196125GS
...
40
KIT, Fuel Tank Hardware BS-196445GS
...
41
KIT, Fuel Valve BS-192980GS
...
42
OUTLET, 120V/20A, Duplex BS-68759GS
...
43
OUTLET, 120V, 15A, Duplex BS-63025GS
...
44
ASSY, Fuel Tank (Includes Items 41, 50, 51 & 52) BS-193961GS
...
45
CAP, Fuel BS-90878GS
...
48
WIRE, Ground BS-19553621GS
...
50
DECAL, Gas Tank Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instruction BS-189235GS
...
54
BREAKER, Circuit, 15A BS-75207DGS
...
55
DECAL, Fuel Shut-Off BS-191435GS
...
60
HEAT SHIELD, Muffler BS-J196440GS
...
--
OIL BOTTLE Not Illustrated BS-BB3061GS
...
--
MANUAL, Owners Not Illustrated BS-196322GS
...
--
MANUAL, Engine Not Illustrated BS-MS5242

Wheel Kit (191756)

...
...
1
ASSY, Handle (Includes Item 11) BS-189715GS
...
2
LEG, Mounting BS-94034GS
...
3
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
AXLE BS-93728GS
...
6
WHEEL BS-197061GS
...
7
PIN, 3/32 X 1.6 BS-703300
...
9
NUT, 5/8 - 18 Jam Lock BS-94222QGS
...
11
GRIP BS-198669GS
...
--
SUBKIT, Hardware (Not Illustrated) BS-191932GS

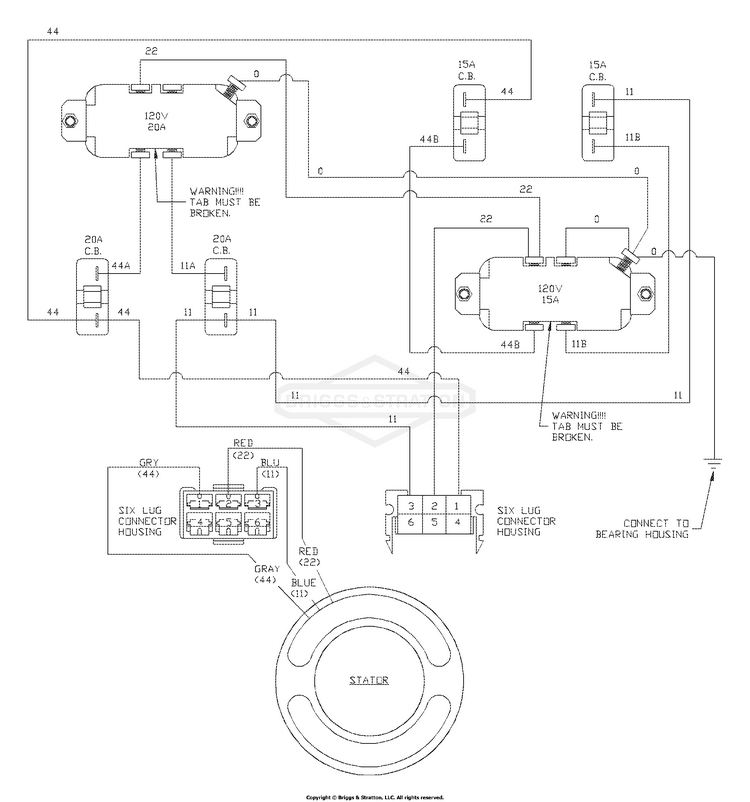

Wiring Diagram (196332)

...

No Parts Available for this Schematic

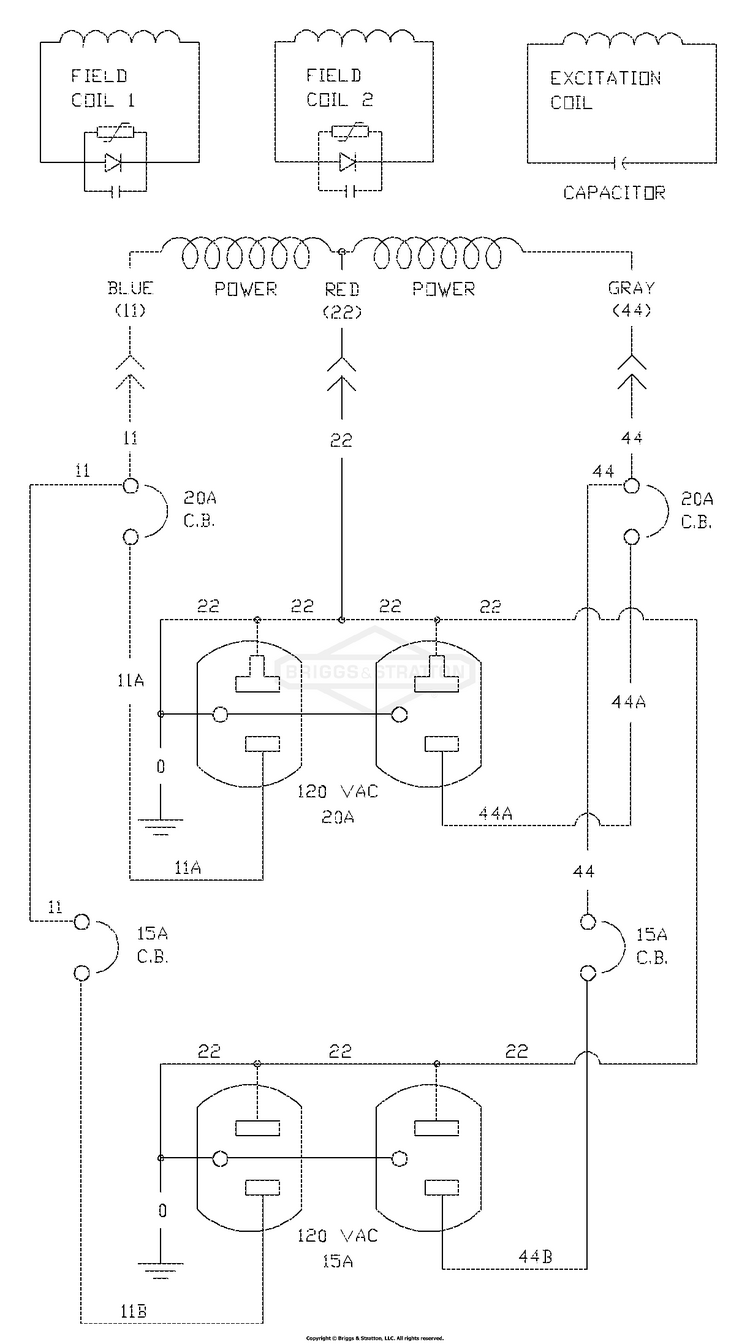

Wiring Schematic (196332)

...

No Parts Available for this Schematic
