Briggs & Stratton 030220-0 - 7.000 Watt PowerBoss

Model: 030220-0 - 7.000 Watt PowerBoss

Save Part Not Listed?
product name

Alternator (195697)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Item 11) BS-195616GS
...
3
STATOR BS-196706AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308KGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY, Wire, Ground BS-193428AGS
...
11
BEARING BS-65791GS
...
12
BOARD, Circuit, System Control BS-205858GS

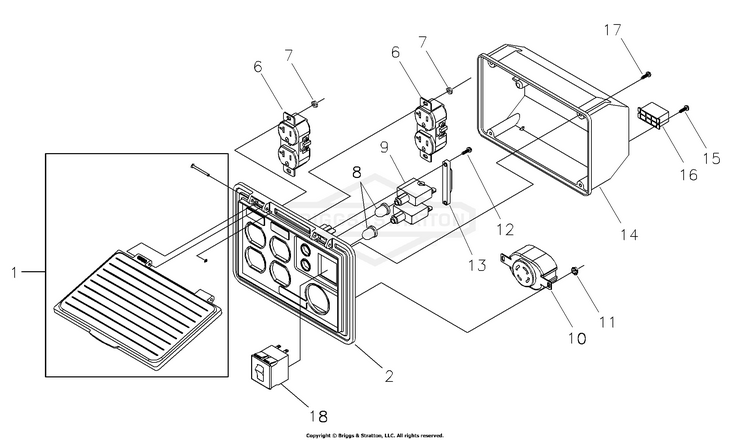

Control Panel (200065)

...
...
1
ASSY, Control Lid Panel BS-195112GS
...
2
CONTROL PANEL, Compact BS-192273CGS
...
6
OUTLET, 120V, 20Amp, Duplex BS-68759GS
...
8
CAP, Circuit Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 25A BS-706175
...
10
OUTLET, 120/240 Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
BOX, Rear Cover BS-188890GS
...
15
SCREW, Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW, Tapping, 3.5 x 14 BS-192241GS
...
18
BREAKER, Circuit, 30A BS-192785GS

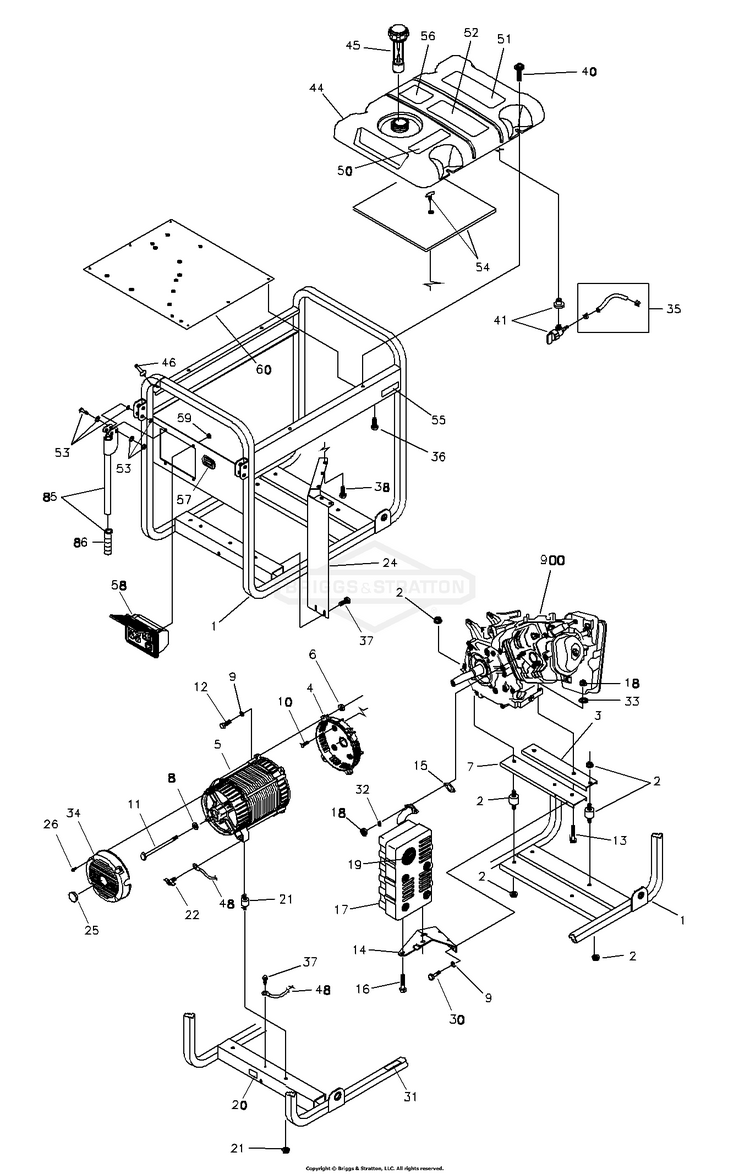

Main Unit (200060)

...
...
1
CRADLE (Includes #’s 20, 31 & 55) BS-B200077GS
...
2
KIT, Vibration Mount BS-196400GS
...
3
BRACKET, Support Engine BS-B92531GS
...
4
ADAPTER, Engine BS-190220GS
...
5
ASSY., Alt (see page 4) BS-~NSP
...
7
BRACKET, Support Eng/Muffler BS-B92731GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
10
SBHC, 3/8-16 x 7/8" BS-190274DGS
...
11
HHCS, 5/16 - 24 x 8-7/8 BS-73068GS
...
14
BRACKET, Muffler BS-193048GS
...
15
GASKET, Exhaust BS-~NSP
...
17
MUFFLER BS-192569GS
...
18
NUT, M8 Flange Serrated BS-67989GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT, Vibration Mount BS-195625GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
HEATSHIELD BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
31
DECAL, Warning Exhaust BS-196830GS
...
32
SPACER BS-31579GS
...
34
COVER, RBC Plastic w/Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
36
SCREW, 12 - 24 x 1/2 Thread Forming BS-192376GS
...
37
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
38
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
40
BOLT, Shoulder, M6 - 1.0 w/Washer BS-199256GS
...
41
VALVE, Fuel BS-192980GS
...
44
ASSY., Tank Fuel (Includes Items 41, 50, 51, 52 & 56) BS-194217GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
PIN, Handle Release BS-B4135GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instruction Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
KIT, Folddown Handle Hardware BS-194034GS
...
54
KIT, Insulation w/ Clip BS-194448GS
...
55
DECAL, Fuel Shutoff BS-197798GS
...
56
DECAL, Warning CO BS-202997GS
...
57
METER-HOUR BS-202602GS
...
58
ASSY. Control Panel BS-200062GS
...
59
PALNUT, 3/16 BS-189164GS
...
60
HEATSHIELD BS-204594GS
...
85
ASSY,. Fold Down Handle BS-B193200GS
...
86
GRIP, Handle BS-198669GS
...
xx
MANUAL, Operator’s Parts Not Illustrated BS-199910GS
...
xx
DECAL, Family CA, EVP Parts Not Illustrated BS-202180GS
...
xx
HARNESS, Wire, Power Gen Parts Not Illustrated BS-194274GS
...
xx
HARNESS, Monitor Load Parts Not Illustrated BS-199119GS
...
xx
BOTTLE, Oil Parts Not Illustrated BS-100005
...
xx
KIT, Decal Service Parts Not Illustrated BS-200286GS

Wheel Kit (196815)

...
...
1
WHEEL BS-209636GS
...
3
AXLE, 5/8" BS-191267RGS
...
4
E-RING BS-703977
...
6
NUT, Flange Serrated, M8 BS-67989GS
...
10
ASSEMBLY SUPPORT (Includes Ref. No. 7) BS-195686GS

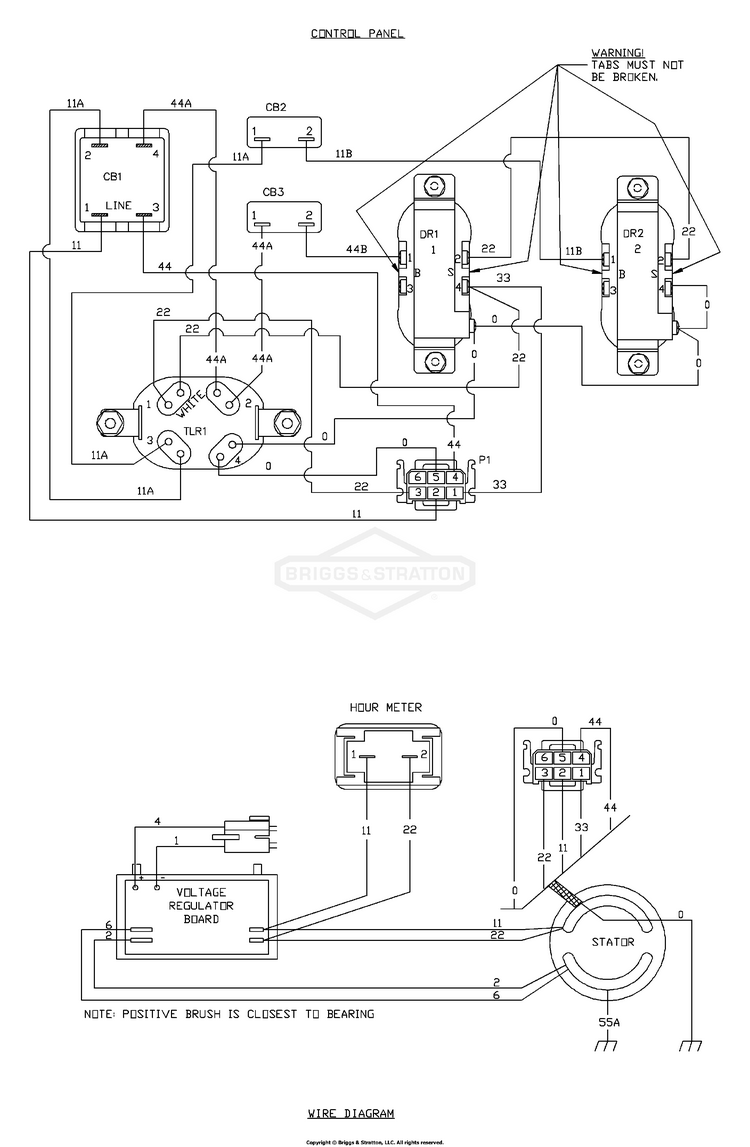

Wiring Diagram (200063)

...

No Parts Available for this Schematic

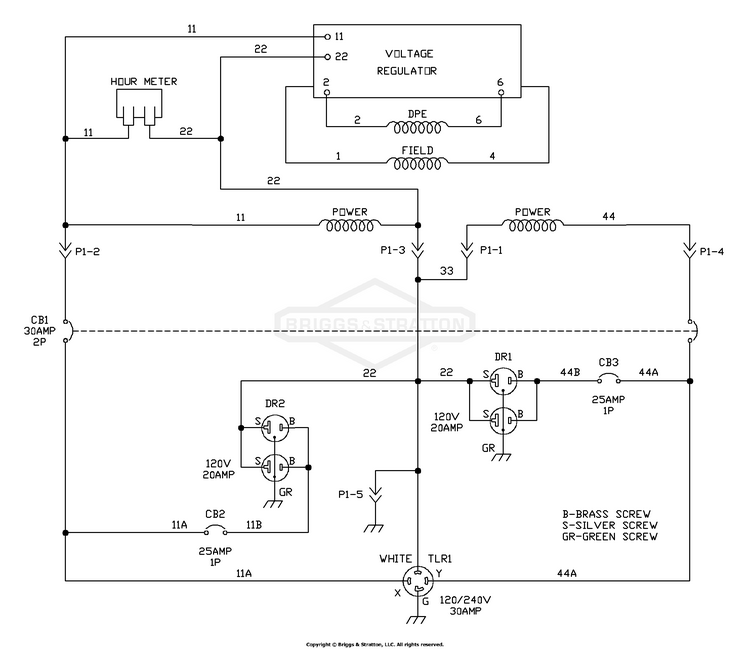

Wiring Schematic (200063)

...

No Parts Available for this Schematic
