Briggs & Stratton 030217-0 - 5,250 Watt PowerBoss

Model: 030217-0 - 5,250 Watt PowerBoss

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Alternator (194295)

...
...
1
ASSY, Stator BS-194581GS
...
2
FLANGE, Interchangeable BS-194364GS
...
3
CAPACITOR BS-194586GS
...
4
KIT, Terminal Box Lid w/ Hardware BS-194587GS
...
5
CAP, Securing Stud BS-194366GS
...
6
STUD, Securing BS-194365GS
...
7
KIT, Terminal Lid Hardware BS-194584GS
...
8
KIT, Flange Hardware BS-194583GS
...
9
KIT, Connector BS-194580GS
...
10
KIT, Electronics BS-194579GS
...
11
KIT, Stator Hardware BS-194582GS
...
12
ASSY, Rotor BS-194585GS

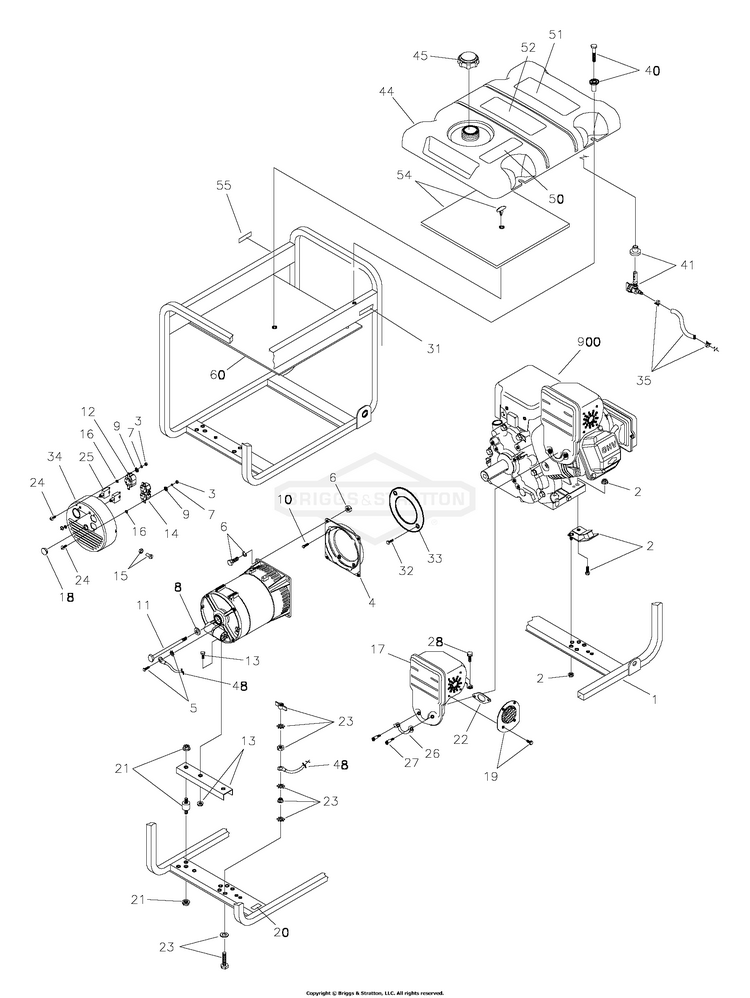

Main Unit (195685)

...
...
1
CRADLE BS-B195681GS
...
2
KIT, Mount,Vibration, 45°. BS-197564GS
...
4
ADAPTER, Engine BS-194364GS
...
5
KIT, Grounding Hardware BS-194623GS
...
6
KIT, Hardware Mounting,Alt BS-194151GS
...
8
WASHER, M8 Flat BS-96796GS
...
10
SBHCS, 3/8-16 x 3/4 Lg. BS-190274BGS
...
11
STUD, Securing BS-194365GS
...
12
OUTLET, 120/240V, 30A BS-43437GS
...
13
KIT,Alt Support w/ Hardware BS-194608GS
...
14
OUTLET, 120V, 20A BS-68759GS
...
15
KIT, Hardware Terminal Box BS-194584GS
...
17
MUFFLER BS-794949
...
18
CAP BS-194366GS
...
19
ARRESTOR, Spark BS-794945
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
GASKET, Muffler BS-794818
...
23
KIT, Grounding Hardware BS-194154GS
...
25
BREAKER-CIRCUIT 20A BS-209872GS
...
26
TAB, Locking BS-695400
...
27
SCREW, Shoulder BS-695399
...
28
SCREW BS-695312
...
31
DECAL, Hot Muffler BS-191436GS
...
33
DISK,Air Blocker BS-B4260GS
...
34
TERMINAL BOX, with Hardware BS-194587GS
...
35
LINE, Fuel BS-791745
...
40
KIT, Hardware Fuel Tank BS-194398GS
...
41
KIT,Valve, Fuel BS-192980GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-194217GS
...
45
CAP, Fuel BS-90878GS
...
48
WIRE, Ground Mount BS-194622GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
54
KIT, Insulation with Clip BS-194448GS
...
55
DECAL, Fuel Shut-off BS-191435GS
...
60
SHIELD, Heat BS-193452GS
...
MANUAL, Owners Not Illustrated BS-195679GS
...
MANUAL, Engine Not Illustrated BS-MS5242
...
BOTTLE, Oil Not Illustrated BS-100005
...
KIT, Decal Service Not Illustrated BS-196790GS
...
FUEL STABILIZER Not Illustrated BS-189208GS

Wheel Kit (201168)

...
...
1
ASSY, Handle (Includes Item 9) BS-189715GS
...
2
SUPPORT, Leg BS-B1764GS
...
3
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
AXLE BS-192006AGS
...
6
WHEEL BS-197061GS
...
7
RETAINER, RING, 1/2 BS-703976
...
9
GRIP BS-198669GS

Wiring Diagram (194201)

...

No Parts Available for this Schematic

Wiring Schematic (194201)

...

No Parts Available for this Schematic
