Briggs & Stratton 030216-0 - 6,200 Watt Snapper

Model: 030216-0 - 6,200 Watt Snapper

Save Part Not Listed?
product name

Alternator (191794)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191876GS
...
3
STATOR BS-192196AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308HGS
...
6
ASSY, Holder, Rectifier/Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY, Wire, Ground BS-193428AGS
...
13
HARNESS, Wire, Power BS-194274GS
...
14
BOARD, Circuit, System Control BS-205858GS
...
15
RECTIFIER, Battery Charge BS-65795GS
...
16
TAPTITE, M5 - 0.8 x 20 BS-66849AGS
...
O-Ring BS-189197GS

Control Panel (191780)

...
...
1
KIT, Control Panel Lid BS-195112GS
...
2
CONTROL PANEL, Compact BS-191450GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 30A BS-706178
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
16
HOUSING, Receptacle BS-22694GS
...
18
BREAKER-CIRCUIT 25A BS-706175

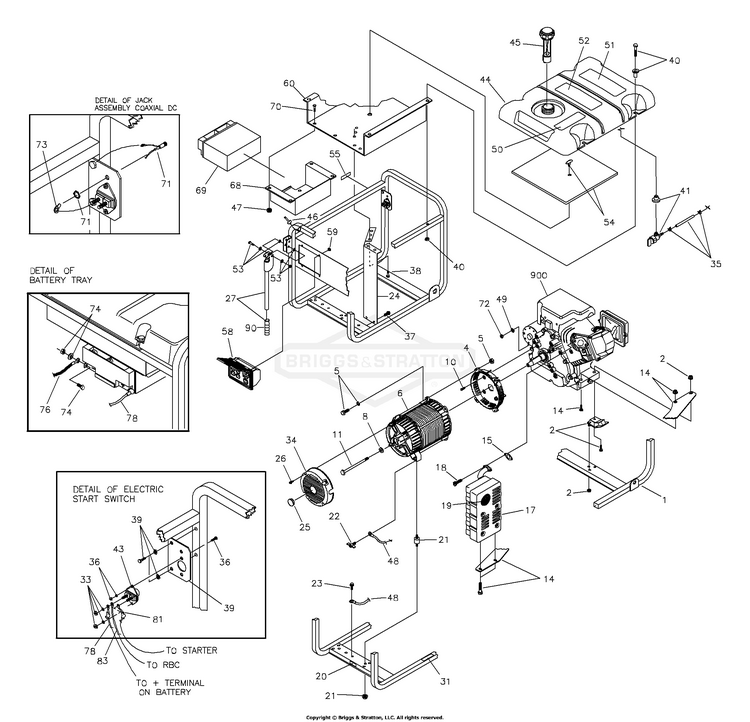

Main Unit (195619)

...
...
1
CRADLE BS-197464BNGS
...
2
KIT,Vibration Mount, 45°. BS-194150GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
KIT,Adptr, Hdwr Mounting BS-194151GS
...
6
ASSY,Alternator (See "Alternator") BS-~NSP
...
8
WASHER, M8 Flat BS-96796GS
...
10
SBHCS, 3/8-16 x 1.0 Lg. BS-190274BGS
...
11
HHCS, 5/16-24 x 7.44 BS-187365FGS
...
14
KIT, Muffler & Brct Hardware BS-194729GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5-0.8 x 10 BS-74908GS
...
27
ASSY, Handle (Includes Item 90) BS-B193200GS
...
31
DECAL, Hot Muffler BS-191436GS
...
33
KIT, Contact Starter Hardware BS-194441GS
...
34
COVER, Bearing Carrier BS-195422GS
...
35
LINE, Fuel BS-791745
...
36
KIT, Starter Mounting Hardware BS-194440GS
...
37
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
38
SCREW, 10-24 x 1/2 Crimptite BS-56893GS
...
39
KIT, Mounting Plate Switch BS-194439GS
...
40
KIT, Hardware Tank Fuel BS-195477GS
...
41
KIT,Valve,Tank BS-192980GS
...
43
SWITCH, Starter BS-77282GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-194217GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
PIN, with Lanyard BS-B4135GS
...
47
NUT, M6 Flange Lock BS-77395GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instruction, Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
KIT, Handle Fold-down Hardware BS-194034GS
...
54
KIT, Insulation with Clip BS-194448GS
...
55
DECAL, Fuel Shut-off BS-191435GS
...
58
ASSY, Control Panel (See "Control Panel") BS-191757GS
...
60
HEATSHIELD BS-208564GS
...
68
TRAY, Battery BS-192985GS
...
69
BATTERY, 12V BS-193043GS
...
71
ASSY, Jack, DC BS-192531GS
...
73
LUG, 5/16 #22/18 I-S BS-58359GS
...
74
KIT, Battery Hardware BS-193347GS
...
76
ASSY,Wire, #55 BS-185939KGS
...
78
ASSY,Wire, #13 BS-189302CGS
...
81
ASSY,Wire, #16 BS-189302GGS
...
83
HARNESS,Wire BS-192355GS
...
90
GRIP BS-198669GS
...
MANUAL, Engine Not Illustrated BS-MS5242
...
MANUAL, Owners Not Illustrated BS-195618GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
CHARGER, Battery Not Illustrated BS-84002790
...
KIT, Decals Service Not Illustrated BS-195843GS

Wheel Kit (190312)

...
...
2
WHEEL BS-209636GS
...
3
AXLE, 5/8" x 23.62" BS-191267GGS
...
4
E-RING BS-703977
...
6
LEG, Support BS-B187101GS
...
7
VIBE MOUNT, with Washer BS-191413GS
...
9
NUT, M8 - 1.25 Lock BS-52858GS
...
10
NUT, 1/4-20, GR5 BS-703233

Wiring Diagram (191786)

...

No Parts Available for this Schematic

Wiring Schematic (191786)

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
