Briggs & Stratton 030201-0 - 6,200 Watt PowerBoss

Model: 030201-0 - 6,200 Watt PowerBoss

Save Part Not Listed?
product name

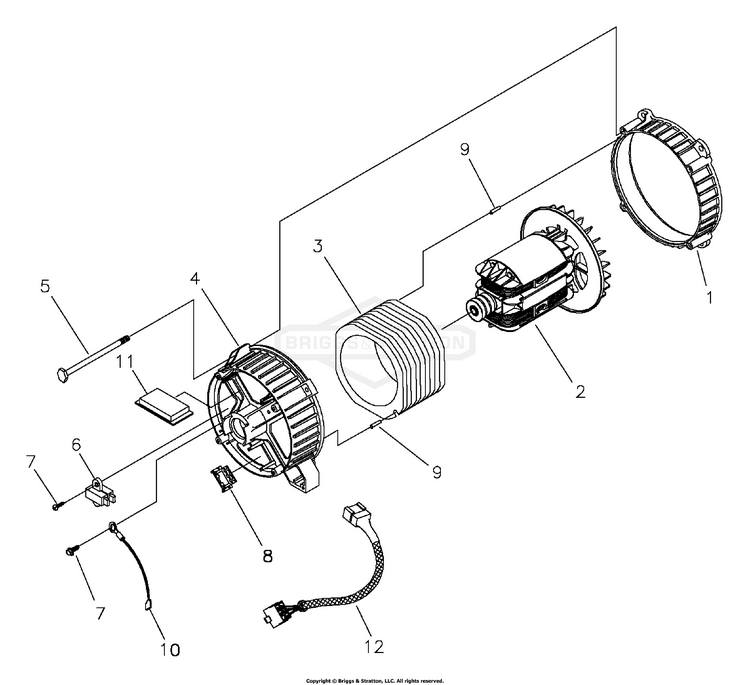

Alternator (194087)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191876GS
...
3
STATOR BS-194006AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308HGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY, Wire, Ground BS-193428AGS
...
11
BOARD, Circuit, System Control BS-205858GS
...
12
HARNESS, Wire, Power BS-194274GS
...
--
O-RING, 1.375 N I.D. X .093 IN BS-189197GS

Control Panel (191780)

...
...
1
KIT, Control Panel Lid BS-195112GS
...
2
CONTROL PANEL, Compact BS-191450GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 30A BS-706178
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW, Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW, Tapping, 3.5 x 14 BS-192241GS
...
18
BREAKER-CIRCUIT 25A BS-706175

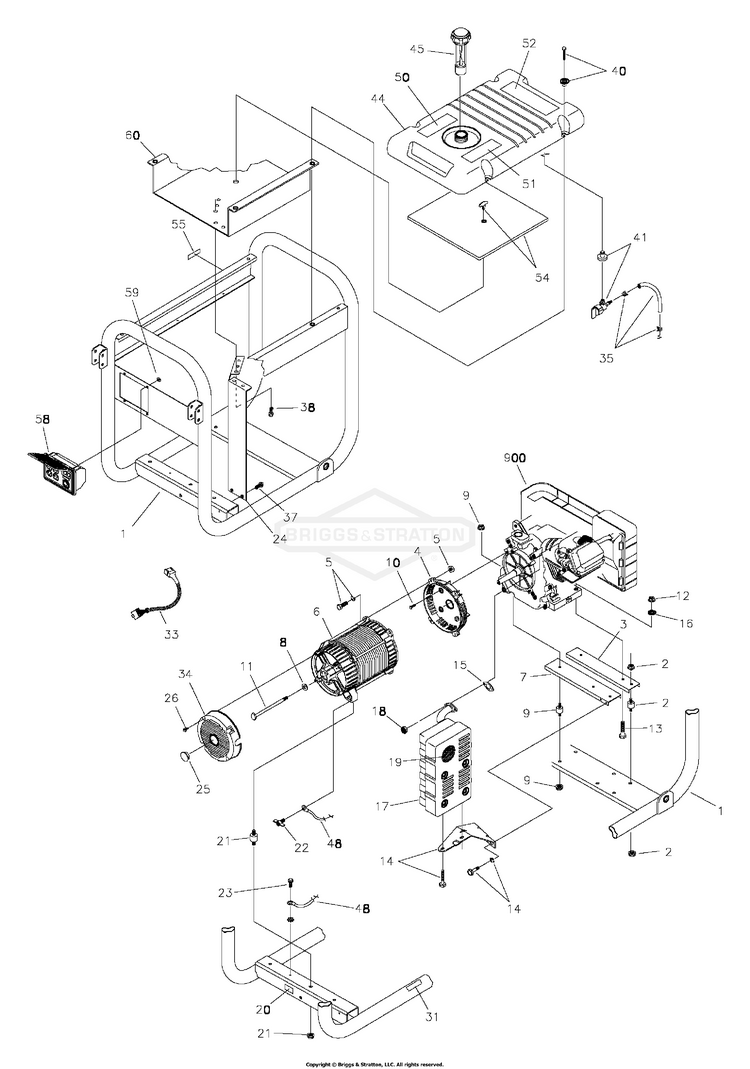

Main Unit (194088)

...
...
1
CRADLE BS-B194100GS
...
2
KIT, Mount,Vibration BS-194218GS
...
3
SUPPORT, Engine BS-B92531GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
KIT,Adapter Mounting Hardware BS-194151GS
...
6
ASSY,Alternator (see "Alternator") BS-~NSP
...
7
SUPPORT, Eng/Muffler BS-B190723GS
...
8
WASHER, M8 Flat BS-96796GS
...
9
KIT, Mount,Vibration BS-194219GS
...
10
SBHCS, 3/8-16 x 7/8" BS-190274DGS
...
11
HHCS, 5/16-24 x 7.44 BS-187365FGS
...
12
NUT, 5/16-18 Serrated Flange BS-189160GS
...
14
KIT, Muffler Brckt w/ Hardware BS-194506GS
...
15
GASKET, Muffler BS-710250
...
17
MUFFLER BS-B4206GS
...
18
NUT, M8 Flange Serrated BS-67989GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5-0.8 x 10 BS-74908GS
...
31
DECAL, Hot Muffler BS-196830GS
...
33
HARNESS, Wire, Power BS-194274GS
...
34
COVER, Bearing Carrier with Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, 12-24 x 1/2 THD Forming BS-192376GS
...
38
SCREW, 10 - 24 x 1/2, Crimptite BS-56893GS
...
40
KIT, Hardware Fuel Tank BS-194398GS
...
41
KIT, Valve, Fuel BS-192980GS
...
44
ASSY, Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-194217GS
...
45
CAP, Fuel BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instructions, Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
54
KIT, Insulation with Clip BS-194448GS
...
55
DECAL, Fuel Shut-off BS-197798GS
...
58
ASSY, Control Panel (see "Control Panel") BS-191757GS
...
60
HEATSHIELD BS-208564GS
...
MANUAL, Operator's Not Illustrated BS-279775WST
...
MANUAL, Owners Not Illustrated BS-194083GS
...
OIL BOTTLE Not Illustrated BS-BB3061GS
...
KIT, Decals Not Illustrated BS-194220GS

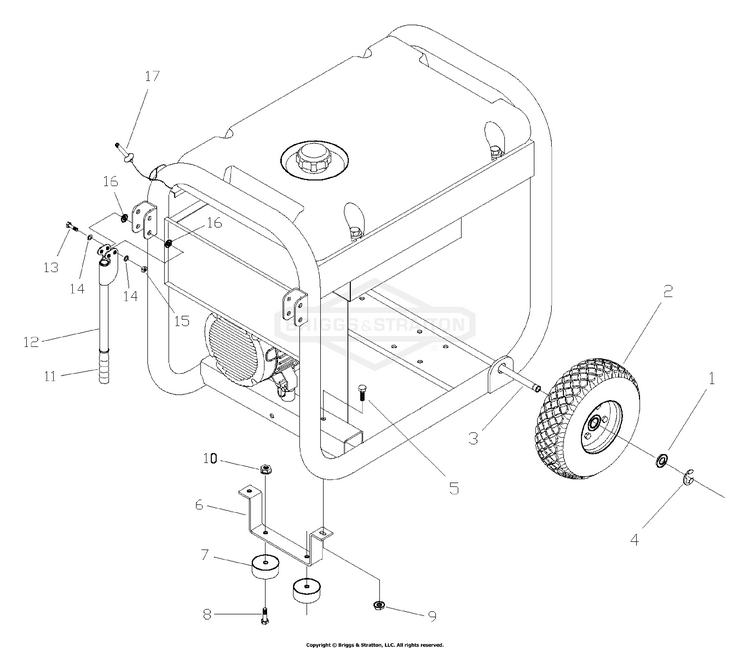

Wheel Kit

...
...
2
WHEEL BS-209636GS
...
3
AXLE, 5/8" x 24.80" BS-191267KGS
...
4
E-RING BS-703977
...
6
ASSY, Support w/ Vibe Mounts BS-200543GS
...
7
MOUNT, Vibe Donut Type BS-87841GS
...
9
NUT, M8 Flange Serrated BS-67989GS
...
10
NUT, 1/4 - 20 Flange Nylok BS-194005GS
...
11
GRIP BS-198669GS
...
12
ASSY, Handle (Includes Item 11) BS-B193200GS
...
17
PIN, with Lanyard BS-B4135GS

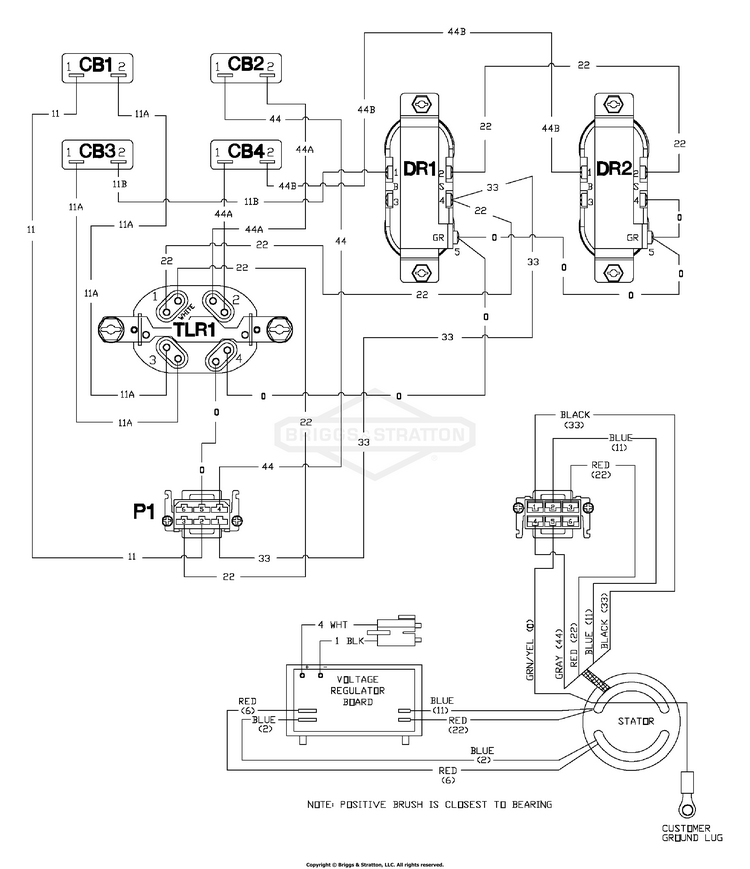

Wiring Diagram (194086)

...

No Parts Available for this Schematic

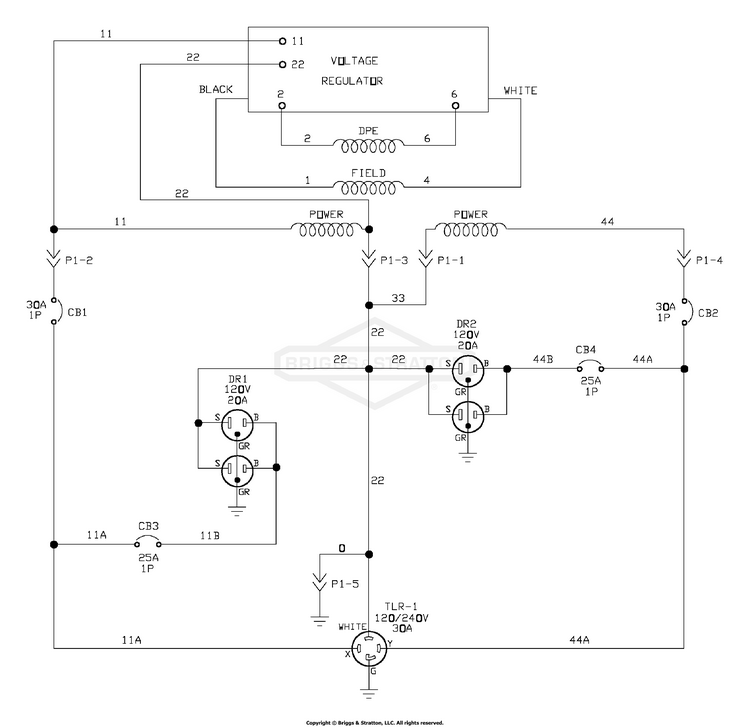

Wiring Schematic (194086)

...

No Parts Available for this Schematic
