Briggs & Stratton 020688-02 - 3,000 PSI Briggs & Stratton

Model: 020688-02 - 3,000 PSI

Save Part Not Listed?
product name

Main Unit (80022538)

...
...
1
BASE BS-700273
...
2
HANDLE-UPPER BS-707441
...
3
Billboard BS-707967
...
--
CLIP BS-B1797GS
...
4
PLUG, Hole BS-189332GS
...
5
Kit, Quick Connect Nozzles BS-707182
...
--
NOZZLE, QC, Black BS-198841GS
...
--
NOZZLE-QC, RED BS-709745
...
--
NOZZLE, QC, Yellow BS-195983AKGS
...
--
NOZZLE-QC WHITE BS-195983VGS
...
6
PUMP BS-707992
...
7
KIT, Hardware, Pump Mounting BS-700223
...
8
GUN BS-84003228
...
9
WAND-QC BS-706595
...
10
HOSE ASSEMBLY BS-84006753
...
11
PUSHNUT BS-315543GS
...
12
AXLE BS-314957GS
...
13
SHROUD BS-700246
...
14
MOUNT-VIBRATION BS-707979
...
15
KIT-O-RING BS-705001
...
16
KIT, Hardware, Handle BS-705848
...
17
KIT, Wheel BS-707442
...
900
ENGINE BS-121P02-0001-F1
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
Washer, Flat 1/2 (Not Illustrated) BS-22304GS
...
--
KEY (Not Illustrated) BS-23139GS
...
--
OIL-4 CYCLE 30W 18OZ. (Not Illustrated) BS-100005
...
--
TAG, Warning, English (Not Illustrated) BS-705854
...
--
PUMP Saver (Optional Accessory) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory) BS-6160

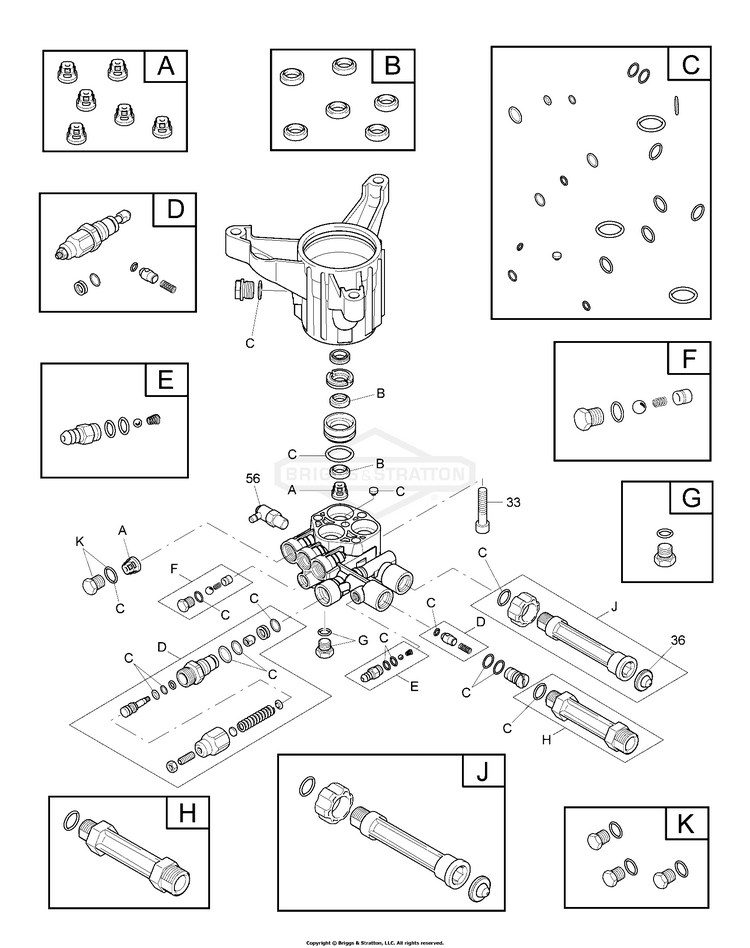

Pump (80022509)

...
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
56
VALVE, Thermal Relief BS-208673GS
...
A
* KIT, Check Valve BS-317897GS
...
B
* KIT, Water Seals BS-204084GS
...
C
* KIT-O-RINGS BS-706619
...
D
* KIT, Unloader BS-706610
...
E
*KIT, Chemical Injector BS-317787GS
...
F
* KIT, Easy Start BS-200349GS
...
G
* KIT, Grub Screw & Washer BS-200350GS
...
H
* FITTING BS-201497GS
...
J
* KIT, Water Inlet BS-201496GS
...
K
* KIT-PLUG BS-706780
...
--
PUMP Saver (Optional Accessory) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory) BS-6160
