Briggs & Stratton 020574-00 - 2,800 PSI PowerBoss

Model: 020574-00 - 2,800 PSI PowerBoss

Save Part Not Listed?
product name

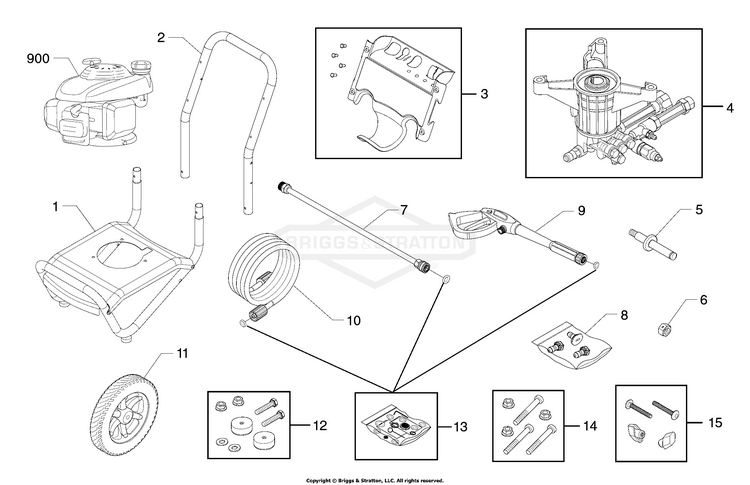

Main Unit (80007296)

...
...
1
BASE BS-705417
...
2
HANDLE BS-199110ZGS
...
3
BILLBOARD BS-705418
...
--
CLIP BS-B1797GS
...
4
PUMP BS-704667
...
--
FILTER, Garden Hose BS-B2384GS
...
--
VALVE, Thermal Relief BS-208673GS
...
5
AXLE BS-315134GS
...
6
NUT, 3/8-16 BS-703347
...
7
WAND-QC BS-706595
...
8
KIT-QC NOZZLES BS-705754
...
--
Nozzle, QC, Green BS-195983YGS
...
--
NOZZLE-QC RED BS-195983AAGS
...
--
NOZZLE, QC, Black BS-198841GS
...
9
GUN BS-84003228
...
10
HOSE ASSEMBLY BS-84006753
...
11
WHEEL BS-313835GS
...
12
KIT, Vibration Mount BS-192310GS
...
13
KIT-O-RING BS-705001
...
14
KIT, Hardware, Pump Mounting BS-315139GS
...
15
KIT, Hardware, Handle BS-B2203GS
...
--
KEY (Not Illustrated) BS-23139GS
...
--
BOTTLE, Oil (Not Illustrated) BS-100005
...
--
E-RING (Not Illustrated) BS-704293
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
TAG-WARNING, ENG (Not Illustrated) BS-707165
...
--
PUMP Saver (Optional Accessory - Not Included) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory - Not Included) BS-6059
...
--
PERFECT MIX CONCRETE BRICK & TILE CLEANER (Optional Accessory - Not Included) BS-6060

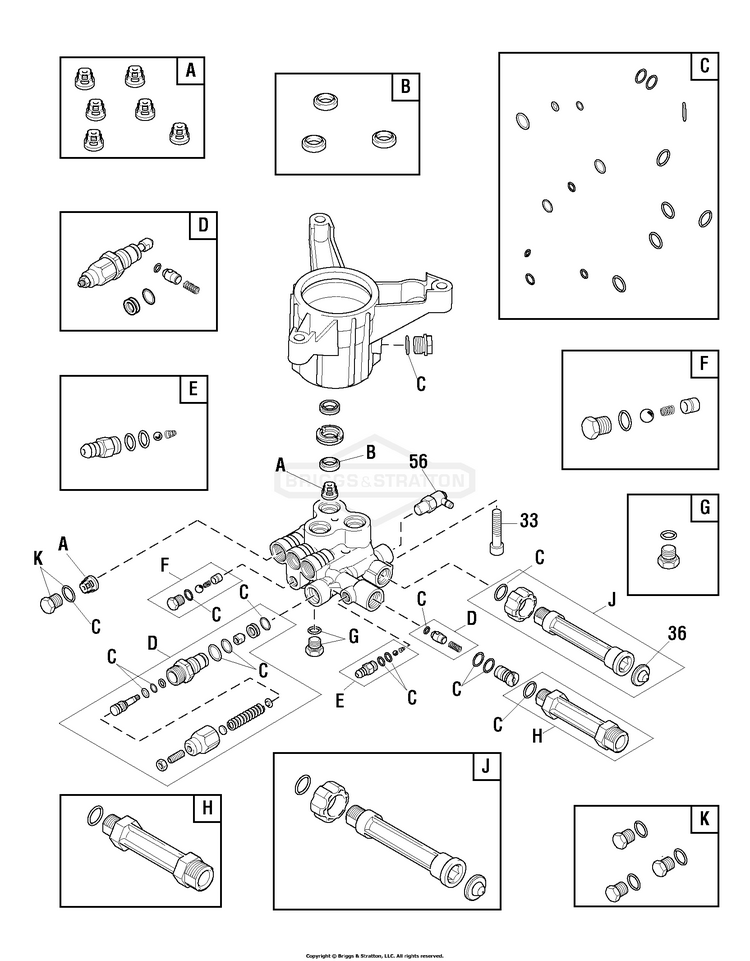

Pump (318643)

...
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
56
VALVE, Thermal Relief BS-208673GS
...
A
* KIT, Check Valve BS-317897GS
...
B
KIT. Water Seal BS-204084GS
...
C
* KIT-O-RING BS-319404GS
...
D
* KIT, Unloader BS-706610
...
E
*KIT, Chemical Injector BS-317787GS
...
F
* KIT, Easy Start BS-200349GS
...
G
* KIT, Grub Screw & Washer BS-200350GS
...
H
* FITTING BS-201497GS
...
J
* KIT, Water Inlet BS-201496GS
...
K
* KIT, Plug BS-317056GS
...
--
PUMP Saver (Optional Accessory - Not Included) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory - Not Included) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory - Not Included) BS-6160
