Briggs & Stratton 020548-00 - 3,300 PSI Craftsman

Model: 020548-00 - 3,300 PSI

Save Part Not Listed?
product name

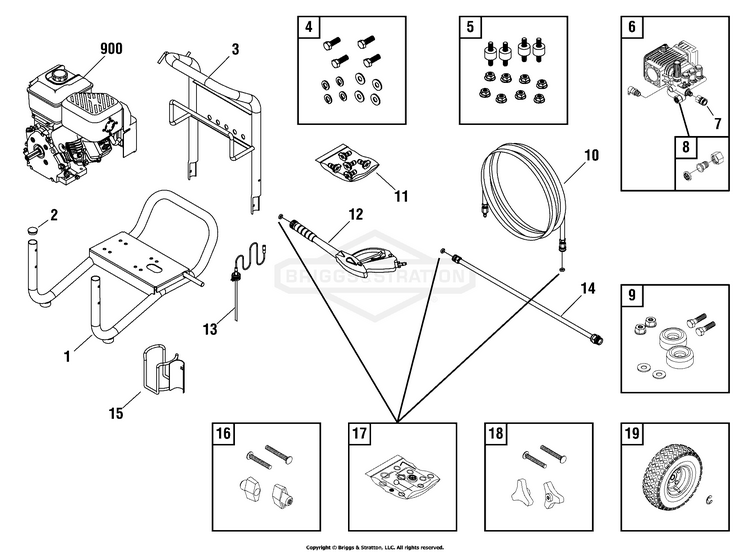

Main Unit (319290)

...
...
1
BASE BS-319887GS
...
2
PLUG BS-189332GS
...
3
HANDLE BS-315381ZGS
...
4
KIT-HARDWARE PUMP MOUNTING BS-202771GS
...
5
KIT-VIBRATION MOUNT BS-192134GS
...
6
PUMP BS-319888GS
...
7
FITTING BS-703824
...
8
ADAPTER-GARDEN HOSE BS-199310GS
...
9
MOUNT-VIBRATION BS-192310GS
...
10
HOSE BS-205695GS
...
11
KIT-QC NOZZLES BS-208324GS
...
--
NOZZLE-QC RED BS-195983NGS
...
--
NOZZLE-QC YELLOW BS-195983PGS
...
--
NOZZLE-QC GREEN BS-195983QGS
...
--
NOZZLE-QC WHITE BS-195983RGS
...
--
NOZZLE-QC BLACK BS-198841GS
...
12
GUN BS-704311
...
13
HOSE-CHEMICAL BS-204658GS
...
14
EXTENSION-QC BS-707471
...
15
WELDMENT BS-206566GS
...
16
KIT-HARDWARE HANDLE BS-B2203GS
...
17
KIT-O-RING BS-705001
...
18
KIT-HARDWARE HANDLE BS-203040GS
...
19
KIT-WHEEL BS-311470GS
...
--
E-RING BS-703977
...
900
* ENGINE BS-15T212-0111-F8
...
--
MANUAL-OPERATOR (Not Illustrated) BS-319227GS
...
--
AXLE (Not Illustrated) BS-191267ABGS
...
--
KEY (Not Illustrated) BS-23139DGS
...
--
GROMMET (Not Illustrated) BS-30809GS
...
--
100005 OIL 18OZ. (EA) (Not Illustrated) BS-100005WEB
...
--
DECAL SHEET, WARNINGS (Not Illustrated) BS-705920
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
TAG-WARNING (Not Illustrated) BS-705752
...
--
Garden Hose Quick Connect (Optional Accessory) BS-75187
...
--
Accessory Quick Connect (Optional Accessory) BS-75197
...
--
50' Replacement Hose (Optional Accessory) BS-75134
...
--
BOOT, Rear Axle, Thick Flange (Optional Accessory) BS-7075115YP
...
--
Turbo Nozzle (Optional Accessory) BS-75129
...
--
BELT,48 DECK DRIVE (Optional Accessory) BS-7075121YP
...
--
Pump Saver (Optional Accessory) BS-74403
...
--
PerfectMix™ Multi-Purpose & Vehicle Cleaner (Optional Accessory) BS-74404
...
--
HARNESS IGNITION 15 (Optional Accessory) BS-7074405YP
...
--
WIRE HARNESS, Ignition Switch, 13.5, 14.5, 17.5 B&S (Optional Accessory) BS-7074406YP

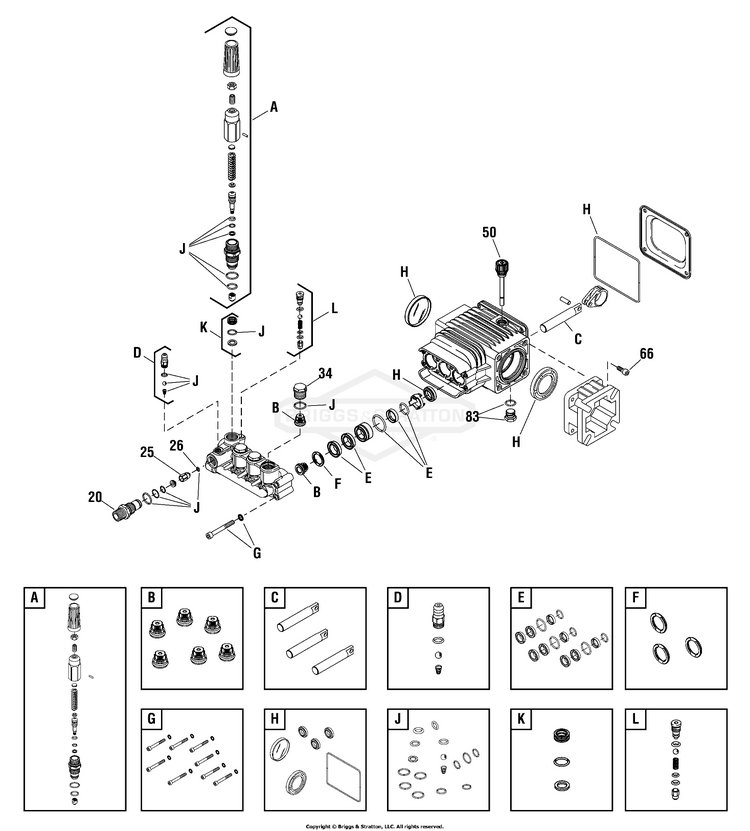

Pump (316371)

...
...
20
INJTR, Detergent 3/8 NPT BS-198851GS
...
25
JET BS-204860GS
...
26
O-RING BS-204859GS
...
34
PLUG BS-198850GS
...
50
CAP, Oil Dipstick BS-198849GS
...
66
SCREW, M8 x 20 BS-198297GS
...
83
PLUG-DRAIN BS-203034GS
...
A
* KIT, Unloader BS-198736GS
...
B
* KIT, Valves BS-198843GS
...
C
* KIT, Piston BS-198844GS
...
D
* KIT, Hose Tail BS-192914GS
...
E
* KIT, Water Seals BS-198845GS
...
F
* KIT, Support Ring BS-198848GS
...
G
* KIT, Hardware, Pump BS-198852GS
...
H
* KIT, Oil Seals BS-198846GS
...
J
* KIT, O-Rings BS-198847GS
...
K
* KIT, Seat BS-202902GS
...
L
* KIT, Ez Start BS-202800GS
...
--
FILTER, Garden Hose (Not Illustrated) BS-B2384GS
...
--
PUMP SAVER (Optional Accessory) BS-74403
...
--
OIL (Optional Accessory) BS-75127
