product name

Briggs & Stratton 020497-01 - 3,000 PSI Craftsman

Model: 020497-01 - 3,000 PSI

Save
 Part Not Listed?Part Not Listed?
product name

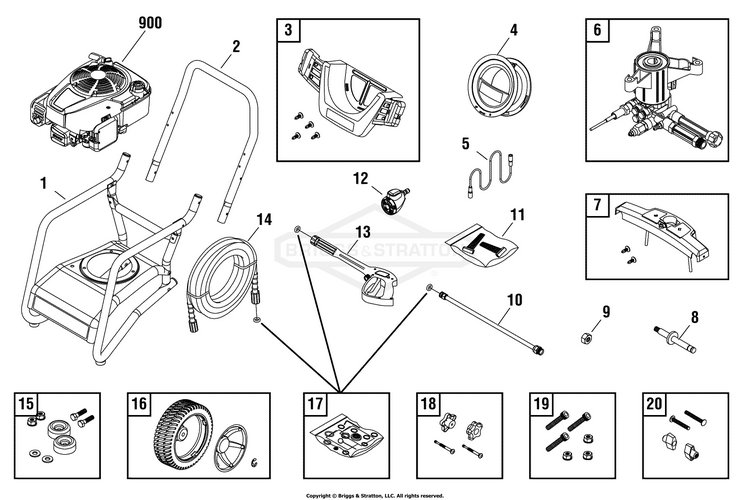

Main Unit (319157)

...
...
1
BASE BS-319974GS
...
2
HANDLE BS-314931ZGS
...
3
BILLBOARD BS-315850GS
...
--
CLIP BS-B1797GS
...
4
HOSE REEL BS-315859GS
...
5
HOSE BS-316031GS
...
6
PUMP BS-317593GS
...
7
BRACKET BS-316006GS
...
--
T-VALVE BS-315087GS
...
--
KNOB BS-315084GS
...
--
HOSE BS-315922GS
...
--
CLIP BS-B1797GS
...
8
AXLE BS-315134GS
...
9
NUT, 3/8-16 BS-703347
...
10
WAND-QC BS-706595
...
11
KIT, Strap BS-317099GS
...
12
NOZZLE, QC BS-314509GS
...
13
GUN BS-84003228
...
14
HOSE BS-202017GS
...
15
MOUNT, Vibration BS-192310GS
...
16
KIT, Wheel BS-202978GS
...
17
KIT-O-RING BS-705001
...
18
KIT, Handle BS-205910GS
...
19
KIT, Hardware, Pump Mounting BS-315139GS
...
20
KIT, Handle BS-B2203GS
...
900
* ENGINE BS-122S02-0126-F1
...
--
MANUAL, Operator's (Not Illustrated) BS-319153GS
...
--
KEY (Not Illustrated) BS-23139GS
...
--
RETAINER, RING, 1/2 (Not Illustrated) BS-703976
...
--
100005 OIL 18OZ. (EA) (Not Illustrated) BS-100005WEB
...
--
PLUG, Hole (Not Illustrated) BS-189332GS
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
TAG-WARNING (Not Illustrated) BS-705752
...
--
DECAL SHEET, WARNINGS (Not Illustrated) BS-705920
...
--
Garden Hose Quick Connect (Optional Accessory) BS-75187
...
--
Accessory Quick Connect (Optional Accessory) BS-75197
...
--
Dual Action Brush Kit (Optional Accessory) BS-75138
...
--
30' Replacement Hose (Optional Accessory) BS-75122
...
--
BOOT, Rear Axle, Thick Flange (Optional Accessory) BS-7075115YP
...
--
Turbo Nozzle (Optional Accessory) BS-75129
...
--
BELT,48 DECK DRIVE (Optional Accessory) BS-7075121YP
...
--
Surface Cleaner (Optional Accessory) BS-75247
...
--
PUMP SAVER (Optional Accessory) BS-74403
...
--
CARTRIDGE, Fresh Start (Optional Accessory) BS-33386
...
--
Detergent Siphon Hose & Filter (Optional Accessory) BS-75180
...
--
PerfectMix™ Multi-Purpose & Vehicle Cleaner (Optional Accessory) BS-74404
...
--
HARNESS IGNITION 15 (Optional Accessory) BS-7074405YP
...
--
WIRE HARNESS, Ignition Switch, 13.5, 14.5, 17.5 B&S (Optional Accessory) BS-7074406YP

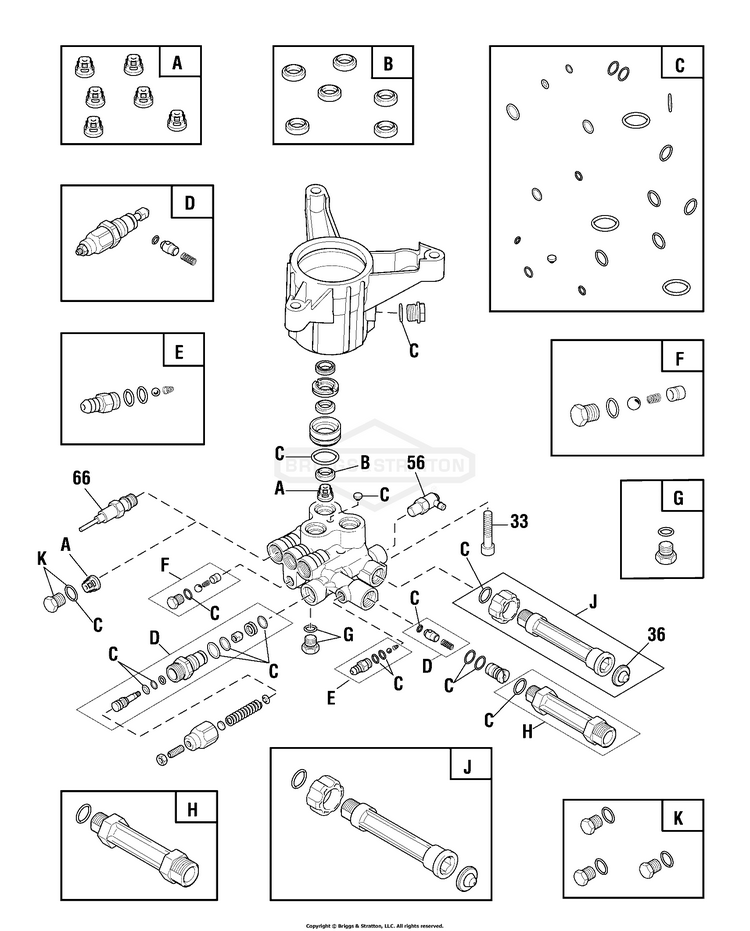

Pump (317593)

...
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
56
VALVE, Thermal Relief BS-208673GS
...
66
THROTTLE CONTROL BS-313390GS
...
A
* KIT, Check Valve BS-204082GS
...
B
* KIT, Water Seal BS-204084GS
...
C
* KIT, O-Ring BS-317789GS
...
D
KIT, UNLOADER BS-772235
...
E
* KIT, Chemical Injetcion BS-317787GS
...
F
KIT, EZ START BS-200349GS
...
G
SCREW, Grub BS-200350GS
...
H
FITTING BS-201497GS
...
J
* KIT, Water Inlet BS-201496GS
...
K
KIT, Plug BS-317056GS
...
--
PUMP SAVER (Optional Accessory) BS-74403
...
--
OIL BOTTLE, Pump (Optional Accessory) BS-75127
...
...
...
