Briggs & Stratton 020467-0 - 2,500 PSI Craftsman

Model: 020467-0 - 2,500 PSI

Save Part Not Listed?
product name

Popular Parts

Popular Parts

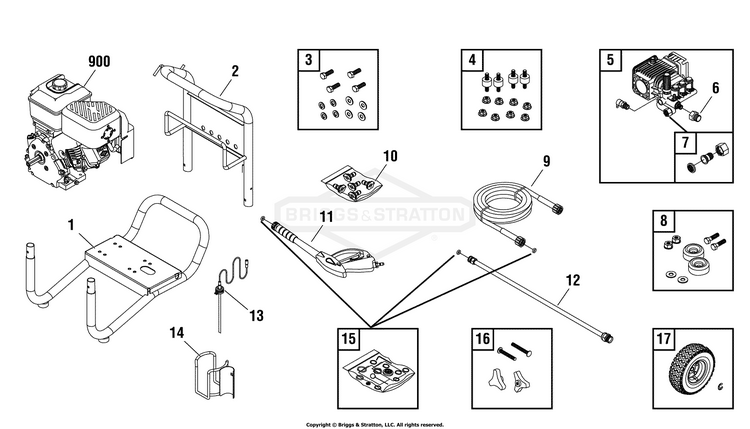

Main Unit (314257)

...
...
1
BASE BS-313188BTGS
...
2
HANDLE BS-313186BTGS
...
3
KIT, Hardware, Pump Mounting BS-202771GS
...
4
KIT, Vibration Mount BS-192134GS
...
5
PUMP BS-314816GS
...
6
ADAPTER BS-314605GS
...
7
ADAPTER, Garden Hose BS-199310GS
...
8
MOUNT, Vibration BS-192310GS
...
9
HOSE BS-209283GS
...
10
KIT, QC Nozzles BS-314826GS
...
--
NOZZLE, QC Red BS-195983SGS
...
--
NOZZLE, QC Yellow BS-195983TGS
...
--
NOZZLE, QC Green BS-195983QGS
...
--
NOZZLE, QC White BS-195983RGS
...
--
NOZZLE, QC Black BS-195846ZZGS
...
11
GUN BS-704312
...
12
EXTENSION-QC BS-707471
...
13
HOSE, Chemical BS-204658GS
...
14
WELDMENT BS-206566GS
...
15
KIT-O-RING BS-705001
...
16
KIT, Hardware, Handle BS-203040GS
...
17
KIT-WHEEL BS-311470GS
...
--
E-RING BS-703977
...
900
* ENGINE BS-15T212-0111-F8
...
--
MANUAL, Operator's (Not Illustrated) BS-314253GS
...
--
AXLE (Not Illustrated) BS-191267ABGS
...
--
KEY (Not Illustrated) BS-23139DGS
...
--
GROMMET (Not Illustrated) BS-30809GS
...
--
BOTTLE, Oil (Not Illustrated) BS-BB3061GS
...
--
DECAL, Engine (Not Illustrated) BS-314247GS
...
--
DECAL, Air Cleaner (Not Illustrated) BS-314248GS
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
TAG-WARNING (Not Illustrated) BS-705752
...
--
Garden Hose Quick Connect (Optional Accessory) BS-7175187GS
...
--
KIT,QC,METRIC (Optional Accessory) BS-312981GS
...
--
ROTATING BRUSH KIT (Optional Accessory) BS-7175124
...
--
30' REPLACEMENT HOSE (Optional Accessory) BS-7175122
...
--
O-RING REPAIR KIT (Optional Accessory) BS-7175116
...
--
TURBO NOZZLE (Optional Accessory) BS-7175129
...
--
25' EXTENSION HOSE (Optional Accessory) BS-7175121
...
--
KIT, Hose Reel (Optional Accessory) BS-192648GS
...
--
PUMP SAVER (Optional Accessory) BS-7174403
...
--
CARTRIDGE, Fresh Start (Optional Accessory) BS-7133386
...
--
Project Pro® PerfectMix™ Multi-Purpose & Vehicle Cleaner (Optional Accessory) BS-7174404
...
--
Project Pro® PerfectMix™ Concrete, Brick & Tile Cleaner (Optional Accessory) BS-7174405
...
--
Project Pro® PerfectMix™ Mold and Mildew Cleaner (Optional Accessory) BS-7174406

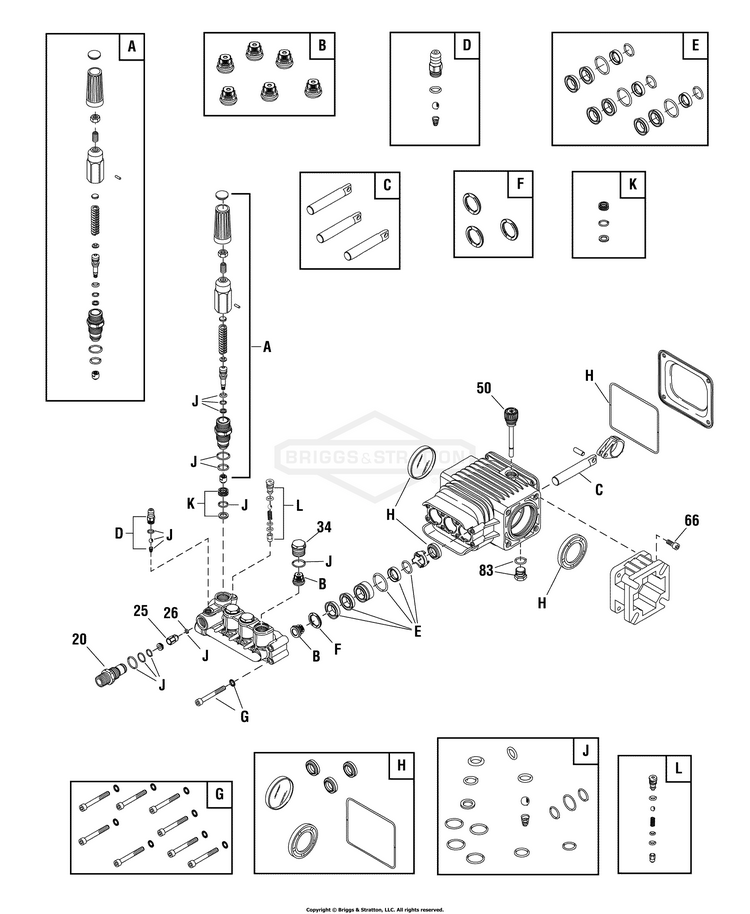

Pump (202302)

...
...
20
INJECTER-DETERGENT BS-198851GS
...
25
JET BS-204860GS
...
26
O-RING BS-204859GS
...
34
CAP-CHECK VALVE BS-198850GS
...
50
DIPSTICK BS-198849GS
...
66
SCREW BS-198297GS
...
83
PLUG-DRAIN BS-203034GS
...
A
* KIT, Unloader BS-198736GS
...
B
* KIT, Check Valve BS-198843GS
...
C
* KIT, Piston BS-198844GS
...
D
* KIT, Chemical Injection BS-192914GS
...
E
* KIT, Water Seal BS-198845GS
...
F
* KIT, Support Ring BS-198848GS
...
G
* KIT, Hardware BS-198852GS
...
H
* KIT, Oil Seals BS-198846GS
...
J
* KIT, O-Ring BS-198847GS
...
K
* KIT, Unloader Seat BS-202902GS
...
L
* KIT, Unloader BS-202800GS
...
--
FILTER, Garden Hose (Not Illustrated) BS-B2384GS
...
--
PUMP SAVER (Optional Accessory) BS-6039
...
--
OIL (Optional Accessory) BS-6033
