Briggs & Stratton 020446-1 - 2,200 PSI Power Boss

Model: 020446-1 - 2,200 PSI Power Boss

Save Part Not Listed?
product name

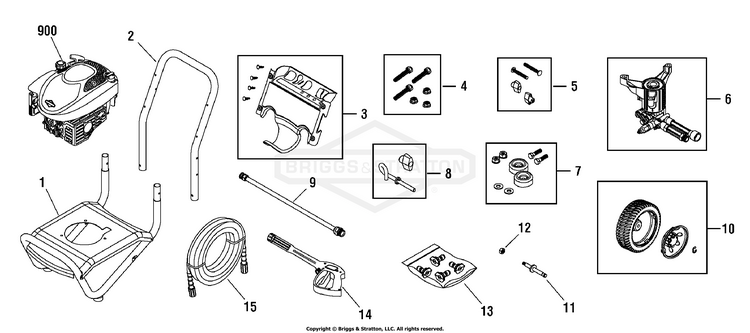

Main Unit (312538)

...
...
1
BASE BS-311996GS
...
2
HANDLE BS-199110ZGS
...
3
BILLBOARD BS-312276GS
...
--
CLIPS BS-B1797GS
...
4
KIT, Hardware, Pump Mounting BS-200199GS
...
5
KIT, Hardware, Handle BS-B2203GS
...
6
PUMP BS-207365GS
...
7
MOUNT, Vibration BS-192310GS
...
8
GUIDE, Rope BS-205912GS
...
9
WAND-QC BS-706595
...
10
KIT, Wheel BS-209891GS
...
--
HUBCAP BS-209604GS
...
--
RETAINER, RING, 1/2 BS-703976
...
11
AXLE BS-315134GS
...
12
NUT, 3/8-16 BS-703333
...
13
KIT, QC Nozzles BS-311909GS
...
--
NOZZLE, QC Black BS-198841GS
...
--
NOZZLE, QC Red BS-195983AEGS
...
--
NOZZLE, QC White BS-195983AHGS
...
--
NOZZLE, QC Yellow BS-195983AFGS
...
14
GUN BS-84003228
...
15
HOSE ASSEMBLY BS-84006753
...
--
MANUAL, Operator's (Not Illustrated) BS-312545GS
...
--
LABEL, Warning (Not Illustrated) BS-794693
...
--
COVER, Static Label (Not Illustrated) BS-793973
...
--
DECAL, Shroud (Not Illustrated) BS-312093GS
...
xx
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
xx
KEY (Not Illustrated) BS-23139GS
...
--
100005 OIL 18OZ. (EA) (Not Illustrated) BS-100005WEB
...
--
TAG, Warning (Not Illustrated) BS-195015GS
...
--
KIT-O-RING (Optional Accessory) BS-705001
...
--
PUMP SAVER (Optional Accessory) BS-6039

Pump (201112)

...
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
A
* KIT, Check Valve BS-200344GS
...
B
KIT. Water Seal BS-204084GS
...
C
* KIT, O-Ring BS-200346GS
...
D
KIT, UNLOADER BS-772235
...
E
* KIT, Chemical Injection BS-192914GS
...
F
* KIT, Easy Start BS-200349GS
...
G
* KIT, Grub Screw & Washer BS-200350GS
...
H
* FITTING BS-201497GS
...
J
* KIT, Water Inlet BS-201496GS
...
K
* KIT, Plug BS-317056GS
...
--
VALVE, Thermal Relief (Not Illustrated) BS-208673GS
...
--
PUMP Saver (Optional Accessory) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory) BS-6160
...
--
OIL BOTTLE (Optional Accessory) BS-6033
