Briggs & Stratton 020434-0 - 2,700 PSI Craftsman

Model: 020434-0 - 2,700 PSI

Save Part Not Listed?
product name

Main Unit

...
...
1
BASE BS-205909GS
...
--
AXLE BS-205411GS
...
2
HANDLE (POIGNÉE) BS-204257BNGS
...
3
BILLBOARD BS-311125GS
...
--
CLIPS, Tree BS-B1797GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
PUMP (Includes Ref. Nos. 6, 7, 8, 9, 10, 11 & 12) BS-311553GS
...
6
KEY BS-23139GS
...
7
VALVE, Thermal Relief BS-208673GS
...
8
KIT, Water Inlet BS-201496GS
...
9
FITTING BS-201497GS
...
10
KIT, Chemical Injection BS-192914GS
...
11
FILTER, Garden Hose BS-B2384GS
...
12
HOSE-CHEMICAL BS-705076
...
13
KIT, Handle BS-205910GS
...
14
KIT, Handle BS-B2203GS
...
15
KIT, Hardware Pump Mounting BS-203526GS
...
16
WIREFORM BS-206566GS
...
17
GUIDE, Rope BS-205912GS
...
18
KIT, Wheel BS-208797GS
...
--
RETAINER, RING, 1/2 BS-703976
...
--
WASHER, Wave BS-7026257MA
...
19
WRAP, Hose BS-204684GS
...
20
GUN BS-84003228
...
21
WAND-QC BS-706595
...
22
HOSE BS-204658GS
...
23
NOZZLE-QC BS-314509GS
...
24
KIT, Vibration Mount BS-192310GS
...
--
MANUAL, Operator's (Not Illustrated) BS-311142GS
...
--
DECAL SHEET, WARNINGS (Not Illustrated) BS-705920
...
--
DECAL, Shroud (Not Illustrated) BS-311124GS
...
--
OIL (Not Illustrated) BS-AB3061BGS
...
--
PLUG, Hole (Not Illustrated) BS-189332GS
...
--
TAG-WARNING (Not Illustrated) BS-705752
...
--
Garden Hose Quick Connect (Optional Accessory) BS-7175187GS
...
--
KIT,QC,METRIC (Optional Accessory) BS-312981GS
...
--
ROTATING BRUSH KIT (Optional Accessory) BS-7175124
...
--
REPLACEMENT HOSE, 30' (Optional Accessory) BS-7175122
...
--
O-RING REPAIR KIT (Optional Accessory) BS-7175116
...
--
NOZZLE, Turbo (Optional Accessory) BS-7175129
...
--
EXTENSION HOSE, 25' (Optional Accessory) BS-7175121
...
--
KIT, Hose Reel (Optional Accessory) BS-192648GS
...
--
PUMP SAVER (Optional Accessory) BS-7174403
...
--
CARTRIDGE, Fresh Start (Optional Accessory) BS-7133386
...
--
Project Pro® PerfectMix™ Multi-Purpose and Vehicle Cleaner (Optional Accessory) BS-7174404
...
--
Project Pro® PerfectMix™ Concrete, Brick, and Tile Cleaner (Optional Accessory) BS-7174405
...
--
Project Pro® PerfectMix™ Mold and Mildew Cleaner (Optional Accessory) BS-7174406

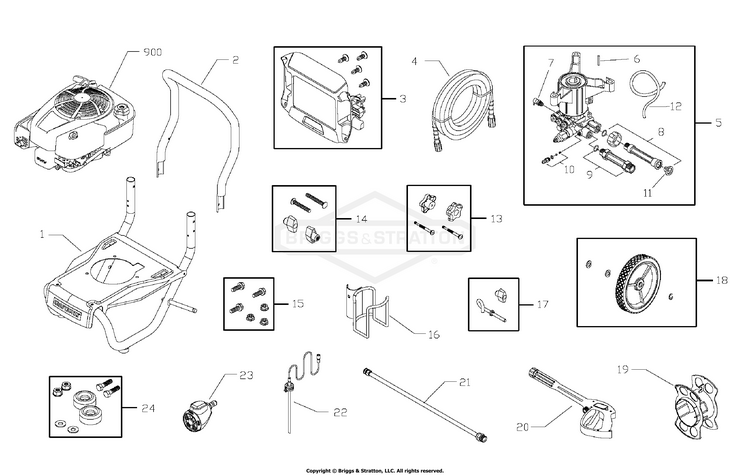

Schematic Image Zoomed
