Briggs & Stratton 020412-1 - 2,200 PSI Craftsman

Model: 020412-1 - 2,200 PSI

Save Part Not Listed?
product name

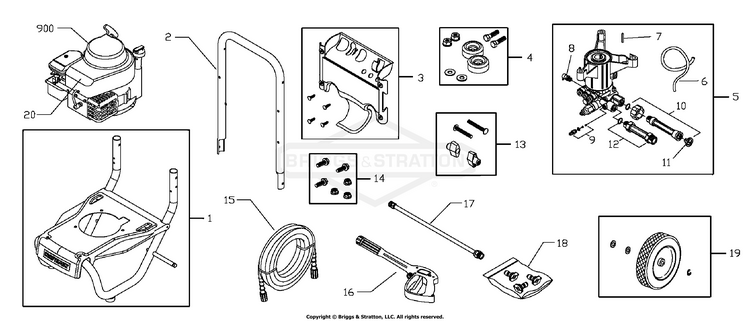

Main Unit

...
...
1
BASE (BASE) BS-312011GS
...
--
AXLE (GLISSER) BS-205411GS
...
2
HANDLE (POIGNÉE) BS-204650BUGS
...
3
BILLBOARD (PANNEAU D’AFFICHAGE) BS-310392GS
...
--
CLIPS (AGRAFES) BS-B1797GS
...
4
MOUNT, Vibration (MONTANT-ANTIVIBRATILE) BS-192310GS
...
5
PUMP BS-207365GS
...
6
HOSE-CHEMICAL BS-705076
...
7
KEY (CLÉ) BS-23139GS
...
8
VALVE, Thermal Relief (SOUPAPE-DÉCHARGE THERMIQUE) BS-208673GS
...
9
KIT, Chemical Injection (ENSEMBLE-INJECTION DE PRODUITS CHIMIQUES) BS-192914GS
...
10
KIT, Water Inlet (ENSEMBLE-ENTRÉE D’EAU) BS-201496GS
...
11
FILTER, Garden Hose (FILTRE-BOYAU D’ARROSAGE) BS-B2384GS
...
12
FITTING (RACCORD) BS-201497GS
...
13
KIT, Hardware, Handle (ENSEMBLE-QUINCAILLERIE DE POIGNÉE) BS-B2203GS
...
14
KIT, Hardware, Pump Mounting (ENSEMBLE-QUINCAILLERIE, MONTAGE DE POMPE) BS-203526GS
...
15
HOSE ASSEMBLY BS-84006753
...
16
GUN BS-84003228
...
17
WAND-QC BS-706595
...
18
KIT, QC Nozzles (ENSEMBLE-BUSES RACCORDS RAPIDES) BS-201324GS
...
--
NOZZLE, QC Red (BUSE-RACCORDS RAPIDES ROUGE) BS-195983AEGS
...
--
NOZZLE, QC, Green (BUSE-RACCORDS RAPIDES VERT) BS-195983QGS
...
--
NOZZLE, QC, Black (BUSE-RACCORDS RAPIDES NOIRE) BS-198841GS
...
19
KIT, Wheel (ENSEMBLE-ROUE) BS-208402GS
...
--
WASHER, Wave (RONDELLE-ONDULÉE) BS-7026257MA
...
--
RETAINER, RING, 1/2 BS-703976
...
20
DECAL (DÉCALQUE) BS-310386GS
...
900
* ENGINE (MOTEUR) BS-10T702-0114-B1
...
--
MANUAL, Operator's (MANUEL-UTILISATION) (Not Illustrated) (Articles non illustrés) BS-312535GS
...
--
OIL BOTTLE (BOUTEILLE D’HUILE) (Not Illustrated) (Articles non illustrés) BS-AB3061BGS
...
--
DECAL, RECOIL (DÉCALQUE, RECULER) (Not Illustrated) (Articles non illustrés) BS-200658GS
...
--
LABEL, Warning (ÉTIQUETTE-AVERTISSEMENT) (Not Illustrated) (Articles non illustrés) BS-794693
...
--
TAG, Warning (ÉTIQUETTE-AVERTISSEMENT) (Not Illustrated) (Articles non illustrés) BS-195015GS
...
--
O-RING MAINTENANCE (ENTRETIEN DU JOINT TORIQUE) (Optional Accessory) (Accessoires en option non illustrés) BS-191922GS
...
--
HOUSE WASH CONCENTRATE (Concentré de nettoyant ménager) (Optional Accessory) (Accessoires en option non illustrés) BS-7167300GS
...
--
DECK WASH CONCENTRATE (Concentré de nettoyant de pont) (Optional Accessory) (Accessoires en option non illustrés) BS-7167301GS
...
--
VEHICLE / BOAT WASH CONCENTRATE (Concentré de nettoyant de véhicule/bateau) (Optional Accessory) (Accessoires en option non illustrés) BS-7167302GS
...
--
DEGREASER CONCENTRATE (Concentré de dégraissant) (Optional Accessory) (Accessoires en option non illustrés) BS-7167303GS
