Briggs & Stratton 020337-0 - 2,550 PSI Troy-Bilt

Model: 020337-0 - 2,550 PSI Troy-Bilt

Save Part Not Listed?
product name

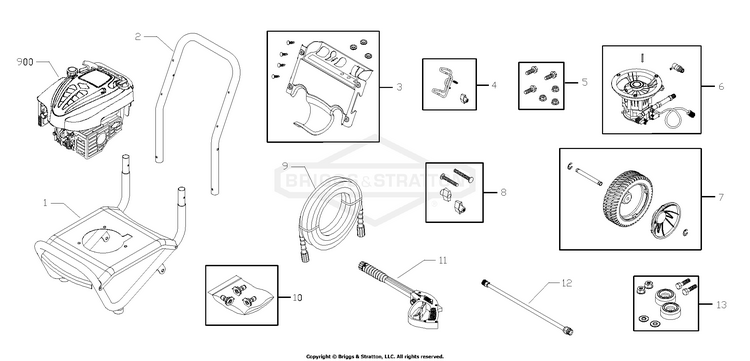

Main Unit

...
...
1
ASSY, Base BS-201366GS
...
2
HANDLE BS-199110BVGS
...
3
KIT, Billboard w/Clips & Decals BS-201371GS
...
--
Clips, Tree BS-195964GS
...
--
GROMMET BS-30809GS
...
4
KIT, Gun Holder BS-201661GS
...
5
KIT, Pump Mounting Hardware BS-192649GS
...
6
ASSY, Pump BS-202605GS
...
--
Key BS-23139GS
...
--
VALVE, Thermal Relief BS-208673GS
...
7
KIT, Wheel BS-202483GS
...
--
RETAINER, RING, 1/2 BS-703976
...
--
Hubcap BS-200519GS
...
--
Axle BS-201313GS
...
8
KIT, Handle Connector BS-B2203GS
...
9
HOSE ASSEMBLY BS-84006753
...
10
KIT, Nozzles BS-201324GS
...
--
Nozzle, Soap BS-198841GS
...
--
Nozzle, QC, Red BS-195983AEGS
...
--
Nozzle, QC, Green BS-195983QGS
...
11
GUN BS-84003228
...
12
WAND-QC BS-706595
...
13
KIT, Vibration Mount BS-192310GS
...
--
Manual, Operator’s Parts Not Illustrated BS-206208GS
...
--
DECAL, 6.75HP Parts Not Illustrated BS-201331GS
...
--
BOTTLE, Oil Parts Not Illustrated BS-100005
...
--
COVER, Static/Label Assy Parts Not Illustrated BS-790037
...
--
GOGGLES Parts Not Illustrated BS-87815GS
...
--
TAG-WARNING Parts Not Illustrated BS-705752
...
--
KIT-O-RING Optional Accessories BS-705001
...
--
PUMP SAVER Optional Accessories BS-6039

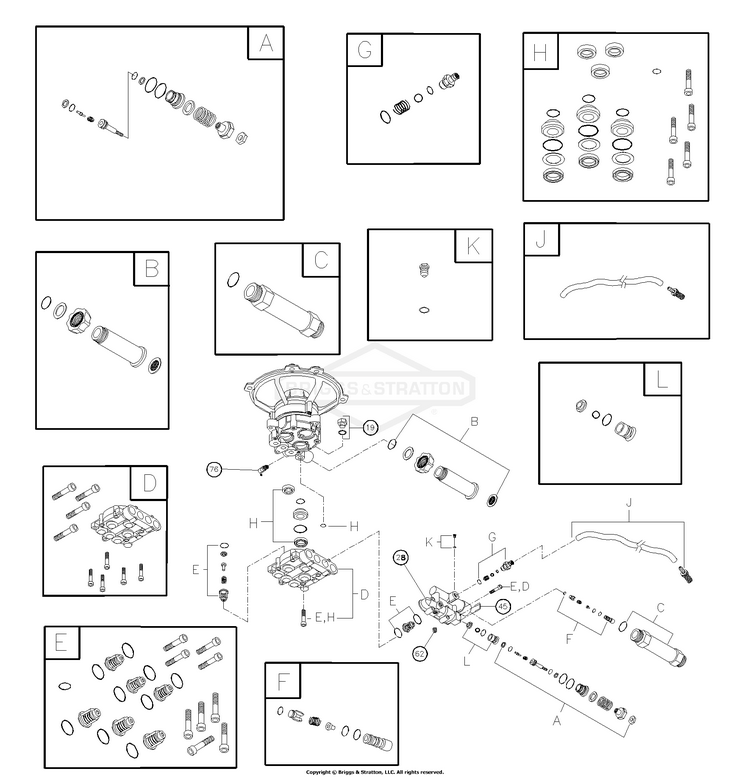

Pump

...
...
19
CAP, Oil Service kits include all parts shown within the box. BS-190571GS
...
28
MANIFOLD Service kits include all parts shown within the box. BS-190627GS
...
45
PIN Service kits include all parts shown within the box. BS-190578GS
...
62
CAP, 1/8 Service kits include all parts shown within the box. BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER STEM Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ALUM Service kits include all parts shown within the box. BS-190632GS
...
C
FITTING Service kits include all parts shown within the box. BS-201497GS
...
D
KIT, HEAD ALUMINIUM Service kits include all parts shown within the box. BS-203631GS
...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
xx
FILTER, Inlet Parts Not Illustrated BS-B2384GS
