Briggs & Stratton 020241-0 - 2,600 PSI Troy-Bilt

Model: 020241-0 - 2,600 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

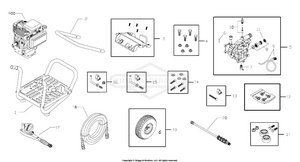

Main Unit

...
...
1
Base, w/Mounts BS-196695GS
...
2
Handle BS-P194567GS
...
3
Assy, Billboard w/Decals BS-196780GS
...
xx
Clip, Tree BS-195964GS
...
4
Kit, Engine Mounting Hardware BS-192318GS
...
5
PUMP BS-317054GS
...
6
Key BS-23139DGS
...
7
VALVE, Thermal Relief BS-208673GS
...
8
Kit, Water Inlet BS-190670GS
...
9
Kit, Chemical Hose BS-189971GS
...
10
Kit, Chemical Injection BS-190593GS
...
11
Filter BS-B2384GS
...
12
KIT, QC Nozzles BS-208324GS
...
xx
Nozzle, Plastic, Soap BS-198841GS
...
xx
Nozzle, QC, Red BS-195983NGS
...
xx
Nozzle, QC, Yellow BS-195983PGS
...
xx
Nozzle, QC, White BS-195983RGS
...
13
Kit, Handle Hardware BS-B2203GS
...
14
Kit, Pump Mounting Hardware BS-192131GS
...
15
Kit, Hook, Lower Handle BS-193819GS
...
16
Kit, Hook, Upper Handle BS-194264GS
...
17
GUN BS-704312
...
18
HOSE ASSEMBLY BS-84006753
...
19
Kit, Wheel BS-194509GS
...
xx
E-RING BS-703977
...
20
EXTENSION, QC BS-207796GS
...
21
Kit, Vibration Mount BS-192310GS
...
xx
Manual, Engine Items Not Illustrated BS-B3294GS
...
xx
Manual, Operator’s Items Not Illustrated BS-196019GS
...
xx
BOTTLE, Oil Items Not Illustrated BS-100005
...
xx
Axle Items Not Illustrated BS-191267SGS
...
xx
Goggles Items Not Illustrated BS-87815GS
...
xx
Decal, Honda Choke Items Not Illustrated BS-194524GS
...
xx
TAG-WARNING Items Not Illustrated BS-705752
...
xx
KIT-O-RING Optional Accessories Not Illustrated BS-705001
...
xx
Pump Saver Optional Accessories Not Illustrated BS-6039

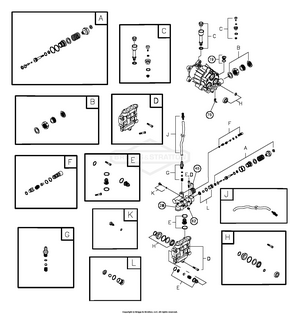

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190673GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET Service kits include all parts shown within the box. BS-190670GS
...
C
KIT, BREATHER TUBE Service kits include all parts shown within the box. BS-190669GS
...
D
KIT, HEAD BRASS Service kits include all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
OIL BOTTLE Not Illustrated BS-190585GS
...
FILTER, Inlet Not Illustrated BS-B2384GS
...
FILTER, Inlet, Bag of 10 Not Illustrated BS-186452GS

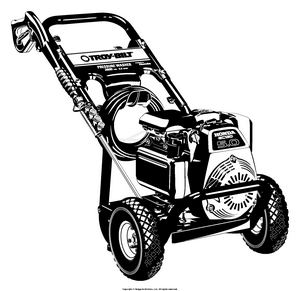

View of 020241-0 2,600 PSI Troy-Bilt

...

No Parts Available for this Schematic

...
...
...
