Briggs & Stratton 020238-0 - 2,000 PSI SpeedClean

Model: 020238-0 - 2,000 PSI SpeedClean

Save Part Not Listed?
product name

Main Unit

...
...
1
BASE BS-196876GS
...
2
HANDLE BS-B195960GS
...
3
HOSE ASSEMBLY BS-84006753
...
4
KIT, Pump/Engine Mounting Hardware BS-192525GS
...
5
PIN, 3/32 X 1.6 BS-703300
...
6
VALVE, Thermal Relief BS-208673GS
...
7
WAND-ADJUSTABLE BS-205015CGS
...
8
ORIFICE BS-193609DGS
...
9
GUN BS-84003228
...
10
KIT, Fastening Handle BS-B2203GS
...
11
KIT,Vibration Mount BS-192310GS
...
12
KIT,Wheel BS-196895GS
...
13
KEY BS-23139GS
...
14
Assy, Pump (see "Pump") BS-206383GS
...
MANUAL, Owners Item Not Illustrated BS-196150GS
...
MANUAL, Operator's Item Not Illustrated BS-277038WST
...
BOTTLE, Oil Item Not Illustrated BS-100005
...
GOGGLES Item Not Illustrated BS-87815GS
...
LABEL,Warning Item Not Illustrated BS-275034
...
AXLE Item Not Illustrated BS-195959GS
...
KIT, Decal, Srv Item Not Illustrated BS-196897GS

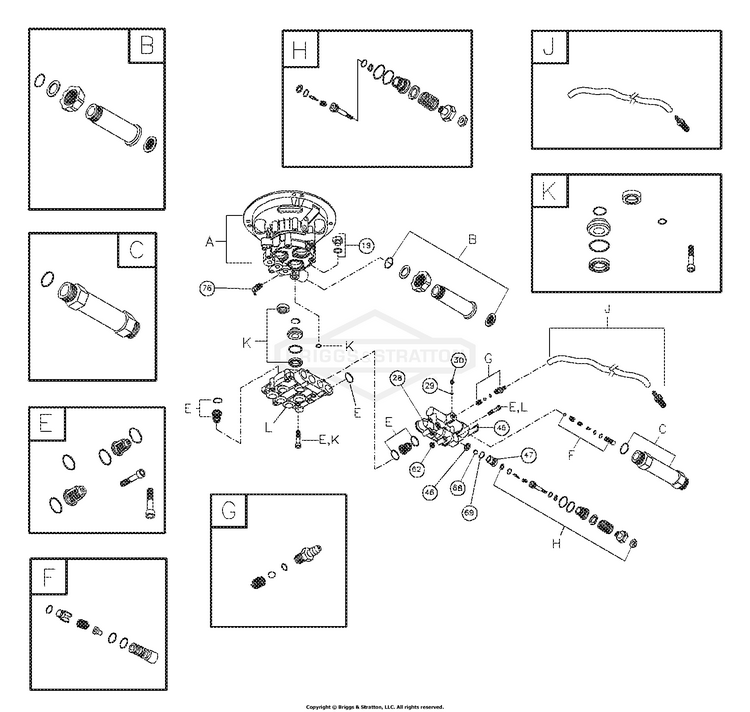

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
45
PIN BS-190578GS
...
46
VALVE, Seat Plate, Plastic BS-190629GS
...
47
VALVE, Seat, Plastic BS-190630GS
...
62
CAP, 1/8 BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
ASSY, CASE, PISTON Service kit includes all parts shown within the box. BS-~NSP
...
B
KIT,WATER INLET,ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kit includes all parts shown within the box. BS-190628GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit includes all parts shown within the box. BS-190636GS
...
L
KIT, HEAD ALUM Service kit includes all parts shown within the box. BS-~NSP
...
OIL BOTTLE Part Not Illustrated BS-190586GS
