Briggs & Stratton 020202-0 - 2,800 PSI Craftsman

Model: 020202-0 - 2,800 PSI

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (not shown) BS-190585GS
...
A
KIT, UNLOADER Service kit includes all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ANODIZED Service kit includes all parts shown within the box. BS-190588GS
...
C
KIT, OUTLET, ANODIZED Service kit includes all parts shown within the box. BS-190589GS
...
D
KIT, HEAD BRASS Service kit includes all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kit includes all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kit includes all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kit includes all parts shown within the box. BS-193972GS

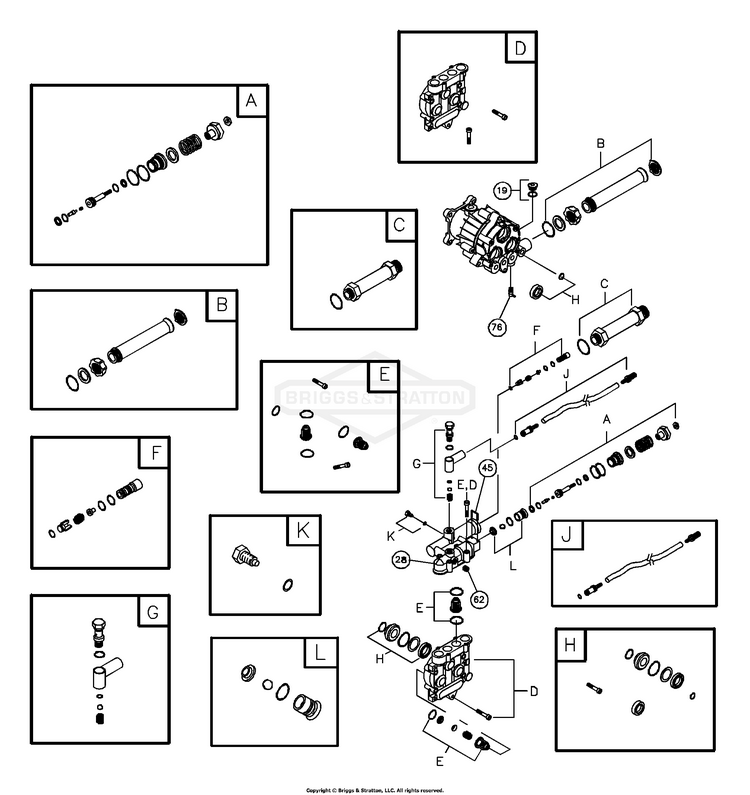

Schematic Image Zoomed
