product name

Bolens BL150 41CD150G765 41CD150G765 BL150 Gas String Trimmer

Model: BL150 41CD150G765 41CD150G765 BL150

Save
 Part Not Listed?Part Not Listed?
product name

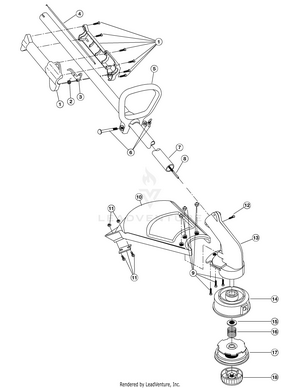

Boom & Trimmer Parts BL150 2006 & prior

...
...
1
THROTTLE GRIP ASSEMBLY WOOP MTD-753-04927
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable MTD-753-04901
...
5
D-HANDLE AND HARDWARE MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
HOUSING ASSEMBLY:DR MTD-753-04330
...
8
Flexible Drive Shaft MTD-753-04251
...
9
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
10
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
11
ASSEMBLY, GUARD AND BLADE MTD-791-180548
...
12
Blade Assembly MTD-791-180553
...
13
Anti-Rotation Screw MTD-791-145569
...
14
ASSEMBLY, GEARBOX MTD-791-180549
...
15
Outer Spool and Eyelet Assembly MTD-791-153619
...
16
Retainer (10 pack) MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly MTD-791-153577B
...
xx
Shoulder Strap (not shown) MTD-791-682075B

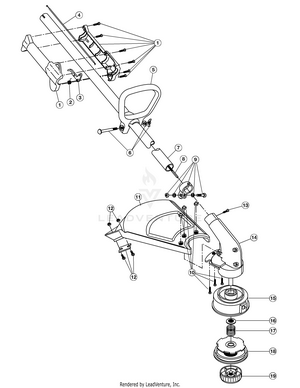

Boom & Trimmer Parts BL150 2007 & after

...
...
1
THROTTLE GRIP ASSEMBLY WOOP MTD-753-04927
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable MTD-753-04901
...
5
D-HANDLE AND HARDWARE MTD-791-153064
...
6
D-Handle Hardware Assembly MTD-791-181587
...
7
HOUSING ASSEMBLY:DR MTD-753-04330
...
8
FLEXIBLE DRIVE SHAFT MTD-753-05211
...
9
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
10
ASSEMBLY, GUARD AND BLADE MTD-791-180548
...
11
Blade Assembly MTD-791-180553
...
12
Anti-Rotation Screw MTD-791-145569
...
13
GEARBOX ASSEMBLY MTD-753-05185
...
14
Outer Spool and Eyelet Assembly (includes 15) MTD-791-153619
...
15
Retainer MTD-791-610660
...
16
Spring MTD-791-610317B
...
17
Inner Reel MTD-753-1155
...
18
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Optional Accessories MTD-791-153577B

Engine Assembly 2007 & after

...
...
1
Air Cleaner Cover Assembly (includes 2 & 34) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
6
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
7
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
8
Carburetor Assembly (includes 9 & 19) MTD-753-04408
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
PAD, REAR MOUNT PAD MTD-791-612134
...
16
TANK ASSEMBLY:F MTD-753-04285
...
17
Fuel Cap Assembly MTD-791-182612
...
18
Fuel Return Line MTD-791-181086
...
19
Fuel Line Assembly MTD-791-682039
...
20
PAD, FRONT MOUNTING MTD-791-145308
...
21
Flywheel Assembly MTD-753-05240
...
22
Screw, 10-9 x .50 MTD-1755
...
23
NUT, SQUARE DRIVE MTD-791-610303
...
24
RET ASSEMBLY:SPG ASSIST MTD-753-04928
...
25
Palnut MTD-753-04288
...
26
START ASSEMBLY:S/A:PUL MTD-753-04823
...
27
Recoil Spring MTD-753-04286
...
28
RET:EYELET:S/A MTD-753-04824
...
29
Pull Handle MTD-631-04164B
...
30
Rope Guide MTD-791-611061
...
31
Rope MTD-791-613103
...
32
Switch Assembly MTD-791-182405
...
33
SCREW:10-32X.5 MTD-1964
...
34
Cover Screw MTD-791-181345
...
35
SCREW:8-18 MTD-753-04466
...
36
CLAMP ASSEMBLY MTD-753-05056
...
37
Starter Housing Assembly (Includes 22, 24-36 & 39) MTD-753-05422
...
38
EXT ASSEMBLY:SHRD MTD-753-05091
...
39
LEAD-WIRE 4" BK MTD-753-04290
...
40
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
41
TAB, GROUND MTD-791-611063
...
42
Spark Plug MTD-791-610311B
...
43
Muffler Assembly (Includes 44, 45 & Spark Arrestor) MTD-753-05169
...
44
Exhaust Gasket MTD-753-04619
...
45
Muffler Mounting Bolts MTD-710-04188A
...
46
Cylinder Assembly (includes 48 & 49) MTD-753-04814
...
47
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
48
Cylinder Gasket MTD-753-04182
...
49
Cylinder Bolt MTD-791-182723
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
SHORTBLOCK:31CC:N/C:-9 Not Shown MTD-753-04826

Engine Parts 2006 & prior

...
...
1
Air Cleaner Cover Assembly (includes 2 & 35) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
6
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
7
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
8
Carburetor Assembly (includes 9 & 20) MTD-753-04408
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE SVC ASSEMBLY:45. MTD-753-04321
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:F MTD-753-04285
...
18
Fuel Cap Assembly MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
Flywheel Assembly MTD-753-05240
...
23
Plate Screw MTD-743-1202
...
24
NUT, SQUARE DRIVE MTD-791-610303
...
25
RET ASSEMBLY:SPG ASSIST MTD-753-04928
...
26
Palnut MTD-753-04288
...
27
START ASSEMBLY:S/A:PUL MTD-753-04823
...
28
Recoil Spring MTD-753-04286
...
29
RET:EYELET:S/A MTD-753-04824
...
30
Pull Handle MTD-631-04164B
...
31
Rope Guide MTD-791-611061
...
32
Rope MTD-791-613103
...
33
Switch Assembly (includes 38) MTD-791-182405
...
34
SCREW:10-32X.5 MTD-1964
...
35
Cover Screw MTD-791-181345
...
36
SCREW:8-18 MTD-753-04466
...
37
CLAMP ASSEMBLY MTD-753-05056
...
38
Starter Housing Assembly (includes 22 & 24-36) MTD-753-05422
...
39
EXT-SHROUD W/HOLE MTD-753-04702
...
40
LEAD-WIRE 4" BK MTD-753-04290
...
41
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109
...
42
TAB, GROUND MTD-791-611063
...
43
Spark Plug MTD-791-610311B
...
44
Muffler Assembly (includes 47, 48 & spark arrestor) MTD-753-05169
...
45
Exhaust Gasket MTD-753-04619
...
46
Muffler Mounting Bolts MTD-710-04188A
...
47
Cylinder Assembly (includes 54 & 55) MTD-753-04814
...
48
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
49
Cylinder Gasket MTD-753-04182
...
50
Cylinder Bolt MTD-791-182723
...
xx
SCREEN-SPA MTD-753-04689
...
xx
Piston Ring (not shown) MTD-753-1209
...
xx
SHORTBLOCK:31CC:N/C:-9 MTD-753-04826
...
...
...
...
...
