Bolens BL150 41BD150G163 41BD150G163 BL150 Gas String Trimmer

Model: BL150 41BD150G163 41BD150G163 BL150

Save
 Part Not Listed?Part Not Listed?
product name

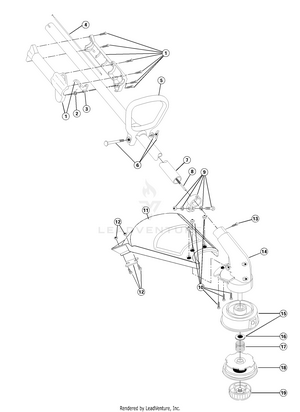

Boom & Trimmer Parts

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY (includes 2 & 3) MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable MTD-791-182068
...
5
D-HANDLE AND HARDWARE MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
HOUSING ASSEMBLY:DR MTD-753-04250
...
8
Flexible Drive Shaft MTD-753-04251
...
9
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
10
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
11
ASSEMBLY, GUARD AND BLADE MTD-791-180548
...
12
Blade Assembly MTD-791-180553
...
13
Anti-Rotation Screw MTD-791-145569
...
14
ASSEMBLY, GEARBOX (includes 15 & 16) MTD-791-180549
...
15
Outer Spool and Eyelet Assembly MTD-791-153619
...
16
Retainer (10 pack) MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Optional Accessory; Not Shown MTD-791-153577B

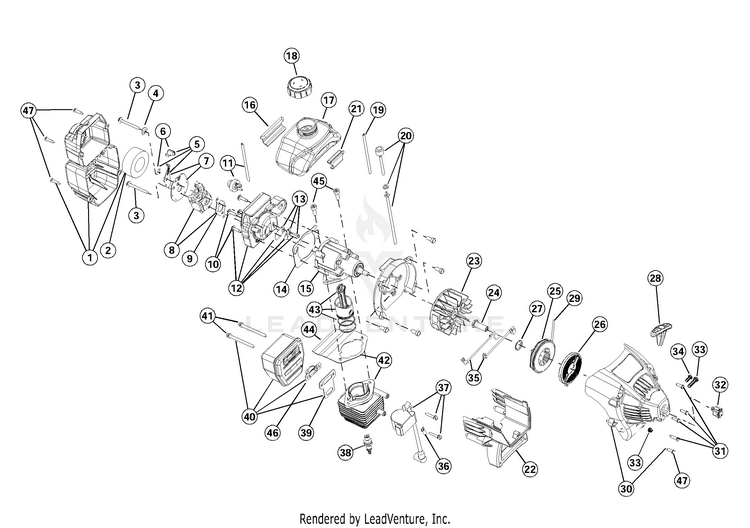

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 47) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
CARBURETOR ASSEMBLY W/FUEL LINE (includes 9 & 20) MTD-753-04333
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 13-14) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE SVC ASSEMBLY:45. (includes 10) MTD-753-04321
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:F (includes 18-20) MTD-753-04285
...
18
Fuel Cap Assembly MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
EXTN-SHROUD W/STAN MTD-753-04611
...
23
Flywheel Assembly MTD-753-05240
...
24
NUT, SQUARE DRIVE MTD-791-610303
...
25
PULLEY:START MTD-753-1199
...
26
Recoil Spring MTD-753-04286
...
27
Pulley Retainer MTD-753-04288
...
28
Pull Handle MTD-631-04164B
...
29
Rope MTD-791-613103
...
30
Starter Housing Assembly (includes 22 & 24-36) (includes 25-29, 31) MTD-753-05422
...
31
Housing Screws MTD-791-181501
...
32
On/Off Switch MTD-791-182405
...
33
SCREW:CLMPNG W/NUT MTD-753-04291
...
34
Anti-Rotation Screw MTD-791-182519
...
35
LEAD-WIRE 4" BK MTD-753-04290
...
36
TAB, GROUND MTD-791-611063
...
37
Module Assembly MTD-753-04336
...
38
Spark Plug MTD-791-610311B
...
39
Muffler Gasket MTD-753-04619
...
40
MUFFLER ASM CAT NLAUD (includes 39, 41 & 46) MTD-753-05169
...
41
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
42
Cylinder Assembly (includes 51 & 52) (includes 44) MTD-753-04814
...
43
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
44
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
45
Cylinder Bolt MTD-791-182723
...
46
SCRN:SPK ARST:A-31 MTD-791-182747
...
47
Cover Screws MTD-791-181345
...
xx
ENGINE GASKET KIT Not Shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit Not Shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit Not Shown MTD-791-180091
...
xx
Piston Ring Set Not Shown MTD-753-1209
...
xx
SHBLK:31CC (includes 10, 15, 39, 42-45); Not Shown MTD-753-04322
...
...
...
...
...
