Bolens BL110 41BD130G965 Gas String Trimmers

Model: BL110 41BD130G965

Save
 Part Not Listed?Part Not Listed?
product name

Engine Assembly

...
...
1
HOUSING ASSEMBLY RR  (Incl. 2) MTD-753-09084
...
2
SCREW, #8-16X.750 PH MTD-791-181345
...
3
SHORT BLOCK (Incl. Crankcase, Cylinder, Piston, 4 - 13) MTD-753-09145
...
4
O-RING SEAL CRANKCASE MTD-753-09086
...
5
SCREW 5/16-18x3/4 T40 MTD-710-06241
...
6
O-RING SEAL CYLINDER MTD-753-09085
...
7
SPARK PLUG MTD-753-06847
...
8
MODULE ASSEMBLY MTD-753-09104
...
9
POWER SHAFT ADAPTER MTD-711-07481-1
...
10
SPACER CRANKSHAFT MTD-753-09087
...
11
BELL WASHER MTD-753-06247
...
12
FLYWHEEL ASSEMBLY MTD-753-09125
...
13
WOODRUFF KEY #403-.125 x .375 MTD-914-04016
...
14
INTAKE ASSEMBLY  (Incl. 15) MTD-753-09105
...
15
INSL/CYL SEAL MTD-721-04973
...
16
CARBURETOR MTD-753-06190
...
17
GASKET CARB MTD-753-06253
...
18
AIR CLEANER  (Incl. 19) MTD-753-09324
...
19
AIR FLITER MTD-753-06417
...
20
FUEL TANK ASSEMBLY  (Incl. 21) MTD-753-08751
...
21
FUEL CAP ASSEMBLY MTD-791-182612
...
22
STARTER HOUSING  (Incl. 23 & 24) MTD-753-09325
...
23
SCREW #10-24X11/16 T-25 MTD-791-182195
...
24
SW, MOMENTARY ON/O MTD-791-182405
...
25
THROTTLE CABLE MTD-746-05451
...
26
SHORT WIRE LEAD MTD-794-00184
...
27
MUFFLER ASSEMBLY MTD-753-09144

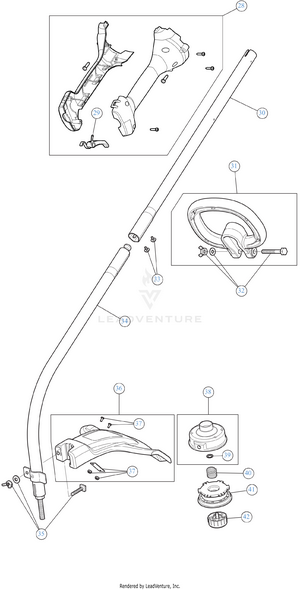

General Assembly

...
...
28
THROTTLE GRIP ASSEMBLY (Incl. 29) MTD-753-09146
...
29
THROTTLE TRIGGER MTD-731-13693
...
30
UPPER BOOM ASSEMBLY MTD-753-09147
...
31
HANDLE  (Incl. 32) MTD-753-06198
...
32
HANDLE HWD MTD-753-06199
...
33
SCREW 8-32X3/8 MTD-710-06562
...
34
LOWER BOOM ASSEMBLY MTD-753-08687
...
35
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
36
GUARD ASSEMBLY  (Incl. 37) MTD-753-06200
...
37
BLADE ASSEMBLY CUTOFF MTD-753-06803
...
38
OUTER REEL W/RETAINING RING (Incl. 39) MTD-753-04284
...
39
RETAINER .625 OD 2 MTD-791-610660
...
40
SPRING-SPOOL MTD-791-610317B
...
41
REEL-INNER SPOOL MTD-753-1155
...
42
BUMP HEAD KNOB ASSEMBLY MTD-791-153066B
...
xx
REEL SPOOL ASSEMBLY MTD-953-1156
...
...
...
