product name

Bolens BL110 41BD110G965 41BD110G965 BL110 Gas String Trimmer

Model: BL110 41BD110G965 41BD110G965 BL110

Save
Part Not Listed?Part Not Listed?

product name

Engine Assembly

...
...
1
Rear Cover Assembly (includes 2 & 3) MTD-753-06194

...
2
Cover Screw MTD-791-181345

...
3
SCREW:10-32X.5 MTD-1964

...

...
5
Flywheel Assembly MTD-753-06175

...

...

...
8
Starter Housing (includes 3 & 13) MTD-753-06195

...
9
Starter Clutch Assembly MTD-753-06180

...
10
Clutch Cover (includes 2) MTD-753-06181

...
11
MUFFLER ASSEMBLY MTD-753-08745

...
12
Muffler Gasket MTD-753-06419

...
13
U-shaped Nut MTD-791-182366

...
14
Fuel Tank Assembly (includes 15 & 16) MTD-753-06183

...
15
Tank Screw MTD-791-181930

...
16

...
17
Module Assembly MTD-753-06420

...
18
Spark Plug MTD-753-06847

...
19
Crankcase Bolt MTD-791-182723

...
20
Crankcase O-Ring MTD-753-06275

...
21
Insulator Assembly (includes 22 & 23) MTD-753-06189

...
22
Insulator O-Ring MTD-753-06184

...
23
Carburetor O-Ring MTD-753-06185

...
24
Carburetor MTD-753-06190

...
25
Aircleaner Cover Assembly (includes 26) MTD-753-06415

...
26
Aircleaner Filter MTD-753-06417

...
27
Throttle Cable MTD-753-06188

...
28
Lead Wires MTD-753-06187

...
29
Anti-rotation Screw MTD-791-182519

...
30

...
31

...
32
Air Cleaner Gasket MTD-753-06253

...
33
Muffle Screws MTD-753-06294

...
xx
Short Block Assembly (includes Crankcase, Cylinder, Piston, 4-7 & 17-20), Not shown MTD-753-06416

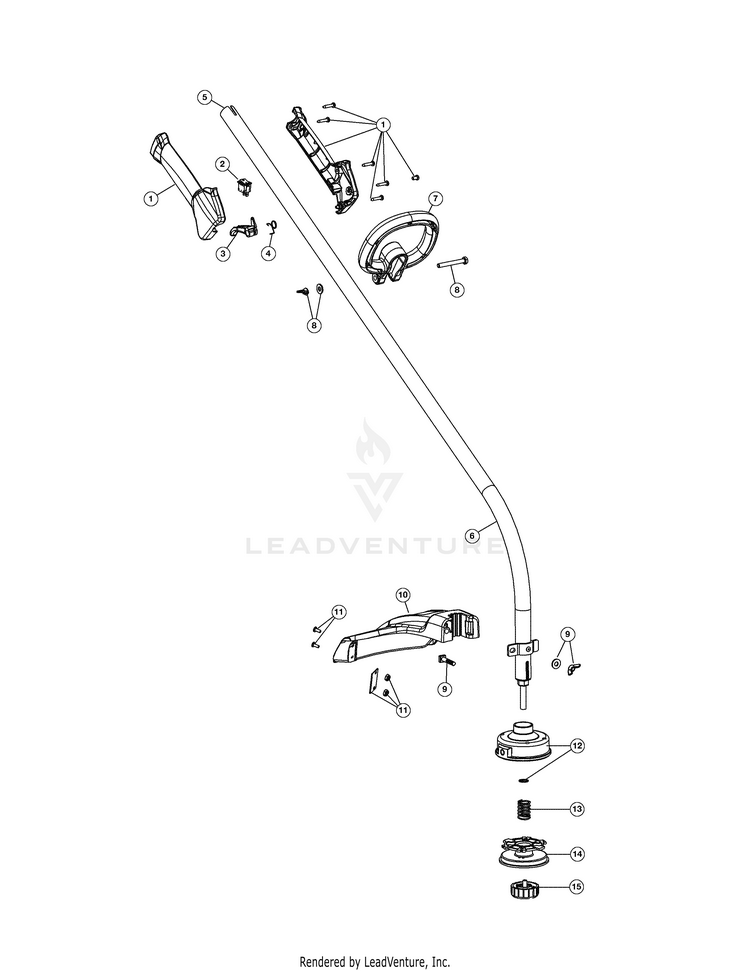

General Assembly

...
...
1
Throttle Housing Assembly (includes 2-4) MTD-753-04234

...

...
3
Throttle Trigger MTD-753-04119

...
4
Throttle Trigger Spring MTD-791-182690

...
5
Flexible Drive Shaft MTD-753-06065

...
6
Drive Shaft Housing Assembly (includes 5) MTD-753-05748

...
7
D-Handle (includes 8) MTD-753-06198

...
8
D-Handle Hardware Assembly MTD-753-06199

...
9
Shield Mounting Hardware MTD-753-04282

...
10
Shield Assembly (includes 9 & 11) MTD-753-04283

...
11
Blade Assembly MTD-753-1191

...
12
OUTER REEL W/RETAINING RING MTD-753-04284

...

...
14
Inner Reel MTD-753-1155

...
15
Bump Head Knob Assembly MTD-791-153066B

...
xx
Cartridge, Dual .080" LINE Not shown MTD-791-153577B

...
xx
Spool Assembly ,Reel W/.095 LINE Not shown MTD-953-1156
...
...
...
