Bolens 165-WU 179cc Engine Snow Thrower

Model: 165-WU 179cc Engine
Save
 Don't See Your Part Listed?
product name

165-WU Carburetor

...
...
32
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
33
Insulator MTD-951-15160
...
34
CARBURETOR GASKET MTD-751P12005A
...
35
Carburetor MTD-951-15162
...
36
Fuel Hose,3.2?6.5?170 MTD-935-05038
...
37
Stud, M6?92 MTD-710-06319
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Throttle Shaft MTD-NA
...
d
Throttle Plate MTD-NA
...
e
Screw, M3?6 MTD-NA
...
f
LOCK WASHER MTD-736-04638A
...
g
Idle Jet MTD-NA
...
h
Idle Adjusting Screw MTD-NA
...
i
Mixture Screw MTD-NA
...
j
Primer Line MTD-NA
...
k
Carburetor Body MTD-NA
...
l
Fuel Nipple MTD-NA
...
m
Float Pin MTD-NA
...
n
Nozzle Tube MTD-NA
...
o
Needle Valve MTD-NA
...
p
Main Jet MTD-NA
...
q
Needle Valve Spring MTD-NA
...
r
FLOAT MTD-731P09132A
...
s
O-Ring, Float Bowl MTD-951-11589
...
t
Float Bowl MTD-NA
...
u
FUEL BOWL GASKET MTD-951-11348A
...
v
Bolt MTD-710-04945
...
w
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
x
FUEL DRAIN PLUG MTD-710-04938

165-WU Crankcase

...
...
54
Piston MTD-951-11900
...
55
Piston Ring Set MTD-951-11688
...
60
PISTON PIN SNAP RING MTD-951-11632
...
61
Piston Pin MTD-951-11901
...
62
Bolt, M6?32 MTD-710-05182
...
63
Oil Plug MTD-931-09966
...
65
O-RING 15.8 x 2.5 MTD-951-11577
...
66
Crankcase Cover MTD-951-12125
...
67
CRANKCASE GASKET MTD-751P11371B
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
69
DOWEL PIN 9 X 14 MTD-715-04096A
...
70
OIL SEAL MTD-751P11368A
...
71
Bearing, 6205 MTD-951-11369
...
72
Camshaft MTD-951-15128
...
73
Drive Timing Gear MTD-951-15130
...
74
Crankshaft MTD-951-15129
...
75
GOVERNOR GEAR MTD-751P11576A
...
76
Governor Cup MTD-931-09595
...
77
Washer, 6.2?0.6?15 MTD-936-05038
...
78
Retaining Ring MTD-916-05003
...
79
Governor Shaft MTD-911-06137
...
82
Governor Gear MTD-917-05152
...
83
CONNECTING ROD MTD-751P11573A
...
84
Connecting Rod MTD-NA
...
85
Connecting Rod Cap MTD-NA
...
86
Connecting Rod Bolt MTD-710-05116
...
87
Oil Drain Pipe MTD-951-11350
...
88
FLAT WASHER MTD-736-04440A
...
89
Earth Bolt MTD-710-04906
...
92
Crankcase MTD-951-14198
...
93
OIL SEAL MTD-751P11370A
...
xx
complete engine MTD-952Z165-WU

165-WU Cylinder Head

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
3
Breather Hose MTD-951-15045
...
4
VALVE COVER GASKET MTD-751P11565B
...
5
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
6
Lock Nut MTD-751-11124
...
7
Adjust Nut MTD-751-11123
...
8
Rocker Arm MTD-951-11893
...
9
Stud MTD-710-04902
...
10
Rocker Arm Base MTD-951-15139
...
11
Bolt, M6?12 MTD-710-04915
...
12
Shroud MTD-951-11113
...
13
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
14
Valve Spring Seat MTD-951-12003
...
15
Valve Spring Seat MTD-951-12000
...
16
VALVE SPRING MTD-751P12004A
...
17
Intake Valve Seal MTD-951-11894
...
18
INTAKE VALVE MTD-751P14099A
...
19
EXHAUST VALVE MTD-751P14100A
...
20
Bolt, M8?55 MTD-710-04933
...
28
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
29
CYLINDER HEAD MTD-751P14928A
...
30
Bolt, M6?12 MTD-710-05103
...
31
Snow Guard MTD-951-15185
...
50
Gasket, Cylinder Head MTD-951-11898
...
51
Pin, 10?16 MTD-715-04108
...
52
PUSH ROD MTD-751P14105A
...
53
Tappet MTD-951-11899

165-WU Engine Shroud

...
...
11
Bolt, M6?12 MTD-710-04915
...
38
CARBURETOR GASKET PLATE MTD-751P11897B
...
39
AIR/HEATER INTAKE BOX MTD-951-15186A
...
40
Air Filter Base MTD-951-15187
...
41
Upper Cover, Heater Box MTD-951-15167
...
42
Self-tappling Screw, ST4.2?16 MTD-951-15188
...
43
CHOKE LEVER MTD-751P18086
...
44
Nut, M6 MTD-712-05015
...
45
Control Panel MTD-951-15164
...
46
Bolt, M6?18 MTD-710-05003
...
47
PRIMER MTD-951-10639B
...
48
Stop Switch MTD-951-15022
...
115
Stop Switch Key MTD-951-10630
...
49
Choke Lever MTD-951-15165

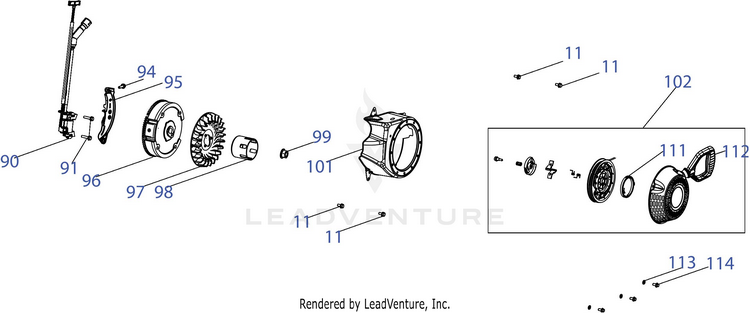

165-WU Flywheel Shroud

...
...
11
Bolt, M6?12 MTD-710-04915
...
90
Ignition Module MTD-951-15151
...
91
Bolt, M6?25 MTD-710-04919
...
94
Bolt, M6?20 MTD-710-05192
...
95
Lower Shield MTD-951-15030
...
96
Flywheel MTD-951-10805
...
97
COOLING FAN MTD-951-10909B
...
98
Starter Cup MTD-951-14887
...
99
Nut, M14?1.5 MTD-712-04287
...
101
Blower Housing MTD-951-15145
...
102
Recoil Starter MTD-951-14545
...
111
Recoil Spring MTD-932-05114
...
112
Starter Handle MTD-731-05696
...
113
FLAT WASHER MTD-736-04455B
...
114
Bolt, M6?12 MTD-710-06354

165-WU Fuel Tank & Mounting

...
...
11
Bolt, M6?12 MTD-710-04915
...
30
Bolt, M6?12 MTD-710-05103
...
46
Bolt, M6?18 MTD-710-05003
...
117
Governor Gear Shaft MTD-951-14053
...
118
O-Ring, 5.2?1.9 MTD-736-04461
...
119
Oil Seal, 6?11?4 MTD-951-11902
...
120
Cotter Pin MTD-714-04078
...
121
Governor Lever MTD-951-14089
...
122
Bolt, M6?21 MTD-710-04908
...
123
Governor Lever MTD-951-11106
...
124
NUT: M6 MTD-751-15175
...
125
Nut, M6 MTD-712-05015
...
126
Fuel Tank Bracket MTD-951-15174
...
127
Bolt, M5?14 MTD-951-15189
...
128
Decorative Sheet, Left MTD-951-15190
...
129
THROTTLE LINKAGE MTD-751P10665A
...
130
THROTTLE SPRING MTD-751P10664A
...
131
GOVERNOR SPRING MTD-751P14882A
...
132
Throttle Lever Knob MTD-951-11224
...
133
Governor Gear Bracket Assembly MTD-951-15153
...
134
Governor Shield MTD-951-15168
...
135
CARBURETOR HOSE CLAMP MTD-951-11700A
...
136
Fuel Hose, 6.3?12.5?162 MTD-951-15169
...
137
Decorative Sheet, Right MTD-951-15191
...
138
FUEL TANK MTD-951-15173A
...
139
Decorative Cover MTD-951-15170
...
140
FUEL CAP MTD-951-15172A
...
141
Dipstick MTD-631-05020AP
...
142
O-Ring, 15.2?1.5 MTD-951-12397
...
144
O-RING MTD-921-04663A

165-WU Muffler

...
...
11
Bolt, M6?12 MTD-710-04915
...
21
MUFFLER GASKET MTD-751P11289A
...
22
Stud, M8?34 MTD-710-04911
...
23
Muffler MTD-951-15158
...
24
Nut, M8 MTD-712-04214
...
25
Muffler Guard MTD-951-15155
...
26
Muffler Inner Shield MTD-951-15157
...
27
Muffler Shield MTD-951-15156
...
...
...
...
