Blomberg WM 26110 NBL00-ABD T1 J16 1200 CS TP 7131681300

Model: 7131681300

Save Part Not Listed?
product name

...
...
1
ADJUSTABLE FEET ASSEMBLY BLM-2912700500
...
2
AIR PIPE BLM-2800830100
...
3
AIR PIPE HOSE BLM-2000811600
...
4
BACK COVER BLM-2827610100
...
5
BAFFLE BLM-2705570400
...
6
BAFFLE NUT BLM-2600050000
...
7
BALL BEARING ( 6206 C3 RS) BLM-2807850100
...
8
BALL BEARING DIN 625 6205 2Z C3 BLM-2003320000
...
9
BEAD GROOVE BLM-2834050100
...
10
BLEACH DISPENSER ASSY. BLM-2886100100
...
11
BOLT BLM-2829960200
...
12
BOLT (AM5X10 DIN 7985 4.8-H) BLM-111201020
...
13
BOTTOM COVER AND FOAM TAPE ASSMBLY BLM-2897800200
...
14
BUTTOM SUPPORT BRACKET BLM-2812450200
...
15
BUTTOM SUPPORT BRACKET BLM-2906090100
...
16
CAB?NET BELLOWS CLAMP ASSEMBLY BLM-2603900900
...
17
CABINET ASSEMBLY AND BACK COVER BLM-2896100100
...
18
CABLE HOLDER BLM-2811240100
...
19
CARD PROTECTOR FOIL BLM-2816670200
...
20
CHASIS CLIPS BLM-2824760100
...
21
CHASSIS FLAP BLM-2820820100
...
22
COUNTER (UPPER) BRACKET BLM-2808120100
...
23
COUNTER WEIGTH COMPRESSION SPRING BLM-2804110100
...
24
COUNTERWEIGHT (FRONT) BLM-2809740100
...
25
COUNTERWEIGHT (UPPER BLM-2808030100
...
26
DETERGENT DISPENSER ASSEMBLY BLM-2862100200
...
27
DETERGENT DRAWER FRONTCOVER(NONFLAMMABLE BLM-2826599005
...
28
DISCHARGE HOSE ASSEMBLY BLM-2821500700
...
29
DISCHARGE HOSE HOLDER BLM-2811230100
...
30
DOO LOCK WATER PROTECTOR BLM-2903090300
...
31
DOOR HOOD CLAMP(SPRING) BLM-2802580300
...
32
DOOR HOOD-RUBBER BLM-2804860200
...
33

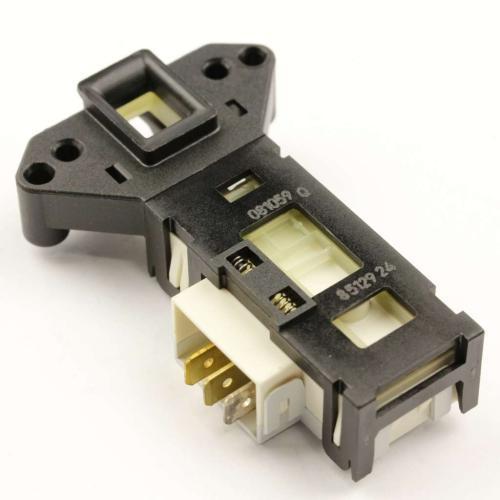

DOOR LOCK BLM-2805310600
...
34

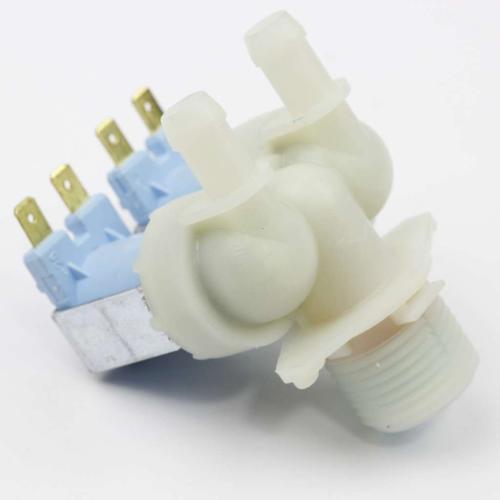

DOUBLE WATER INLET VALVE BLM-2824860100
...
35
DRAIN HOSE HOLDER BLM-2828040100
...
36
DRAIN HOSE HOLDER BLM-2002740000
...
37
DRAWER ASSEMBLY. BLM-2862300200
...
38
DRUM ASSEMBLY (COMPLETE) BLM-2723100200
...
39
EDGE COVER BLM-2828340100
...
40
ELASTIC POLY-V BELT BLM-2005170400
...
41
FELT (FRONT PANEL BOTTOM) BLM-2703940800
...
42
FELT (SIDE PANEL) BLM-2703940900
...
43
FILTER ASSEMBLY BLM-2810900300
...
44
FILTER WASHER BLM-2801070100
...
45
FIXED FOOT RUBBER BLM-2819730100
...
46
FIXING WASHER BLM-2807770100
...
47
FIXING WASHER BLM-2810560100
...
48
FOAMED CROSS-LINKED P.E STOPPER.. BLM-2903940700
...
49
FRONT COUNTERWEIGHT SCREW BLM-2810230100
...
50
FRONT DOOR ASSEMBLY BLM-2860201700
...
51
FRONT DOOR ASSEMBLY. BLM-2811300300
...
52
FRONT PANEL BLM-2812730800
...
53
FRONT PANEL HOLDER BLM-2804670100
...
54
HANDLE BLM-2804940100
...
55
HANDLE (ARCP1) BLM-2816190100
...
56
HEATER BLM-2863402000
...
57
HEATER SUPPORT BLM-2812750100
...
58
HEXAGON NUT WITH COLLAR BLM-2811250100
...
59
HINGE BLM-2905820100
...
60
HINGE BLM-2905710100
...
61
HINGE BLM-2805710100
...
62
HINGE BUSHING BLM-2804910100
...
63
HINGE SUPPORT BLM-2905690200
...
64
HINGE SUPPORT.. BLM-2905690100
...
65
HOOK COVER BLM-2816180100
...
66
HOOK COVER BLM-2804960100
...
67
HOOK SPRING BLM-2804970300
...
68
HOSE BLM-2600942800
...
69
HOSE BLM-2600940700
...
70
HOSE ASSEMBLY BLM-2855700500
...
71
HOSE ASSEMBLY. BLM-2855800200
...
72
HOSE CLAMP BLM-2814430100
...
73
HOSE CLAMP BLM-2002370600
...
74
HOSE CLAMP BLM-2002372200
...
75
HOSE CLAMP BLM-2002372400
...
76
HOSE CLAMP BLM-2002370500
...
77
HOSE CLAMP ( 14.8) BLM-2002373400
...
78
HOSE CLAMP ( 28_7) BLM-2002371700
...
79
HOSE CLAMP ASSEMBLY BLM-2007300200
...
80
HOSE HOLDER BLM-2704480100
...
81
HOSE. BLM-2000610200
...
82
HOSE. BLM-2600941900
...
83
HOSE. BLM-2600942500
...
84
INNER COVER BLM-2804930100
...
85
INNER COVER BLM-2816170100
...
86
INTERFERENCE SUPPRESSOR.. BLM-2903870400
...
87
KICKPLATE BODY BLM-2806621100
...
88
KICKPLATE BODY BLM-2806620100
...
89
KICKPLATE BODY. BLM-2830350100
...
90
KICKPLATE COVER. BLM-2830590100
...
91
KICKPLATE COVER. BLM-2810920800
...
92
KICKPLATE COVER.. BLM-2810920100
...
93
LIGHT GUIDE - BUTTON ASSEMBLY (WHITE) BLM-2867700100
...
94
LOCK HOOK BLM-2804950200
...
95
M4X10 TAPTITE SCREW. BLM-181300303
...
96
M8 CIVATA (SPIRAL FORM) BLM-2825280100
...
97
MAIN BOARD ASSY. BLM-2823910013
...
98
MAIN CABLE HARNESS BLM-2883900100
...
99
MOTOR BLM-2823950100
...
100
MOTOR CONNECTION NUT BLM-2807270100
...
101
NTC BLM-2804980200
...
102
NUT M8 DIN934. BLM-101301407
...
103
OIL SEAL BLM-2827130100
...
104
ON-OFF BUTTON ASSEMBLY BLM-2870202100
...
105
OUTER COVER BLM-2804920100
...
106
OUTER COVER BLM-2816160100
...
107
PANEL BODY BLM-2826589163
...
108
PANEL SUPPORT BRACKET BLM-2825170100
...
109
PANEL SUPPORT BRACKET BLM-2812110200
...
110
PIN BLM-2800860300
...
111
PIN BLM-2800860200
...
112
PLASTIC CLAMP BLM-9001230800
...
113
PLASTIC SCREW BLM-9003270400
...
114
PLASTIC SCREW BLM-9003270100
...
115
PORTHOLE GLASS BLM-2807280100
...
116
PRESSURE SWITCH BLM-2819710600
...
117
PROGRAM KNOB AND KNOB SHAFT ASSY. BLM-2895000100
...
118
PT SCREW (3_5X9.5) BLM-2705810100
...
119
PT SCREW (4_5X12) BLM-9003670100
...
120
PT SCREW 4X10 BLM-9003270900
...
121
PULLEY BLM-2808010100
...
122
PULLEY BLM-2816150100
...
123
PULLEY BLM-2808010200
...
124
PULLEY FIXING SCREW BLM-2829960100
...
125
PUMP CABLE HARNESS BLM-2833300600
...
126
PUMP-FILTER ASSEMBLY BLM-2808901300
...
127
PUSH BUTTON SWITCH BLM-2827990100
...
128
RADIAL CONNECTION BOLT BLM-2812290100
...
129
REAR COVER CAP BLM-2824340100
...
130
RUBBER CUSHION BLM-2812130400
...
131
RUBBER CUSHION BLM-2812130100
...
132
SCREW BLM-2834830200
...
133
SCREW BLM-2836970100
...
134
SCREW (B4.2X13 DIN 7981-H) BLM-100601520
...
135
SCREW (B4.2X9.5 K=8 TIRTILLI) BLM-9003610900
...
136
SCREW(B4.2X9.5-TIRTILLI)GEOMET 500 BLM-9003610800
...
137
SCREW(B4_2X9_5-TIRTILLI) BLM-9003610100
...
138
SCREW. BLM-9003860400
...
139
SCREW. BLM-9003860300
...
140
SELF LOCKING CABLE HOLDER BLM-2705870100
...
141
SERRATED LOCK WASHER (A8.4 DIN 6798) BLM-130500920
...
142
SHOCK ABSORBER BLM-2816871400
...
143
SHOCK ABSORBER PIN BLM-2801430200
...
144
SHOCK ABSORBER PIN BLM-2817050100
...
145
SIPHON (GREY) BLM-2818490200
...
146
SPEC?AL PT SREW BLM-2832450100
...
147
SPECIAL BOLT BLM-2820600100
...
148
SPECIAL SCREW BLM-2817910200
...
149
SPECIAL SHEET SREW BLM-2831790100
...
150
SPIDER ARM ASSEMBLY(COMPLETE) BLM-2834600100
...
151
SPRING HOLDER BLM-2704110100
...
152
STOPPER. BLM-2808740200
...
153
SUSPENSION SPRING BLM-2807790100
...
154
TACHO COIL WITH METAL SHELL BLM-372205502
...
155
TACHOMETER COVER.. BLM-373500801
...
156
TEMPERATURE_SPIN KNOB AND KNOB SHAFT ASS BLM-2895100100
...
157
TERMINAL BODY ASSEMBLY BLM-2890200500
...
158
TOP PLATE ASS.. BLM-2877400600
...
159
TRANSPORT SAFETY ASSEMBLY BLM-2737601600
...
160
TUB (FRONT) BLM-2807920200
...
161
TUB ASSEMBLY (REAR) BLM-2825500300
...
162
TUB GASKET BLM-2806840300
...
163
TUB INLET HOSE. BLM-2818440100
...
164
TUB SCREW.. BLM-2811590100
...
165
UPPER COUNTER WEIGHT BOLT BLM-2807840100
...
166
USER'S MANUAL (EN) BLM-2820520372
...
167
USER'S MANUAL (FR_ES) BLM-2820520373
...
168
WASHER. BLM-9003890100
...
169
WATER INLET HOSE BLM-2823940600
...
170
WATER INLET HOSE BLM-2823940200
...
171
WATER INLET HOSE BLM-2823940500
...
172
WATER INLET HOSE BLM-2823940100
...
173
WATER INLET VALVE (SINGLE) BLM-2824870100
...
174
Y TUBE BLM-2820980100
