Blomberg 24 INCH FULL CONSOLE DISHWASHER DW25502SS 7609659542

Model: 7609659542

Save Part Not Listed?
product name

...
...
1
ACCESSORIES GROUP BLM-1733100100
...
2
ACCESSORIES GROUP BLM-1886368000
...
3
AIR FUNNEL CAP BLM-1882620700
...
4
AIR FUNNEL GASKET BLM-1882630100
...
5
AMERICA BOBBIN TERFERENCE FILTER BLM-1757190100
...
6
BEKO BETTER BUTTON GASKET BLM-1769360100
...
7
BEKO OUTER DOOR 60CM-A.FINGER BLM-1769000300
...
8
BOLT M4X6 BLM-1883490100
...
9
BOLT M4X8 D3731 D3421 BLM-1883470100
...
10
BOTTOM TRAY BLM-1880080292
...
11
BUTTON - CARD HOLDER GR BLM-1780357400
...
12
CABLE HARNESS BLM-1759644100
...
13
CARD HOLDER BACK PART BLM-1769420200
...
14
CEILING SPRAY ARM FEED PIPE BLM-1756530100
...
15
CEILING SPRAY GROUP BLM-1756370100
...
16
CIRCULATION PUMP DAMPENING RUBBER BLM-1757420100
...
17
COARSE FILTER-RED BLM-1740230500
...
18
COLUMN MOUNT ASSY BLM-1751600100
...
19
CORNER PADDING GR-FRONT BLM-1889860200
...
20
COUNTER GROUP BLM-1760900100
...
21
COUNTER PCB_4 BLM-1760940100
...
22
COVER SPRING BLM-1718640100
...
23
CUTLERY BASKET GROUP-SLIDING-RED BLM-1751500500
...
24
CUTLERY BASKET HANDLE-RED BLM-1751520500
...
25
CUTLERY BASKET SEPARATOR-7037 BLM-1751530200
...
26
DETERGENT DISPENCER CAB HAR HOLD 7037 BLM-1718990200
...
27
DETERGENT DISPENSER GASKET BLM-1718670100
...
28
DETERGENT DISPENSER GROUP-RAL 7037 BLM-1719000300
...
29
DOOR INSULATION BLM-1882410100
...
30
DOOR LOCK COTTON FLEECE BLM-1884750100
...
31
DOOR LOCK HOOK BLM-1881970100
...
32
DOOR SEALING GASKET - BOTTOM BLM-1882470100
...
33

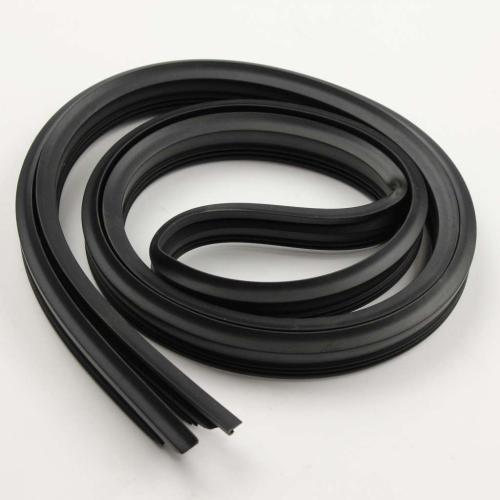

DOOR SEALING GASKET- L=1775 BLM-1749190100
...
34
DRAIN HOSE 2250MM BLM-1740160700
...
35
DRAIN HOSE 410MM BLM-1740160600
...
36
DRAIN HOSE ELBOW BLM-2002740100
...
37
DRAIN HOSE HOLDER 7037 BLM-1883740200
...
38
DRAIN PUMP GROUP-120V-60H-UL BLM-1746570100
...
39
ELECTRONIC CARD UD112501 BLM-1739153020
...
40
FILTER GROUP_3 NO RING BLM-1796091000
...
41
FLOW THROUGH HEATER 32 1100W BLM-1746550200
...
42
FOOT GROUP GR -ADJUSTABLE-FRONT-RIGHT BLM-1888360300
...
43
FOOT GROUP-ADJUSTABLE BLM-1880350300
...
44
FOOT GROUP-ADJUSTABLE-LEFT-FRONT BLM-1888360500
...
45
FOOT GROUP-ADJUSTABLE-RIGHT-BACK BLM-1888360400
...
46
FOOT SUPPORT PART BLM-1881820100
...
47
GASKET BLM-1800720800
...
48
GRD LOWER BASKET WHEEL GROUP BLM-1782020100
...
49
HALF FILTER SUPPORT GR BLM-1786790100
...
50
HINGE ARM SUPPORT BLM-1888190100
...
51
HINGE ARM-LEFT BLM-1741810102
...
52
HINGE ARM-RIGHT BLM-1741810202
...
53
HINGE ROPE GROUP L=440(GREY) BLM-1881050100
...
54
HINGE SPRING BLM-1880880100
...
55
HINGE SPRING HOLDER-LEFT BLM-1881090100
...
56
HINGE SPRING HOLDER-RIGHT BLM-1881090200
...
57
HINGE WHEEL-RED BLM-1881040300
...
58
HOSE BLM-1800862500
...
59
HOSE (VALVE-COUNTER) BLM-1800632300
...
60
HOSE BETWEEN COUNTER AND REGENERATION U. BLM-1800632000
...
61
HOSE BETWEEN SUMP AND HEATER BLM-1740110100
...
62
HOSE CLAMOS WITH SCREW-29-WHITE BLM-1732850300
...
63
HOSE CLAMP ( 16.4) BLM-2002370900
...
64
HOSE CLAMP ( 27.5) BLM-2002371600
...
65
HOSE CLAMP ( 28_7) BLM-2002371700
...
66
HOSE CLAMP ( 35.6) BLM-2002372200
...
67
HOSE CLAMP ( 47 ) BLM-2002372500
...
68
HOSE CLAMP( 15_6 ) BLM-2002373800
...
69
HOSE CLAMP.( 34_1) BLM-2002372100
...
70
HOSE CLAMPS WITH SCREW 40 WHITE BLM-1732850100
...
71
HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) BLM-1800862300
...
72
HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) BLM-1800862100
...
73
INNER DOOR BITUMEN GRD BLM-1737380300
...
74
INNER TUB ISOLATION-RIGHT BLM-1744960100
...
75
INNER TUB ISOLATION-UPPER BLM-1744950100
...
76
KICK PLATE ADJUSTING LOCKER-BLACK BLM-1884960300
...
77
KICK PLATE FOAM BLM-1882420200
...
78
KICK PLATE SHEET-BLACK 82CM BLM-1884920700
...
79
KICK PLATE SHEET-BLACK 87CM BLM-1884930700
...
80
KICK PLATE SHEET-BLACK-92CM BLM-1884940400
...
81
KICK PLATE SHEET-GALVANIZED BLM-1746450400
...
82
KICK PLATE-STAINLESS-R4 BLM-1746420400
...
83
LOWER BASKET GROUP-7037 BLM-1758971100
...
84
LOWER BASKET STOPER PLASTIC WHELL GR. BLM-1742960100
...
85
LOWER SPRAY ARM GROUP 7016 BLM-1746100400
...
86
LOWER SUPPORT- FRONT BLM-1880020100
...
87
MAIN PLUG EURO 120 V CANADA BLM-1892105300
...
88
MAIN PLUG HOLDER (1,5) BLM-1883170200
...
89
METAL FILTER HALF BLM-1786610200
...
90
MICRO FILTER GROUP_3 NO RING BLM-1796080600
...
91
MOTOR BRACKET GROUP BLM-1757410100
...
92
NEW DOOR SWITCH BLM-1731980300
...
93
NOISE ISOLATION FOR TUB BLM-1882281100
...
94
NOISE ISOLATION FOR TUB RAL 7037 BLM-1882280200
...
95
NOISE ISOLATION-7037 BLM-1880270200
...
96
NOISE ISOLATION-LEFT -7037 BLM-1746620300
...
97
NOISE ISOLATION-RIGHT-7037 BLM-1746620400
...
98
NTC GROUP BLM-1887740400
...
99
OVER FLOW SWITCH (LOW END) D3731 D3421 BLM-1883240100
...
100
OVERFLOW FLOAT GROUP BLM-1888100100
...
101
OVERFLOW SIPHON BLM-1884280100
...
102
PACKAGE COVER - BOTTOM BLM-1885580100
...
103
PACKAGE COVER - UPPER BLM-1746880100
...
104
PACKAGE STRAFOR - BOTTOM BLM-1890080200
...
105
PANEL GROUP DWT 25502 SS BLM-1750660230
...
106
PLASTIC SCREW (4_10) BLM-9003270400
...
107
PLINTH ADJUSTMENT SHEET-LEFT BLM-1884910100
...
108
PLINTH ADJUSTMENT SHEET-RIGHT BLM-1884910200
...
109
PUMP INLET HOSE BLM-1719990100
...
110
QUADRO CIRCULATION MOTOR GROUP BLM-1761600500
...
111
QUADRO PUMP OUTLET HOSE VALVE NO BLM-1761650100
...
112
RAIL (430 STAINLESS STEEL) BLM-1880240300
...
113
RAIL CAP- FRONT&BACK -RAL7037 BLM-1732840100
...
114
RAIL CAP-7037 BLM-1887460200
...
115
RAIL WHEEL GROUP-RAL7037 BLM-1752600400
...
116
RAIL WHEEL HOLDER BLM-1749910100
...
117
RAIL WHEEL SCREW BLM-1748940200
...
118
REAR ADJUSTABLE FOOT CONNECTION PART BLM-1888340300
...
119
REAR BOTTOM SUPPORT BLM-1887651800
...
120
REAR CORNER PADDING GR-BACK BLM-1889870100
...
121
REAR FEET ADJUSTABLE LEFT BACK BLM-1888360600
...
122
REGENERATION UNIT GR BLM-1741600300
...
123
RINSE AID GASKET BLM-1712710100
...
124
RINSE AID GLASS BLM-1712720100
...
125
SCREW BLM-1746850100
...
126
SCREW (3.9X9.5) BLM-1801080100
...
127
SCREW (FILTER SUPPORT) BLM-1883430300
...
128
SCREW (PANEL-DOOR LOCKED) BLM-1883430100
...
129
SCREW (WATER INLET VALVE) BLM-1831680000
...
130
SCREW 3.9 L=11 (INNER-OUTER DOOR) BLM-1883460700
...
131
SCREW 4X14 BLM-1889340100
...
132
SCREW CAP-SIDE PANELS-BLACK BLM-1882290400
...
133
SCREW CAP-SIDE PANELS-GREY BLM-1882290200
...
134
SCREW CAP-SIDE PANELS-WHITE BLM-1882290100
...
135
SCREW M5X8 BLM-1802860200
...
136
SHELF GROUP-RAL 7016 BLM-1751400500
...
137
SIDE PANEL-LEFT-ARC744 BLM-1746490112
...
138
SIDE PANEL-RIGHT-ARC744 BLM-1746490212
...
139
SIDE SUPPORTING PART-LEFT-RAL 7037 BLM-1746430400
...
140
SIDE SUPPORTING PART-RIGHT-RAL 7037 BLM-1746430300
...
141
STRUCTURE GROUP BLM-1756501700
...
142
SUMP CLAMP SCREW TYPE BLM-1757470200
...
143
SUMP GASKET BLM-1740050300
...
144
SUMP GR BLM-1741504200
...
145
THERMOACTUATOR D3731 D3421 BLM-1831470000
...
146
TOP CORNER BRACKET - LEFT BLM-1749050500
...
147
TOP CORNER BRACKET - RIGHT BLM-1749050600
...
148
TUB COVER (2MM) BLM-1887290100
...
149
TURBIDITY CARD AND LED HOLDER GR-BLACK BLM-1898900301
...
150
TURBIDITY FRAME_2K BLM-1749580100
...
151
UPPER BASKET GROUP-7037 BLM-1799502800
...
152
UPPER BASKET WHEEL GROUP BLM-1885800600
...
153
UPPER SPRAY ARM FEED PIPE -RAL 7037 BLM-1759600100
...
154
UPPER SPRAY ARM GROUP 7016 BLM-1746200600
...
155
UPPER SPRAY ARM GUIDE ADJ. BASKET-7037 BLM-1749490200
...
156
WASHER BLM-1831780000
...
157
WATER INLET VALVE (4LT/MIN) BLM-1746520100
...
158
WATER SUPPLY TUBE GROUP BLM-1756330300
