Amana ZDW-864-D

Model: ZDW-864-D

Save Part Not Listed?
product name

Popular Parts

Popular Parts

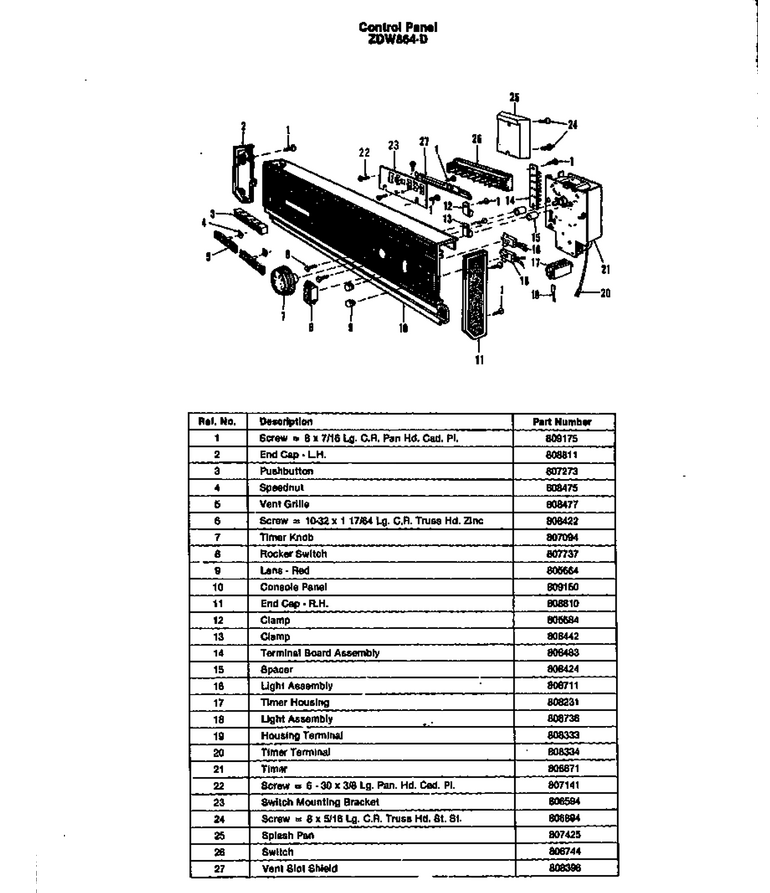

01 - Control Panel

...
...
1
Screw WPL-0809175
...
2
End Cap, Lh WPL-0808811
...
3
Push Button WPL-0807273
...
4
Speed Nut WPL-Y0808475
...
5
Vent Grille WPL-Y0808477
...
6
Screw, No.10-32 X 1 7/64 WPL-0808422
...
7
Timer Knob WPL-Y0808482
...
8
X Rocker Switch WPL-0807737
...
9
Lens WPL-0805664
...
10
Console Panel WPL-0809150
...
11
End Cap, Rh WPL-0808810
...
12
Clamp WPL-W10833902
...
13
Clamp WPL-Y0808442
...
14
Terminal Board Assy. WPL-Y0808483
...
15
Spacer WPL-0808424
...
16
Light Assy. WPL-0808711
...
17
Housing, Timer B WPL-Y0808231
...
18
Light Assy., Delay WPL-0808736
...
19
Terminal, (Pack Of 25) WPL-0808333
...
20
Terminal End WPL-0808334
...
21
Timer WPL-0808671
...
22
Screw WPL-0807141
...
23
Bracket, Switch Mounting WPL-0806594
...
24
Screw WPL-0806894
...
25
Splash Pan WPL-0807425
...
26
Switch WPL-0808744
...
27
Shield, Vent Plate WPL-Y0808398

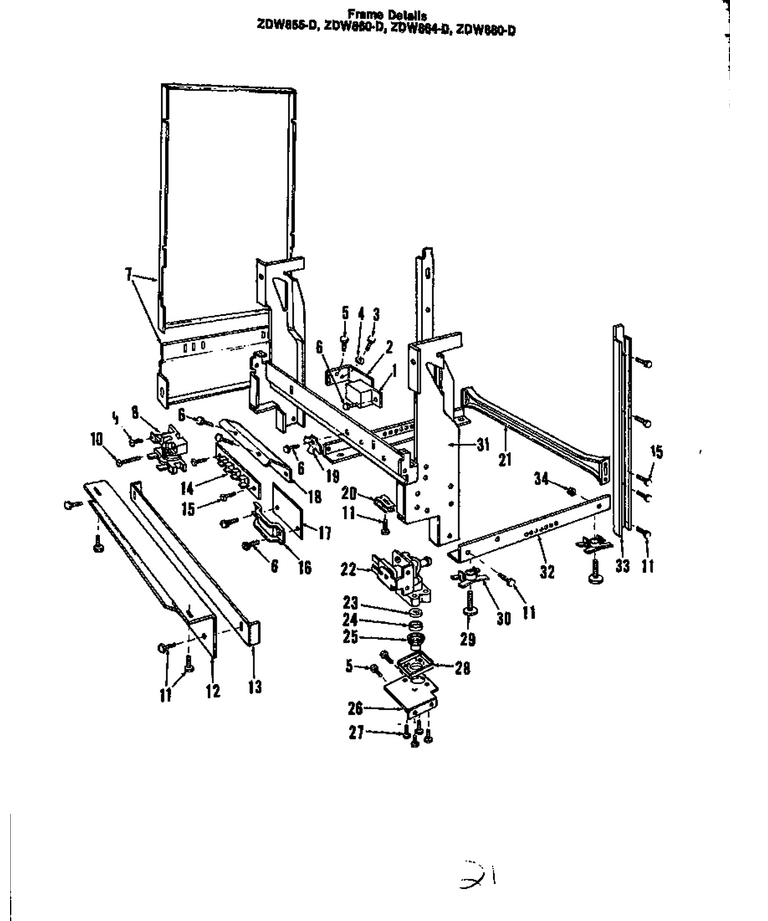

03 - Frame Details

...
...
1
Junction Box Cover WPL-0800222
...
2
Cover Bracket WPL-0807019
...
3
Screw WPL-0807951
...
4
Washer WPL-0807373
...
5
Screw WPL-Y0807950
...
6
Screw WPL-WP90767
...
7
Side Panel Kit WPL-808881
...
8
Relay WPL-0805255
...
9
Screw WPL-WP488234
...
10
Screw WPL-0804672
...
11
Screw WPL-0807001
...
12
Toe Plate WPL-0807850
...
13
Toe Plate, Adjustable WPL-0806295
...
14
Terminal Block WPL-0807486
...
15
Screw WPL-W11233072
...
16
Wiring Clamp WPL-0806723
...
17
Wire Shield WPL-0808013
...
18
Bracket, Terminal Board WPL-0807849
...
19
Terminal, Grounding WPL-0807213
...
20
Speed Nut WPL-0808170
...
21
Brace, Rear WPL-Y0807852
...
22
Valve WPL-0808668
...
23
Flow Washer WPL-Y0808457
...
24
Gasket WPL-Y0806100
...
25
Fitting WPL-Y0808337
...
26
Mounting Bracket WPL-0807613
...
27
Screw WPL-0808368
...
28
Fitting, Retainer WPL-Y0808458
...
29
Leveling Legs WPL-0807672
...
30
Tee Nut - Snap In WPL-0807671
...
31
Weld Assembly, Hinge WPL-0807848
...
32
``u`` Frame Assembly WPL-Y0807851
...
33
Support Channel WPL-0808670
...
34
Nut K WPL-M0282005

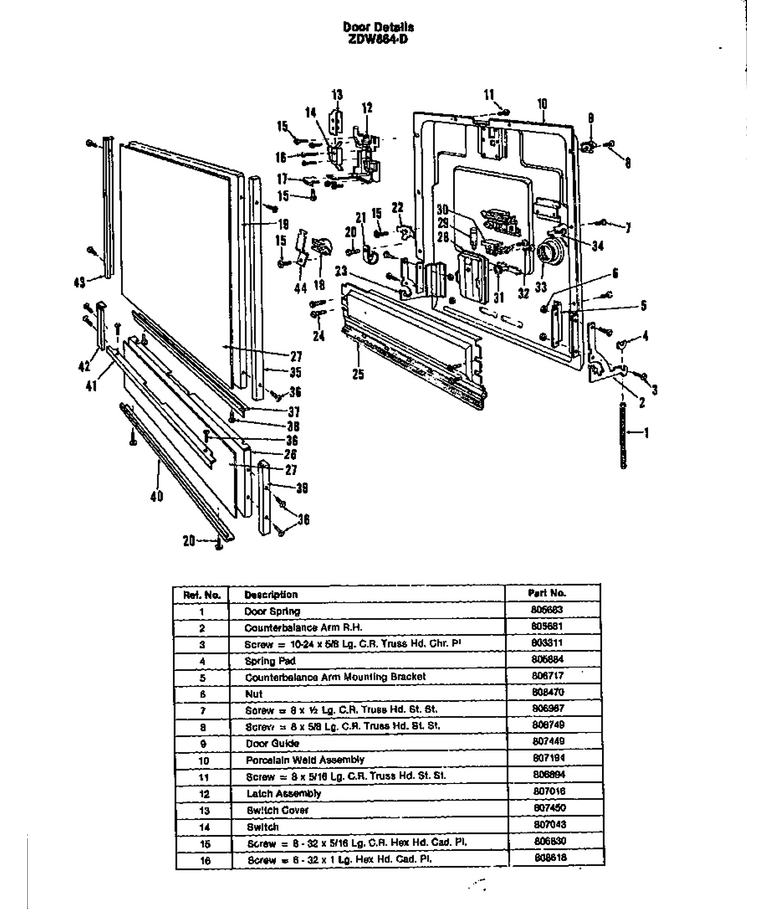

02 - Door Details

...
...
1
Spring- Co WPL-Y0808971
...
2
Rh Arm WPL-805681
...
3
Screw WPL-0803311
...
4
Spring Pad WPL-0805884
...
5
Arm Bracket WPL-Y0806717
...
6
Nut WPL-M0282009
...
7
Screw WPL-0806967
...
8
Screw WPL-Y0808749
...
9
Door Guide WPL-0807449
...
10
Inner Dr. Assy. WPL-0807194
...
11
Screw WPL-0806894
...
12
Latch Asm WPL-807016
...
13
Switch Cover WPL-0807450
...
14
Switch, Door Latch WPL-Y0807043
...
15
Screw WPL-0806830
...
16
Screw WPL-0808618
...
17
Sub 806893 Latch Knob WPL-0806398
...
18
Thermostat WPL-Y0808956
...
19
Door Panel, White WPL-0807262
...
20
Screw WPL-M0217225
...
21
Clamp WPL-Y0808442
...
22
Terminal, Grounding WPL-0807213
...
23
Arm Assy Lh Counterbalance WPL-0805682
...
24
Use 0806976 WPL-0806810
...
25
Vent Baffl WPL-809412
...
26
Access Panel, White WPL-0809108
...
27
Door & Access Panel Insert,alm WPL-0808908
...
28
Body Dispenser, Wetting Agent WPL-Y0806753
...
29
Plunger WPL-0806757
...
30
Bi-Metal Asm WPL-809109
...
31
Fill Plug WPL-Y0807673
...
32
Screw WPL-W11233072
...
33
Grommet, Mounting WPL-0805631
...
34
Screw WPL-0806863
...
35
Door Pnl Trim, Rh WPL-0808976
...
36
Screw WPL-WP74004005
...
37
Door Trim, Bottom WPL-Y0807347
...
38
Screw WPL-W11233072
...
39
Trim, R.h. WPL-0808028
...
40
Sub 808027 Trim, Access WPL-Y0809994
...
41
Trim, Top, Access Panel WPL-0808346
...
42
Screw WPL-W11233072
...
43
Door Pnl Trim, Lh WPL-0808977
...
44
Thermostat Retainer WPL-0809097
...
45
Door Kit, Black Acrylic WPL-0808926

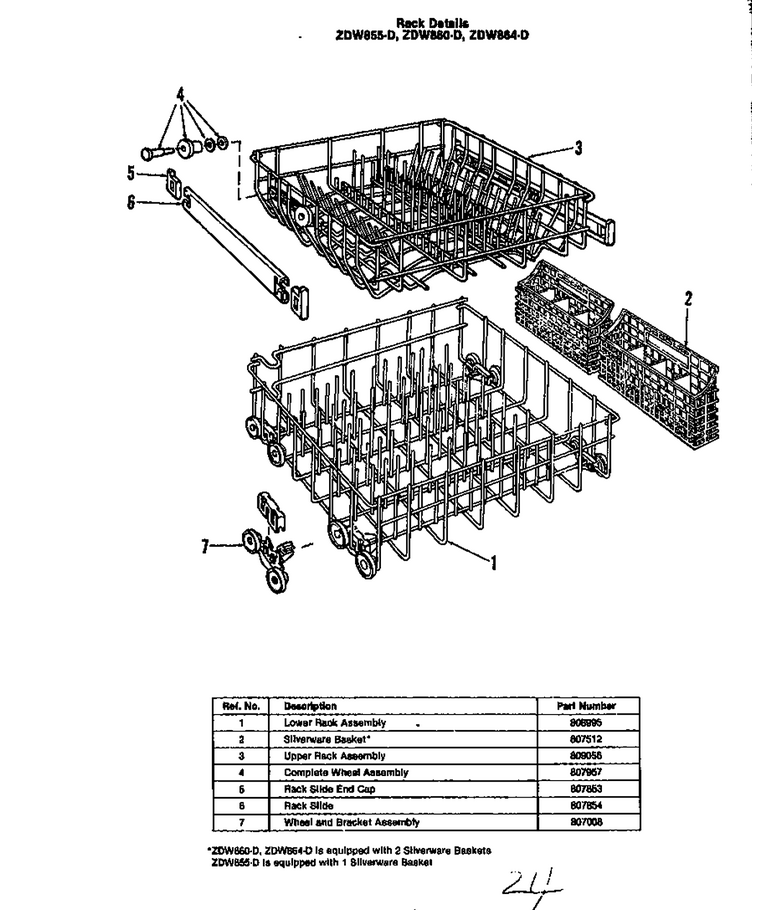

06 - Rack Details

...
...
1
Upper Rack Asm WPL-808996
...
2
Silverware Basket WPL-Y0807512
...
3
Upper Rack Assy WPL-0809056
...
4
Wheel Asm WPL-807957
...
5
End Cap, Rack Slide WPL-Y0807853
...
6
Rack Slide WPL-0807854
...
7
Wheel Assy WPL-Y0807008

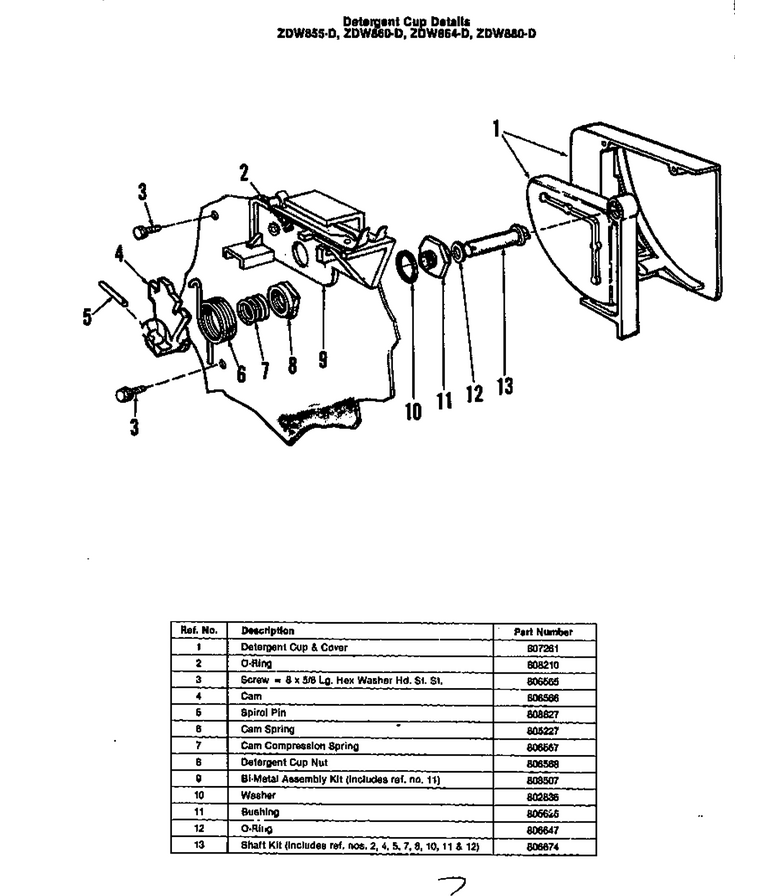

05 - Detergent Cup Detail

...
...
1
Kit, Detergent Cup WPL-0807261
...
2
``o`` Ring WPL-Y0808210
...
3
Screw WPL-0806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring WPL-805227
...
7
Spring, Cam Compression WPL-0806567
...
8
Nut WPL-Y0806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-0802836
...
11
Bushing WPL-0805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674

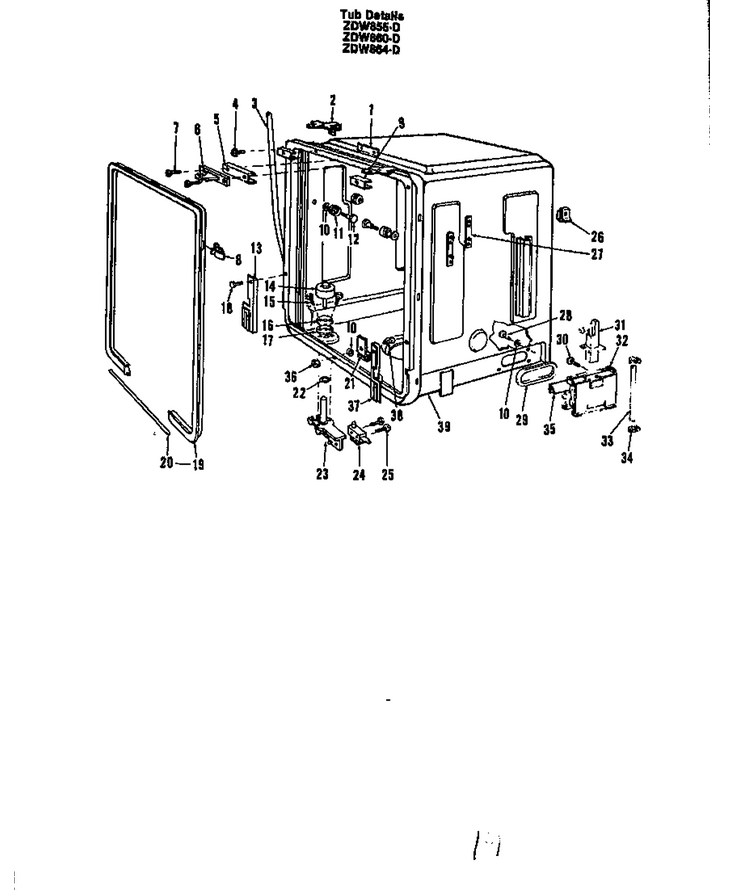

07 - Tub Details

...
...
1
Latch Tapping Plate WPL-0808868
...
2
Clip WPL-0808289
...
4
Drain Hose WPL-809112
...
5
Shim Strike WPL-0807073
...
6
Strike WPL-807015
...
7
Screw WPL-WP22001496
...
8
Clip Kit (Tub Gasket) WPL-805763
...
9
Shim WPL-Y0808366
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw WPL-807268
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Screw, No.10-24 X 5/8 WPL-0806539
...
19
White Gask WPL-808959
...
20
Junction, Wire Gasket WPL-0808344
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Float Assy WPL-Y0809859
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Nut, Cage WPL-0806291
...
27
Twin Nut Assem. WPL-0807038
...
28
Screw WPL-Y0806901
...
29
Gasket WPL-806797
...
30
Screw WPL-0808818
...
31
Inlet Nozzle WPL-0808707
...
32
Vent Stack WPL-0808706
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813
...
35
Tapping Plate WPL-0808705
...
36
Use M0281003 WPL-0803346
...
37
Rh Guide WPL-807471
...
38
Screw WPL-WP250830
...
39
Tub & Gasket Assy (Note 1- Mod WPL-809151
...
40
Tub Insulation WPL-0809113

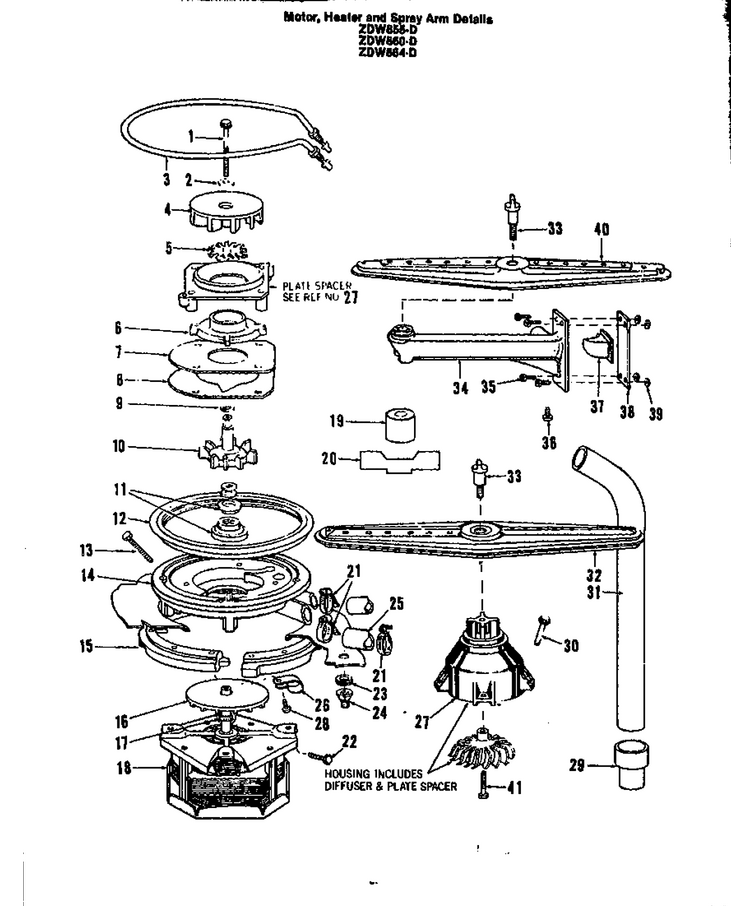

04 - Motor

...
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater WPL-Y0809060
...
4
Upper Impeller WPL-809005
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0807884
...
8
Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809110
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw, Pump Housing WPL-0807359
...
14
Pump Housing WPL-809102
...
15
Clamp Ring WPL-807712
...
16
Slinger, Plastic WPL-0808899
...
17
Tolerance Ring WPL-0808898
...
18
Motor Assy WPL-Y0809100
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Clamp WPL-WP285655
...
22
Screw WPL-807268
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Hose Spray Tube WPL-0805674
...
26
Clamp WPL-Y0808442
...
27
Impeller Housing Kit (Includes Key Nos. 6 & 7) WPL-809119
...
28
Screw WPL-0807270
...
29
Adaptor WPL-Y0806989
...
30
Screw, Pump Housing WPL-0807359
...
31
Sub 807487 Supply Tube WPL-0807151
...
32
Lower Spray Arm Assembly WPL-809017
...
33
Spray Arm Bolt WPL-809018
...
34
Delivery Arm WPL-0809019
...
35
Screw WPL-WP67006908
...
36
Screw WPL-W11233072
...
37
Plug Delivery Arm WPL-0805781
...
38
Gasket Delivery Arm WPL-0805782
...
39
``o`` Ring WPL-Y0808210
...
40
Spray Arm WPL-Y0809021
...
41
Screw WPL-WP67006908
