Amana ZDW-860A

Model: ZDW-860A

Save Part Not Listed?
product name

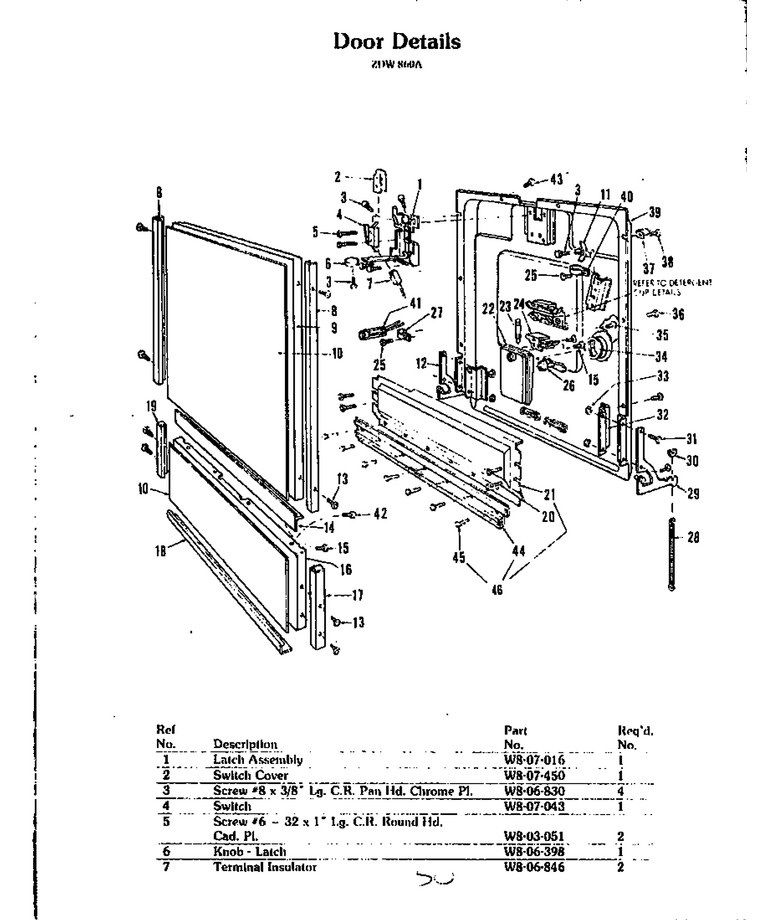

01 - Door Details

...
...
1
Latch Asm WPL-807016
...
2
Switch Cover WPL-0807450
...
3
Screw WPL-0806830
...
4
Switch, Door Latch WPL-Y0807043
...
5
Screw, Float Switch WPL-0803051
...
6
Sub 806893 Latch Knob WPL-0806398
...
7
Terminal Insulator WPL-0806846
...
8
Door Trim, Side WPL-0808026
...
9
Door Panel, White WPL-0807262
...
10
Panel Insert - Door & Access WPL-W8-08-215
...
11
Terminal, Grounding WPL-0807213
...
12
Arm Assy Lh Counterbalance WPL-0805682
...
13
Screw WPL-WP74004005
...
14
Door Trim, Bottom WPL-Y0807347
...
15
Screw WPL-W11233072
...
16
Sub 809108, Access Panel WPL-0807257
...
17
Trim, R.h. WPL-0808028
...
18
Sub 808027 Trim, Access WPL-Y0809994
...
19
Trim, L.h. WPL-0808029
...
20
Use 0806976 WPL-0806810
...
21
Vent Plate WPL-W8-08-329
...
22
Body Dispenser, Wetting Agent WPL-Y0806753
...
23
Plunger WPL-0806757
...
24
Bracket Assembly WPL-0806756
...
25
Screw WPL-M0217225
...
26
Fill Plug WPL-Y0807673
...
27
Clamp WPL-Y0805340
...
28
Spring- Co WPL-Y0808971
...
29
Rh Arm WPL-805681
...
30
Spring Pad WPL-0805884
...
31
Screw WPL-0803311
...
32
Arm Bracket WPL-Y0806717
...
33
Nut WPL-0800928
...
34
Grommet, Mounting WPL-0805631
...
35
Screw WPL-0806863
...
36
Screw WPL-0806967
...
37
Door Guide WPL-0807449
...
38
Screw WPL-0806976
...
39
Inner Dr. Assy. WPL-0807194
...
40
Clamp WPL-Y0807212
...
41
Sub 807464 Thermostat WPL-0807462
...
42
Screw WPL-Y0807784
...
43
Screw WPL-0806894
...
44
Seal, Baffle WPL-Y0808331
...
45
Rivet, Plastic, Pkg. Of 7 WPL-Y0808330
...
46
Vent Plate Assembly WPL-0808369

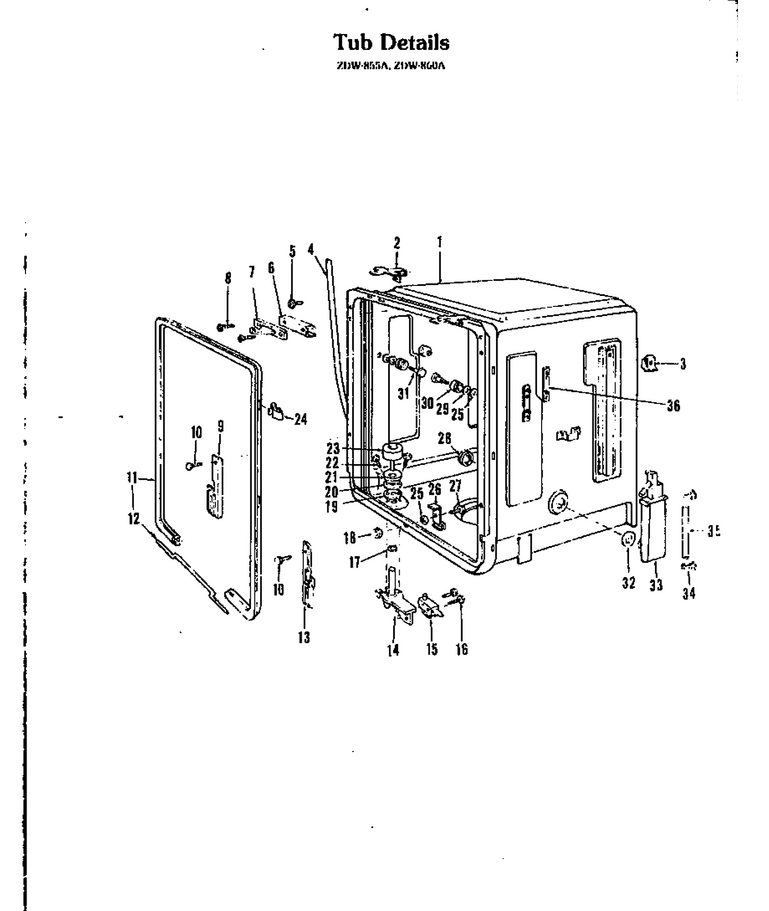

03 - Tub Detail

...
...
1
Tub & Gasket Assembly WPL-0807901
...
2
Clip WPL-0808289
...
3
Nut, Cage WPL-0806291
...
4
Drain Hose WPL-806089
...
5
Screw WPL-0807036
...
6
Shim Strike WPL-0807073
...
7
Strike WPL-807015
...
8
Screw WPL-WP22001496
...
9
Guide, Counterbalance, L.h. WPL-Y0807470
...
10
Screw, No.10-24 X 5/8 WPL-0806539
...
11
White Gask WPL-808959
...
12
Junction, Wire Gasket WPL-0808344
...
13
Rh Guide WPL-807471
...
14
Float Assy WPL-Y0809859
...
15
Float Switch WPL-Y0807680
...
16
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
17
``0`` Ring WPL-Y0807759
...
18
Use M0281003 WPL-0803346
...
19
Gasket WPL-808063
...
20
Ring WPL-Y0808064
...
21
Collar WPL-0804149
...
22
Screw WPL-807268
...
23
Float WPL-Y0804630
...
24
Clip Kit (Tub Gasket) WPL-805763
...
25
Use 0809044 WPL-0805776
...
26
Clip, Gasket WPL-0808115
...
27
Screw WPL-WP250830
...
28
Nut Plastic WPL-0805669
...
29
No.8 Type A Set Sst Washer WPL-0803367
...
30
Roller WPL-0807180
...
31
Sub 808564, Kit, Screw & Wsr. WPL-0807181
...
32
Washer WPL-803573
...
33
Water Inlet Assy WPL-Y0806470
...
34
Clamp WPL-Y0807813
...
35
Tube, Inlet WPL-0807891
...
36
Twin Nut Assem. WPL-0807038

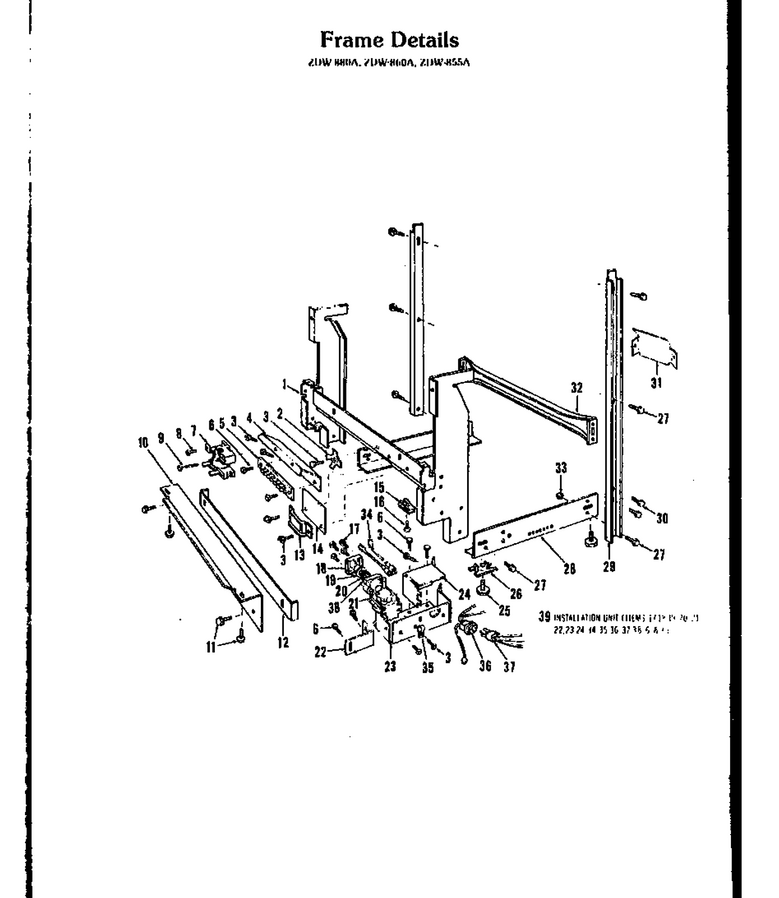

02 - Frame Details

...
...
1
Weld Assembly, Hinge WPL-0807848
...
2
Terminal, Grounding WPL-0807213
...
3
Screw WPL-0806830
...
4
Bracket, Terminal Board WPL-0807849
...
5
Terminal Block WPL-0807486
...
6
Screw WPL-W11233072
...
7
Sub 805255 Relay WPL-0806121
...
8
Screw WPL-WP488234
...
9
Screw WPL-0804672
...
10
Toe Plate WPL-0807850
...
11
Screw WPL-0807001
...
12
Toe Plate, Adjustable WPL-0806295
...
13
Wiring Clamp WPL-0806723
...
14
Wire Shield WPL-0808013
...
15
Speed Nut WPL-0808170
...
16
Screw WPL-Y0807784
...
17
Sub 808368, Screw WPL-0805286
...
18
Fitting, Retainer WPL-Y0808458
...
19
Fitting WPL-Y0808337
...
20
Flow Washer WPL-0807609
...
21
Sub 808668, Inlet Valve WPL-0808338
...
22
Clip WPL-Y0808339
...
23
Mounting Bracket WPL-Y0808340
...
24
Cover WPL-Y0808341
...
25
Leveling Legs WPL-0807672
...
26
Tee Nut - Snap In WPL-0807671
...
27
Screw WPL-0806889
...
28
``u`` Frame Assembly WPL-Y0807851
...
29
Side Channel WPL-0806290
...
30
Screw WPL-Y0807950
...
31
Support, Drain Hose WPL-Y0808342
...
32
Brace, Rear WPL-Y0807852
...
33
Nut K WPL-M0282005
...
34
Connector, Inlet Valve WPL-Y0808354
...
35
Clamp WPL-W10833902
...
36
Sub 808409, Receptacle WPL-Y0808358
...
37
Pin Connector WPL-Y0808356
...
38
Flow Washer WPL-0807609
...
39
Installation Kit WPL-0808360
