product name

Amana YNED5800HW2 DRYER

Model: YNED5800HW2

Save
 Part Not Listed?Part Not Listed?

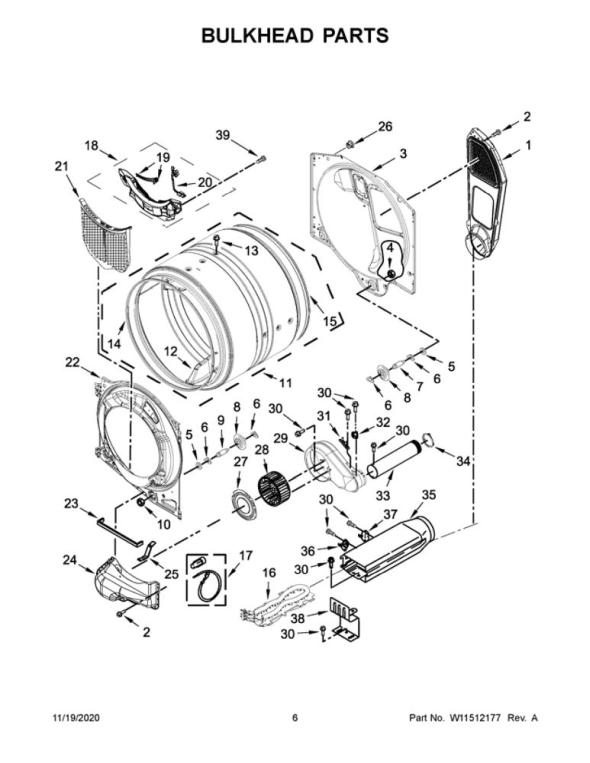

product name

Amana YNED5800HW2

...
...
1
Duct-Air,Ass WPL-W11104018
...
2
Appliance Screw WPL-WP488729
...
3
Dryer Bulkhead WPL-W11299300
...
4
Dryer Nut, 3/8-In WPL-WPW10080190
...
5
Dryer Washer (Replaces Wpw10080960) WPL-W11236646
...
6
Dryer Tri-Ring Retainer (Replaces W10512946) WPL-WPW10512946
...
7
Dryer Drum Support Roller Shaft (Replaces W10359272) WPL-WPW10359272
...
8
Dryer Drum Support Roller (Replaces W10314173) WPL-WPW10314173
...
9
Dryer Drum Support Roller Shaft (Replaces W10359271) WPL-WPW10359271
...
10
Dryer Nut WPL-WPW10080210
...
11
Dryer Drum WPL-W10508188
...
12
Dryer Drum Baffle WPL-W10416098
...
13
Screw WPL-W10853898
...
14
Dryer Drum Seal, Front (Replaces W10273050, W10521122) WPL-W11193479
...
15
Dryer Drum Seal Kit (Replaces 697694, W10116343, W10166807, W10521118) WPL-280114
...
16
Dryer Heating Element (Replaces 3387747, W11045584, W11344457) WPL-WP3387747
...
17
Dryer Heating Element Wire Kit WPL-279457
...
18
Dryer Moisture Sensor Kit (Replaces W10108170, W10219017, W10672683, Wpw10219012) WPL-W10906551
...
19
Dryer Moisture Sensor (Replaces 3387223) WPL-WP3387223
...
20
Dryer Wire Harness (Replaces W10298258) WPL-WPW10298258
...
21
Dryer Lint Screen (Replaces W10516085) WPL-WPW10516085
...
22
Bulkhead WPL-W10673493
...
23
Dryer Air Duct Seal WPL-W10211950
...
24
Dryer Lint Duct (Replaces W10211896) WPL-WPW10211896
...
25
Dryer Clip WPL-W10414388
...
26
Plug WPL-8529007
...
27
Collar WPL-W11310026
...
28
Dryer Blower Wheel (Replaces 697772) WPL-WP697772
...
29
Dryer Blower Housing WPL-WPW10211911
...
30
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
31
Dryer Thermal Fuse, 195-Degree F (Replaces W10693363) WPL-W10909685
...
32
Dryer Thermistor (Replaces 8577274) WPL-WP8577274
...
33
Dryer Exhaust Duct WPL-WPW10342188
...
34
Collar WPL-WPW10344699
...
35
Dryer Heater Box (Replaces W10608837, W11165874) WPL-W10802681
...
36
Dryer High-Limit Thermostat And Inlet Thermistor (Replaces 8557403) WPL-WP8557403
...
37
Dryer Thermal Cut-Off Fuse Kit, 352-Degree F WPL-280148
...
38
Dryer Heater Housing Bracket WPL-8066099
...
39
Dryer Screw (Replaces 3387230) WPL-WP3387230

Amana YNED5800HW2

...
...
1
Intermediate WPL-W11449081
...
2
Door WPL-W11321075
...
3
Retainer WPL-W11310037
...
4
Dryer Door Inner Window WPL-W11310036
...
5
Dryer Door Glass Seal WPL-W11310035
...
6
Screw WPL-W11661566
...
7
Cover WPL-W11310039
...
8
Catch WPL-W11240283
...
9
Handle Cover WPL-W11120683
...
10
Hinge Cover WPL-W11120174
...
11
Dryer Screw WPL-W10850046
...
12
Hinge WPL-W11318815
...
13
Screw WPL-8540479

Amana YNED5800HW2

...
...
NI
Dryer Leveling Leg (Replaces 279810, 40021) WPL-49621
...
NI
Dryer 4-Way Vent Kit WPL-W10323246
...
1
Cord-Power WPL-W11226826
...
2
Dryer Clip WPL-694415
...
3
Bracket WPL-W11310030
...
4
Refrigerator Screw WPL-WP489463
...
5
Cover-Termin WPL-W11394868
...
6
Appliance Screw WPL-WP488729
...
7
Bracket WPL-WPW10208382
...
8
Rear Panel WPL-W10487431
...
9
Range Screw WPL-W10850756
...
10
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
11
Washer Screw WPL-WP3389420
...
12
Base WPL-W11215531
...
13
Prog Acu - J WPL-W11491458
...
14
Dryer Side Panel WPL-W11233548
...
15
Dryer Sound Dampening Pad WPL-W11409002
...
16
Panel-Front, WPL-W11490883
...
17
Strike WPL-W11310031
...
18
Screw WPL-W11661566
...
19
Range Screw (Replaces 308685) WPL-WP308685
...
20
Dryer Drum Felt Seal (Replaces 3387242) WPL-WP3387242
...
21
Dryer Door Switch WPL-W11307535
...
22
Dryer Leveling Leg (Replaces 279810, 40021) WPL-49621
...
23
Dryer Idler Pulley (Replaces W10547287, W10547290) WPL-W10837240
...
25
Dryer Tri-Ring Retainer (Replaces W10512946) WPL-WPW10512946
...
26
Dryer Idler Spring (Replaces W10446781) WPL-WPW10446781
...
27
Dryer Drum Belt (Replaces 661570) WPL-661570V
...
28
Dryer Motor Clamp WPL-WPW10121316
...
29
Dryer Drive Motor Assembly (Replaces W11086656, W11322192) WPL-W11364931
...
30
Dryer Motor Pulley (Replaces 8066184) WPL-WP8066184
...
31
Bracket-Moto WPL-W11481730

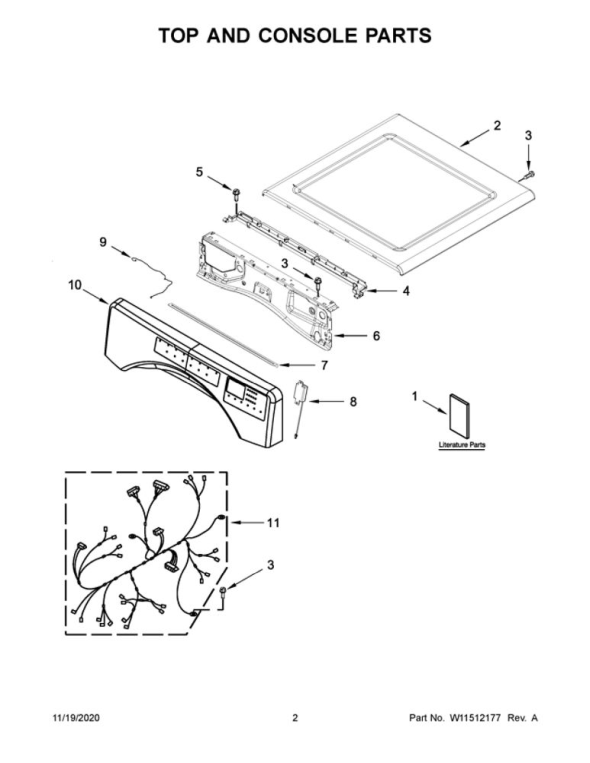

Amana YNED5800HW2

...
...
2
Dryer Top Panel WPL-WPW10208383
...
3
Appliance Screw WPL-WP488729
...
4
Channel WPL-W11310027
...
5
Screw, Sm/He WPL-12990702
...
6
Dryer Control Panel Bracket WPL-W10208198
...
7
Seal WPL-W11318819
...
8
Appliance Speaker (Replaces W10568405) WPL-W11123146
...
9
Harn Ui Whr WPL-W11459337

Amana YNED5800HW2

...
...
NI
Appliance Spray Paint (Gray Primer) (Replaces 10955, 350338) WPL-350938
...
NI
Door Kit WPL-W10315283RP
...
NI
Dryer Power Cord (Replaces 33002441, W10830963) WPL-PT600L
...
NI
Appliance Porcelain Touch-Up Paint, 1-Qt (White) WPL-799344
...
NI
Dryer Repair Kit (Replaces 2015, 80047) WPL-4392067
...
NI
Dryer Vent Tester (Replaces 8522199, Wpw10106710) WPL-W11224254
...
NI
Dryer 4-Prong Power Cord, 4-Ft, 30-Amp WPL-PT400L
...
NI
Laundry Appliance Long-Vent Dryer Stacking Kit (Replaces W10298318, W10298318Rp) WPL-W10869845
...
NI
Dryer Drying Rack (Replaces W10322470, W10830862, W10886894) WPL-W10322470A
...
NI
Dryer Power Cord, 4-Ft (Replaces 4392905, 4392905R, W10830966) WPL-PT220L
...
...
...
