Amana XST2092B (BOM: P1133345N B)

Model: XST2092B (BOM: P1133345N B)

Save Part Not Listed?
product name

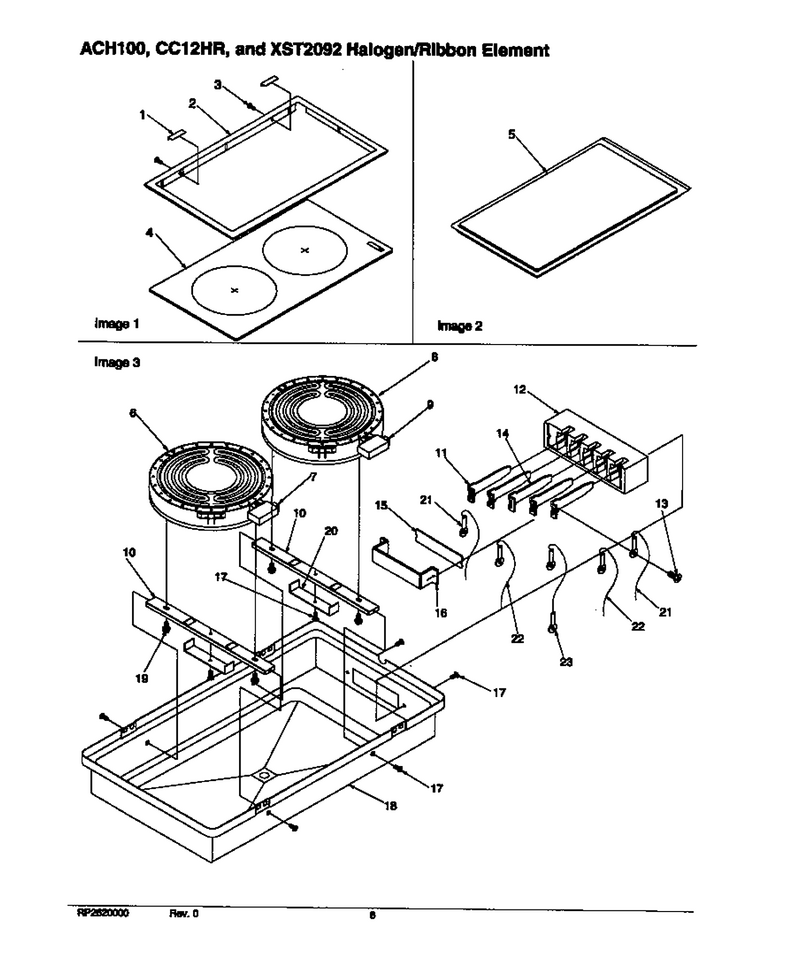

01 - Ach100/cc12hr/xst2092 Element

...
...
1
Support Glass WPL-10296101
...
2
Module Top-Elect (Blk Enamel) WPL-300983B
...
3
Screw, No.6-20 X .375 Panhd(Blk) WPL-Y0092373
...
4
Cooktop, Ceramic WPL-307740B
...
6
Assy, Halogen WPL-Y0307396
...
7
Limiter, Halogen Element WPL-Y0312334
...
8
Element- R WPL-32082601
...
9
Limiter-Temp WPL-10061009
...
10
Element Mtg. Brkt WPL-0040970
...
11
Contact, Spade-Ground WPL-Y0052041
...
13
Screw WPL-WP3400882
...
14
Contact, Spade-Ground WPL-Y0052041
...
15
Insulator-Cooktop Module WPL-Y0041994
...
16
Plug Block Mtg Brkt WPL-Y0040964
...
17
Screw WPL-W11245710
...
18
Module Pan, Electric WPL-31907501
...
19
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
21
Jumper Wire WPL-D8601235
...
22
Jumper Wire WPL-D8601236
...
23
Jumper Wire WPL-D8601237
...
99
Tape, Vinyl Foam, Roll WPL-Y0307330
