Amana XST2022B (BOM: P1133259N B)

Model: XST2022B (BOM: P1133259N B)

Save Part Not Listed?
product name

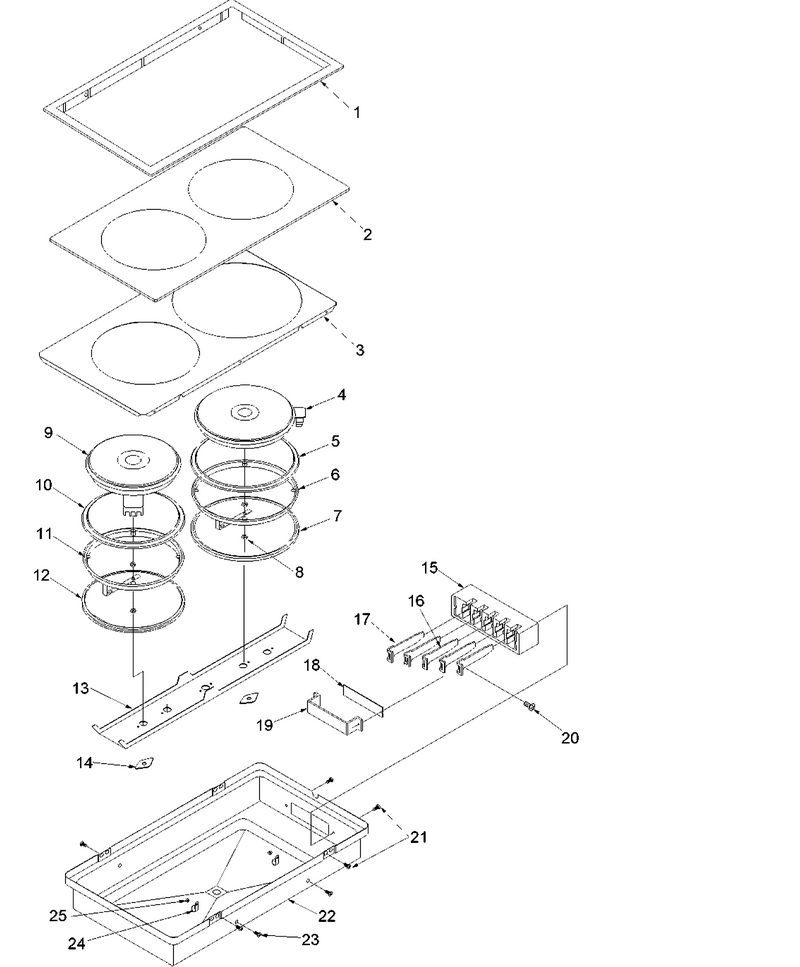

01 - Cc13 And Xst202-2 Solid Disk

...
...
NI
Owner`s Guide, Xst102 WPL-Y0052966
...
1
Module Top-Elect (Blk Enamel) WPL-300983B
...
2
Glass, Top WPL-Y0061576
...
3
Support Glass WPL-061494B
...
4
Element W/ring (Large) WPL-Y04100403
...
6
Gasket, Ring WPL-0061609
...
7
Gasket WPL-Y0059632
...
8
Nut, Hex M6 X 1 WPL-31750109
...
9
Element 6`` 1500w WPL-Y0305257
...
11
Gasket, Ring WPL-0061608
...
12
Gasket WPL-Y0059631
...
13
Bracket, Elem. Mtg. WPL-Y0061495
...
14
Spring, Leaf WPL-0061614
...
15
Module, Plug Block WPL-Y0314569
...
16
Contact, Spade-Ground WPL-Y0052041
...
17
Contact, Spade-Ground WPL-Y0052041
...
18
Insulator-Cooktop Module WPL-Y0041994
...
19
Bracket, Plug Blk. Mtg. WPL-0061496
...
20
Screw WPL-WP3400882
...
21
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
22
Pan, Module WPL-300749B
...
23
Screw 8-32x.375 Dk Gl Dr Hdl WPL-0041833
...
24
Clamp, Wire-Insulate WPL-Y0068513
...
25
Nut WPL-WP488130
