Amana XST111UB1 (BOM: P1133344NB)

Model: XST111UB1 (BOM: P1133344NB)

Save Part Not Listed?
product name

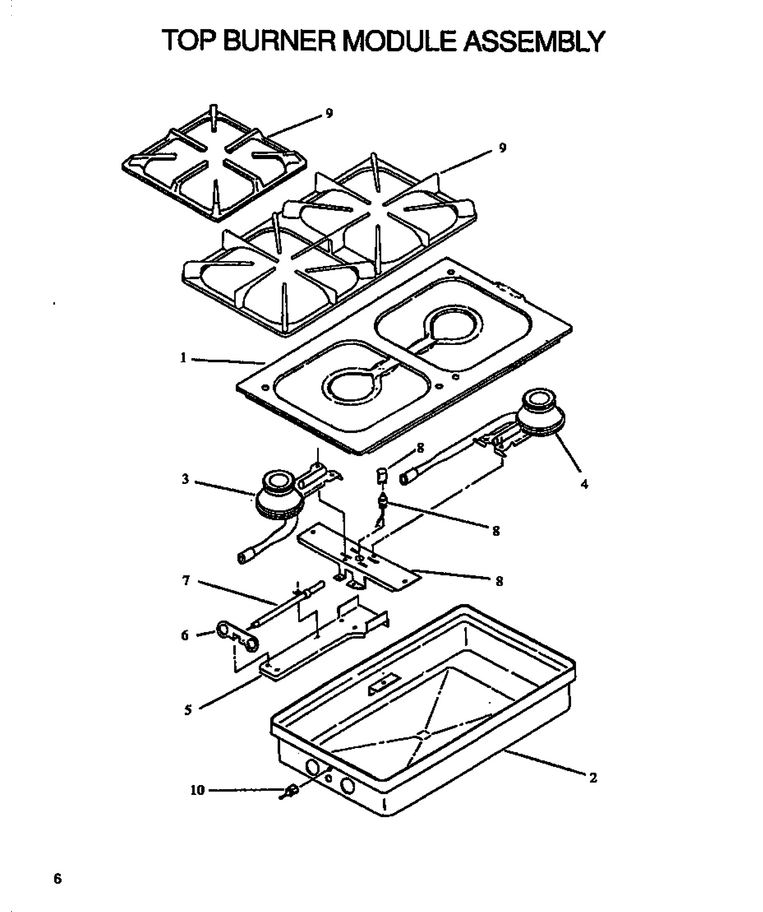

01 - Top Burner Module Assy

...
...
NI
Tapping Screw 8 18 Hex WPL-Y0041793
...
1
Module Top-Gas (Blk Enamel) WPL-300988B
...
2
Module Pan WPL-300756E
...
3
Burner, Front (Blk) WPL-0300181
...
4
Burner, Rear (Blk) WPL-Y0300180
...
5
Burner Support Base Gt591 WPL-Y0041043
...
6
Venturi Support Kgt591 WPL-Y0041044
...
7
Connector,electrode Xx WPL-0042216
...
8
Electrode And Cap Assy. WPL-Y0041500
...
9
Grate, Dbl (Black) WPL-306788B
...
10
Ground Pin Xst311 Kgt591 WPL-Y0041898
