Amana XRSS267BB (BOM: PXRSS267RBB1)

Model: XRSS267BB (BOM: PXRSS267RBB1)

Save Part Not Listed?
product name

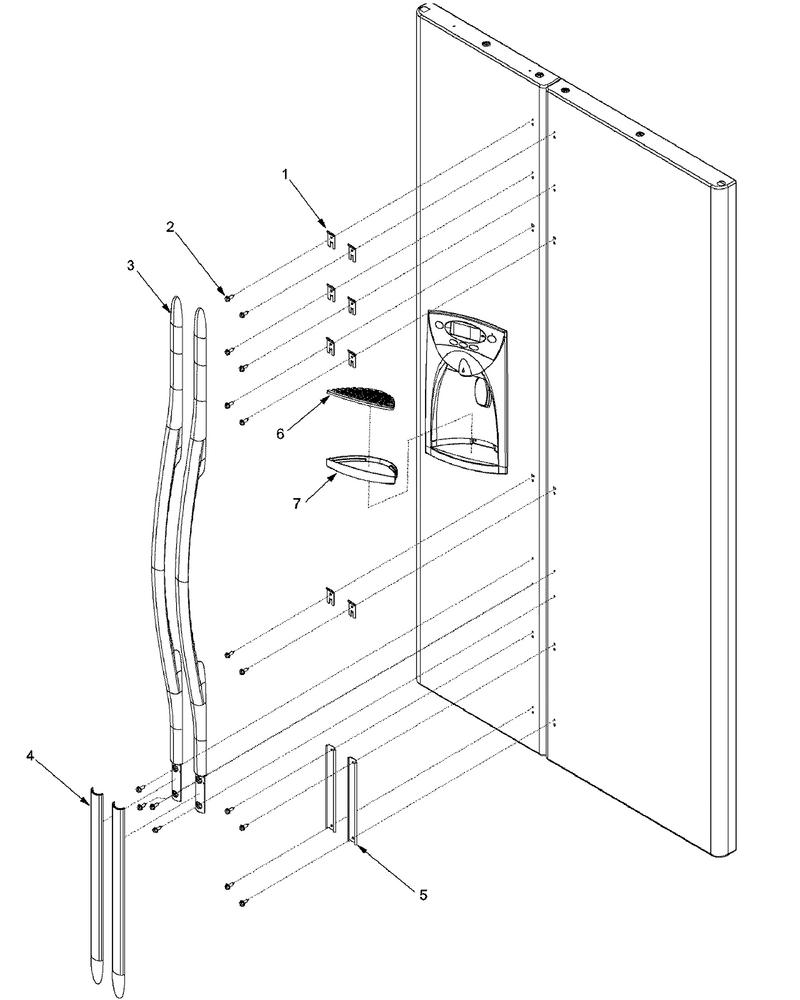

09 - Handles And Trim

...
...
6
Grille, Sump (Blk) WPL-12593901B
...
7
Tray, Sump WPL-67003054

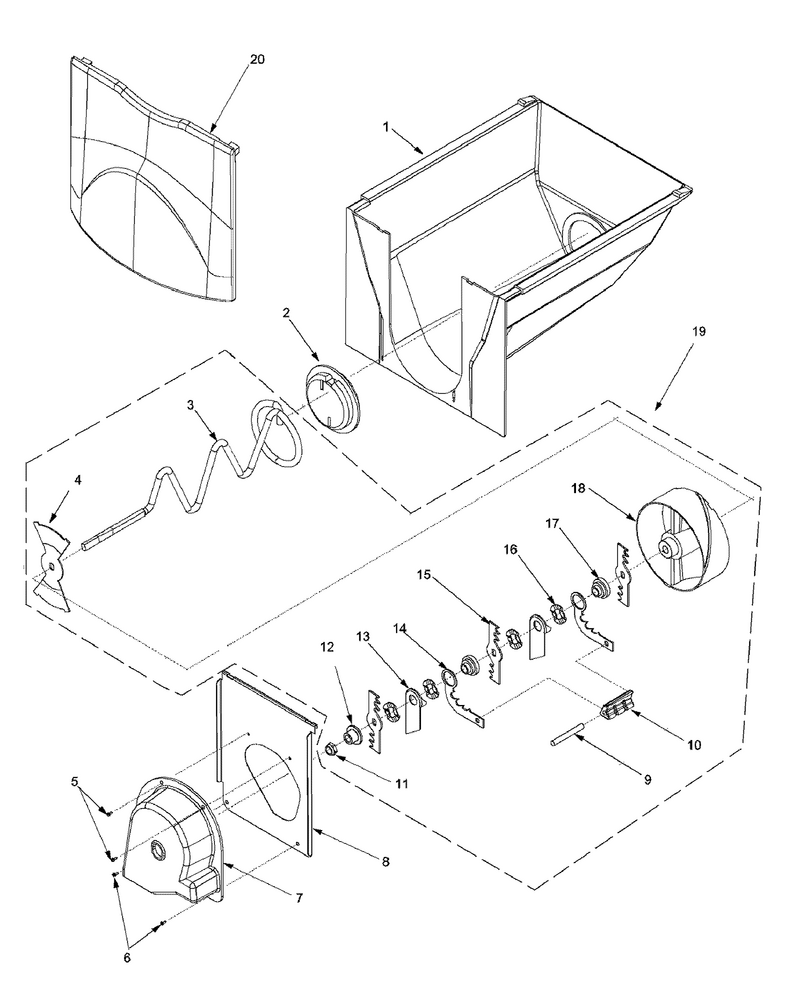

11 - Ice Bucket Assy

...
...
1
Bucket- Ic WPL-WP67005959
...
2
Cap- Helix WPL-WPD7749401
...
3
Agitator, Ice WPL-10114401
...
4
Bar, Crsh Ice Bucket WPL-10113801
...
5
Screw, Hex Head WPL-59001208
...
6
Screw (3) WPL-67006425
...
7
Cover, Blade WPL-67002271
...
8
Front, Ice Crusher WPL-10115001
...
9
Pin, Roll WPL-M1200108
...
10
Anchor, Blade WPL-10114101
...
11
Nut WPL-WPM0223101
...
12
Spacer, Cover WPL-10113901
...
13
Damper, Ice WPL-10275201
...
14
Blade, Static WPL-10114601
...
15
Blade, Rotating WPL-10114501
...
16
Washer, Waved WPL-10275101
...
17
Washer Stepped WPL-10114301
...
18
Wheel- Crs WPL-WP67002052
...
19
Crushr-Mec WPL-WP12740302
...
20
Bucket- Ic WPL-WP12571606

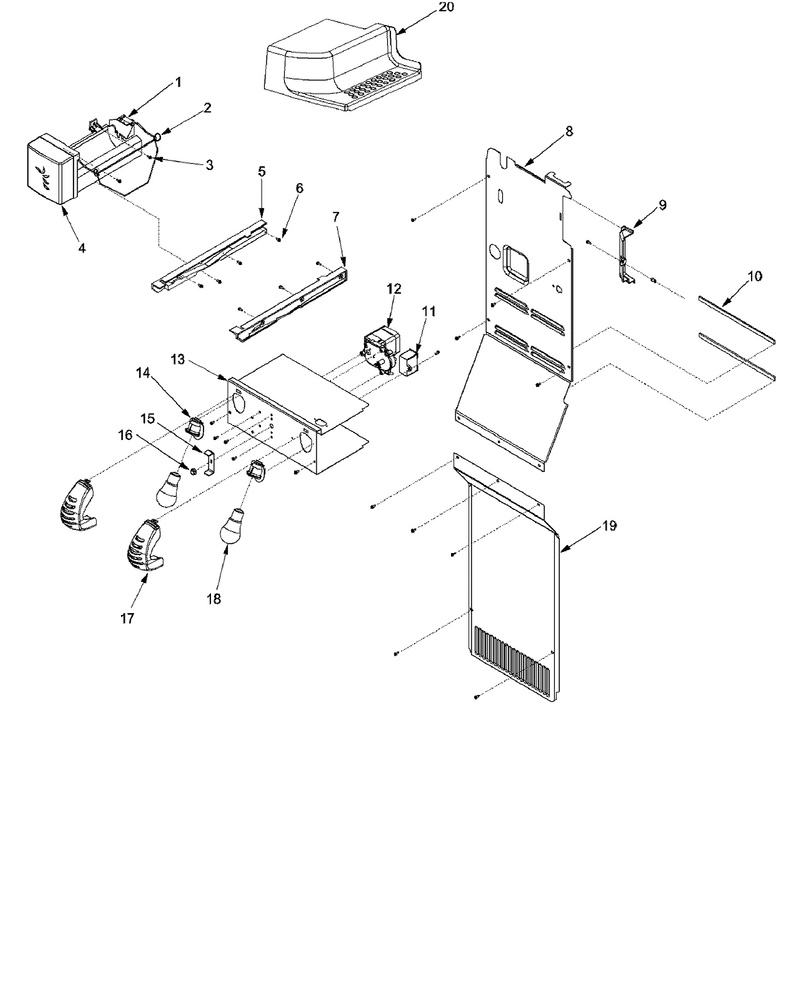

05 - Evap Fan Assy And Lights

...
...
1
Grommet, Screw WPL-M0580007
...
2
Tie Wire WPL-WPM0322202
...
3
Insulation, Tubing WPL-67002219
...
4
Tie-Wire WPL-WPW10339879
...
5
Tube-Water WPL-12617602
...
6
Blade-Fan WPL-WP2169142
...
7
Shroud, Evap WPL-12590001
...
8
Gasket WPL-67001508
...
9
Grommet- F WPL-WP67002780
...
10
Motor- Eva WPL-WP10449511
...
11
Clip, Evap Motor WPL-12217805
...
12
Shield, Crisper Light WPL-67001507
...
13
Lamp, 25w/50hz WPL-67002217
...
14
Receptacle, Bulb WPL-67002218
...
15
Filter, Water Generic WPL-67006470
...
16
Cover- Fil WPL-WP12568001
...
17
Housing- W WPL-WP67001669
...
18
Plate, Filter Backing WPL-12688503
...
19
Switch WPL-W11291138
...
20
Socket WPL-W11447232
...
21
Plug, Bypass WPL-67003146

07 - Fz Door And Facade

...
...

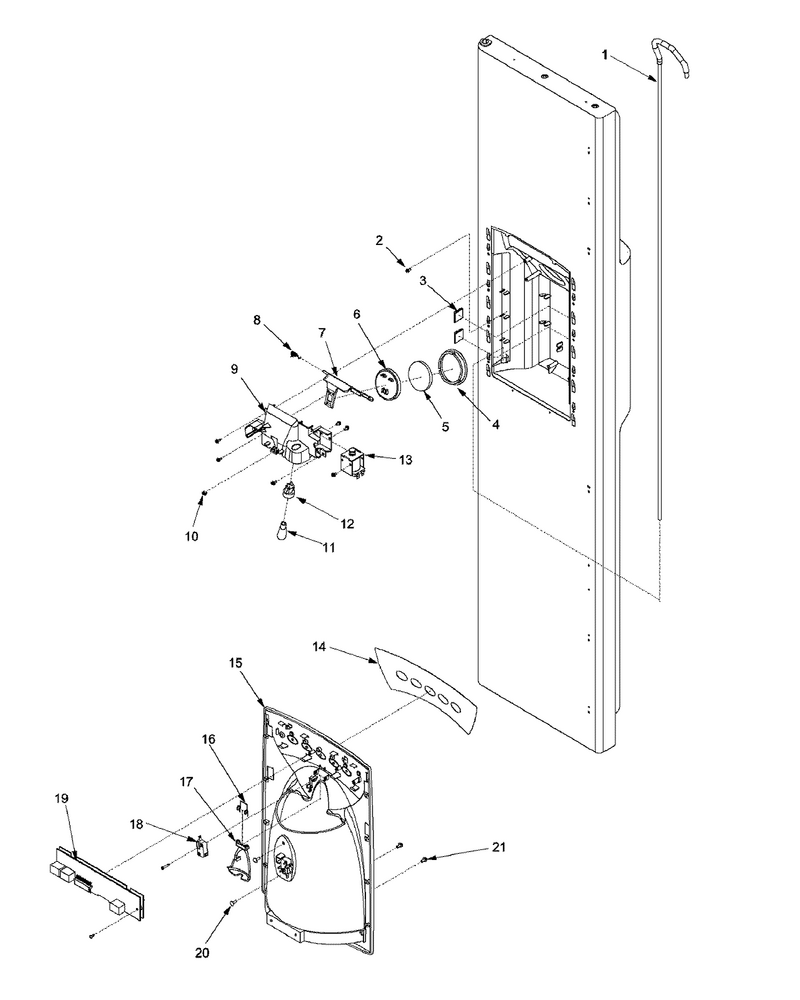

1
Waterline Assy. WPL-67004938
...
2
Clamp WPL-W10833902
...
3
Clip, Cord WPL-M0104102
...
4
Seal- Ice WPL-WP12665101
...
5
Insulation WPL-WP67007098
...
6
Door- Ice WPL-WP12562701
...
7
Hinge WPL-12002464
...
8
Spring- Ch WPL-WP12565502
...
9
Hinge WPL-12002464
...
10
Clip, Waterline WPL-67002816
...
11
Bulb, Light WPL-M0360003
...
12
Socket, Light WPL-12617501
...
13
Solenoid WPL-WP67002170
...
14
Insert, Facade (Blk) WPL-67002261
...
15
Facade- 5 WPL-67004842
...
16
Spring, Sports Fill-Return WPL-B8385403
...
17
Button, Sports Fill (Blk) WPL-12665402B
...
18
Screw,hi/lo WPL-M0237945
...
19
Cntrl-Elec WPL-WP67003623
...
20
Button- Pl WPL-WP67001130
...
21
Screw (3) WPL-67006425

13 - Lights And Ice Maker

...
...
1
Icemaker WPL-WPW10190972
...
2
Bracket WPL-WP2256087
...
3
Screw (3) WPL-67006425
...
4
Cover-Frnt WPL-WPW10289690
...
5
Glide, Container (Left) WPL-67005375
...
6
Screw, Handle WPL-67006529
...
7
Glide, Frz. (Rt) WPL-67004323
...
8
Screw (3) WPL-67006425
...
9
Screw (3) WPL-67006425
...
10
Gasket (1=1ft.) WPL-10839713
...
11
Screw WPL-WPW10139210
...
12
Screw WPL-WPW10139210
...
13
Cover, Auger WPL-67002268
...
14
Socket WPL-W11447232
...
15
Coupling WPL-WP10114901
...
16
Nut WPL-WPM0223101
...
17
Shield, Fz Light WPL-67004433
...
18
Lamp, 25w/50hz WPL-67002217
...
19
Cover, Evap WPL-12403401
...
20
Shelf, Quick Chill WPL-12582102
...
21
Harns-Wire WPL-W10150036

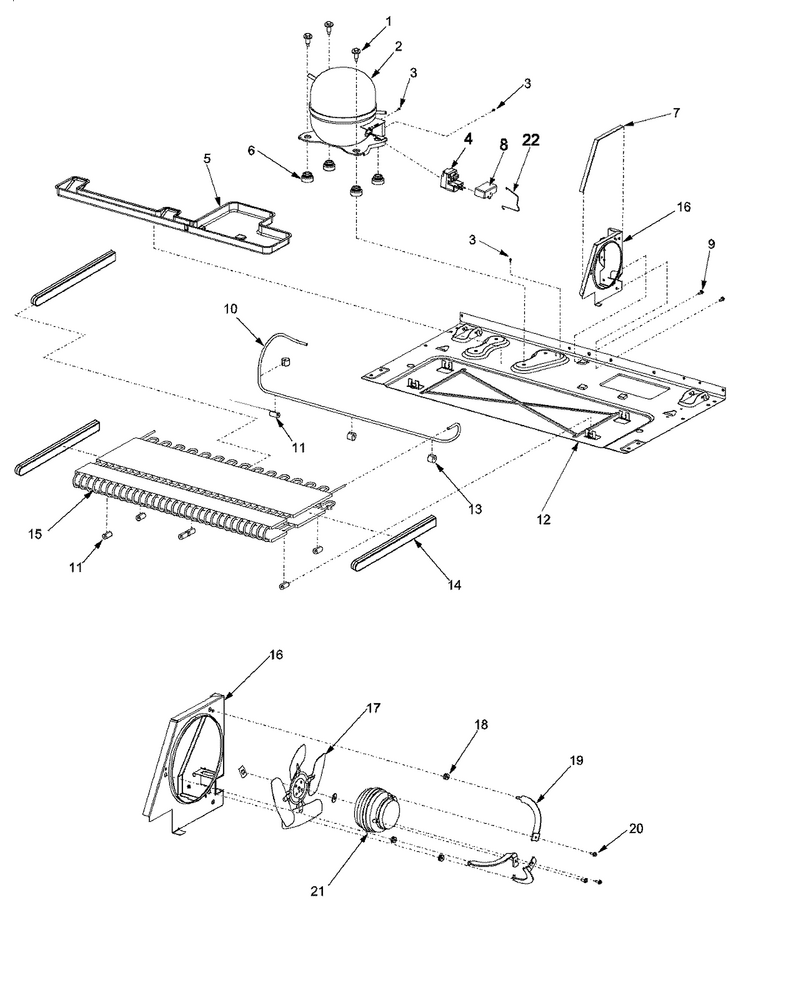

14 - Machine Compartment

...
...

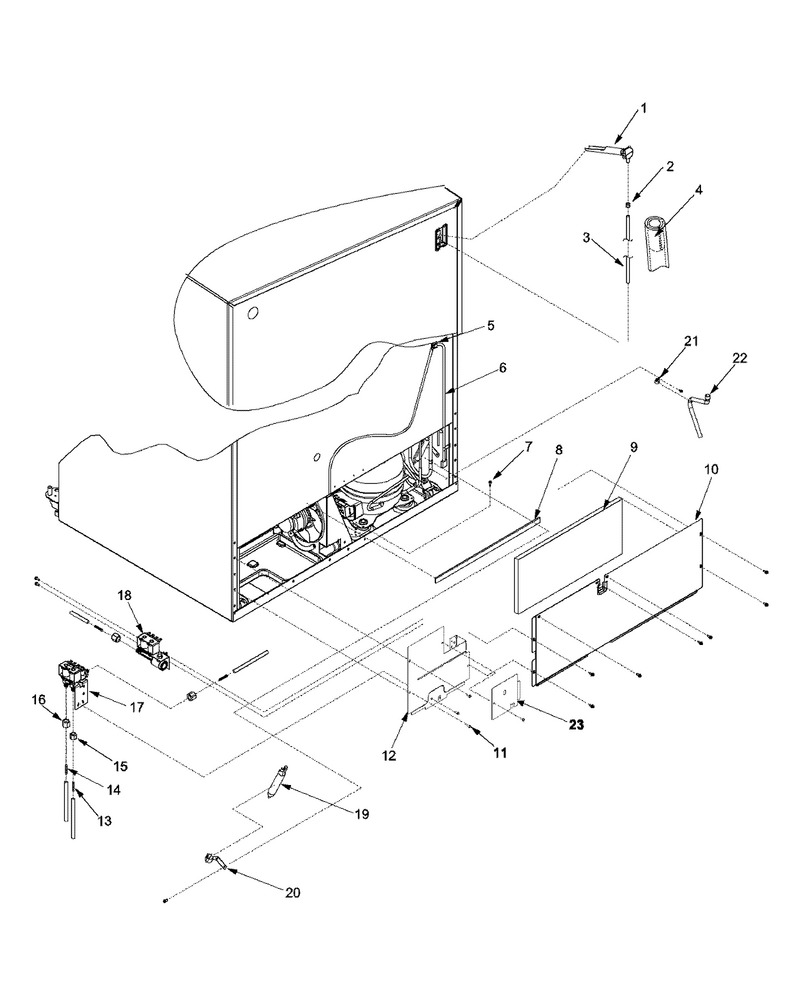

1
Screw, Shldr WPL-M0221523
...
2
Compressor WPL-W10309997
...
3
Screw WPL-12992301
...
4
Start-Dev WPL-WP67002814
...
5
Pan, Drain 2 Way WPL-67007176
...
6
Grommet, Compressor WPL-67003493
...
7
Seal-Strip WPL-WP854334
...
8
Capacitor WPL-WP2201147
...
9
Screw (3) WPL-67006425
...
10
Tube, Discharge WPL-67002236
...
11
Grommet (2) WPL-67005680
...
12
Basepan WPL-12457108
...
13
Damper, Tubing WPL-10699601
...
14
Block-Eps Cond WPL-67002235
...
15
Condenser WPL-WP67006131
...
16
Shroud, Condenser WPL-12687101
...
17
Blade- Con WPL-WP12587601
...
18
Grommet- B WPL-WP61004743
...
19
Bracket, Condenser Motor WPL-67003354
...
20
Screw WPL-WPM0223816
...
21
Motor, Condenser Fan WPL-67002165
...
22
Strap, Bale WPL-67003179
...
23
Harness, Mc WPL-67002866

02 - Controls

...
...
1
Gasket, Damper WPL-10383201
...
2
Grommet, Screw WPL-M0580205
...
3
Extension, Knob WPL-12571801
...
4
Bracket, Control WPL-67002981
...
5
Screw WPL-M0216539
...
6

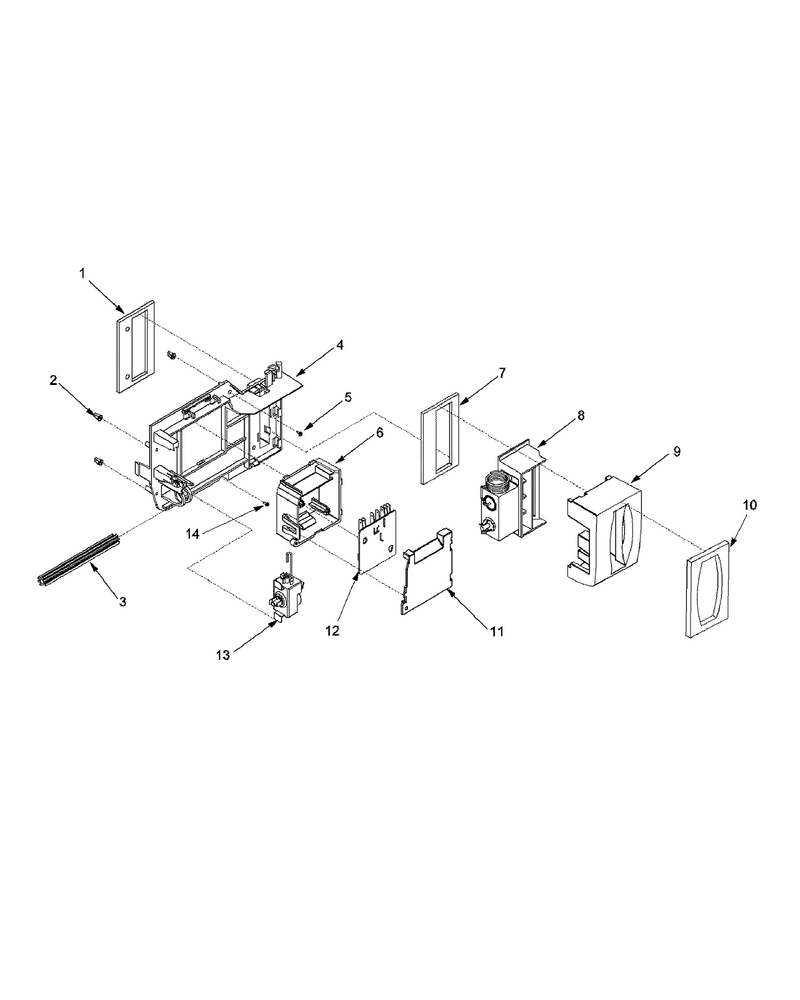

Box, Defrost Control WPL-12624801
...
7
Gasket, Damper WPL-12582801
...
8
Control- D WPL-WP12571701
...
9
Insulation, Damper WPL-12604201
...
10
Gasket- Co WPL-WP12582901
...
11
Cover, Defrost Control WPL-12624901
...
12
Board, Adaptive Defrost WPL-67003626
...
13
Control, Fz Temp WPL-67002164
...
14
Screw WPL-WP98165
...
15
Harness, Control WPL-67003627

04 - Deli And Ref Shelf

...
...

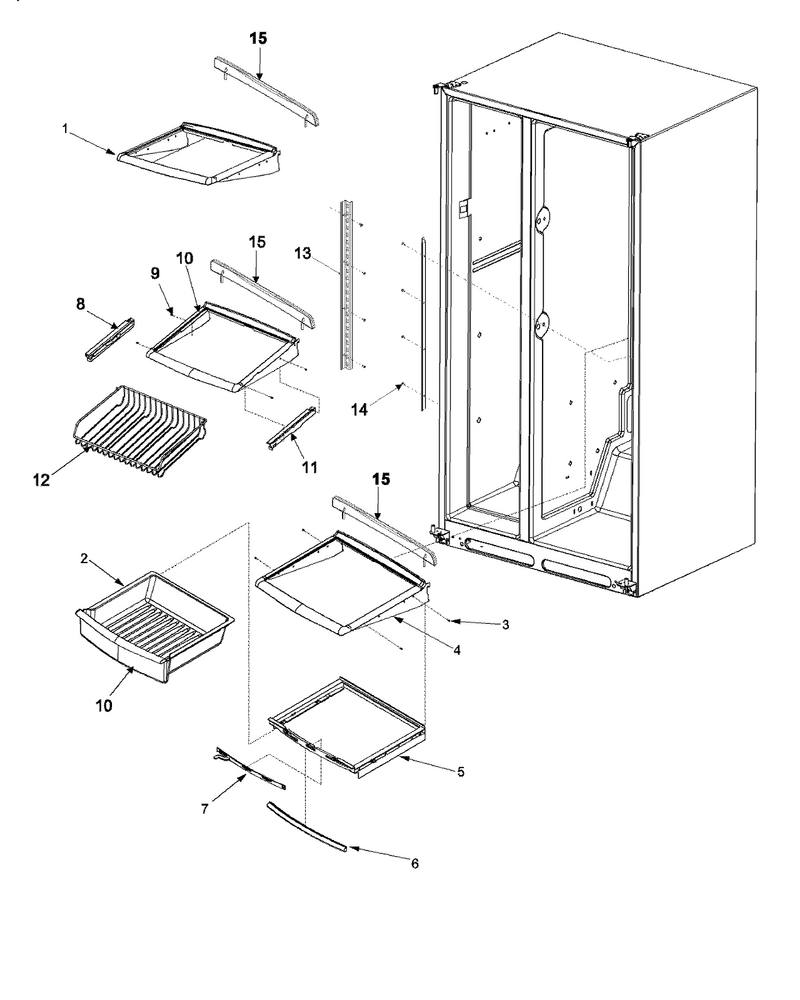

1
Shelf, Glide WPL-67002132
...
2
Pan, Sm Crisper WPL-67001663
...
3
Screw WPL-W11233072
...
4
Shelf, Sta B/b 22 WPL-67003391
...
5
Frame, Sm Crisper WPL-67002882
...
6
Seal, Sm Crisper Front WPL-12589104
...
7
Slide, Sm Crisper (Blue) WPL-12562602U
...
8
Holder-Bev WPL-WP12579602
...
9
Screw WPL-W11233072
...
10
Shelf, Glide WPL-67002132
...
11
Glide, Can Rack (Rt) WPL-12579601
...
12
Rack, Can WPL-12565901
...
13
Ladder, Side WPL-67001178
...
14
Screw WPL-WP90767
...
15
Extension, Ref Shelf WPL-67002897

06 - Evaporator Assy And Rollers

...
...

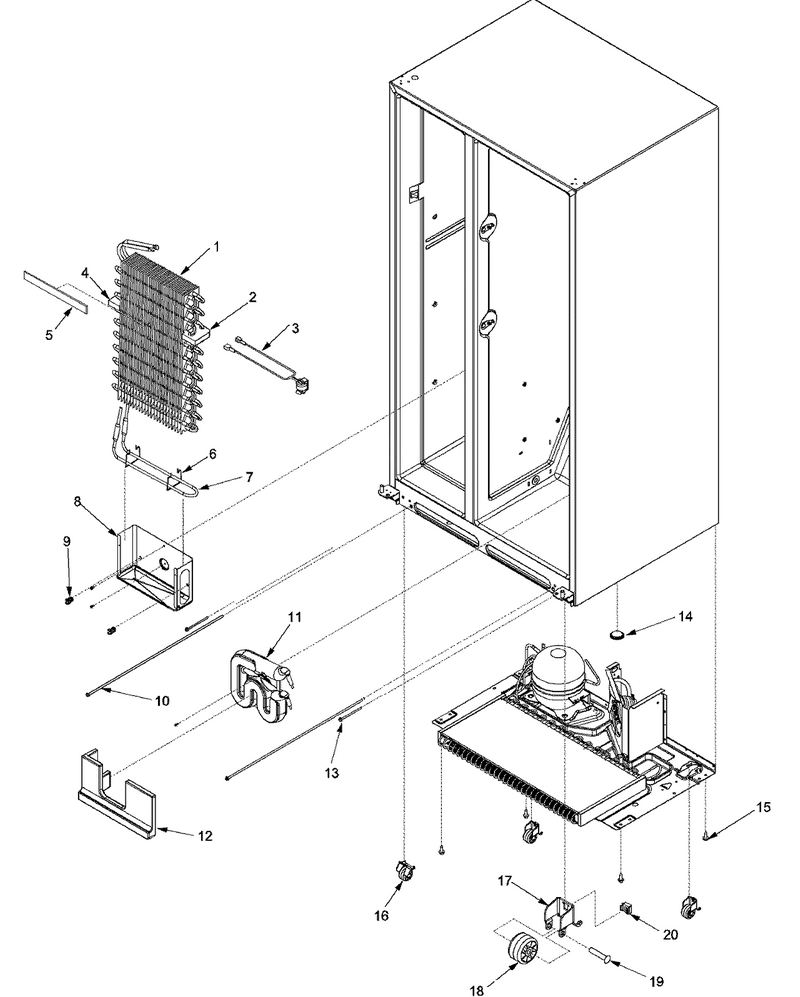

1
Evap Kit (Sxs)--W WPL-12001940
...
2
Block, Air Coil (Rt) WPL-12590102
...
3
Thermostat/fz Liner Harness WPL-67003641
...
4
Block, Air Coil (Lt) WPL-12590101
...
5
Gasket, Foam WPL-67002226
...
6
Clip WPL-W11673433
...
7
Heater, Evap WPL-12049803
...
8
Screw WPL-WP90767
...
9
Clip, Evaporator WPL-10623003
...
10
Screw, Roller (Rear) WPL-67006697
...
11
Tank, Water WPL-10988503
...
12
Insulation, Water Tank WPL-67002275
...
13
Screw WPL-71003131
...
14
Plug, Button WPL-A3076901
...
15
Screw WPL-W10709798
...
16
Roller Bracket Assy WPL-67002227
...
17
Bracket, Foot WPL-12456801V
...
18
Roller WPL-WP10450603
...
19
Rivet WPL-M1205302
...
20
Nut, Speed WPL-M0286708

12 - Light Covers And Toe Grille

...
...
1
Housing, Up Ref WPL-67002221
...
2
Cover, Export Control WPL-67002222
...
3
Knob, Control WPL-12581102
...
4
Knob, Control WPL-12581101
...
5
Screw WPL-M0231426
...
6
Cover, Light WPL-12602907
...
7
Funnel, Drain WPL-12456901
...
8
Seal- O Ri WPL-WPM0500703
...
9
Gasket- Dr WPL-WPB8381501
...
10
Cover, Lwr Hinge (Blk) WPL-12630301B
...
11
Grille Asy WPL-WP67002224
...
12
Plug, Air Tunnel WPL-67003018
...
13
Grille, Return Air WPL-12634801
...
14
Grille- Ch WPL-12572907
...
15
Control, Chiller WPL-67002225
...
16
Clip, Chiller Control WPL-67002827
...
17
Cover, Corner (Blk) WPL-67003485
...
18
Gripper, Bucket WPL-67003210
...
19
Filter-Air WPL-WP12488101
...
20
Switch WPL-W11396033

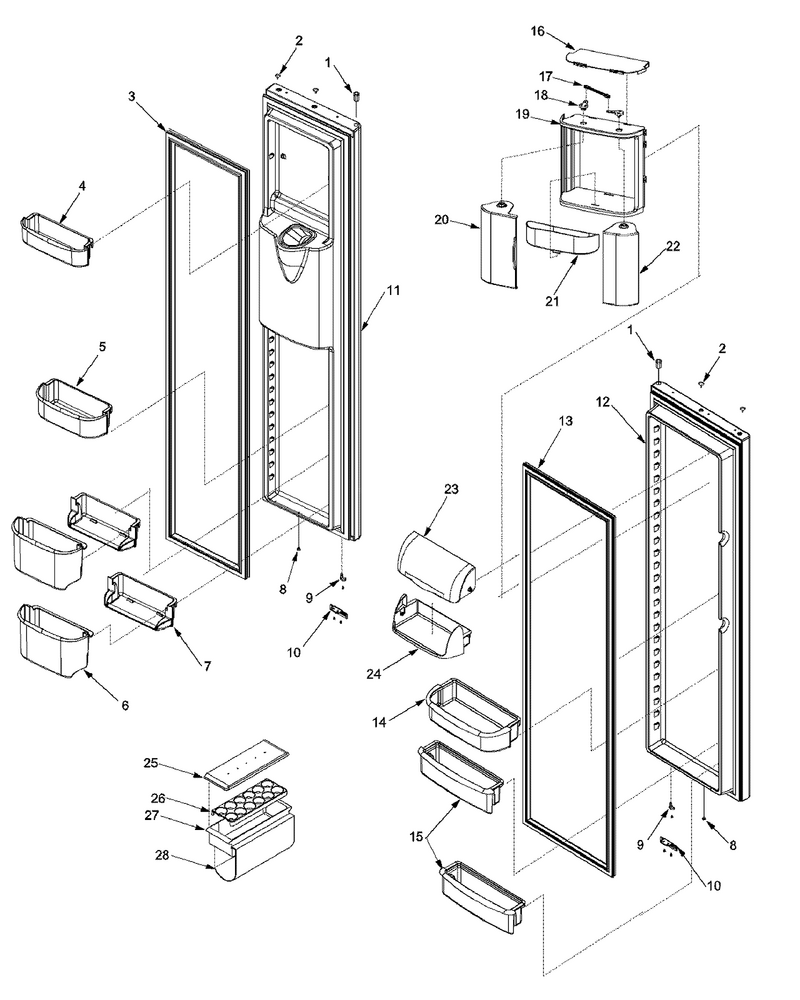

15 - Ref/fz Door And Shelf

...
...

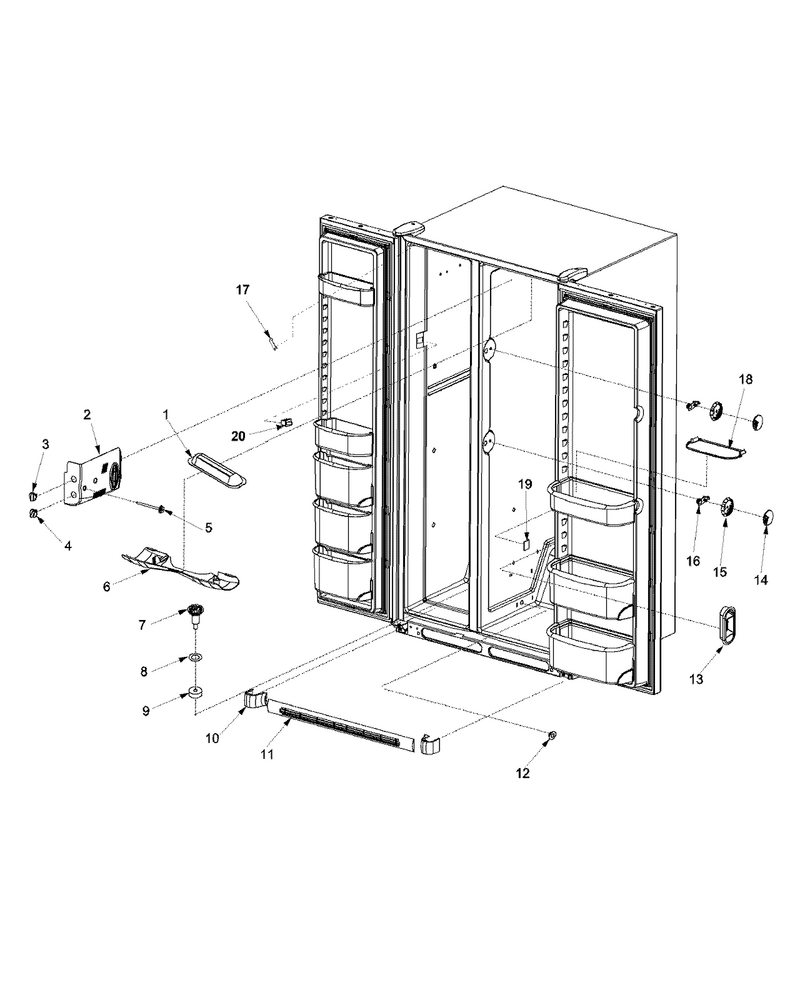

1
Bushing, Door (Blk) WPL-12395501B
...
2
Plug, Button (Blk) WPL-M0311604
...
3
Gasket, Door (Black) WPL-W10133491
...
4
Bucket, Upr Fz Dr WPL-12556901
...
5
Bucket, Lwr Fz Dr WPL-12557501
...
6
Bucket, Fz Tilt Xxx WPL-12569302
...
7
Frame, Tilt Bucket WPL-12569401
...
8
Plug, Button (Blk) WPL-A3080001
...
9
Closure, Door (Blk) WPL-12571301B
...
10
Stop, Door (Blk) WPL-12636401B
...
11
Fz Dr Foam Assy(Blk) WPL-67002255
...
12
Ref Dr Foam Assy(Blk) WPL-67002206
...
13
Gasket-Fip WPL-W10840101
...
14
Bucket- Re WPL-WP12556602
...
15
Bucket, Ref Door WPL-67001278
...
16
Cover, Chiller WPL-67002291
...
17
Linkage, Ctr Chiller WPL-67002292
...
18
Linkage, Chiller WPL-67002293
...
19
Frame, Large Chiller WPL-67002294
...
20
Door, Large Chiller (Lt) WPL-67002295
...
21
Tray, Chiller WPL-67002296
...
22
Door, Large Chiller (Rt) WPL-67002297
...
23
Door, Dairy WPL-67002957
...
24
Tray, Dairy WPL-67002304
...
25
Lid, Utility WPL-10436404
...
26
Tray, Egg WPL-10436506
...
27
Container WPL-WP10423131
...
28
Rack, Bottle WPL-10448903

...
...
1
Manual, Owners WPL-12591314

01 - Cabinet Back

...
...

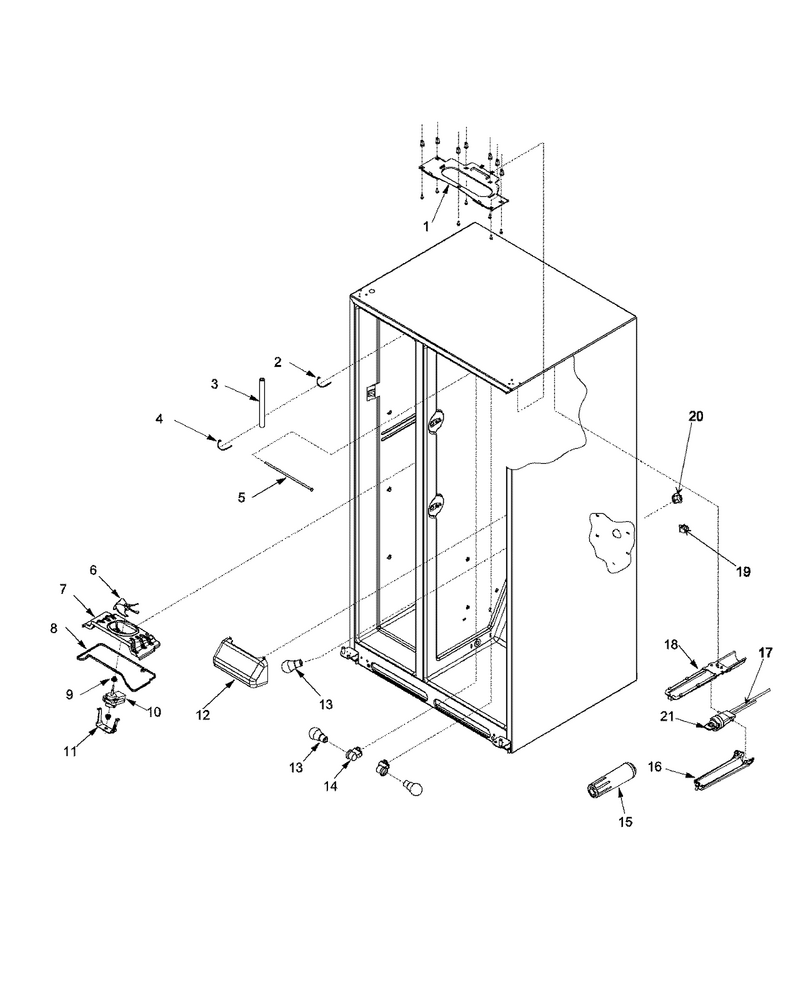

1
Elbow, Fill Tube WPL-67002273
...
2
Clip- Spee WPL-WPM0114003
...
3
Tube WPL-WPB5705307
...
4
Insert- Pl WPL-WPA3223101
...
5
Clip WPL-WPM0104106
...
6
Cord, Power WPL-67002229
...
7
Screw WPL-WP489399
...
8
Gasket, Mc Back WPL-B5759649
...
9
Insulation, Mc Back WPL-B0523599
...
10
Screw (3) WPL-67006425
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Screw (3) WPL-67006425
...
13
Spring WPL-WPA1055105
...
14
Spring, Anti-Kink WPL-A1055104
...
15
Nut WPL-WP627018
...
16
Nut, Sleeve WPL-67003191
...
17
Valve, Secondary Water WPL-67002169
...
18
Screw, 8-32 X 3/8 WPL-681390
...
19
Drier WPL-WPB2150504
...
20
Screw WPL-WP489069
...
21
Screw WPL-WP489069
...
22
Tube, Drain WPL-12580401
...
23
Plate- Wat WPL-12249401

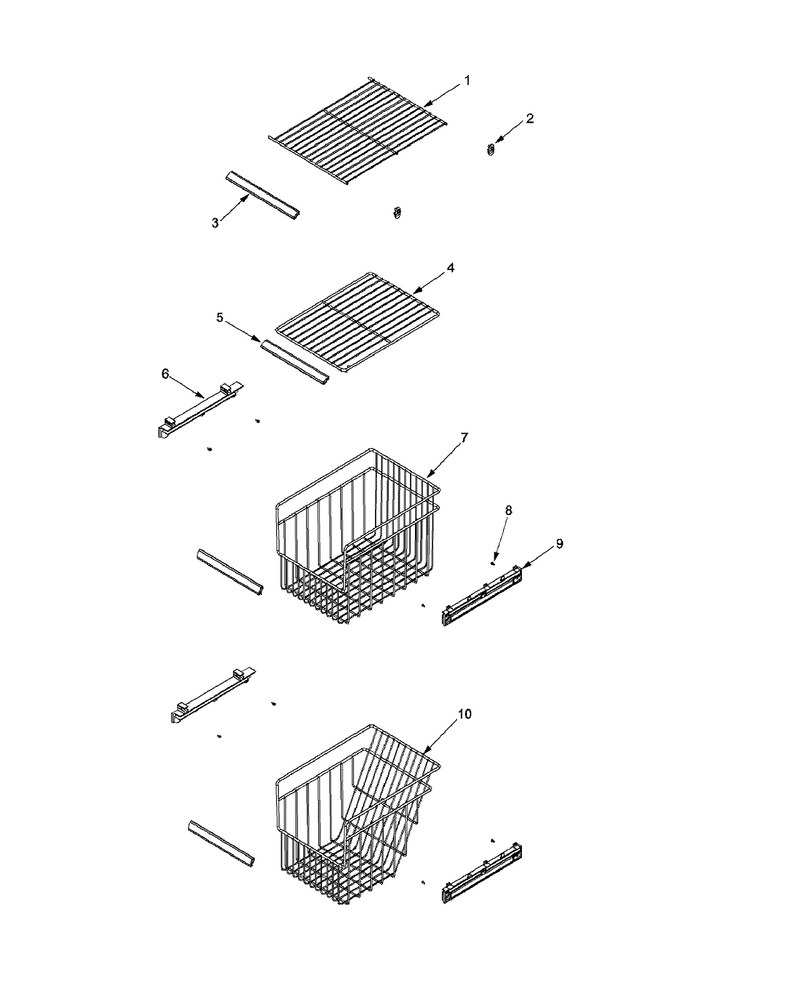

08 - Fz Shelf

...
...
1
Shelf, Upr Frz WPL-67003895
...
2
Support- F WPL-WPC8973801
...
3
Trim, Lwr Shelf WPL-67004181
...
4
Shelf, Lw Fz WPL-12570503
...
5
Trim, Basket/shelf WPL-12314101
...
6
Rail, Shelf (Lt) WPL-12015101
...
7
Basket, Upr Fz WPL-12570403
...
8
Screw WPL-WP98165
...
9
Rail, Shelf (Rt) WPL-10972801
...
10
Basket, Lower WPL-67006235

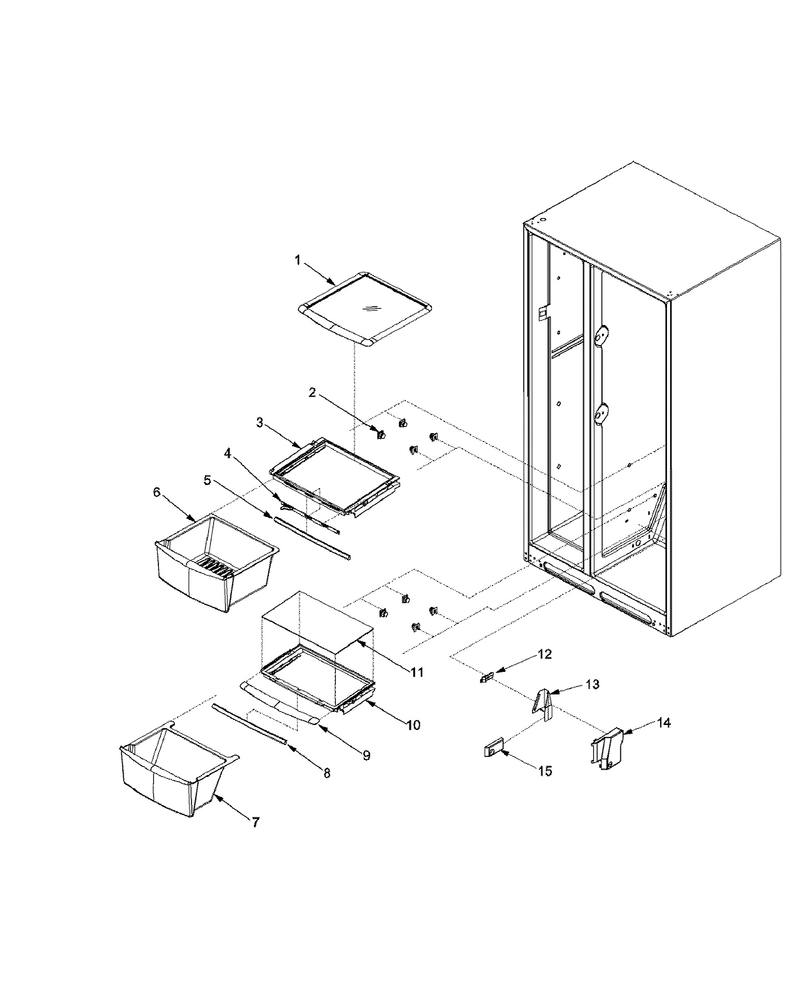

03 - Crisper Assy

...
...
1
Shelf, Top Crisper B/b WPL-67003387
...
2
Support- C WPL-WP12603701
...
3
Frame- Lg WPL-WP67002723
...
4
Slide, Lg Crisper (Blue) WPL-12562601U
...
5
Seal, Sm Crisper Front WPL-12589104
...
6
Pan-Crispr WPL-WP67001503
...
7
Pan, Deli With Front WPL-67003600
...
8
Seal, Sm Crisper Front WPL-12589104
...
9
Trim, Dba Deli Front WPL-67003348
...
10
Frame, Deli WPL-67002822
...
11
Glass, Shelf WPL-12204811
...
12
Control, Deli (Blue) WPL-12586201U
...
13
Slide, Deli Control WPL-12586101
...
14
Housing, B/b Deli Control WPL-67003347
...
15
Tunnel, Deli Control WPL-12664201

10 - Hinges

...
...

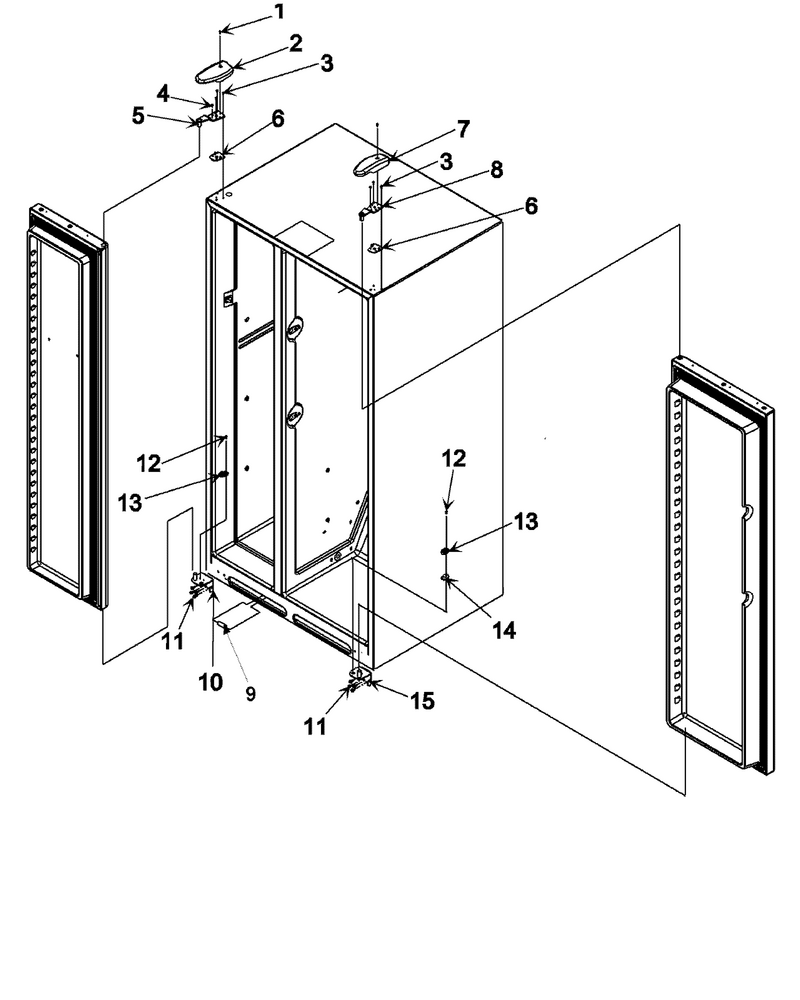

1
Screw WPL-WP8281196
...
2
Cover, Left Hinge (Black) WPL-W10217485
...
3
Screw WPL-WP489349
...
4
Screw WPL-W11214483
...
5
Hinge, Top Left WPL-12626911ED
...
6
Shim, Top Hinge WPL-12695601
...
7
Cover, Top Hinge (Rt-Blk) WPL-12629801B
...
8
Hinge, Top Right WPL-12626910ED
...
9
Fitting WPL-WP2300868
...
10
Hinge, Bottom (Lt-Blk) WPL-12636901ED
...
11
Screw WPL-WP67006715
...
12
Screw, Tc WPL-M0220431
...
13
Kit,dr Closure WPL-R0181181
...
14
Shim- Clos WPL-WP67005716
...
15
Hinge, Bottom (Rt-Blk) WPL-12636902ED

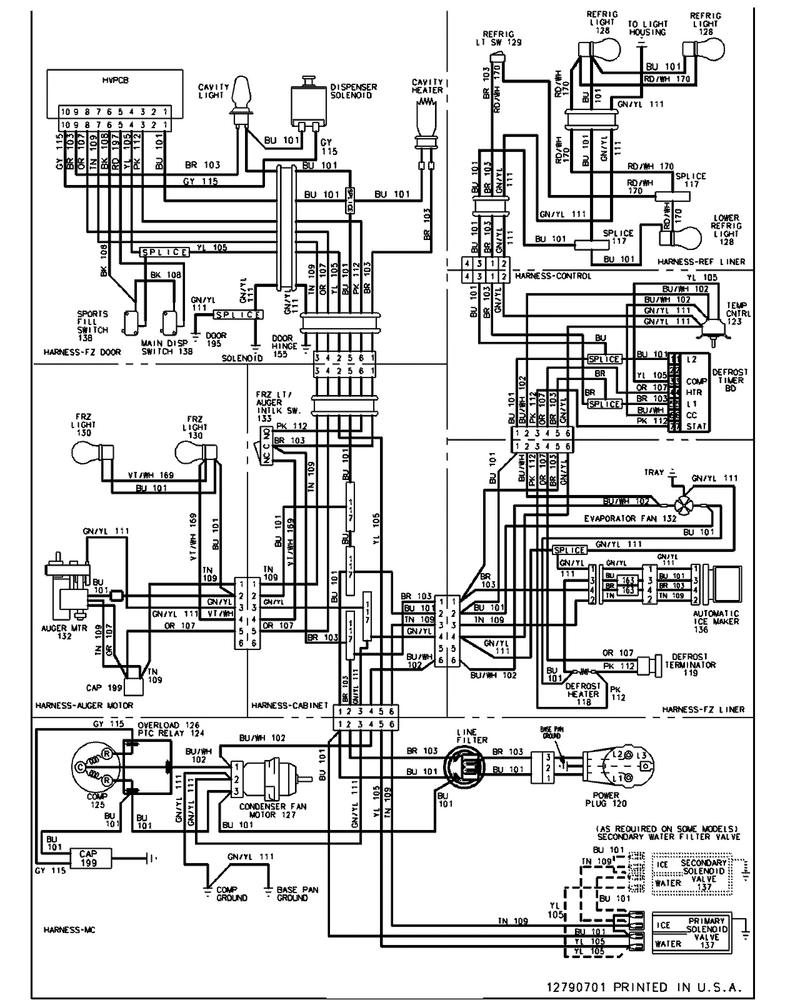

17 - Wiring Information

...
...
