Amana XRBS017BW (BOM: PXRBS017BW0)

Model: XRBS017BW (BOM: PXRBS017BW0)

Save Part Not Listed?
product name

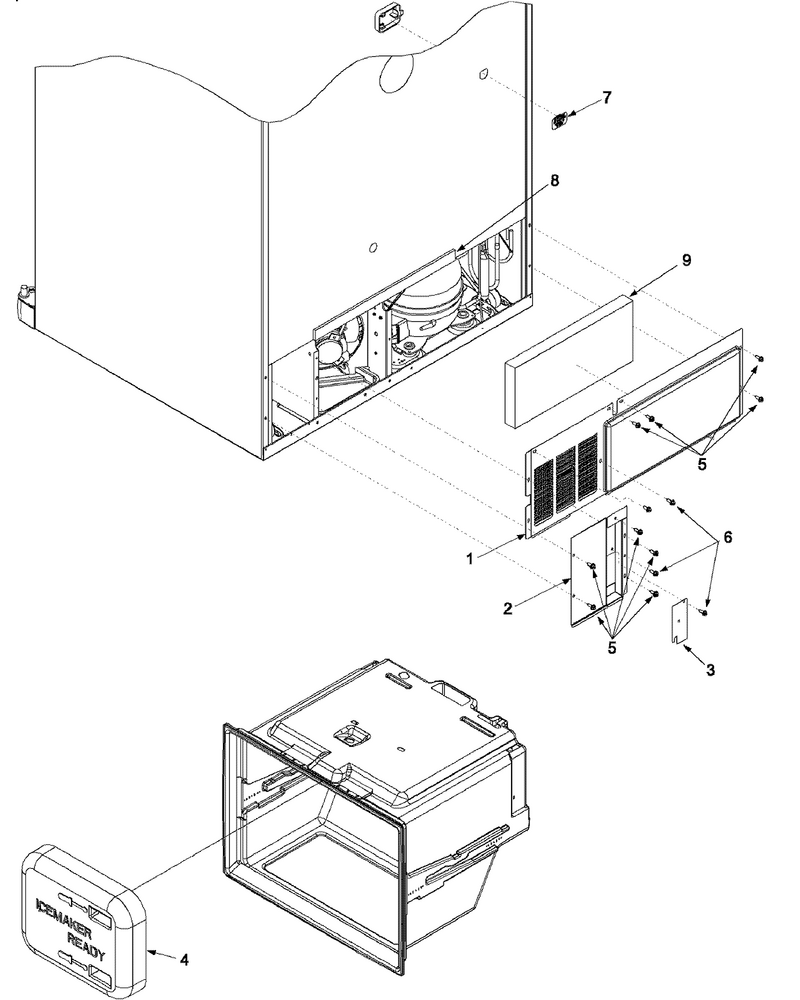

01 - Cabinet Back

...
...
1
Back, Mc WPL-12575102ED
...
2
Cover, Water Valve WPL-12479804
...
3
Plate, Cover WPL-12479901
...
4
Cover-Tube WPL-WP67001098
...
5
Screw (3) WPL-67006425
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Label, Fill Tube WPL-67002306
...
8
Gasket, Mc Back WPL-B5759649
...
9
Fiber, Acoustic WPL-67003796
...
10
Cord, Power WPL-67002229

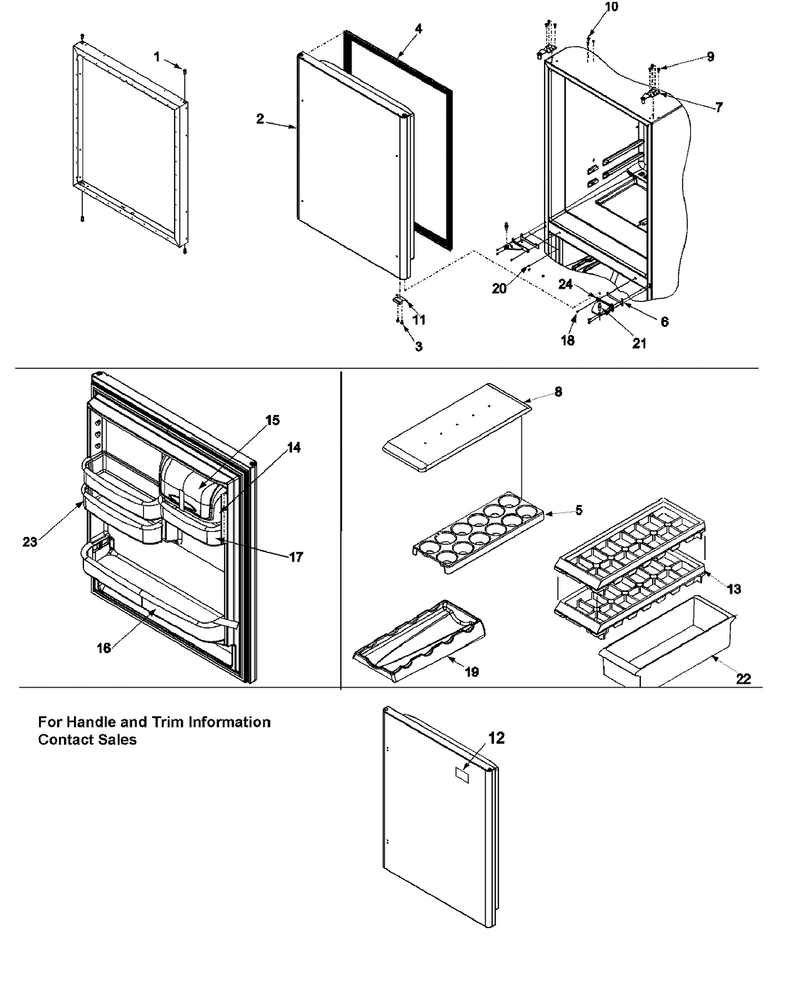

08 - Refrigerator Door

...
...
1
Bushing, Door (Wht) WPL-10961001
...
2
Ref Dr Foam Assy (Wht) WPL-67002622
...
3
Screw WPL-WPW10348409
...
4
Gasket-Fip WPL-W10443317
...
5
Tray, Egg WPL-10436506
...
6
Shim- Non WPL-WPM0274057
...
7
Hinge, Top (Rt-Wht) WPL-67002519
...
8
Lid, Utility WPL-10436404
...
9
Screw WPL-WP489349
...
10
Button- Pl WPL-WP67001130
...
11
Stop, Door (White) WPL-12968202W
...
12
Nameplate (Amana Plus) WPL-Y12528501
...
13
Tray WPL-WP841180A
...
14
Tray- Dair WPL-WP67001279
...
15
Door-Comp WPL-WP67003637
...
16
Retainer, Door WPL-67002477
...
17
Bin-Cntlvr WPL-WPW10371193
...
18
Screw WPL-WP67006380
...
19
Trivet, Bottle WPL-67001656
...
20
Screw WPL-WP489349
...
21
Closer WPL-12002311
...
22
Container WPL-WP10423131
...
23
Bucket, Lrg Ref Door WPL-67003765
...
24
Hinge, Center (Apollo Grey) WPL-12655102AP

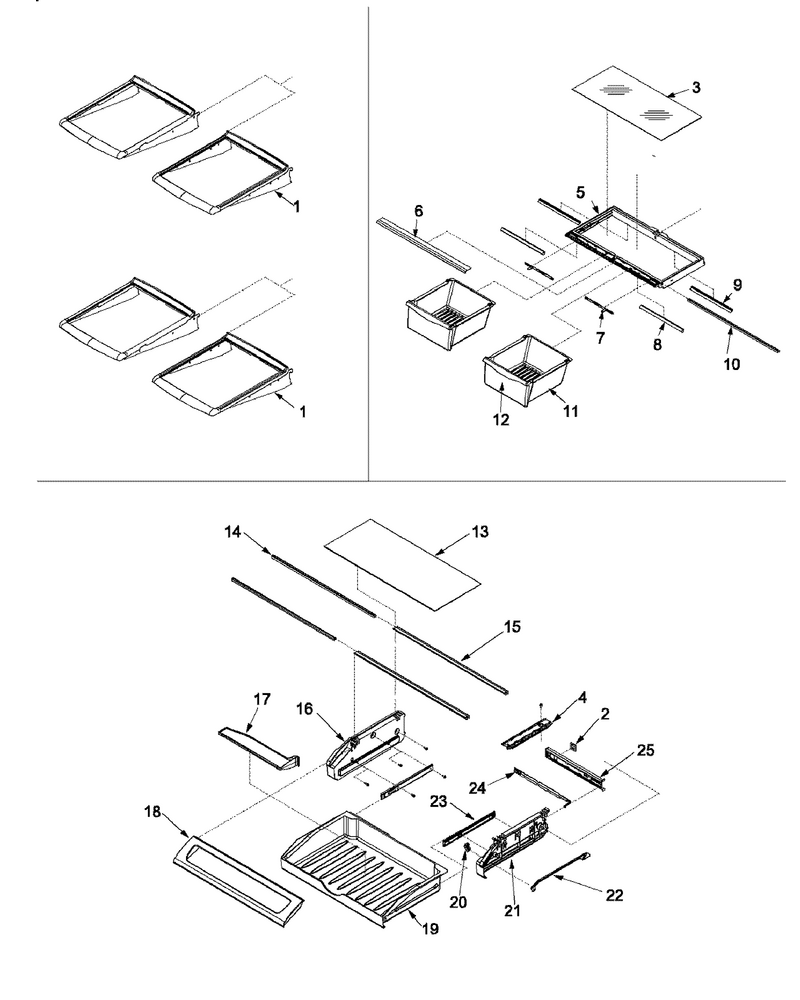

09 - Refrigerator Shelving

...
...
1
Shelf-Gld Out WPL-67002193
...
2
Gasket, Pantry WPL-67002329
...
3
Shelf-Glas WPL-WP67006655
...
4
Track WPL-WP67001719
...
5
Frame WPL-WP67006185
...
6
Trim-Shelf WPL-WPW10231344
...
7
Slide WPL-WP67005864
...
8
Seal- Fron WPL-WP67003417
...
9
Seal- Rear WPL-WP67002513
...
10
Brace- Cri WPL-WP12227304WD
...
11
Pan- Crisp WPL-WP67002659
...
12
Front-Pan WPL-W11206718
...
13
Glass- Pan WPL-WP67002332
...
14
Support WPL-WP12227305WD
...
15
Extr- Glas WPL-WP67006010
...
16
Screw-Sm WPL-M0238636
...
17
Divider- P WPL-WP67002321
...
18
Cover WPL-W10827015
...
19
Pan-Utilty WPL-W11490183
...
20
Knob WPL-W11498983
...
21
Screw-Sm WPL-M0238636
...
22
Bar, Temp Control WPL-67003794
...
23
Glide WPL-WPW10235370
...
24
Slide- Tem WPL-WP67003793
...
25
Housing, Control WPL-12656202
...
26
Crisper Assy. WPL-67002387

11 - Wiring Information

...
...
NI

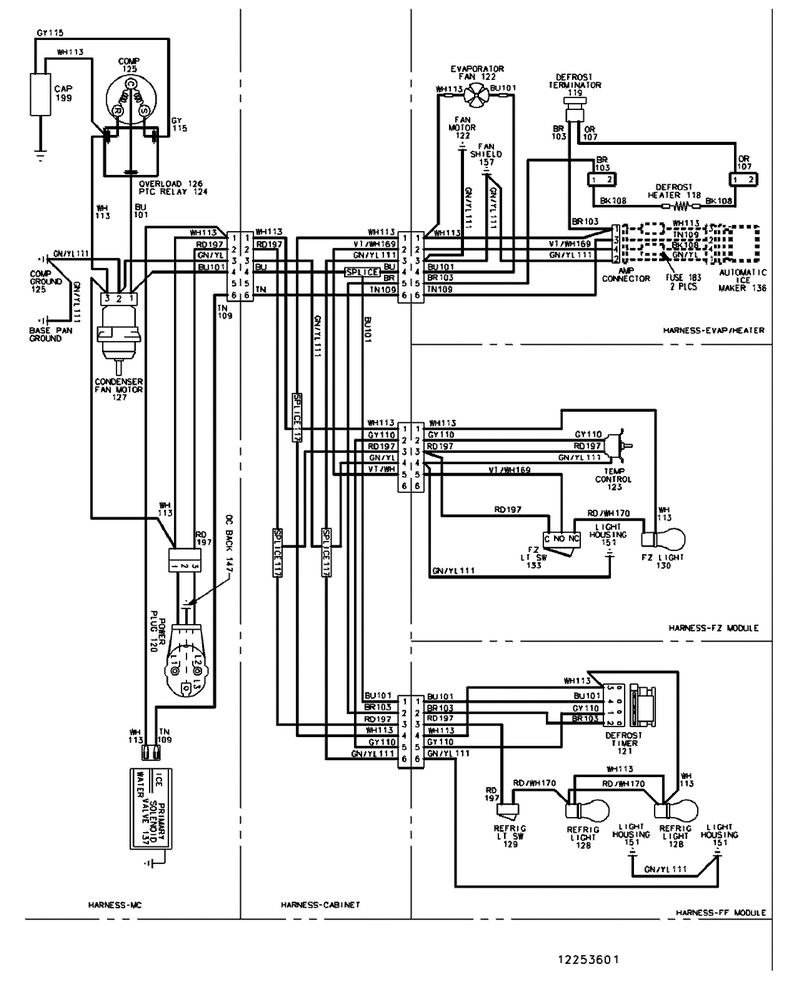

Wiring Information WPL-15003138

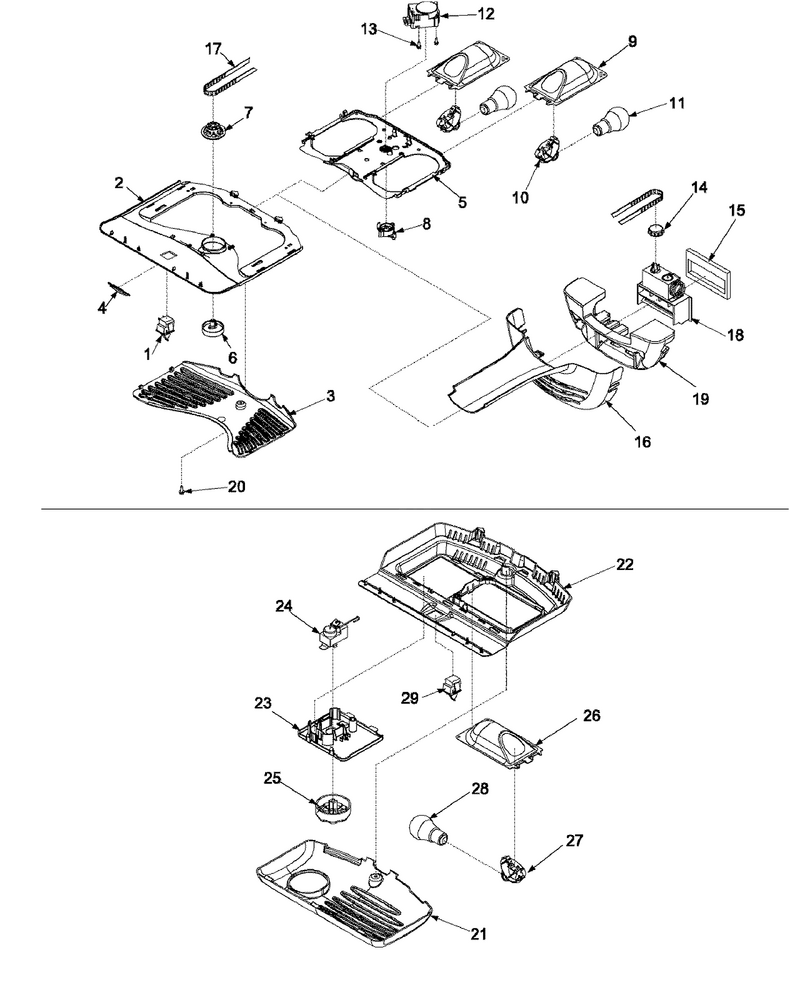

03 - Controls

...
...
1
Switch WPL-W11384469
...
2
Kit- Light WPL-12002057
...
3
Cover, Ref Light WPL-67002301
...
4
Logo, Light Module WPL-67001999
...
5
Housing WPL-WP67002085
...
6
Knob, Front Damper WPL-67002512
...
7
Knob, Gear WPL-67001033
...
8
Tensioner, Belt WPL-67001034
...
9
Housing WPL-W11702858
...
10
Socket WPL-W11447232
...
11
Light Bulb WPL-8009
...
12
Kit, Defrost Timer (230 Vac) WPL-R0168029
...
13
Screw WPL-M0216705
...
14
Gear, Damper WPL-67001037
...
15
Gasket, Damper WPL-67001038
...
16
Cover, Damper WPL-67002481
...
17
Belt, Damper WPL-67002482
...
18
Damper Gea WPL-WP67003410
...
19
Insulation WPL-12650002
...
20
Screw WPL-WP98165
...
21
Cover, Fz Light WPL-67001285
...
22
Module- Fz WPL-WP12476002
...
23
Panel, Fz Control Mounting WPL-67001045
...
24
Control- F WPL-WP67003000
...
25
Knob, Fz Control WPL-67003420
...
26
Housing WPL-W11702858
...
27
Socket WPL-W11447232
...
28
Bulb-Light WPL-WP67002552
...
29
Switch WPL-W11396033
...
30
Harness- F WPL-12682301
...
31
Harness, Fz Module WPL-67002554

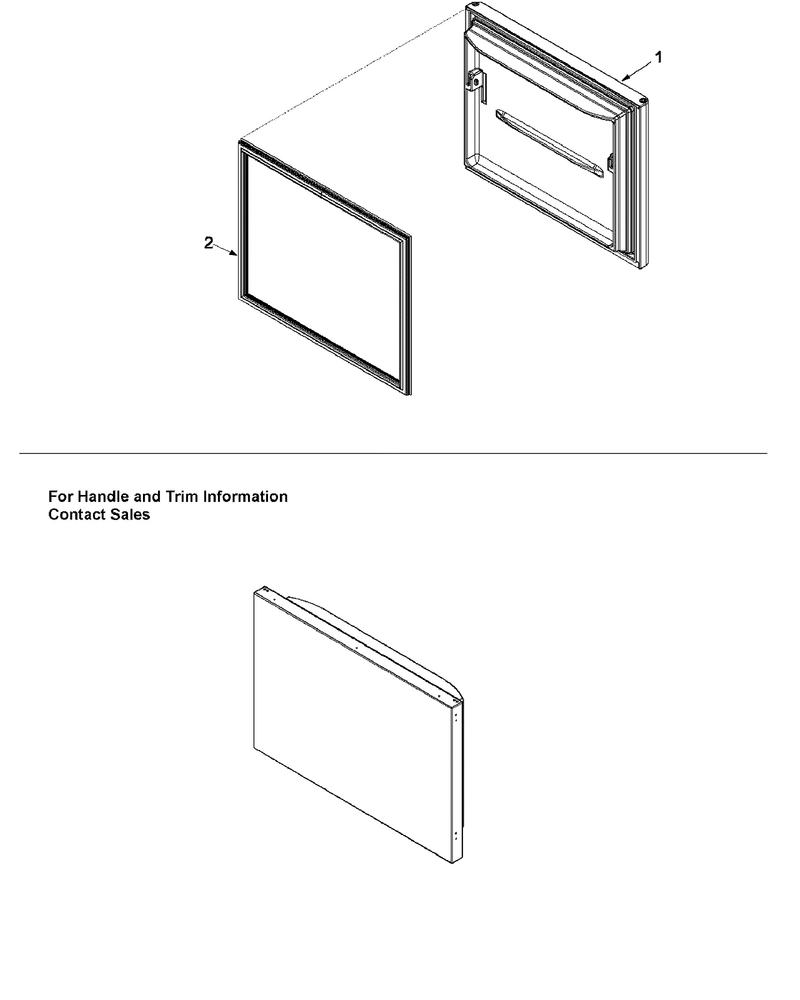

05 - Freezer Door

...
...
1
Fz Dr Foam Assy (Wht) WPL-67002623
...
2
Gasket, Fz Door (Wht) WPL-12683806W

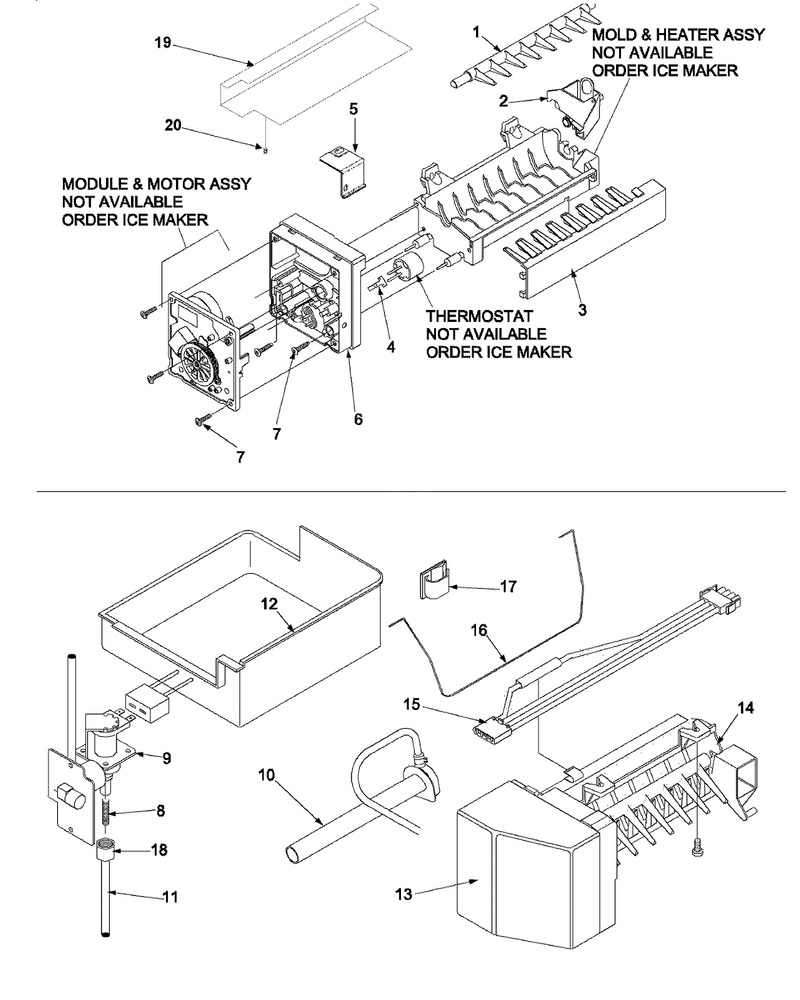

07 - Optional Ice Maker Kit Ic511 P1328006w

...
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Stripr WPL-WP2182124
...
4
Clip WPL-WP2315522
...
5
Bracket, I/m WPL-B8391802
...
6
Housing-Im WPL-WP2195914
...
7
Screw WPL-WP681249
...
8
Spring WPL-WPA1055105
...
9
Valve, Water WPL-67002250
...
10
Tube-Water WPL-W11176463
...
11
Tube-Water WPL-W10823511
...
12
Pan-Ice WPL-WP67001255
...
13
Cover-Frnt WPL-WPW10289690
...
14
Icemaker WPL-WPW10190972
...
15
Harns-Wire WPL-W10146392
...
16
Arm-Shut WPL-WP67004028
...
17
Screw WPL-WP90767
...
18
Nut WPL-WP627018
...
19
Shield, Ice Maker WPL-D7846203
...
20
Clamp WPL-W10833902
...
21
Insert- Pl WPL-WPA3223101
...
22
Clip- Spee WPL-WPM0114003
...
23
Coupling WPL-10244905
...
24
Icemaker Install Kit WPL-8003RP
...
25
Screw WPL-WP98165
...
26
Instructions, Installation WPL-67001264
...
27
Screw (3) WPL-67006425

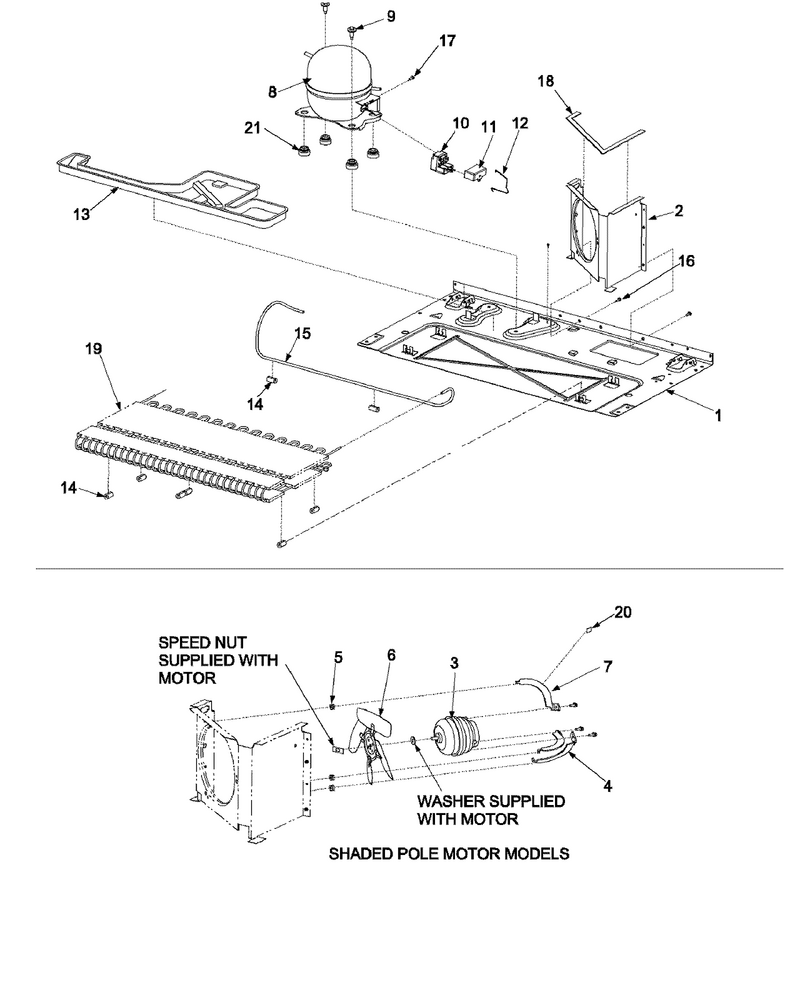

02 - Compressor

...
...
1
Basepan WPL-12457108
...
2
Shroud, Condenser WPL-12687101
...
3
Motor, Condenser Fan WPL-67002165
...
4
Bracket, Cond Mtr WPL-67001311
...
5
Grommet, Fan Brkt WPL-12578701
...
6
Blade- Con WPL-WP12587601
...
7
Screw WPL-WPM0223816
...
8
Compressor WPL-W10309997
...
9
Screw, Shldr WPL-M0221523
...
10
Start-Dev WPL-WP67002166
...
11
Capacitor WPL-10958304
...
12
Strap, Bale WPL-12576801
...
13
Pan, Drain 2 Way WPL-67007176
...
14
Grommet (2) WPL-67005680
...
15
Tube- Disc WPL-WP12532603Q
...
16
Screw (3) WPL-67006425
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-WP67006131
...
20
Gasket, Mc Back WPL-B5759649
...
21
Grommet, Compressor WPL-67003493
...
22
Harness,mc WPL-12669001

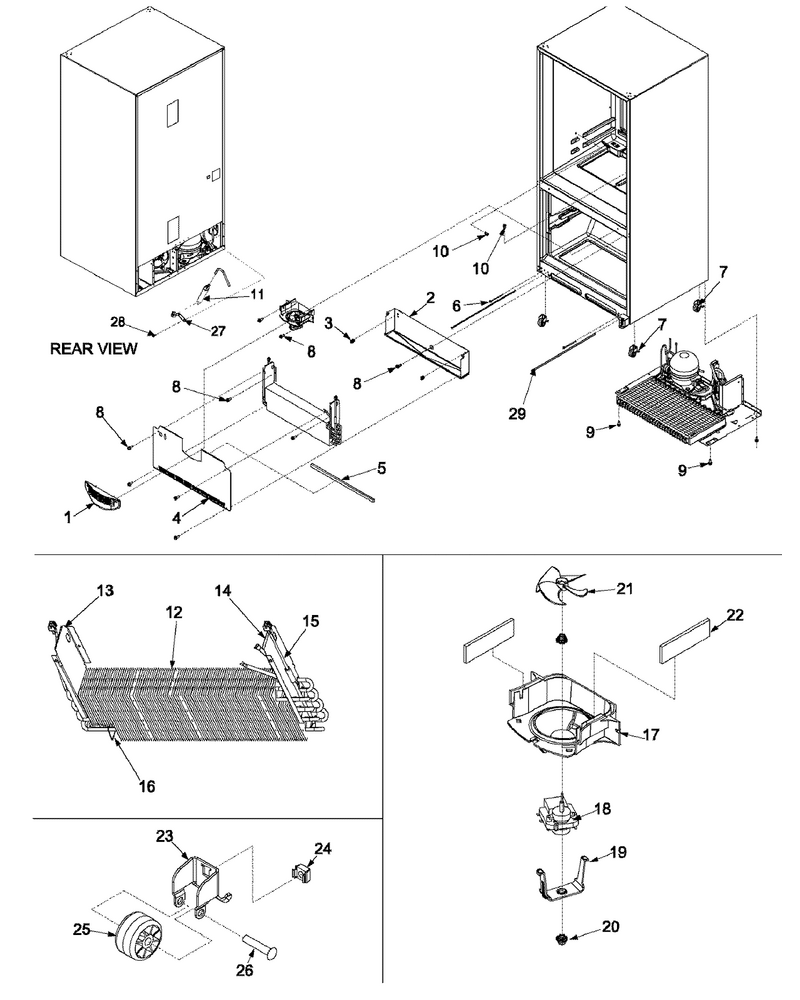

04 - Evaporator Area & Rollers

...
...
1
Grille WPL-WPW10175909
...
2
Tray-Drip WPL-W11547653
...
3
Clip, Evaporator WPL-10623002
...
4
Cover- Eva WPL-12226109
...
5
Gasket, Evaporator Cover WPL-67002530
...
6
Screw WPL-71003131
...
7
Roller Bracket Assy WPL-67002227
...
8
Screw (3) WPL-67006425
...
9
Screw, Tf WPL-M0260242
...
10
Grommet, Screw WPL-M0580205
...
11
Drier WPL-WPB2150504
...
12
Kit, Evaporator WPL-12001919
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater- De WPL-WP67002628
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor- Eva WPL-WP10449511
...
19
Clip, Evap Motor WPL-12217805
...
20
Grommet- F WPL-WP67002780
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002
...
28
Screw WPL-W10709801
...
29
Harness, Evap Heater WPL-67002559
...
30
Thermostat Kit WPL-12001937

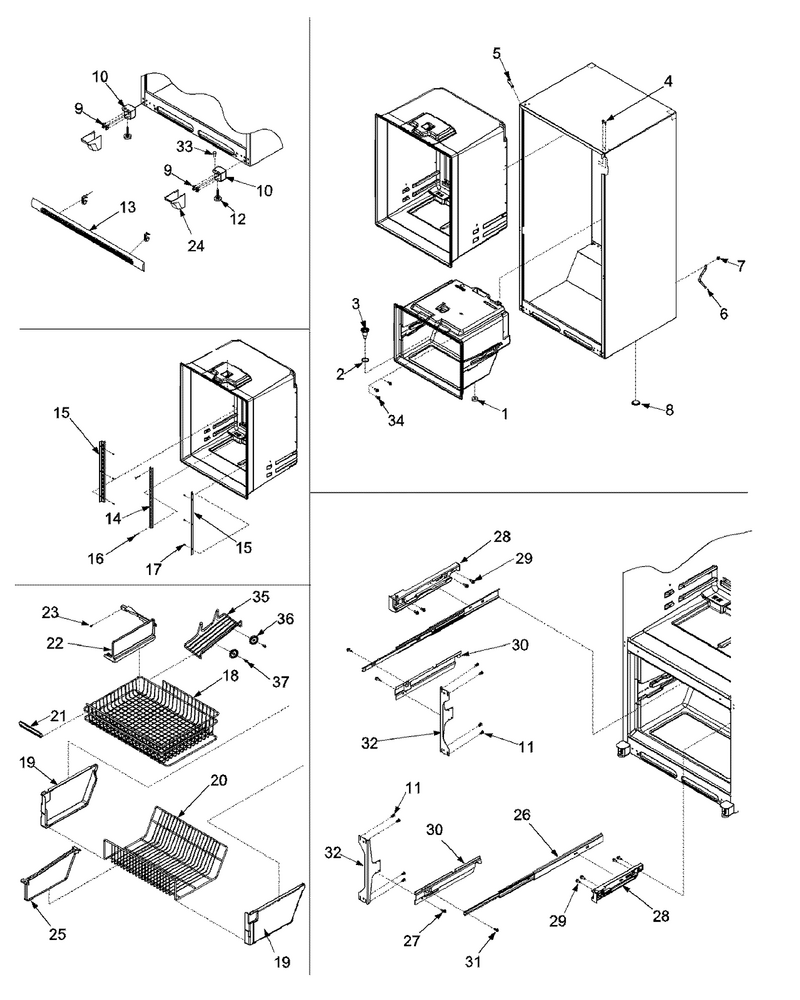

06 - Interior Cabinet & Freezer Shelving

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
5
Cover, Corner (Wht) WPL-67003484
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw WPL-WP67006715
...
10
Hinge, Bottom E-Ct (Wht) WPL-67001239
...
11
Screw WPL-WP98165
...
12
Feet-Lvlng WPL-W11177593
...
13
Toe Grille Assy (Wht) WPL-67002223
...
14
Ladder, Center WPL-67001073
...
15
Ladder, L/r Side WPL-67002489
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Basket, Upper WPL-67002256
...
19
End Cap, Basket 36 WPL-67003599
...
20
Basket, Lower Fz WPL-67002114
...
21
Handle, Basket/shelf WPL-10508506
...
22
Divider, Basket (Upper) WPL-67001723
...
23
Screw WPL-W10856125
...
24
Cover, Lwr Hinge (Wht) WPL-12561901W
...
25
Divider, Basket (Lower) WPL-67002627
...
26
Slide- Dra WPL-WP67002365
...
27
Screw (3) WPL-67006425
...
28
Adapter, Side (Lt) WPL-67002625
...
29
Screw WPL-WP489474
...
30
Bracket, Slide (Rt) WPL-67002369
...
31
Screw WPL-WP488234
...
32
Bracket, Door WPL-67001262
...
33
Plug, Button (Wht) WPL-M0310343
...
34
Screw (3) WPL-67006425
...
35
Rack, Ice Tray WPL-12646501
...
36
Spacer- Ic WPL-WP10972101
...
37
Screw WPL-WP67006908

...
...
1
Sheet, Tech Data WPL-67002560
...
3
Icemaker Install Kit WPL-8003RP
