Amana XRBR206BB (BOM: PXRBR206BB0)

Model: XRBR206BB (BOM: PXRBR206BB0)

Save Part Not Listed?
product name

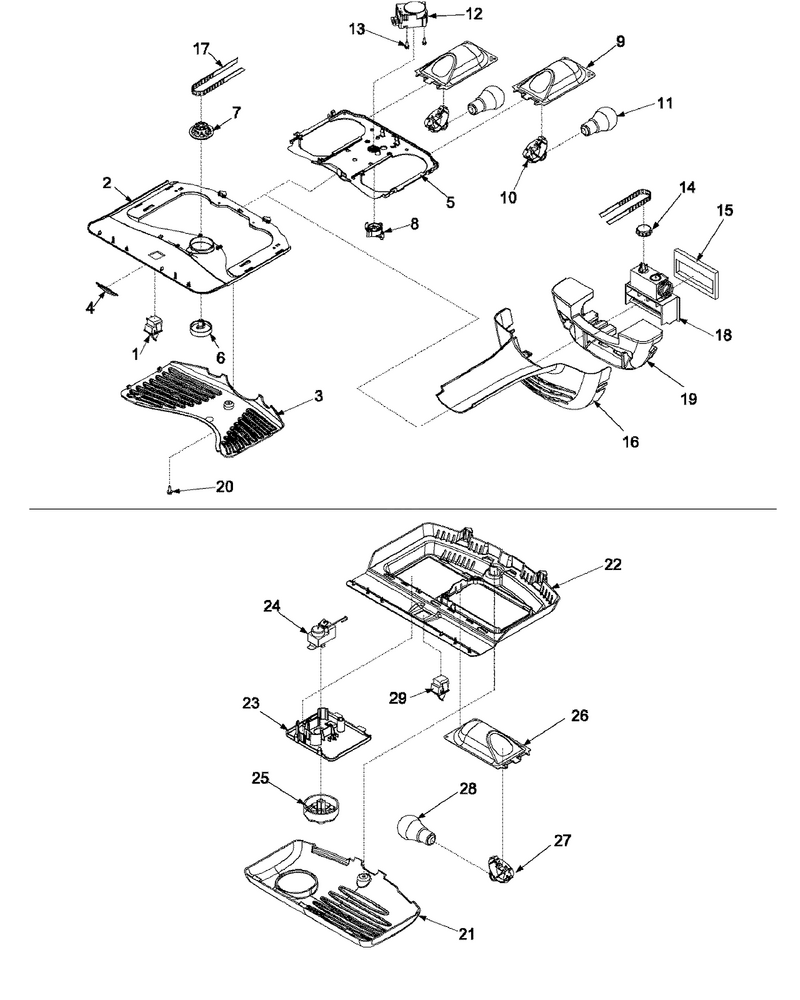

03 - Controls

...
...
1
Switch WPL-W11384469
...
2
Kit- Light WPL-12002057
...
3
Cover, Ref Light WPL-67002301
...
4
Logo, Light Module WPL-67001999
...
5
Housing WPL-WP67002085
...
6
Knob, Front Damper WPL-67002512
...
7
Knob, Gear WPL-67001033
...
8
Tensioner, Belt WPL-67001034
...
9
Housing WPL-W11702858
...
10
Socket WPL-W11447232
...
11
Bulb-Light WPL-WP67002552
...
12
Kit, Defrost Timer (230 Vac) WPL-R0168029
...
13
Screw WPL-M0216705
...
14
Gear, Damper WPL-67001037
...
15
Gasket, Damper WPL-67001038
...
16
Cover, Damper WPL-67002000
...
17
Belt- Damp WPL-WP67001040
...
18
Damper Gea WPL-WP67003410
...
19
Insulation WPL-12650002
...
20
Screw WPL-WP98165
...
21
Cover, Fz Light WPL-67001285
...
22
Module- Fz WPL-WP12476002
...
23
Panel, Fz Control Mounting WPL-67001045
...
24
Control- F WPL-WP67003000
...
25
Knob, Fz Control WPL-67003420
...
26
Housing WPL-W11702858
...
27
Socket WPL-W11447232
...
28
Bulb-Light WPL-WP67002552
...
29
Switch WPL-W11396033
...
30
Harness- F WPL-12682301
...
31
Harness, Fz Module WPL-67002554

...
...
1
Sheet, Tech Data WPL-67002560
...
3
Icemaker Install Kit WPL-8003RP
...
4
Label, Energy Export WPL-67002591

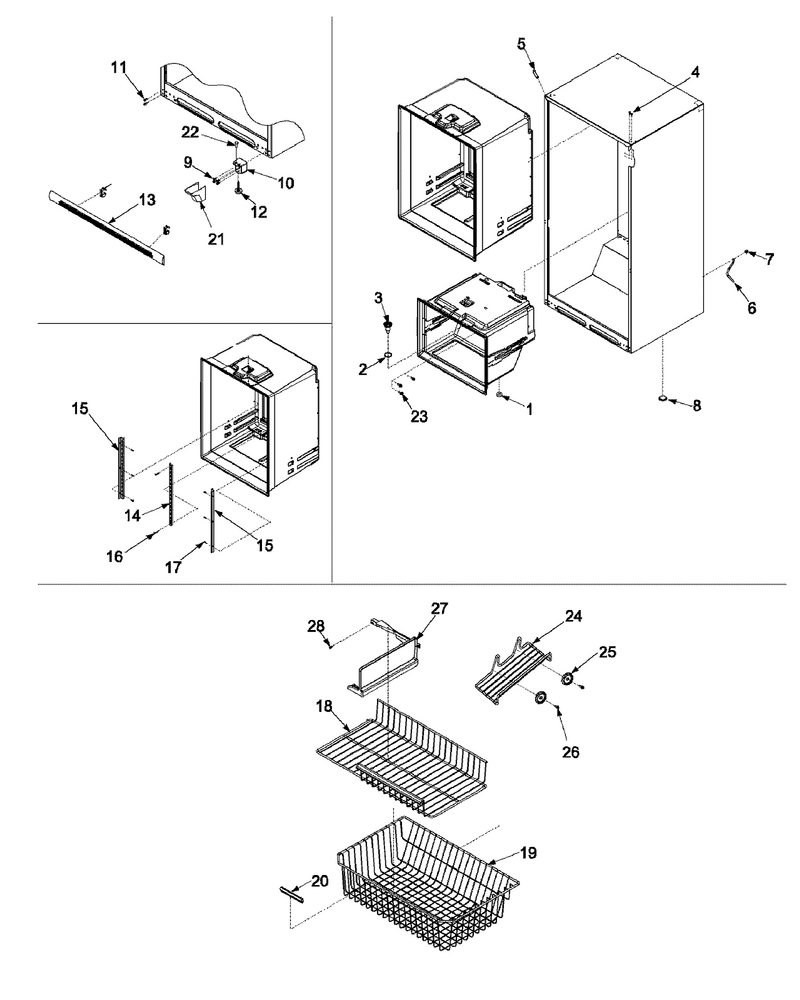

06 - Interior Cabinet & Freezer Shelving

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
5
Cover, Corner (Blk) WPL-67003485
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw WPL-WP67006715
...
10
Hinge, Bottom E-Ct (Blk) WPL-67002531
...
11
Screw WPL-WP67006715
...
12
Feet-Lvlng WPL-W11177593
...
13
Grille Asy WPL-WP67002224
...
14
Ladder, Center WPL-67001073
...
15
Ladder, Sides WPL-67001317
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Shelf, Glide Fz WPL-67001076
...
19
Basket, Lower Fz WPL-67001077
...
20
Handle, Basket/shelf WPL-10508506
...
21
Cover, Lwr Hinge (Blk) WPL-12561901B
...
22
Plug, Button (Wht) WPL-M0310343
...
23
Screw (3) WPL-67006425
...
24
Rack, Ice Tray WPL-12646501
...
25
Spacer- Ic WPL-WP10972101
...
26
Screw WPL-WP67006908
...
27
Divider, Basket (Upper) WPL-67001723
...
28
Screw WPL-W10856125

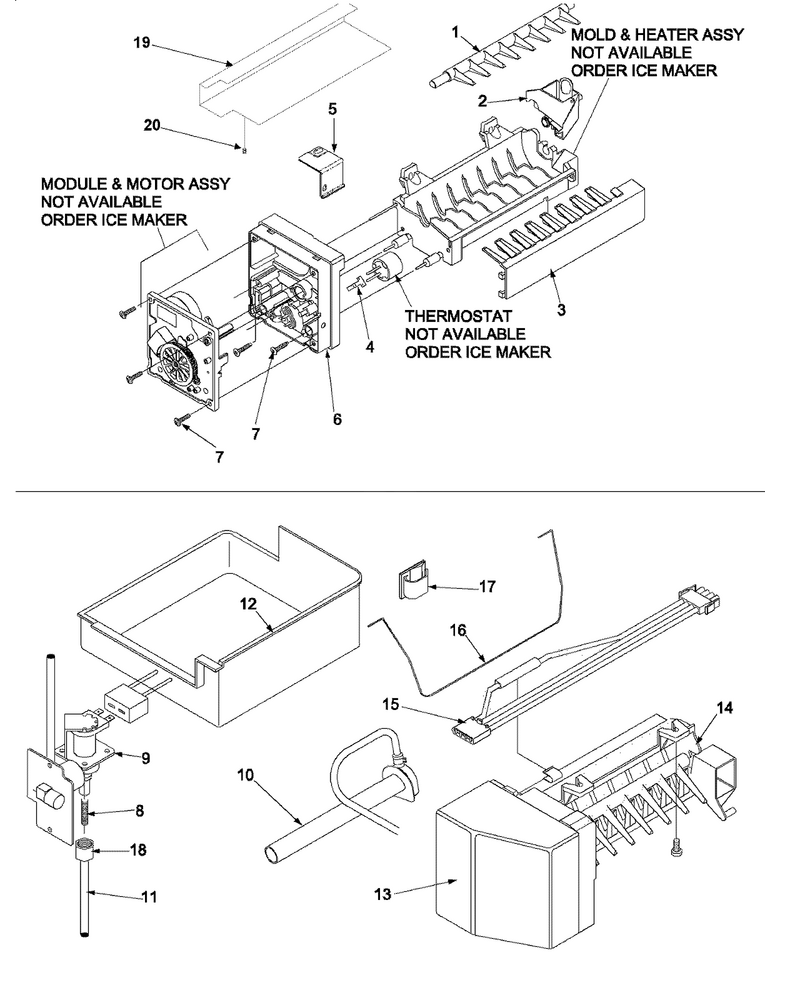

07 - Optional Ice Maker Kit Ic11b P1328003w

...
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Stripr WPL-WP2182124
...
4
Clip WPL-WP2315522
...
5
Bracket WPL-WP2256087
...
6
Housing-Im WPL-WP2195914
...
7
Screw WPL-WP681249
...
8
Spring WPL-WPA1055105
...
9
Valve-Inlt WPL-WP67003753
...
10
Tube-Water WPL-W11176463
...
11
Tube-Water WPL-W10823511
...
12
Pan-Ice WPL-WP67001255
...
13
Cover-Frnt WPL-WPW10289690
...
14
Ice Maker Assy. WPL-D7824706Q
...
15
Harns-Wire WPL-WPD7813010
...
16
Arm-Shut WPL-WP67004028
...
17
Clip WPL-WPM0104106
...
18
Nut WPL-WP627018
...
19
Shield, Ice Maker WPL-D7846203
...
20
Screw WPL-WP90767
...
21
Clamp WPL-W10833902
...
22
Screw WPL-WP489128
...
23
Insert- Pl WPL-WPA3223101
...
24
Clip- Spee WPL-WPM0114003
...
25
Coupling WPL-W11033771
...
26
Icemaker Install Kit WPL-8003RP
...
27
Screw WPL-WP98165
...
28
Instructions, Installation WPL-67001264
...
29
Clip WPL-B5720302
...
30
Screw (3) WPL-67006425

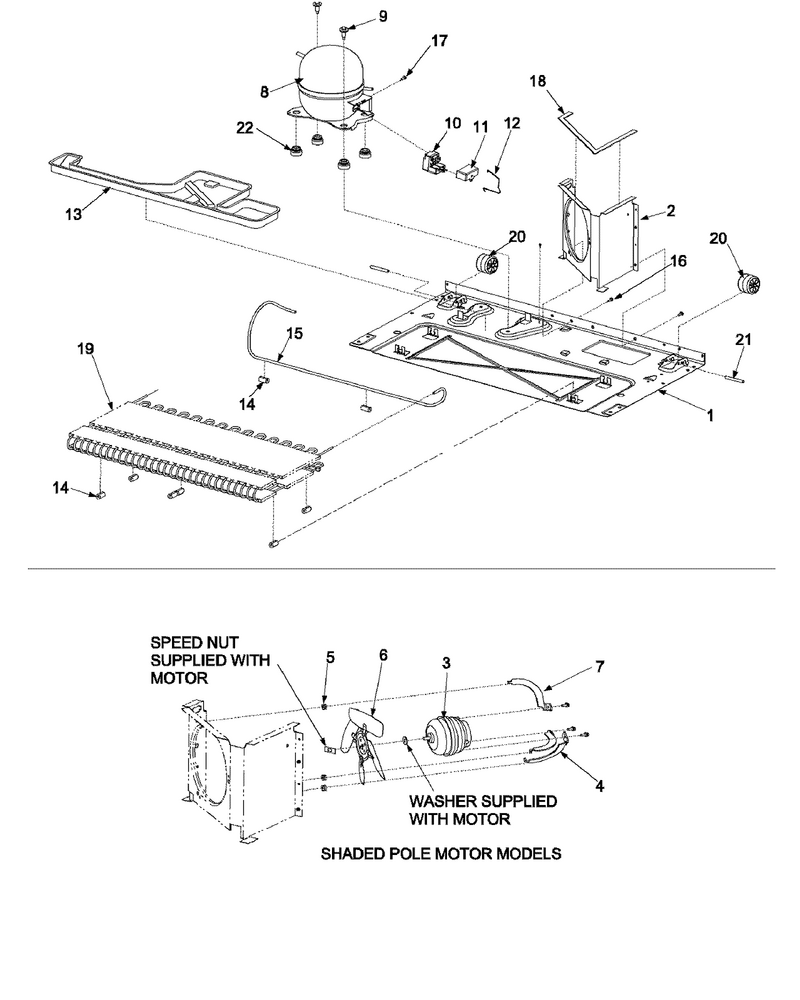

02 - Compressor

...
...
1
Basepan, Machine Compartment WPL-67001089
...
2
Shroud, Condenser Fan WPL-67001090
...
3
Motor-Cond WPL-833697
...
4
Bracket, Cond Mtr WPL-67001311
...
5
Grommet, Fan Brkt WPL-12578701
...
6
Blade- Con WPL-WP12587601
...
7
Screw WPL-WPM0223816
...
8
Compressor WPL-W10309997
...
9
Screw, Shldr WPL-M0221523
...
10
Start-Dev WPL-WP67002166
...
11
Capacitor WPL-10958304
...
12
Strap, Bale WPL-12576801
...
13
Pan, Drain WPL-67001091
...
14
Grommet (2) WPL-67005680
...
15
Tube WPL-WP12532602Q
...
16
Screw (3) WPL-67006425
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-WP67006132
...
20
Roller WPL-WP67005149
...
21
Axle, Roller (2) WPL-67006434
...
22
Grommet, Compressor WPL-67003493
...
23
Harness, Mc WPL-67002586

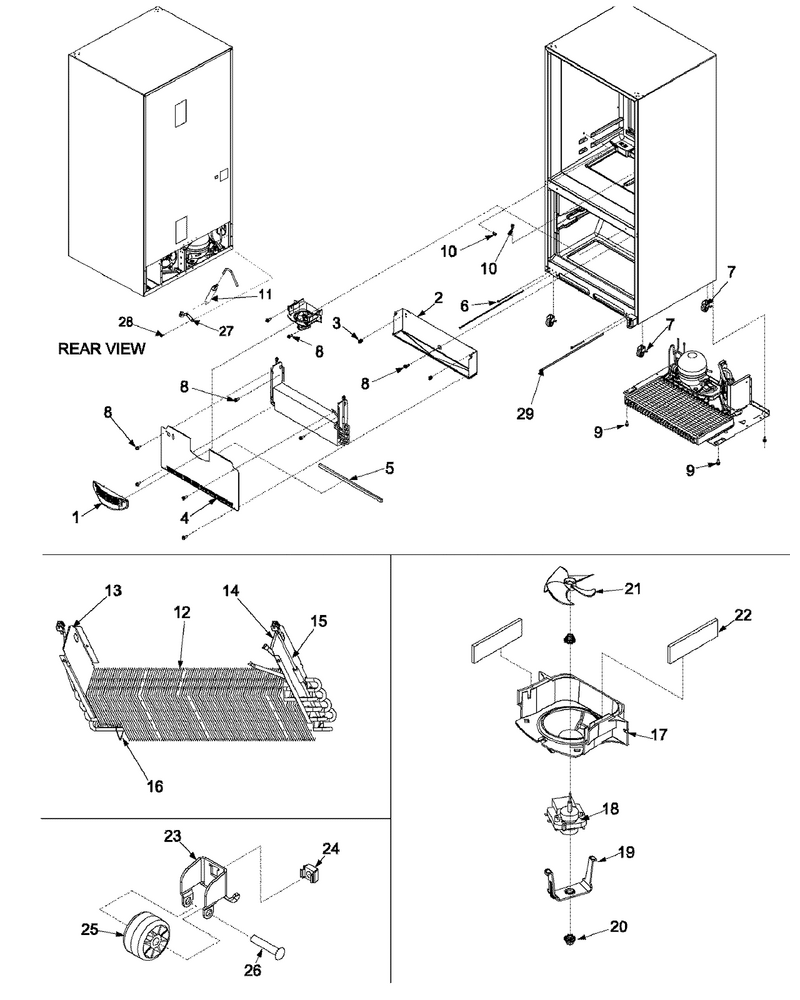

04 - Evaporator Area & Rollers

...
...
1
Grille WPL-WPW10175909
...
2
Tray-Drip WPL-WPW10292802
...
3
Clip, Evaporator WPL-10623002
...
4
Cover, Evaporator WPL-67001081
...
5
Gasket, Evaporator Cover WPL-67002529
...
6
Screw WPL-71003131
...
7
Roller Bracket Assy WPL-67002227
...
8
Screw (3) WPL-67006425
...
9
Screw, Tf WPL-M0260242
...
10
Grommet, Screw WPL-M0580205
...
11
Drier WPL-WPB2150504
...
12
Kit, Evaporator WPL-12001919
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater, Evaporator WPL-67002558
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor- Eva WPL-WP10449511
...
19
Clip, Evap Motor WPL-12217805
...
20
Grommet- F WPL-WP67002780
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002
...
28
Screw WPL-W10709801
...
29
Harness, Evap Heater WPL-67002559
...
30
Thermostat Kit WPL-12001937

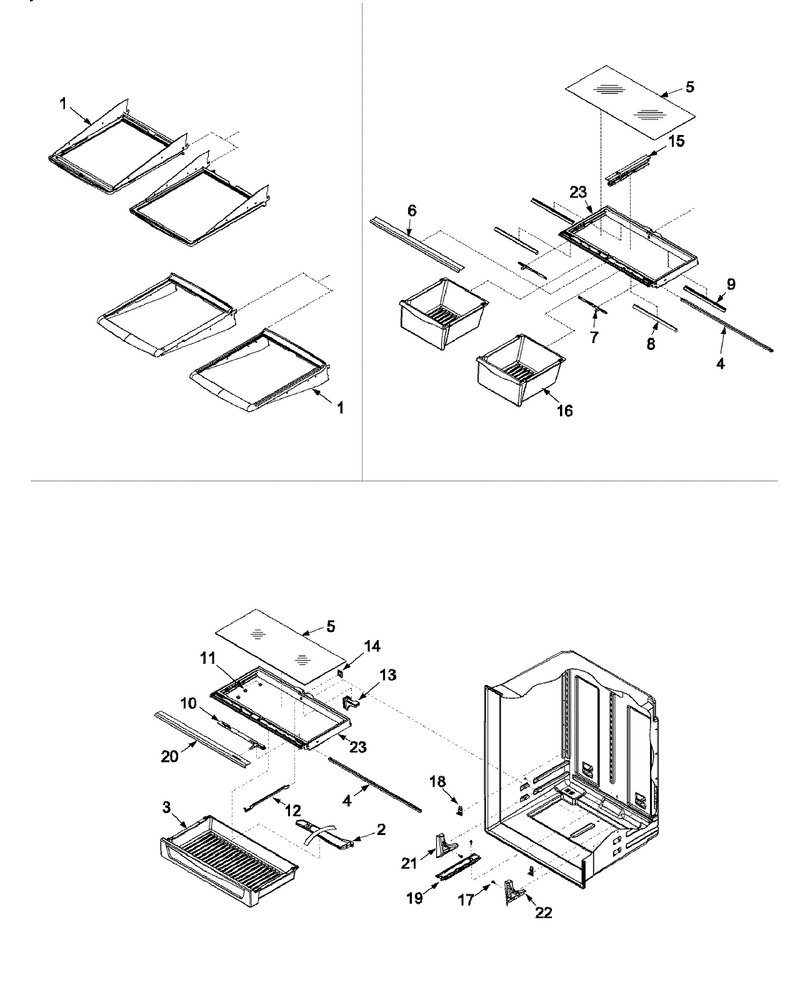

09 - Refrigerator Shelving

...
...
1
Shelf, Ref Stationary WPL-67002555
...
2
Divider- P WPL-WP67001923
...
3
Pan-Crispr WPL-WPW10328329
...
4
Brace- Cri WPL-WP12227303WD
...
5
Glass- Cri WPL-WP67006878
...
6
Extr, Crisper Front WPL-67001737
...
7
Slide WPL-WP67005864
...
8
Seal, Front Crisper WPL-67001063
...
9
Seal, Rear Crisper WPL-67001768
...
10
Slide,pantry WPL-67002002
...
11
Pad, Glide WPL-67001177
...
12
Bar,pantry WPL-67002003
...
13
Tunnel- Pa WPL-WP12531601
...
14
Gasket, Pantry WPL-W10368789
...
15
Rail-Centr WPL-WPW10671238
...
16
Pan-Crispr WPL-WP67002633
...
17
Screw (3) WPL-67006425
...
18
Hook- Ladd WPL-WP67001716
...
19
Track WPL-WP67001719
...
20
Trim WPL-W10656985
...
21
Support- L WPL-WP67001721
...
22
Support- R WPL-WP67001722
...
23
Frame WPL-WPW10568041

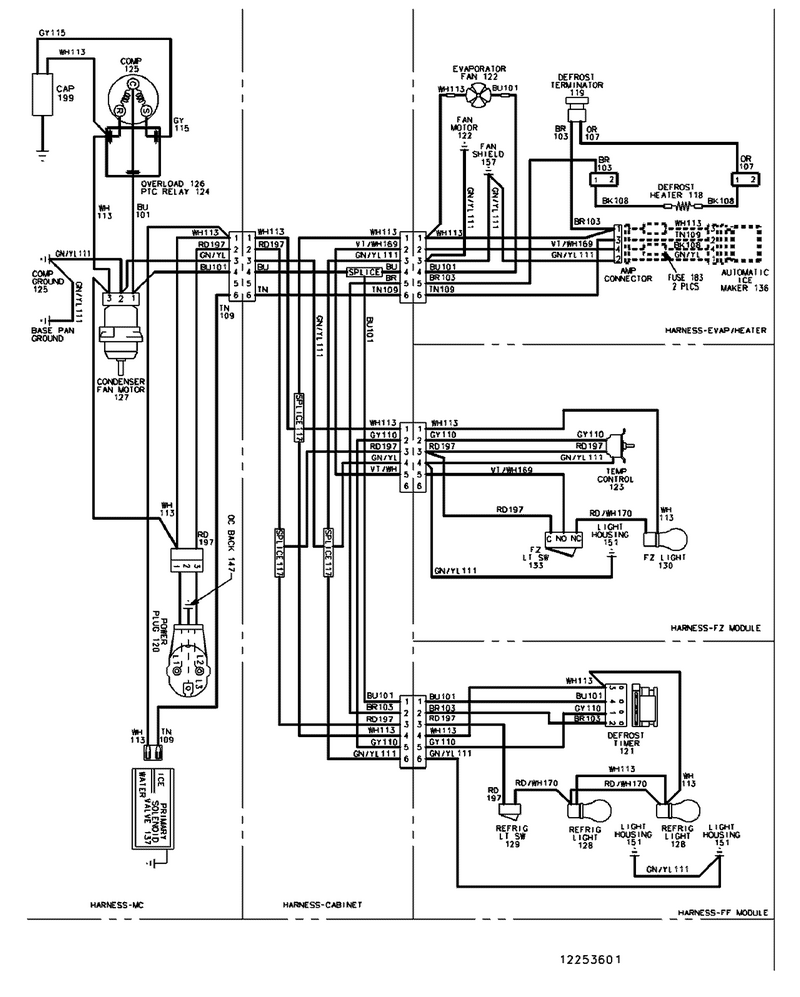

11 - Wiring Information

...
...
NI
Wiring Information WPL-15003060

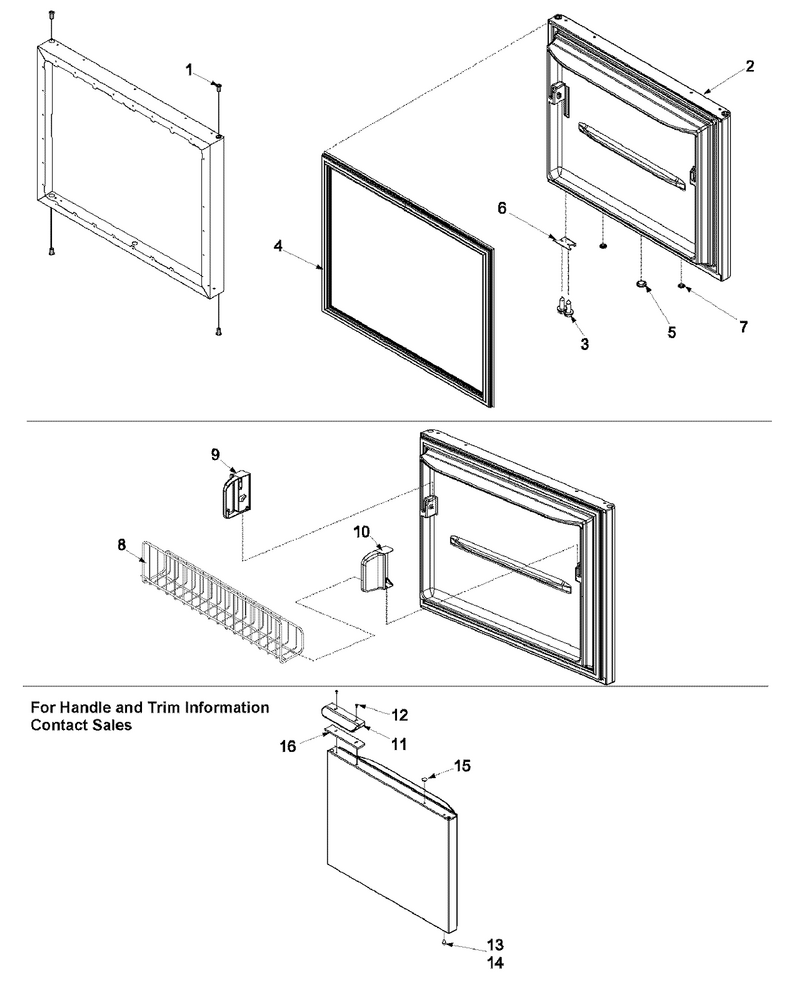

05 - Freezer Door

...
...
1
Hing-Bushg WPL-10961005B
...
2
Dor-Fip Bl WPL-12658916BQ
...
3
Screw WPL-WPW10348409
...
4
Gasket-Fip WPL-WPW10436250
...
5
Plug, Button (Blk) WPL-A3080001
...
6
Stop-Door WPL-W11708403
...
7
Plug, Vent (Black) WPL-67004838
...
8
Basket, Tilt Out WPL-67002051
...
9
End Cap, Fz Dr Bskt WPL-67001026
...
10
End Cap, Fz Dr Bskt WPL-67001027
...
12
Screw WPL-WPW10348409
...
13
Pin Hinge Bottom WPL-67007018
...
14
Shim- Non WPL-WPM0274062

08 - Refrigerator Door

...
...
1
Hing-Bushg WPL-10961005B
...
2
Ref Dr Foam Assy (Blk) WPL-67003167
...
3
Screw WPL-WPW10348409
...
4
Gasket-Fip WPL-WPW10436248
...
5
Plug, Button (Blk) WPL-A3080001
...
6
Screw WPL-WP12248201
...
7
Hinge-Door WPL-WP12566606ED
...
8
Cover, Top Hinge (Blk) WPL-67001012
...
9
Screw WPL-WP489349
...
10
Plug, Top Hinge Button (Blk) WPL-M0310731
...
11
Stop-Door WPL-W11708403
...
12
Screw WPL-WP8281196
...
13
Plug, Vent (Black) WPL-67004838
...
14
Tray- Dair WPL-WP67001279
...
15
Door-Comp WPL-WP67003637
...
16
Retainer, Door WPL-67001748
...
17
Bin-Cntlvr WPL-WPW10324005
...
18
Shim- Non WPL-WPM0274062
...
19
Tray, Egg WPL-10436506
...
20
Screw WPL-WP489349
...
21
Pin- Cente WPL-WP67006744
...
23
Kit, Screw WPL-R9800670
...
27
Nameplate (Amana Plus) WPL-Y12528501
...
28
Hinge-Door WPL-WP12607104ED
...
29
Screw WPL-WP67006380
...
30
Container WPL-WP10423131
...
31
Tray WPL-WP841180A
...
32
Trivet, Bottle WPL-67001656
...
33
Lid, Utility WPL-10436404

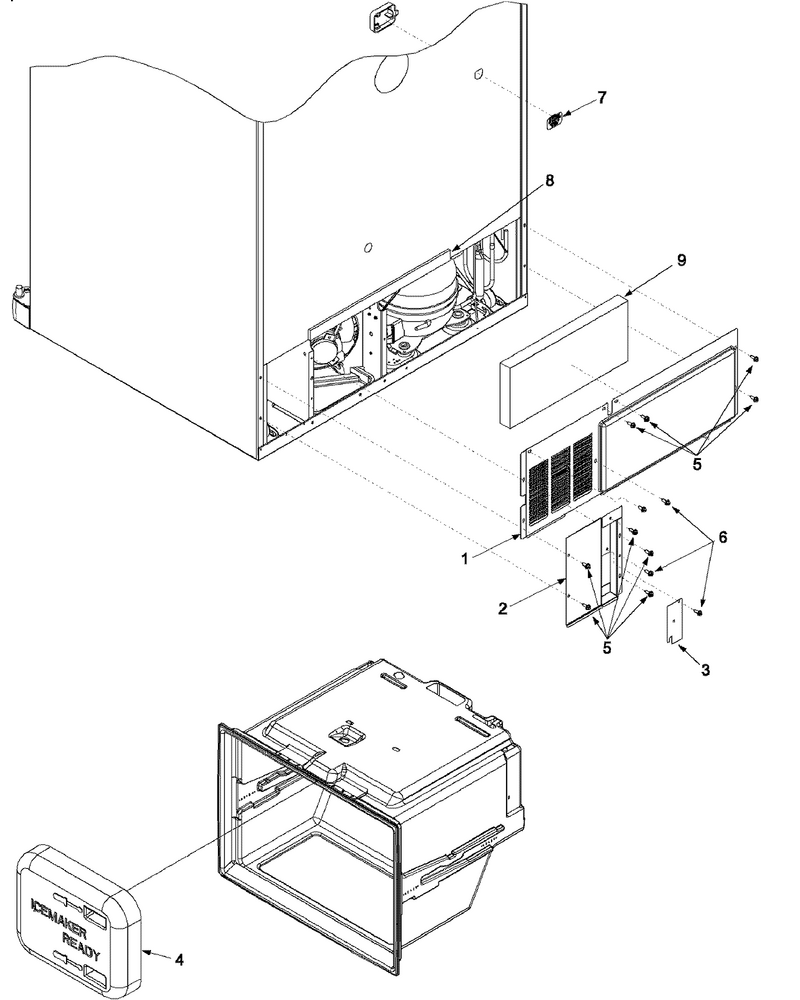

01 - Cabinet Back

...
...
1
Back, Mach Comp WPL-12575101ED
...
2
Cover, Water Valve WPL-67001097
...
3
Plate, Cover WPL-12479901
...
4
Cover-Tube WPL-WP67001098
...
5
Screw (3) WPL-67006425
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Label, Fill Tube WPL-67002306
...
8
Gasket, Mc Back WPL-B5759649
...
9
Fiber, Acoustic WPL-67003796
...
10
Cord, Power WPL-67002229
