Amana WG1165.000 (BOM: WG1165.00 0)

Model: WG1165.000 (BOM: WG1165.00 0)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Page 1

...
...
1
Screw (25) WPL-M1D827
...
2
Screw (25) WPL-M1D827
...
3
Not Available WPL-M27D230
...
4
Lamp WPL-M9D85
...
5
Screw (25) WPL-M1D827
...
6
Rivet WPL-35412P01
...
7
Blade, Fan WPL-M35D25
...
8
Insert, Stirrer WPL-M2D332
...
9
Tinnerman Clip (1) WPL-M1D833
...
10
Wave Director WPL-M65D204
...
11
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
12
Not Available WPL-M77D91
...
13
Gasket WPL-M25D59
...
14
Choke Filler WPL-M55D15
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Support Rack WPL-B8371001
...
17
Support WPL-M2D443
...
18
Temperature Probe WPL-M90D20
...
19
Rack Kit WPL-M67D27
...
20
Door Assy, Plain WPL-M68D156
...
21
Screw WPL-WPW10001160
...
22
Screw WPL-WPW10001160
...
23
Baffle, Intr WPL-M65D207
...
24
Fuse WPL-M4D70
...
25
Fuse Holder WPL-M4D71
...
26
Screw (25) WPL-M1D827
...
27
Not Available WPL-M2D456
...
28
Strain Relief (10) WPL-M1D749
...
29
Pwr Cord WPL-M26D26
...
30
H.v. Transformer WPL-M60D80
...
31
Screw (25) WPL-M1D827
...
32
Screw (25) WPL-M1D827
...
33
Screw (25) WPL-M1D727
...
34
Triac Kit WPL-M16D70
...
35
Screw WPL-WPW10001160
...
36
Screw (25) WPL-M1D827
...
37
Edge Guard A WPL-M2D374
...
38
Blower Wheel WPL-M35D28
...
39
Blower Housing WPL-M65D199
...
40
Gasket WPL-A3030302
...
41
Bezel-Left WPL-M7D414
...
42
Control Pnl Top WPL-M7D411
...
43
Screw WPL-WP90767
...
44
Control Pnl Bottom WPL-M7D412
...
45
Membrane Touch Panel Assembly WPL-M7D410
...
46
Spacer WPL-M2D440
...
47
Bar Release WPL-M11D50
...
48
On/off Switch WPL-M14D211
...
49
Brkt, Switch Mtg WPL-M8D187
...
50
Screw (25) WPL-M1D830
...
51
Cnt Pnl Back WPL-M7D415
...
52
Not Available WPL-M2D478
...
53
Not Available WPL-M8D185
...
54
Actuator WPL-36020P01
...
55
Clip WPL-M2D445
...
56
Pivot Pin WPL-M25D446
...
57
Spring WPL-M2D447
...
58
M2d479 Bearing WPL-M2D479
...
59
Not Available WPL-M20D158
...
60
Screw (25) WPL-M1D827
...
61
Switch Assy M14d230 WPL-M14D210
...
62
Logicswitch WPL-M14D209
...
63
Switch, Monitor WPL-35370P01
...
64
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
65
Washer (25) WPL-M1D617
...
66
Insulator WPL-M2D465
...
67
Screw (25) WPL-M1D827
...
68
Nut (25) WPL-M1D809
...
69
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
70
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
71
Screw (25) WPL-M1D827
...
72
Screw (25) WPL-M1D827
...
73
Plug WPL-M2D466
...
74
Screw (25) WPL-M1D827
...
75
Gasket-Rf WPL-M2D296
...
76
Teflon Sleeve (1) WPL-M1D834
...
77
Circuit Breaker WPL-M4D84
...
78
Poly Button (10) WPL-M1D844
...
79
Insulator WPL-M5D279
...
80
Screw WPL-WPW10001160
...
81
Rivet, Baffle Mtg. WPL-MID623

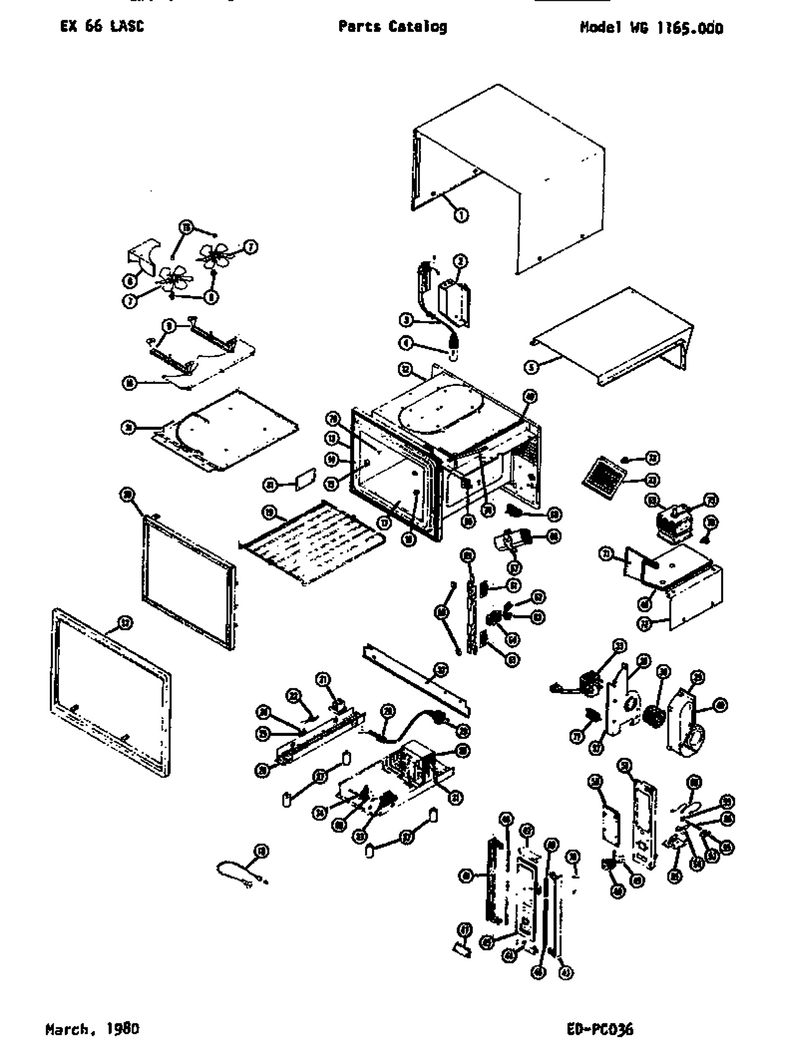

Schematic Image Zoomed
