Amana WG1010.200 (BOM: WG1010.20 0)

Model: WG1010.200 (BOM: WG1010.20 0)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Page 1

...
...
1
Screw (25) WPL-M1D826
...
2
Screw (25) WPL-M1D827
...
3
Wiring Pkg WPL-M27D272
...
4
Lamp WPL-M9D85
...
5
Screw (25) WPL-M1D827
...
6
Rivet WPL-35412P01
...
7
Blade, Fan WPL-M35D25
...
8
Insert, Stirrer WPL-M2D332
...
9
Tinnerman Clip (1) WPL-M1D833
...
10
Screw (25) WPL-M1D847
...
11
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
12
Not Available WPL-M77D91
...
13
Gasket WPL-M25D59
...
14
Choke Filler WPL-M55D15
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Support Rack WPL-B8371001
...
17
Adhesive WPL-W10841140
...
18
Dial Timer WPL-M6D277
...
19
Rack Kit WPL-M67D27
...
20
Not Available WPL-M25D58
...
21
Termnl Block WPL-M4D55
...
22
Plastic Plug WPL-M2D485
...
23
Baffle, Intr WPL-M65D207
...
24
Fuse WPL-M4D70
...
25
Fuse Holder WPL-M4D71
...
26
Screw (25) WPL-M1D827
...
27
Molded Foot(4per Pkg.) WPL-M2D426
...
28
Strain Relief (10) WPL-M1D749
...
29
Pwr Cord WPL-M26D36
...
30
No.10 T X 3/8`` Screw WPL-M1D479
...
31
Base Right WPL-M79D74
...
32
Gasket WPL-A3030302
...
33
Screw WPL-WPW10068250
...
34
Timer WPL-M30D59
...
35
Blower Motor WPL-M12D63
...
36
Screw (25) WPL-M1D827
...
37
Edge Guard A WPL-M2D374
...
38
Blower Wheel WPL-M35D28
...
39
Blower Housing WPL-M65D199
...
40
Gasket WPL-A3030302
...
41
Screw WPL-WP90767
...
42
Control Pnl Top WPL-M7D411
...
43
Not Available WPL-M7D413
...
44
Screw (25) WPL-M1D540
...
45
Dec Panel WPL-M7D476
...
46
Knob WPL-M6D276
...
47
Bar Release WPL-M11D50
...
48
On/off Switch WPL-M14D211
...
49
Brkt, Switch Mtg WPL-M8D187
...
50
Screw (25) WPL-M1D523
...
51
Screw (25) WPL-M1D827
...
52
Snubber Assy WPL-35773P01
...
53
Not Available WPL-M8D185
...
54
Actuator WPL-36020P01
...
55
Clip WPL-M2D445
...
56
Pivot Pin WPL-M2D446
...
57
Spring WPL-M2D447
...
58
M2d479 Bearing WPL-M2D479
...
59
Not Available WPL-M20D158
...
60
Ground Lead WPL-M5D266
...
61
Washer (25) WPL-M1D73
...
62
Knob Timmer WPL-M6D275
...
63
Switch, Monitor WPL-35370P01
...
64
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
65
Cavity Plug (10) WPL-M1D755
...
66
Insulator WPL-M2D465
...
67
Bracket WPL-10825501
...
68
Nut (25) WPL-M1D809
...
69
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
70
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
71
Screw (25) WPL-M1D827
...
72
Screw (25) WPL-M1D827
...
73
Plug WPL-M2D466
...
74
H V Lead 35 WPL-M5D264
...
75
Gasket-Rf WPL-M2D296
...
76
Teflon Sleeve (1) WPL-M1D834
...
77
Circuit Breaker WPL-M4D84
...
78
Poly Button (10) WPL-M1D844
...
79
Not Available WPL-M5D281
...
80
Filter WPL-M3D64
...
81
Air Baffle WPL-M8D207
...
82
Dial Controller WPL-M6D278
...
83
Nut K WPL-M0282005

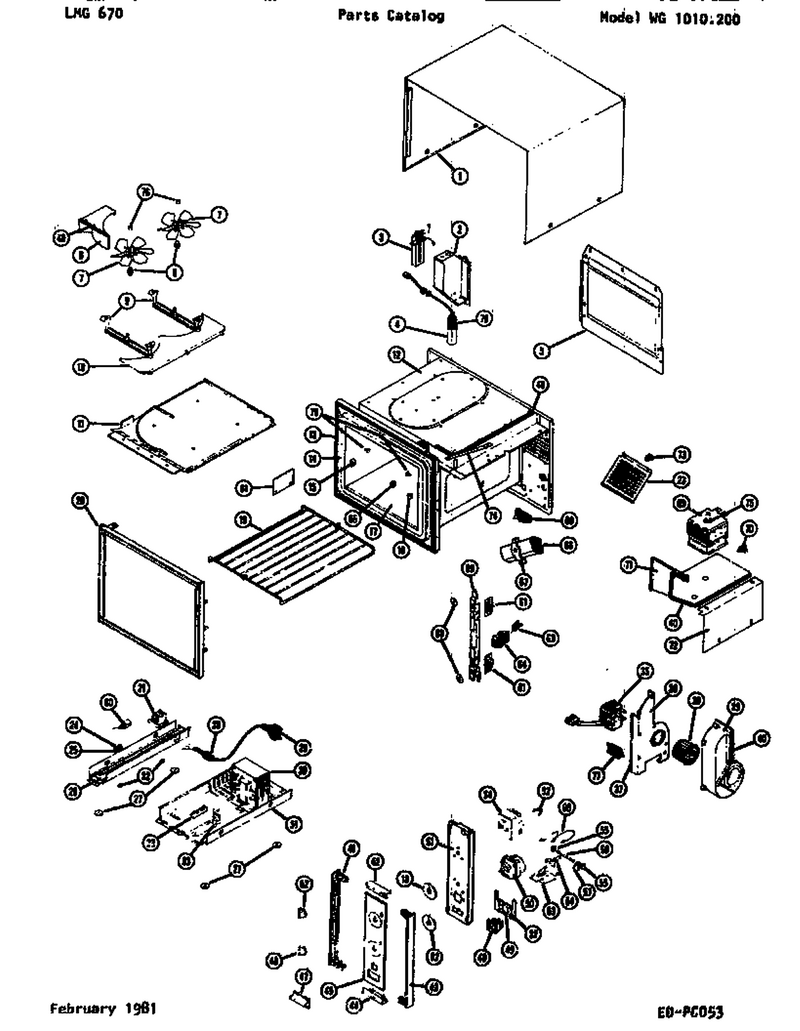

Schematic Image Zoomed
