Amana WG1010.010 (BOM: WG1010.01 0)

Model: WG1010.010 (BOM: WG1010.01 0)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

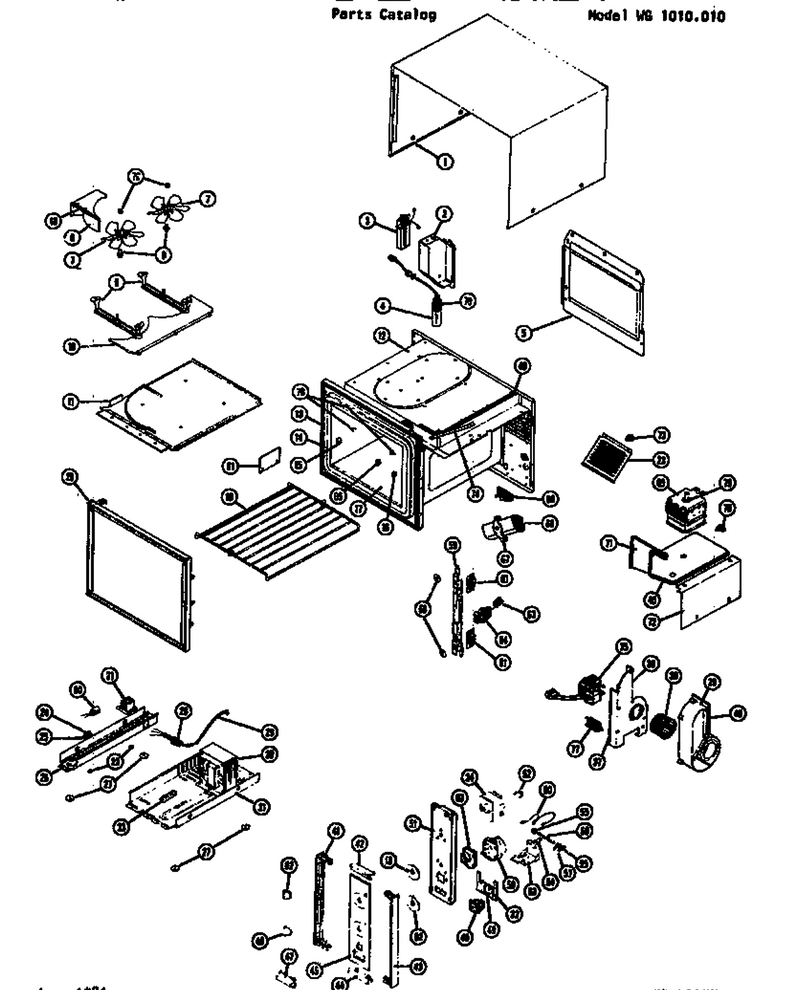

01 - Page 1

...
...
1
Screw (25) WPL-M1D827
...
2
Screw (25) WPL-M1D827
...
3
Wiring Pkg WPL-M27D272
...
4
Lamp WPL-M9D85
...
5
Screw (25) WPL-M1D827
...
6
Air Baffle, Stirrer Kit WPL-M65D203
...
7
Blade, Fan WPL-M35D25
...
8
Insert, Stirrer WPL-M2D332
...
9
Tinnerman Clip (1) WPL-M1D833
...
10
Wave Director WPL-M65D204
...
11
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
12
Not Available WPL-M77D91
...
13
Gasket WPL-M25D59
...
14
Choke Filler WPL-M55D15
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Support Rack WPL-B8371001
...
17
Shelf-W/snt Kit WPL-M50D35
...
18
Dial Timer WPL-M6D277
...
19
Bumper Rack WPL-M2D425
...
20
Screw (25) WPL-M1D571
...
21
Screw WPL-WPW10001160
...
22
Plastic Plug WPL-M2D485
...
23
Baffle, Intr WPL-M65D207
...
24
Fuse WPL-M4D70
...
25
Fuse Holder WPL-M4D71
...
26
Not Available WPL-M79D73
...
27
Screw, Foot Mtg. WPL-M1D828
...
28
Strain Relief (10) WPL-M1D749
...
29
Pwr Cord WPL-M26D35
...
30
H.v. Transformer WPL-M60D80
...
31
Screw (25) WPL-M1D827
...
32
Gasket WPL-A3030302
...
33
Nut WPL-WP488130
...
34
Timer WPL-M30D59
...
35
Blower Motor WPL-M12D63
...
36
Screw (25) WPL-M1D827
...
37
Edge Guard A WPL-M2D374
...
38
Blower Wheel WPL-M35D28
...
39
Blower Housing WPL-M65D199
...
40
Gasket WPL-A3030302
...
41
Screw WPL-WP90767
...
42
Control Pnl Top WPL-M7D411
...
43
Screw WPL-WP90767
...
44
Control Pnl Bottom WPL-M7D412
...
45
Dec Panel WPL-M7D475
...
46
Knob WPL-M6D276
...
47
Bar Release WPL-M11D50
...
48
On/off Switch WPL-M14D211
...
49
Sw Mtg Plate WPL-M8D215
...
50
Not Available WPL-M22D19
...
51
Screw (25) WPL-M1D827
...
52
Snubber Assy WPL-35773P01
...
53
Not Available WPL-M8D185
...
54
No.8 T X 3/8`` Screw WPL-M1D402
...
55
Clip WPL-M2D445
...
56
Pivot Pin WPL-M2D446
...
57
Spring WPL-M2D447
...
58
M2d479 Bearing WPL-M2D479
...
59
Plastic Washer WPL-M2D480
...
60
Ground Lead WPL-M5D266
...
61
Ia Screw No.10-32 WPL-M1D370
...
62
Knob Timmer WPL-M6D275
...
63
Switch, Monitor WPL-35370P01
...
64
Not Available WPL-M1D441
...
65
Cavity Plug (10) WPL-M1D755
...
66
Insulator WPL-M2D465
...
67
Bracket WPL-10825501
...
68
Nut WPL-WP488130
...
69
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
70
Cutout-Thermal-Control WPL-31866P01
...
71
Screw (25) WPL-M1D827
...
72
Screw (25) WPL-M1D827
...
73
Plug WPL-M2D466
...
74
H V Lead 35 WPL-M5D264
...
75
Gasket-Rf WPL-M2D296
...
76
Teflon Sleeve (1) WPL-M1D834
...
77
Circuit Breaker WPL-M4D84
...
78
Poly Button (10) WPL-M1D844
...
79
Not Available WPL-M5D281
...
80
Filter WPL-M3D64
...
81
Rivet (25) WPL-M1D623
...
82
Dial Controller WPL-M6D278
...
83
Not Available WPL-M5D321
