Amana WDYRC2 (BOM: P1329603M)

Model: WDYRC2 (BOM: P1329603M)

Save Part Not Listed?
product name

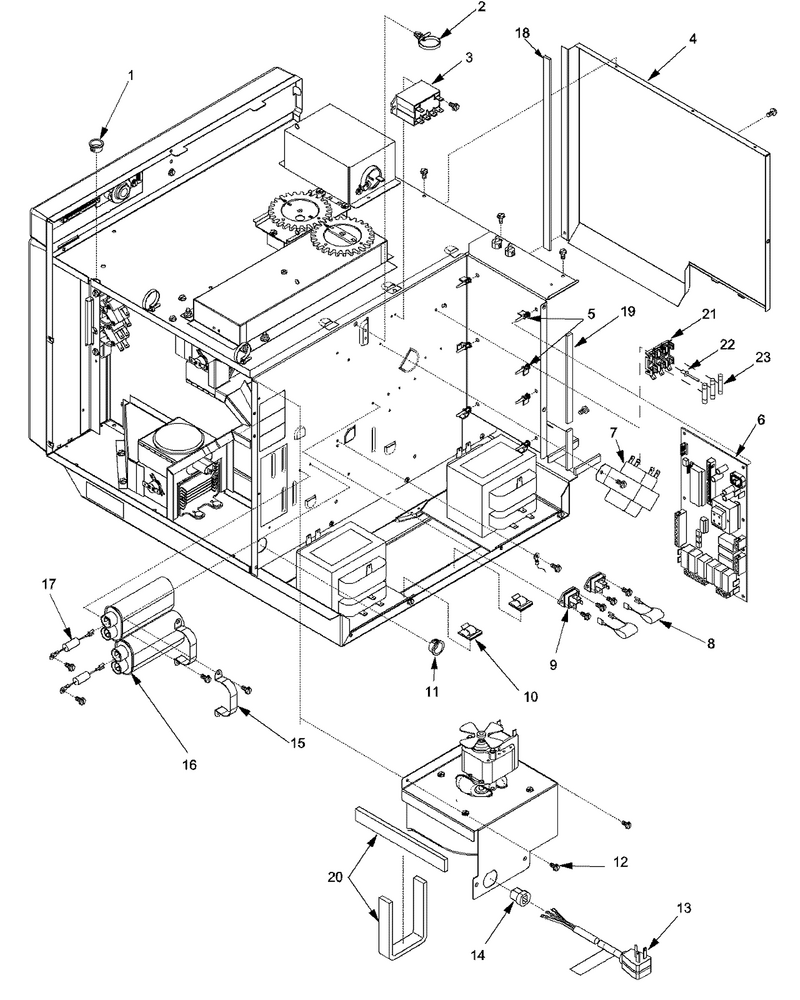

06 - Electrical Components

...
...
1
Bushing, Snap WPL-59001128
...
2
Tie Wire WPL-WPM0322202
...
3
Relay WPL-12492202
...
4
Duct, Exhaust WPL-10781901
...
5
Support P-C Bd A WPL-M0590602
...
6
Net-Board,hv Amana Prog-Wdyrc2 WPL-59001120
...
7
Screw WPL-WP489349
...
8
Snubber Assembly WPL-59002017
...
9
Screw WPL-WP489349
...
10
Clip WPL-WPM0104106
...
11
Bushing, Snap WPL-59001128
...
12
Screw WPL-WP489349
...
13
Power Cord Kit WPL-R0131016
...
14
Strain Relief WPL-8536977
...
15
Screw WPL-WP489349
...
16
Capacitor-.55 WPL-59001158
...
17
Rectifier WPL-WP13091701
...
18
Gasket (Inch) WPL-A3030301
...
19
Gasket (Inch) WPL-A3030301
...
20
Gasket (Per Foot) WPL-A3030303
...
21
Block-3 Pole Fuse WPL-59001682
...
22
Rivet-Pop WPL-59002054
...
23
Fuse WPL-WPM0805102

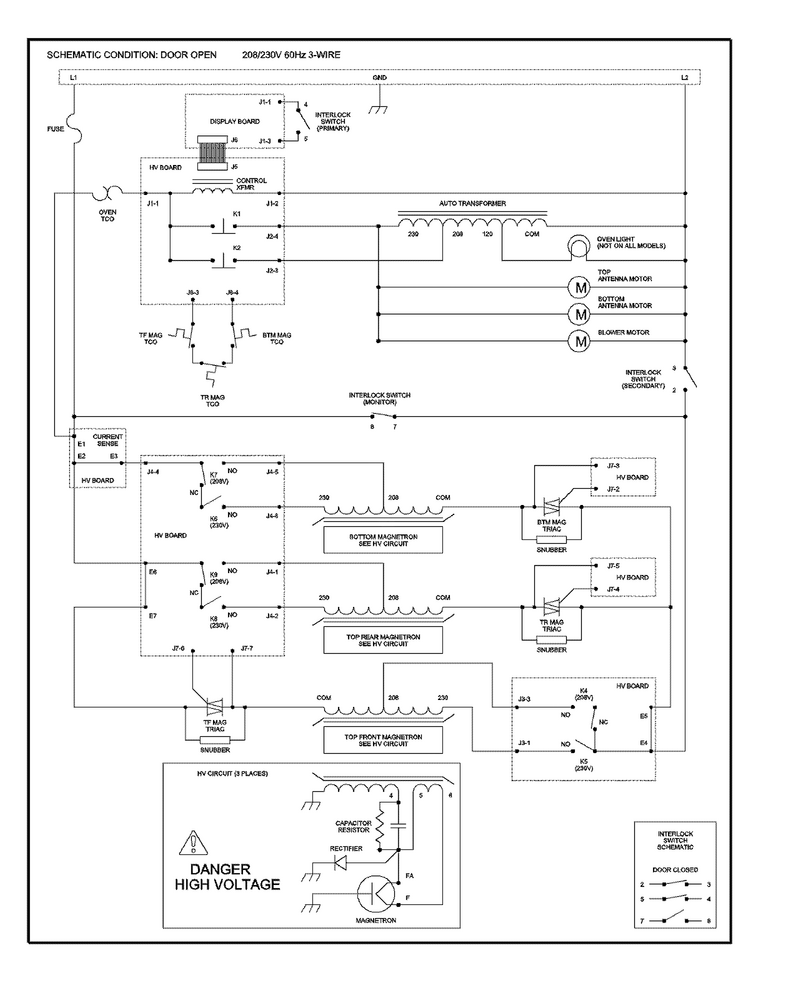

09 - Wiring Information

...
...
NI
Wiring Information WPL-15003152

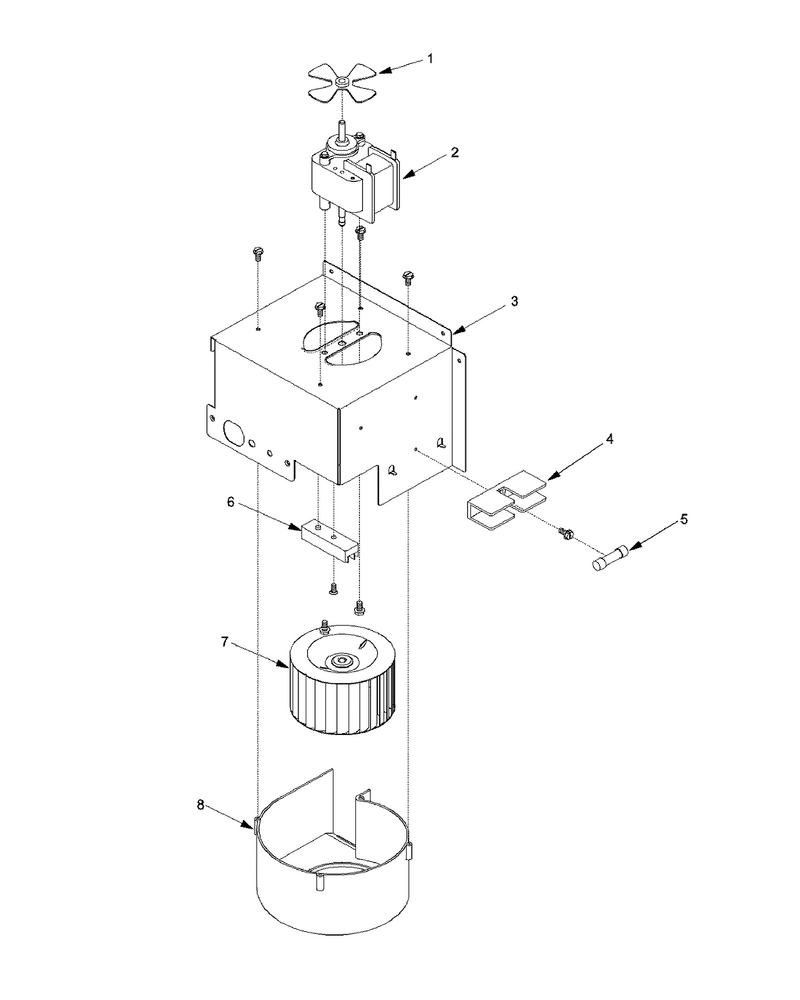

01 - Blower

...
...
1
Fan Blade WPL-B5706704
...
2
Motor,blower WPL-12138106
...
3
Bracket,blower WPL-12567701
...
4
Screw-Sm/hex WPL-12990523
...
5
Fuse- 30a WPL-M0805205
...
6
Screw, No.6x18x1/4 (3) WPL-487010
...
7
Wheel, Blower WPL-C3670809
...
8
Scroll,blower WPL-12552001

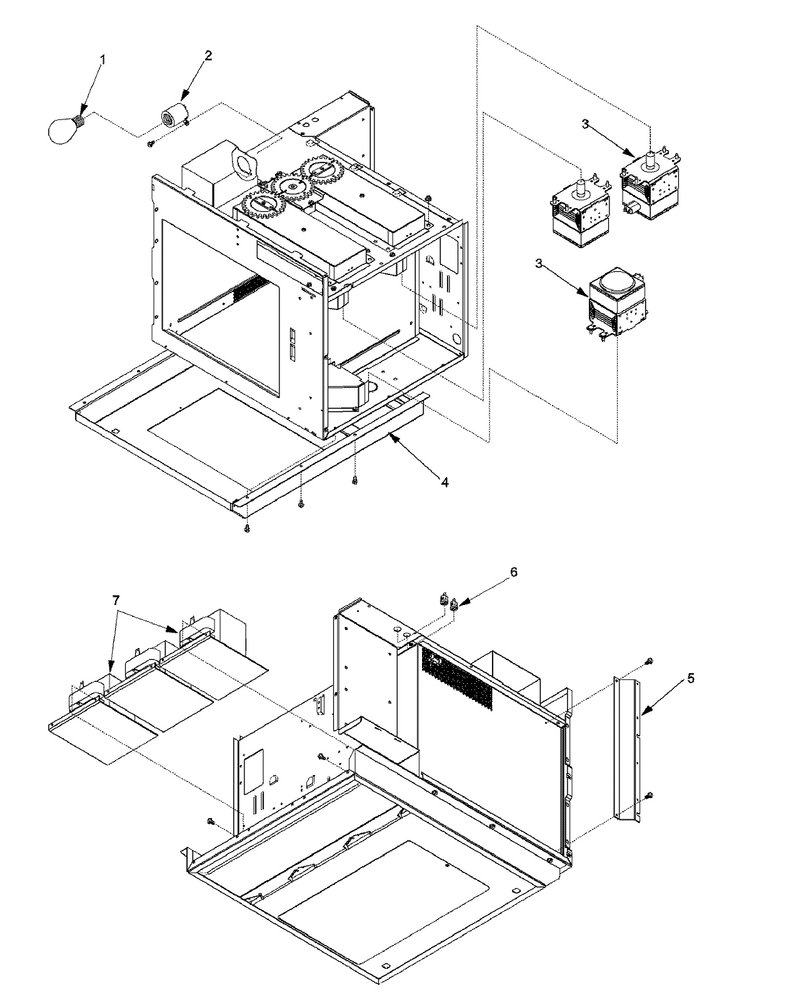

03 - Cavity

...
...
1
Light Bulb WPL-8009
...
2
Receptacle, Lamp WPL-B8371401
...
3
Magnetron-T WPL-10489402
...
4
Screw WPL-WP489128
...
5
Screw, Tf WPL-M0231704
...
6
Bushing,terminal WPL-M0325401
...
7
Transformer-Hv WPL-59001626

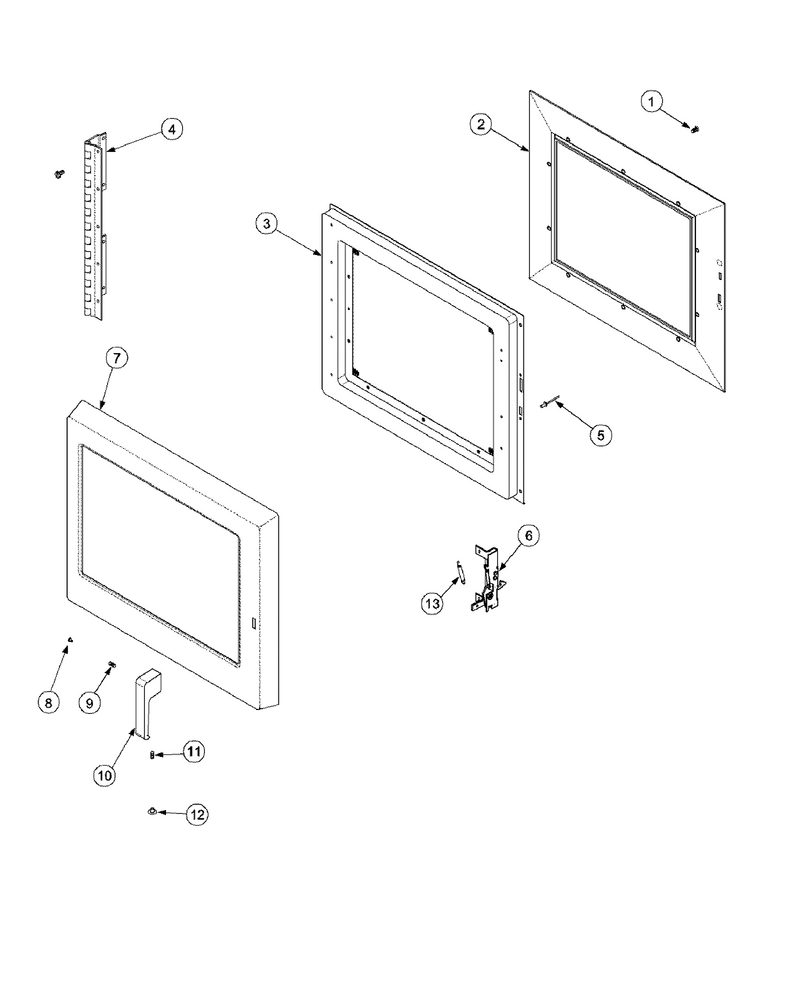

05 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Inner Door/glass Assy WPL-D7784901
...
3
Kit-Door R WPL-R0131710
...
4
Screw WPL-WP3388228
...
5
Rivet-Pop WPL-59002054
...
6
Latch Kit WPL-R0000282
...
7
Outer Door/lens Retainer Assy WPL-R0156918
...
8
Plug, Button (Wht) WPL-M0310305
...
9
Screw WPL-WP8533976
...
10
Handle, Door WPL-12490901
...
11
Screw WPL-WP8533976
...
12
Plug, Button (Blk) WPL-12360703
...
13
Spring, Door Latch WPL-C8893502

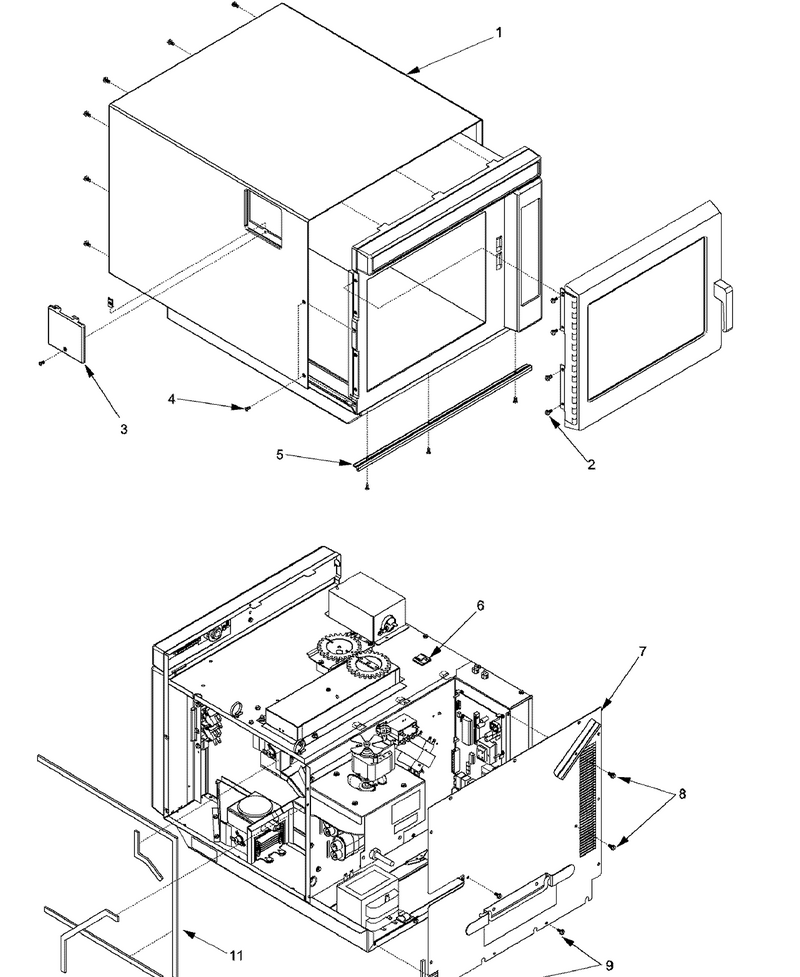

07 - Outercase

...
...
1
Screw WPL-WP3388228
...
2
Gasket WPL-A3263904
...
3
Cover Light (Ss) WPL-10785608
...
4
Screw-Tf/oval WPL-13042002
...
5
Screw-Tf/oval WPL-13042002
...
6
Clip WPL-WPM0104106
...
7
Assy, Access Panel (Rear) WPL-R0156970
...
8
Screw WPL-WP3388228
...
9
Screw WPL-WP90767
...
10
Gasket (Inch) WPL-A3030301
...
11
Gasket,per Ft WPL-A30303-30

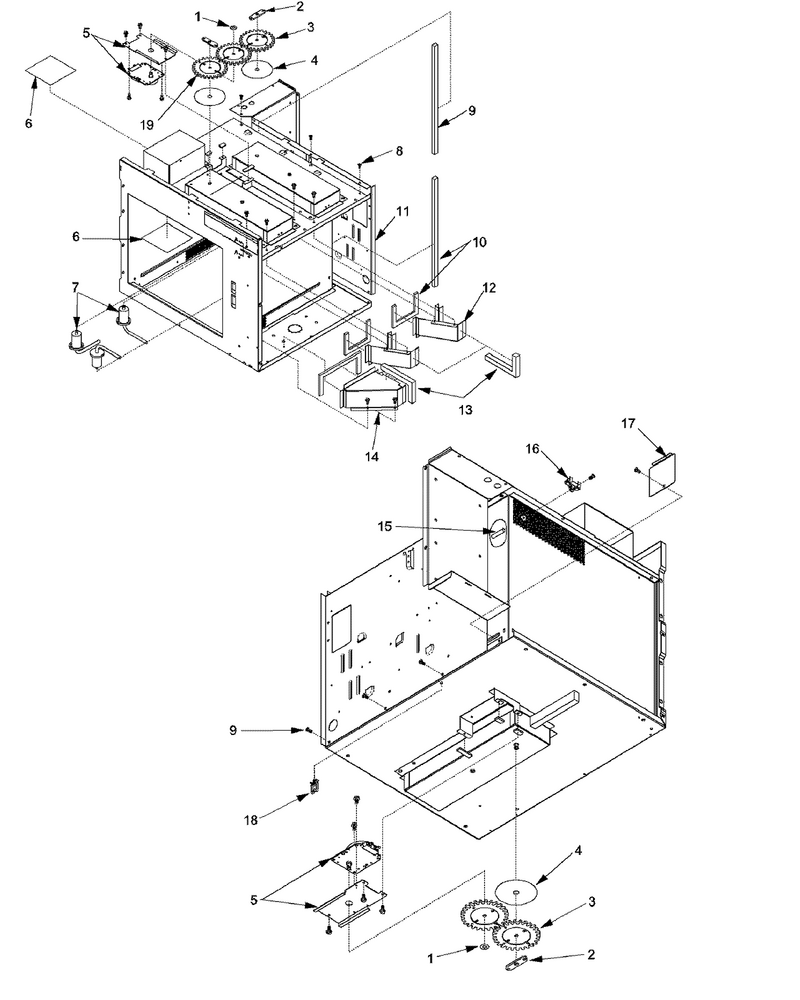

02 - Cavity

...
...
1
Ring,retainer WPL-M0274702
...
2
Retainer,gear Shaft WPL-12570201
...
3
Gear,spur WPL-12570101
...
4
Washer, Spur Gear WPL-10903002
...
5
Screw, Tf WPL-M0231704
...
6
Window, Oven Light WPL-B8367701
...
7
Antenna (Stirrer) WPL-R0130262
...
8
Screw WPL-WPW10001160
...
9
Gasket, Neoprene WPL-10966601
...
10
Gasket,per Ft WPL-A30303-30
...
11
Panel, Partition WPL-59001204
...
12
Screw WPL-WP3388228
...
13
Gasket (Per Foot) WPL-A3030303
...
14
Screw WPL-WP3388228
...
15
Cap, Protective-Threaded (Red) WPL-M0308801
...
16
Thermal Cutout WPL-B5795306
...
17
Screw WPL-WPW10001160
...
18
Wire Clip WPL-B5667304
...
19
Gear,spur (Gray) WPL-12570102

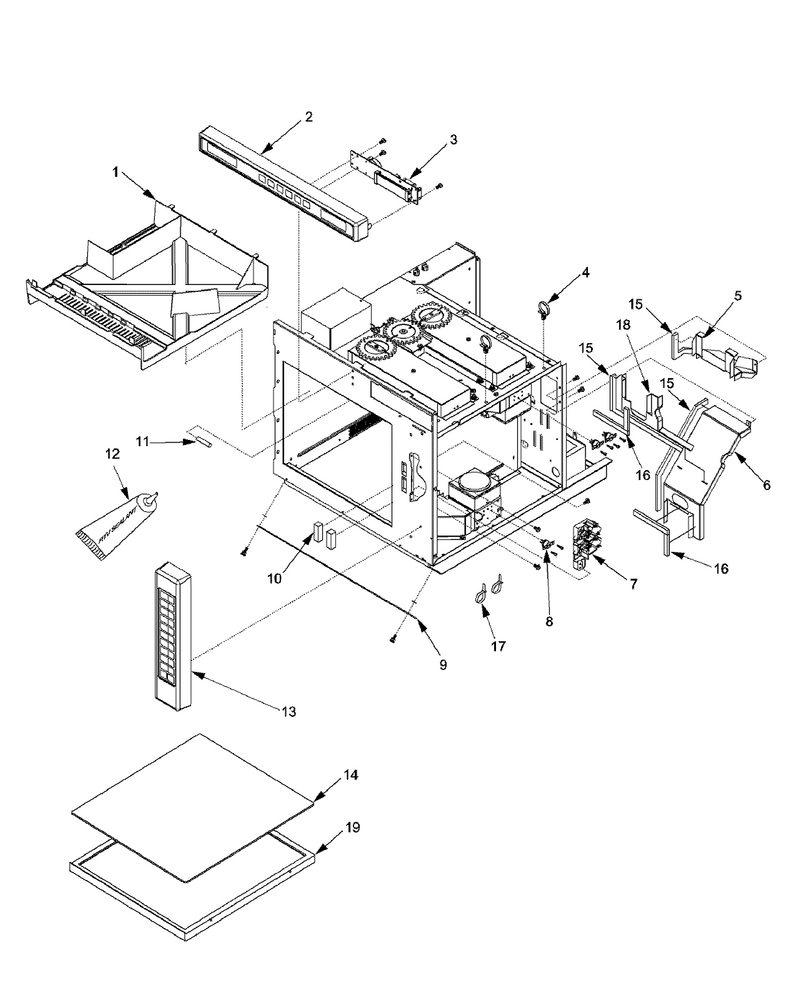

04 - Control

...
...
NI
Label, Wdyrc2 WPL-59001143
...
1
Shield, Grease WPL-10766601
...
2
Screw, Tf WPL-M0231704
...
3
Board,display WPL-12502404
...
4
Tie Wire WPL-WPM0322202
...
5
Rear Divider Duct-W/gasket WPL-R0156986
...
6
Divider-Bot Flow WPL-10989401
...
7
Switch, Interlock WPL-59001114
...
8
Screw T.c WPL-M0229916
...
9
Washer, Nylon WPL-M0274066
...
10
Support-Tray WPL-3010003001
...
11
Cap, Protective-Threaded (Red) WPL-M0308801
...
12
Adhesive WPL-W10841140
...
13
Touch Panel-Side WPL-59001226
...
14
Tray-Ceramic Floor W/sealer WPL-R0156942
...
15
Gasket,per Ft WPL-A30303-30
...
16
Gasket (Per Foot) WPL-A3030303
...
17
Tie-Wire WPL-WPW10339879
...
18
Divider, Top Flow WPL-10989601
...
19
Frame, Oven Tray WPL-12441001

...
...
1
Mnl-Svc Com Rr WPL-RS2220001
...
2
Manual, Parts Com Microwaves WPL-16021114
...
5
Magnetic Y-Drive Bit WPL-R0193574
...
6
Harness, Hv Board To Display WPL-R0130265
...
7
Harness-Oven Light WPL-12543401
...
8
Harness, Lower Antenna Motor WPL-12598201
...
9
Harness-Interlock WPL-13018201
...
10
Harness- Oven WPL-59001227
...
11
Harness-Hi Volt WPL-59001137
...
12
Kit-Cav- 3 Tube ``s`` Chassis WPL-12002484
