Amana VEND-7D.001

Model: VEND-7D.001

Save Part Not Listed?
product name

Popular Parts

Popular Parts

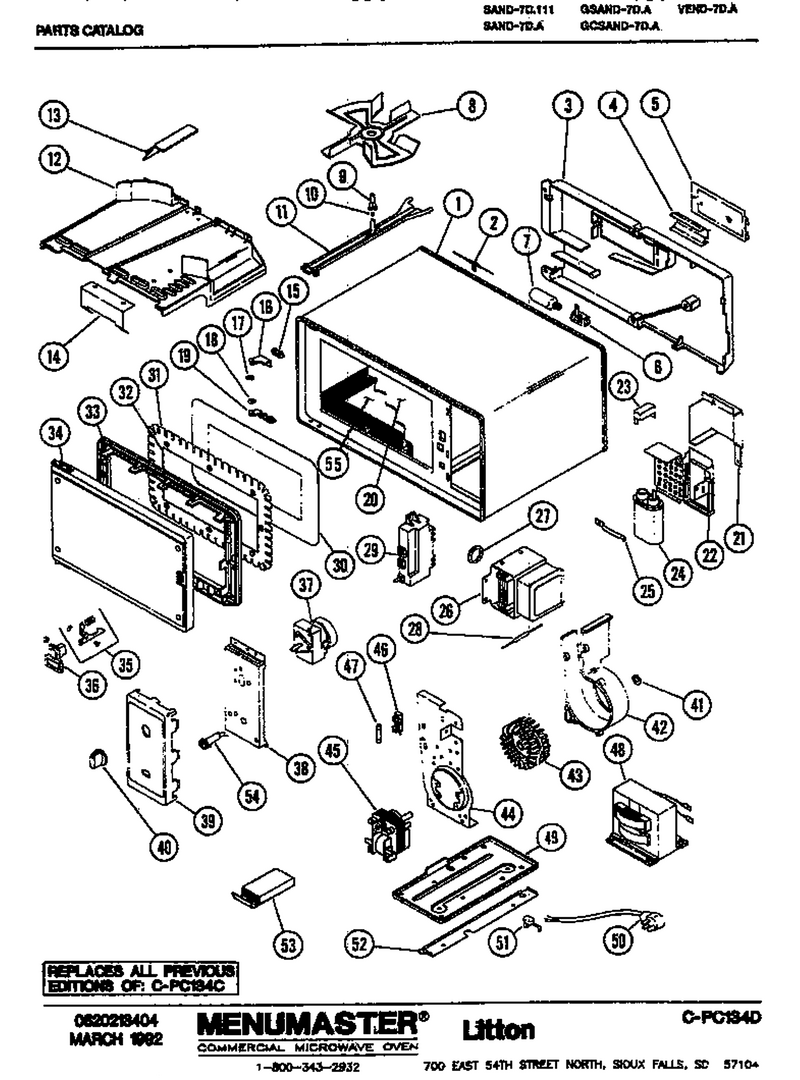

01 - Page 1

...
...
NI
Dark Ginger Brn WPL-M13D40
...
1
Cavity Assembly WPL-M77D176
...
2
Sensor, Cavity Kit WPL-M4D102
...
3
Gasket WPL-A3030302
...
4
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP90767
...
7
Light Bulb WPL-44865P01
...
8
Kit-Insert & Blade Stirrer WPL-R0130737
...
9
Kit, Stirrer Insert WPL-M2D678
...
10
Ball WPL-38321P01
...
11
Stirrer Support Cover WPL-46800P01
...
12
Stirrer Cover WPL-46713P01
...
13
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Plate Nut WPL-45010P01
...
16
No.6 Flat Hd Machine Screw WPL-M1D60
...
17
No.10 Wave Washer WPL-M2D583
...
18
Nylon Flat Washer WPL-40370P01
...
19
Hinge Asy WPL-45179P01
...
20
Shelf Support WPL-M2D793
...
21
Lead Cover WPL-M20D257
...
22
Capacitor Cover WPL-M20D258
...
23
Inline Connector WPL-M5D367
...
24
Hv Cap .91+6%-3%mfd 2kvacx WPL-43912P03
...
25
Screw WPL-WP90767
...
26
Kit, Magnetron WPL-M57D37
...
27
Gasket-Rf WPL-M2D296
...
28
Sensor Magnetron Kit WPL-M4D101
...
29
Screw WPL-WPW10001160
...
30
Window, Inner Door WPL-10785201
...
31
No.8 Ab X 3/8`` Screw WPL-M1D906
...
32
Outer Window Kit WPL-M51D60
...
33
Door Filler Kit WPL-M55D20
...
34
Outer Door (Vend 7d) M70d12 WPL-M70D124
...
35
Kit, Door Hook WPL-M2D675
...
36
Screw WPL-WP8533976
...
37
Timer Kit WPL-M30D91
...
38
Screw WPL-WP90767
...
39
Dec Panel Sand7d M7d799 WPL-M7D799
...
40
Knobx WPL-42180P01
...
41
Retainer WPL-M1D892
...
42
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
43
Kit, Blower Wheel WPL-R0163293
...
44
Blower Brkt Kit WPL-M20D256
...
45
Blower Motor Kit WPL-M12D100
...
46
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
47
Fuse 20 A WPL-WPM0805101
...
48
No.10 T X 3/8`` Screw WPL-M1D479
...
49
Screw WPL-WP90767
...
50
Cord Retainer WPL-M2D674
...
51
Spacer Fuse WPL-M2D365
...
52
Rail Kit WPL-M20D290
...
53
Ground Lead Kit WPL-M5D351
...
54
Lamp-Indicator M9d120 WPL-1341004275
...
55
Ass`y, Spacer Support-Reworked WPL-4180030501Q
