Amana VEND-7.005 (BOM: VEND-7.00 5)

Model: VEND-7.005 (BOM: VEND-7.00 5)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

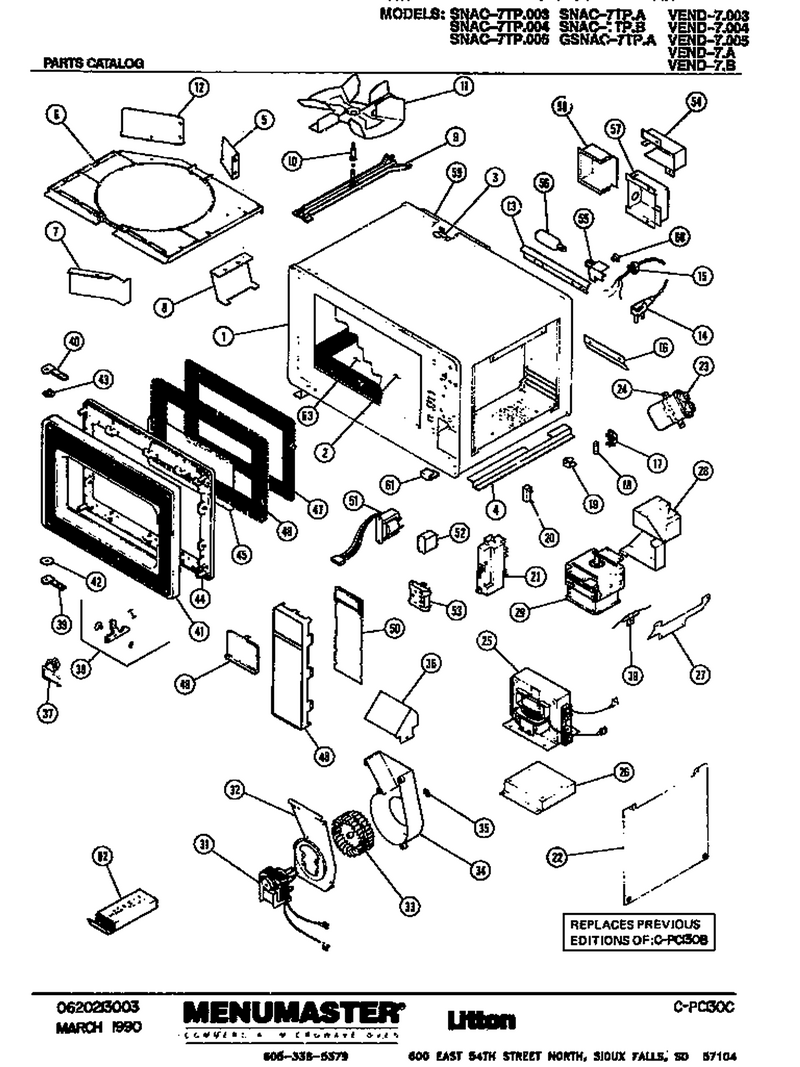

01 - Page 1

...
...
NI
Cavity Touch-Up Paint WPL-M13D50
...
1
Bushing WPL-A3293502
...
2
Shelf W/sealant Kit WPL-M50D39
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Rail Support WPL-M20D248
...
5
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
6
Speed-Clinch WPL-M2D574
...
7
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
8
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
9
Stirrer Support Cover WPL-46800P01
...
10
Insert Stirrer Kit WPL-M2D571
...
11
Blade, Stirrer WPL-10826002Q
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Channel, Wire WPL-10826901
...
14
Power Cord WPL-1731300202
...
15
Bush, Strain Relf (10) WPL-M1D600
...
16
Dftr Drip WPL-41624P01
...
17
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
18
Fuse 20 A WPL-WPM0805101
...
19
Cable Clip WPL-M2D580
...
20
Lock Washer WPL-M0272803
...
21
Interlock Switch Module WPL-M14D305
...
22
Access Pnl WPL-M53D52
...
23
Capacitor- WPL-WP59001168
...
24
Screw WPL-WP90767
...
25
No.10 T X 3/8`` Screw WPL-M1D479
...
26
No.10 T X 3/8`` Screw WPL-M1D479
...
27
Support-Mag WPL-M8D247
...
28
Duct Cavity WPL-M65D301
...
29
Gasket-Rf WPL-M2D296
...
30
Sensor Magnetron Kit WPL-M4D101
...
31
Kit, Blower Motor WPL-M12D84
...
32
Screw WPL-WP90767
...
33
Wheel Blower M35d37 WPL-45146P01
...
34
Blwr Hsg M65d293 WPL-42553P01
...
35
Retainer WPL-M1D892
...
36
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
37
Handle Kit WPL-M11D64
...
38
Door Hook Kit WPL-M2D625
...
39
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
40
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
41
Outer Door Asy Kit WPL-M70D236
...
42
Nylon Flat Washer WPL-40370P01
...
43
No.10 Wave Washer WPL-M2D583
...
44
Door Filler Kit WPL-M55D18
...
45
Outer Window Kit WPL-M51D56
...
46
Inner Door Kit WPL-M70D83
...
47
Window, Inner Door WPL-10785001
...
48
Touch Panel Assembly WPL-M7D705
...
49
Display Window Kit WPL-M2D632
...
50
Controller WPL-M31R55
...
51
Screw WPL-WP90767
...
52
Screw WPL-M0202325
...
53
Triac WPL-M16D93
...
54
Cover-Rear Vent WPL-10830201
...
55
Screw WPL-WP90767
...
56
Bulb-Light WPL-40407P01
...
57
Screw WPL-WP90767
...
58
Light Cover WPL-M7D583
...
59
Rivet-Pop WPL-59002054
...
60
Cavity Plug (10) WPL-M1D755
...
61
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
62
H.v. Lead Kit WPL-M5D350
...
63
False Bottom Kit WPL-M20D309
