Amana URFS511 (BOM P1327814M)

Model: URFS511 (BOM P1327814M)

Save Part Not Listed?
product name

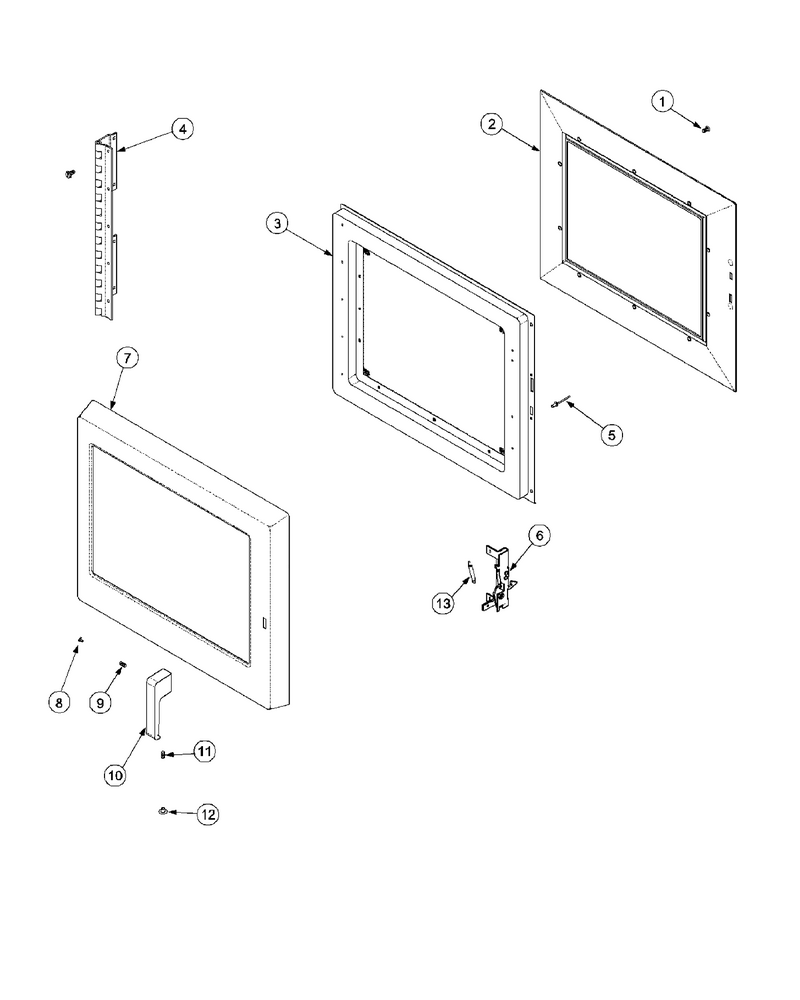

03 - Door

...
...
001
Screw-Hi Lo Y-Drive Head WPL-67003392
...
002
Kit, Inner Door/window Assy WPL-12002103
...
003
Door Ring Weld WPL-59002013
...
004
Hinge-Door WPL-C8961811
...
005
Rivet-Pop WPL-59002054
...
006
Screw WPL-WP3388228
...
007
Assy,outer Door WPL-R0131711
...
008
Hole, Plug WPL-59001007
...
009
Screw WPL-WP8533976
...
010
Handle, Door WPL-12490901
...
011
Screw WPL-WP8533976
...
012
Plug, Button (Wht) WPL-M0310305
...
013
Spring, Door Latch WPL-C8893502

...
...
001
Gasket, Oven Top WPL-B8369901
...
002
Magnetron WPL-12096201
...
003
Plate, Thermal Cutout WPL-B8380601
...
004
Thermal Protector WPL-B5684106
...
005
Screw T.c WPL-M0229916
...
006
Screw WPL-M0232012
...
007
Toroid (Arc Suppressor) WPL-44780P01
...
008
Screw WPL-WPW10068250
...
009
Gasket (Inch) WPL-A3030301
...
010
Nut WPL-NLA
...
011
Window, Oven Light WPL-B8367701
...
012
Screw WPL-NLA
...
013
Cord-Power WPL-B5669026
...
014
Insulator, Pod K WPL-M0325501
...
015
Relief- Strain WPL-M0370009
...
016
Snubber Assembly WPL-59002017
...
017
Gasket WPL-A3030302
...
018
Blower Partition,black E Ct WPL-D7685413
...
019
Gasket WPL-A3030302
...
020
Kit, Triac Assy WPL-R0157373
...
021
Screw-Sm/hex WPL-12990523
...
022
Screw WPL-NLA
...
023
Scroll, Blower WPL-D7684601
...
024
Blower Wheel WPL-C8793501
...
025
Screw, Tf WPL-M0231704
...
026
Nut WPL-WP3195558
...
027
Brkt Scroll WPL-C8942501
...
028
Adhesive WPL-W10841140
...
029
Grease Shield WPL-D7692501
...
030
Cradle, Antenna WPL-D7685505
...
031
Screw,tf WPL-M0231617
...
032
Assy, Antenna WPL-C8943002Q
...
033
Clip WPL-B8379401
...
034
Screw WPL-M0213147
...
035
Eyelet WPL-M0571201
...
036
Foot, Outer Case WPL-C8960601
...
037
Support, Shelf WPL-B8374901
...
038
Support Rack WPL-B8371001
...
039
Screw, Tf WPL-M0231704

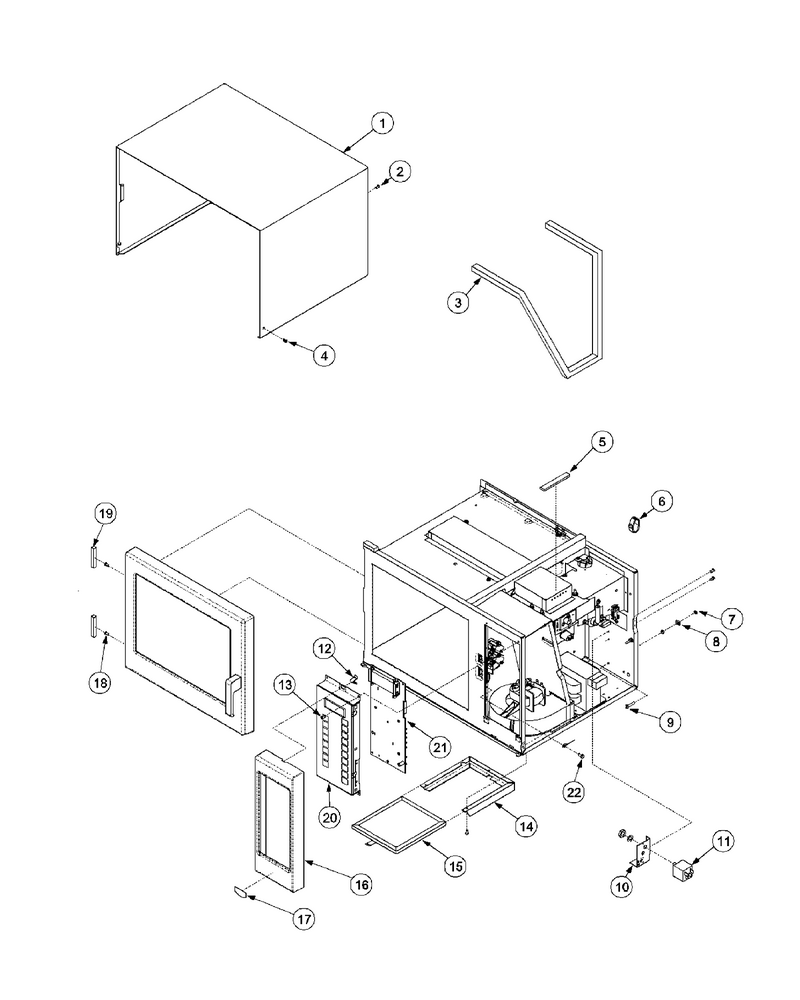

02 - Outer Case

...
...
001
Wrapper WPL-D7684903
...
002
Screw, Tf WPL-M0231704
...
003
Gasket (Per Foot) WPL-10839706
...
004
Screw, Tf WPL-M0231804
...
005
Gasket K WPL-A4591129
...
006
Clip, Guide WPL-M0118705
...
007
Nut-Keps WPL-M0282021
...
008
Washer-U Type WPL-12152201
...
009
Screw-Mach WPL-M0200843
...
010
Brkt, Line Filter WPL-B5696109
...
011
Line Filter Xx WPL-NLA
...
012
Clip WPL-B8379401
...
013
Screw, Tf WPL-M0231704
...
014
Screw,tc WPL-M0230017
...
015
Filter, Preform WPL-10169101Q
...
016
Side Escutcheon-Rfs511sw2 WPL-59001623
...
017
Label, Dfs11e WPL-59001050
...
018
Screw WPL-WP12990527
...
019
Gasket WPL-A3263904
...
020
Assy, Touch Panel WPL-R9900592
...
021
Cntrl-Elec WPL-R0131387
...
022
Screw, Tf WPL-M0231704

...
...
001
Screw, Tf WPL-M0231704
...
002
Air Duct. Bottom WPL-D7772202
...
003
Duct, Top Air WPL-D7772007
...
004
Gasket (Inch) WPL-A3030301
...
005
Screw WPL-WP59002061
...
006
Sleeve, Wire WPL-M0322602
...
007
Rectifier WPL-10649001
...
008
Fuse, 12 Amp WPL-M0805105
...
009
Socket, Light WPL-B8376801
...
010
Screw WPL-WP59002061
...
011
Capacitor-1.30 WPL-59001172
...
012
Strap, Capacitor WPL-A4055406
...
013
Bulb-Light WPL-WP67002552
...
014
Cover, Light WPL-B8370702
...
015
Cover-Air Duct WPL-NLA
...
016
Stud-Self Clinch WPL-NLA
...
017
Washer WPL-M0272503
...
018
Nut K WPL-M0282005
...
019
Gasket, Neoprene WPL-10966602

...
...
001
Manual, Service WPL-59001057
...
002
Use & Care Manual WPL-NLA
...
003
Technical Sheet WPL-16021524
...
004
Harness, Oven WPL-NLA
...
005
Magnetic Y-Drive Bit WPL-NLA
...
006
Bit For Torx 15h Drive Screws WPL-R0000328

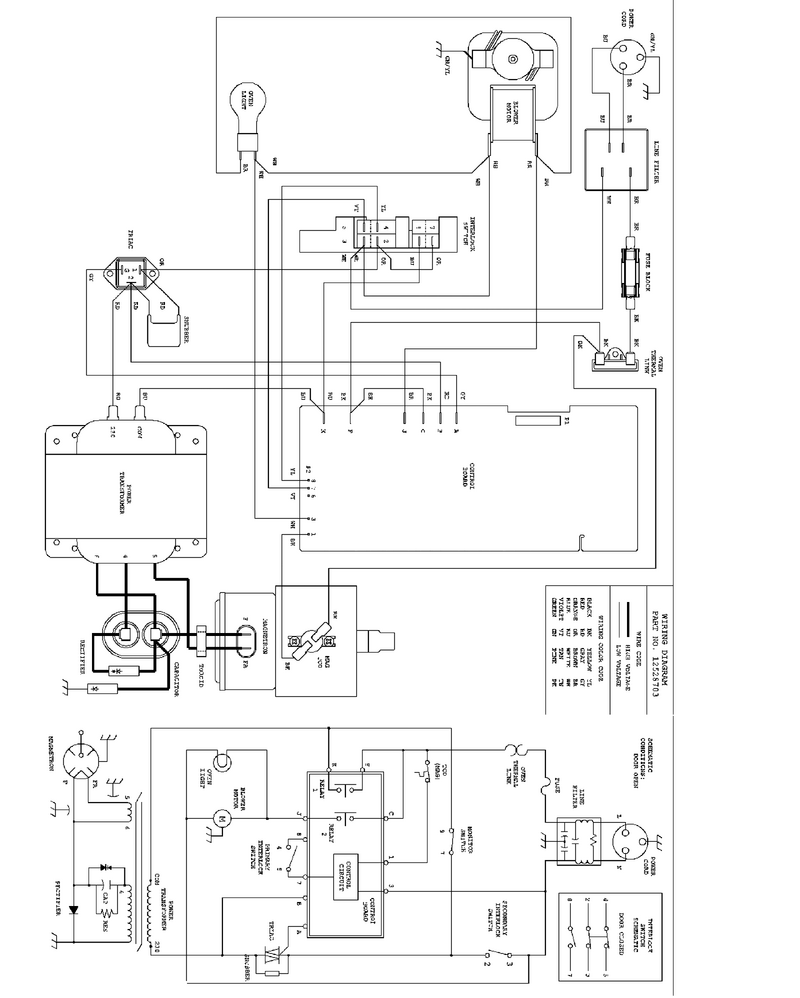

05 - Wiring Information

...
...
001
Wiring Diagram WPL-NLA
