Amana URCS511 (BOM: P1327810M)

Model: URCS511 (BOM: P1327810M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

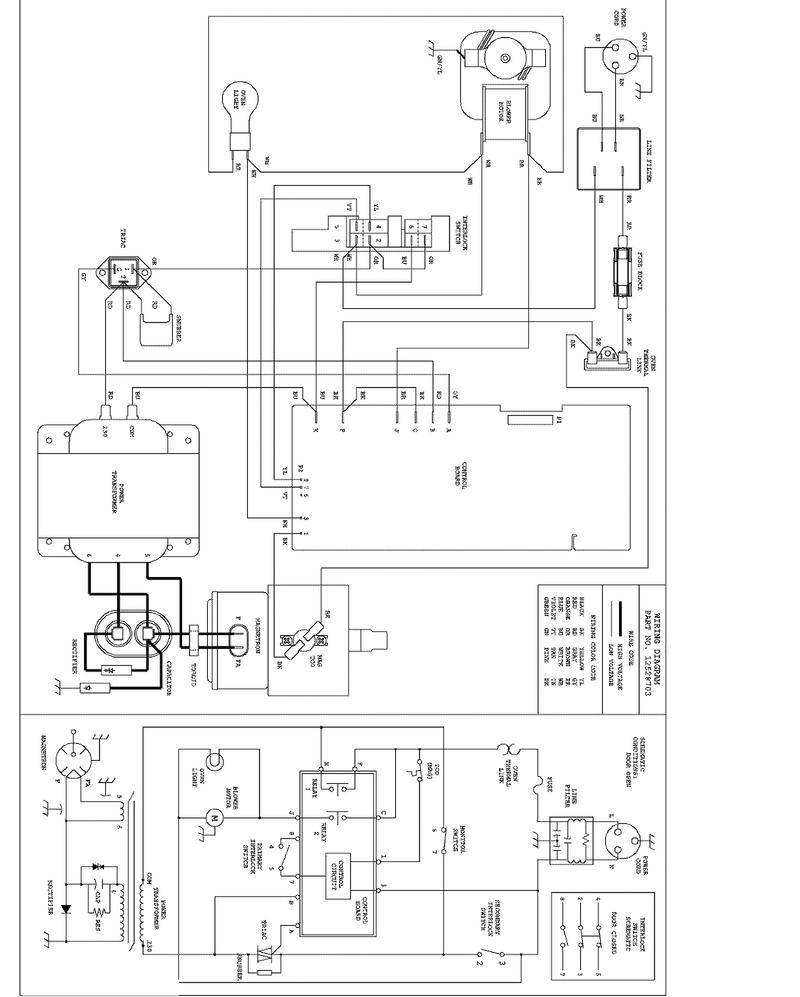

06 - Wiring Information

...
...
1
Wiring Diagram WPL-15002981

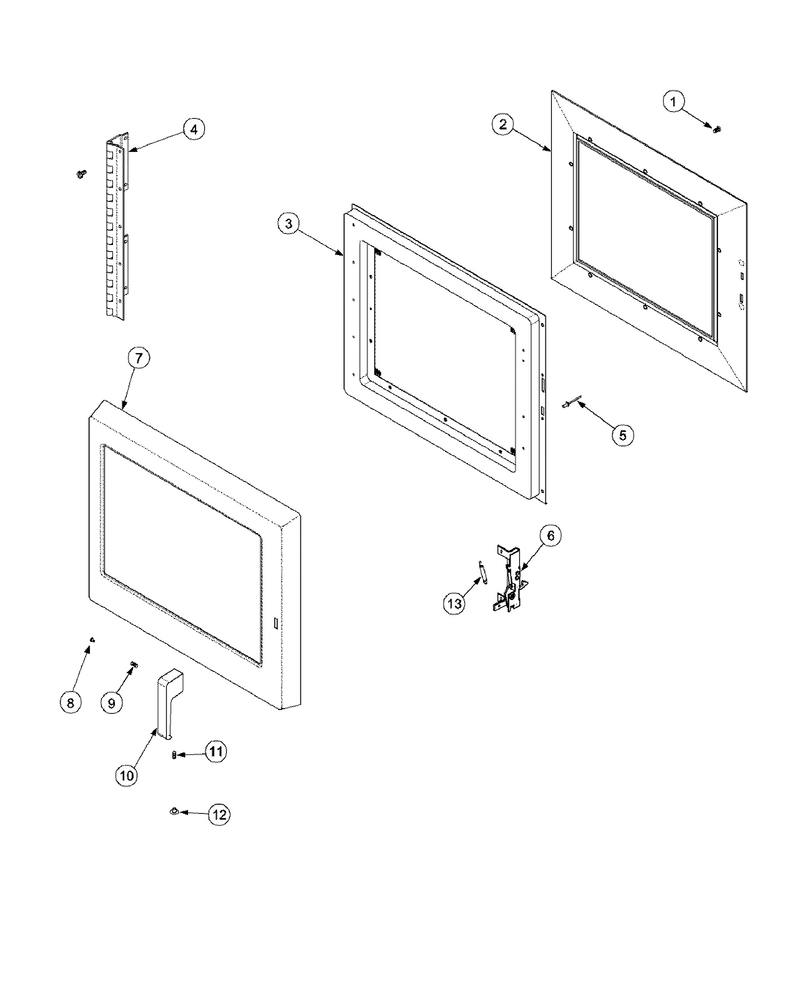

02 - Door

...
...
1
Magnetic Y-Drive Bit WPL-R0193574
...
2
Inner Door/glass Assy WPL-D7784901
...
3
Door Ring Weld WPL-59002013
...
4
Hinge-Door WPL-C8961811
...
5
Rivet-Pop WPL-59002054
...
6
Screw WPL-WP3388228
...
7
Assy,outer Door WPL-R0131711
...
8
Hole, Plug WPL-59001007
...
9
Screw WPL-WP8533976
...
10
Handle, Door WPL-12490901
...
11
Screw WPL-WP8533976
...
12
Plug, Button (Wht) WPL-M0310305
...
13
Spring, Door Latch WPL-C8893502

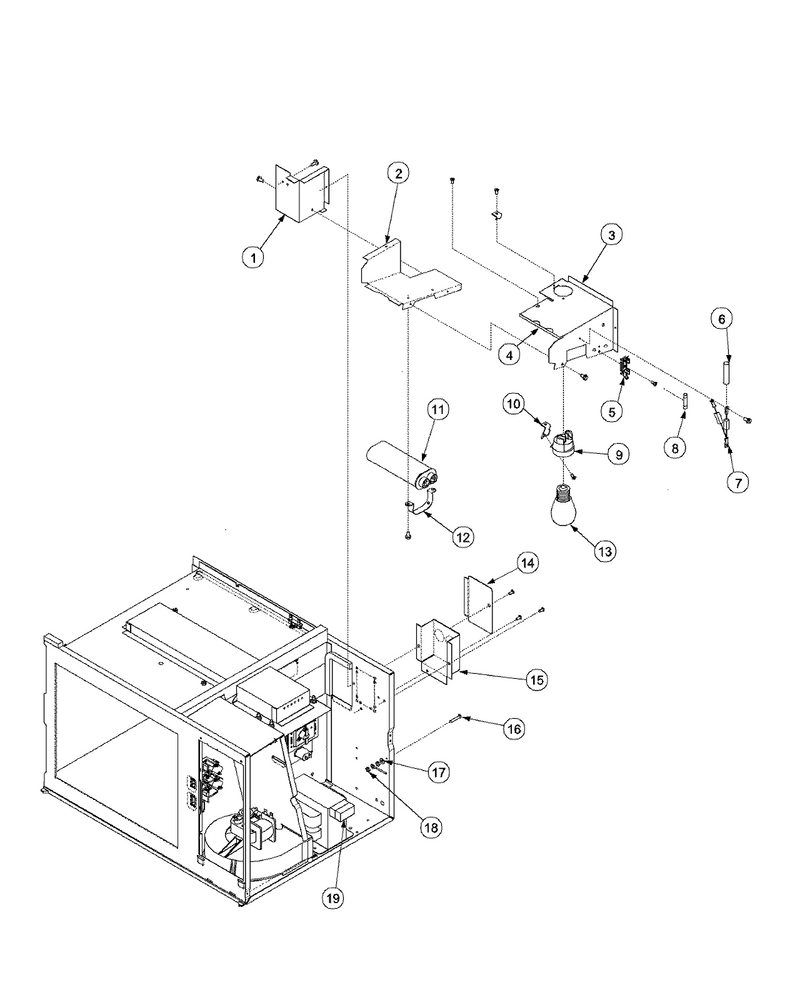

03 - Electric Components

...
...
1
Shield, Light WPL-D7772101
...
2
Air Duct. Bottom WPL-D7772202
...
3
Duct, Top Air WPL-D7772007
...
4
Gasket (Inch) WPL-A3030301
...
5
Screw WPL-WP59002061
...
6
Sleeve, Wire WPL-M0322602
...
7
Rectifier WPL-10649001
...
8
Fuse, 12 Amp WPL-M0805105
...
9
Socket, Light WPL-B8376801
...
10
Screw WPL-WP59002061
...
11
Capacitor-1.30 WPL-59001172
...
12
Screw, Tf WPL-M0231704
...
13
Bulb-Light WPL-WP67002552
...
14
Screw, Tf WPL-M0231704
...
15
Cover,air Duct WPL-C8988002
...
16
Stud-Self Clinch WPL-M0293502
...
17
Washer WPL-M0272503
...
18
Nut K WPL-M0282005
...
19
Gasket, Neoprene WPL-10966602

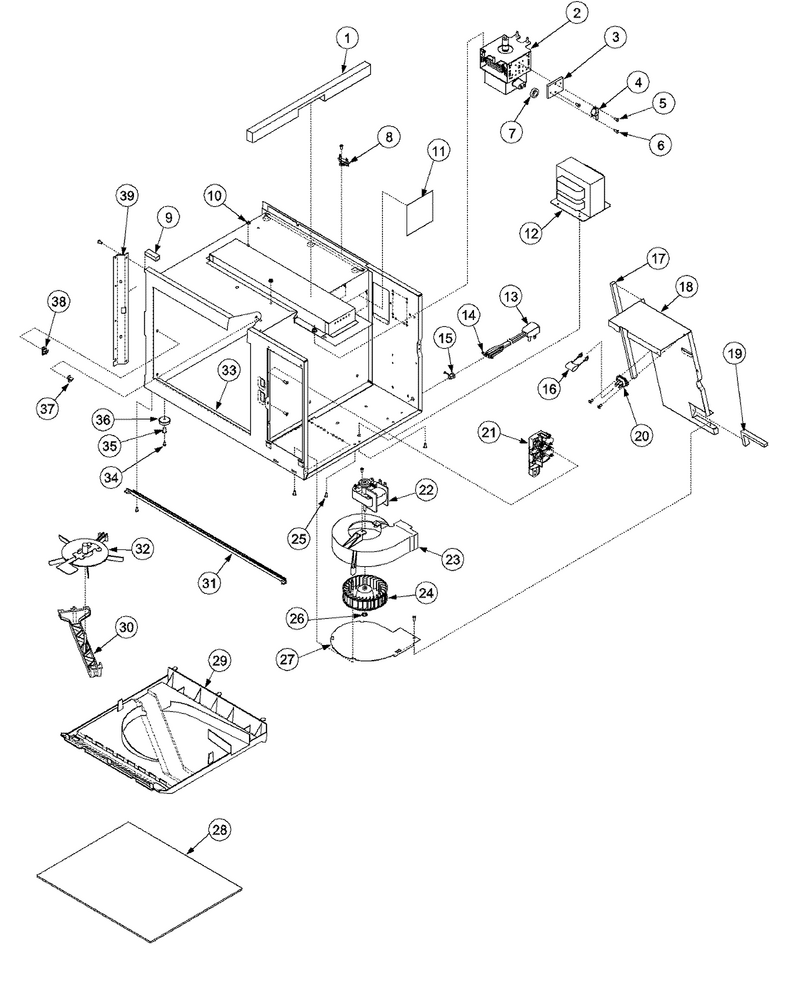

01 - Blower & Cavity

...
...
1
Gasket, Oven Top WPL-B8369901
...
2
Magnetron WPL-12096201
...
3
Plate, Thermal Cutout WPL-B8380601
...
4
Thermal Protector WPL-B5684106
...
5
Screw T.c WPL-M0229916
...
6
Screw WPL-M0232012
...
7
Toroid (Arc Suppressor) WPL-44780P01
...
8
Fuse, Thermal WPL-B5795305
...
9
Gasket (Inch) WPL-A3030301
...
10
Nut WPL-M0288808
...
11
Window, Oven Light WPL-B8367701
...
12
Transformer WPL-D7686914
...
13
Cord-Power WPL-B5669026
...
14
Insulator, Pod K WPL-M0325501
...
15
Relief- Strain WPL-M0370009
...
16
Snubber Assembly WPL-59002017
...
17
Gasket WPL-A3030302
...
18
Blower Partition,black E Ct WPL-D7685413
...
19
Gasket WPL-A3030302
...
20
Kit, Triac Assy WPL-R0157373
...
21
Screw-Sm/hex WPL-12990523
...
22
Screw WPL-M0213123
...
23
Scroll, Blower WPL-D7684601
...
24
Blower Wheel WPL-C8793501
...
25
Screw, Tf WPL-M0231704
...
26
Nut WPL-WP3195558
...
27
Screw, Tf WPL-M0231704
...
28
Tray-Glass Floor WPL-C8936902
...
29
Grease Shield WPL-D7692501
...
30
Cradle, Antenna WPL-D7685505
...
31
Trim,oc WPL-12667301
...
32
Assy, Antenna WPL-C8943002Q
...
33
Clip WPL-B8379401
...
34
Screw WPL-M0213147
...
35
Eyelet WPL-M0571201
...
36
Foot, Outer Case WPL-C8960601
...
37
Support, Shelf WPL-B8374901
...
38
Support Rack WPL-B8371001
...
39
Screw, Tf WPL-M0231704

...
...
1
Manual, Service WPL-59001057
...
2
Manual, Owner WPL-59001134
...
3
Technical Sheet WPL-16021524
...
4
Harness,oven WPL-12528601
...
5
Magnetic Y-Drive Bit WPL-R0193574
...
6
Bit For Torx 15h Drive Screws WPL-R0193551

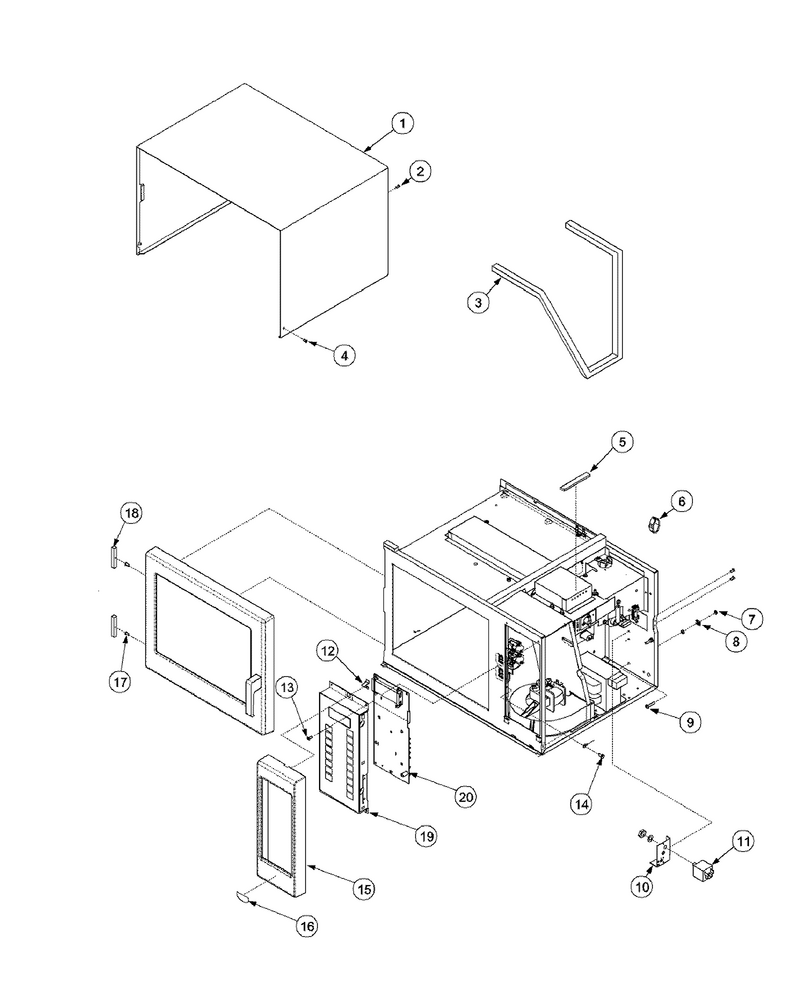

04 - Outer Case

...
...
1
Wrapper WPL-D7684903
...
2
Screw, Tf WPL-M0231704
...
3
Gasket (Per Foot) WPL-10839706
...
4
Screw, Tf WPL-M0231804
...
5
Gasket K WPL-A4591129
...
6
Clip, Guide WPL-M0118705
...
7
Nut-Keps WPL-M0282021
...
8
Washer-U Type WPL-12152201
...
9
Screw-Mach WPL-M0200843
...
10
Brkt, Line Filter WPL-B5696109
...
11
Line Filter Xx WPL-B5717801
...
12
Clip WPL-B8379401
...
13
Screw, Tf WPL-M0231704
...
14
Screw, Tf WPL-M0231704
...
15
Escutcheon,side WPL-12667401
...
16
Label, Urcs511 WPL-59001055
...
17
Screw WPL-WP12990527
...
18
Gasket WPL-A3263904
...
19
Assy, Touch Panel WPL-R9900589
...
20
Cntrl-Elec WPL-R0131387
