Amana UK80/56.100

Model: UK80/56.100

Save Part Not Listed?
product name

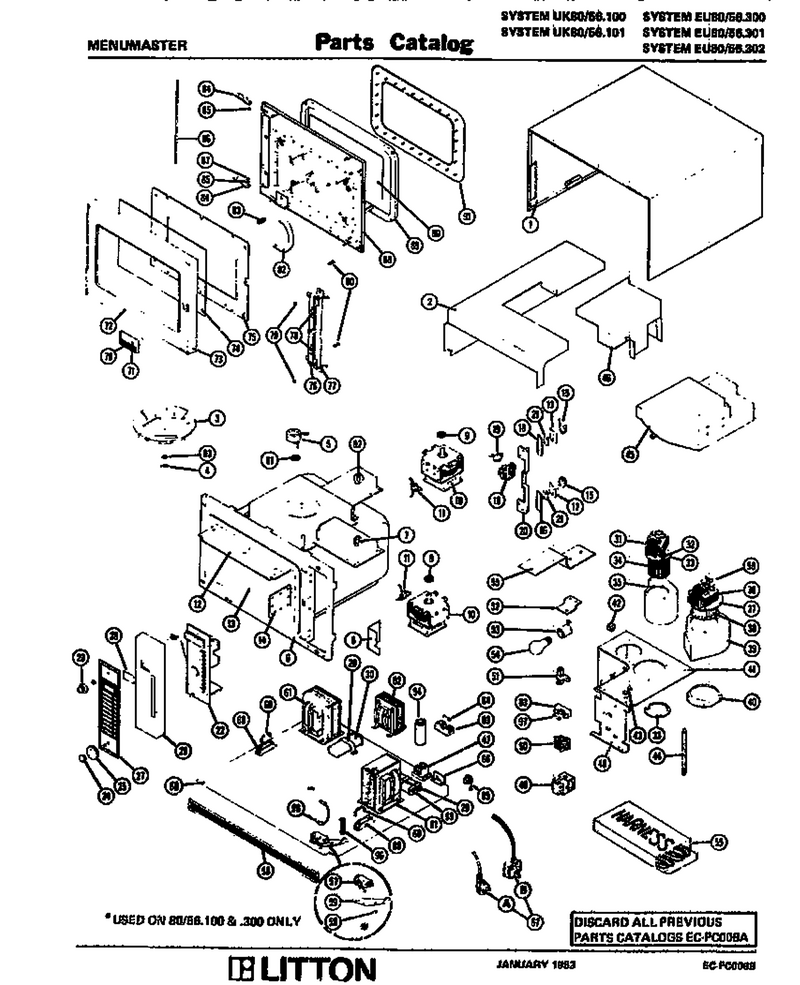

01 - Page 1

...
...
NI
Not Available WPL-M1D288
...
1
Not Available WPL-M80D80
...
2
Duct Exhaust Kit WPL-M65D183
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Screw (25) WPL-M1D5
...
6
Cavity Assy WPL-M77D101
...
7
Antenna Pin Side Kit WPL-M2D566
...
8
Baffle Asm WPL-M65D211
...
9
Gasket-Rf WPL-M2D296
...
10
Kit, Magnetron WPL-M57D30
...
11
Screw Thrm WPL-M1D666
...
12
Stirrer Cover WPL-M45D19
...
13
Shelf Kit WPL-M50D33
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Not Available WPL-M5D193
...
16
Strike, Latch WPL-M8D191
...
17
Insulator, Switch WPL-M5D268
...
18
Bracket, Monitor Switch Mtg. WPL-M8D65
...
19
Sw-Monitor M14d212 WPL-M14D212
...
20
Nut WPL-WP488130
...
21
Spacer, Switch WPL-M8D190
...
22
Screw (25) WPL-M1D462
...
23
Knob, Vari-Power WPL-M6D212
...
24
Knob Dial WPL-31818P01
...
25
Knob, Minutes WPL-M6D214
...
26
Lens/filter WPL-31820P01
...
27
Dec Panel WPL-M7D372
...
28
Timer Casting WPL-M7D362
...
29
Capacitor Brkt WPL-M20D60
...
30
Capacitor-Doubler WPL-10366913
...
31
Washer (25) WPL-M1D236
...
32
Screw WPL-M1D574
...
33
Flange, Blower Housing WPL-M8D195
...
34
Impeller WPL-M35D29
...
35
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
36
Nut K WPL-M0282005
...
37
Screw WPL-M1D574
...
38
Wheel, Blower WPL-34487P01
...
39
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
40
Flange, Blower Housing WPL-M8D197
...
41
Not Available WPL-M52D181
...
42
Bushing, Snap WPL-A3293504
...
43
Snap Bushing WPL-M2D114
...
44
Stand Off WPL-M2D382
...
45
Duct Asm WPL-M65D212
...
46
Duct Assy WPL-33421A01
...
47
Termnl Block WPL-M4D55
...
48
Panel WPL-M52D180
...
49
Relay WPL-M16D71
...
50
Screw, Tf WPL-M0231704
...
51
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
52
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
53
Lamp Holder WPL-M5D267
...
54
Lamp, Cavity WPL-M9D54
...
55
Nla (See D-Pb17) WPL-M27D234
...
56
Air Filter Kit WPL-M48D13
...
57
No.6 Pan Hd Machine Screw WPL-M1D836
...
58
Stand Off Arm Mtg WPL-M2D380
...
59
Screw WPL-M1D764
...
60
.187 Dia Pop Rivet Steel WPL-M1D349
...
61
High Voltage Transformer WPL-M60D84
...
62
Transformer, Auto-Filament WPL-M60D85
...
63
Screw (25) WPL-M1D5
...
64
Fuse 20 A WPL-WPM0805101
...
65
Strain Relf WPL-26632P01
...
66
Screw WPL-M1D764
...
67
See Note Fuse, Model Uk Power Cord, Type Bs1362, 13 Amp -- (Procurelocally) WPL-Y00000000
...
68
Screw WPL-M1D764
...
69
Resistor, Bleeder WPL-M3D59
...
70
Not Available WPL-M2D453
...
71
Inlay, Handle 80/56 WPL-M7D419
...
72
Dr Inlay Gold Kit WPL-M7D368
...
73
Clip, Casting Mtg. WPL-M1D759
...
74
Window, Outer WPL-M51D33
...
75
Nut WPL-M1D760
...
76
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
77
Nut WPL-WP488130
...
78
Spring Latch Kit WPL-M2D198
...
79
Nut, Locking WPL-M1D859
...
80
Screw Adjust M1d744 (10) WPL-M1D744
...
81
R F Gasket Kit WPL-M2D152
...
82
Nut WPL-WP488130
...
83
Cushion WPL-M2D452
...
84
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
85
Bearing Flng (10) WPL-M1D112
...
86
Set Screw Kit (1) WPL-M1D461
...
87
Flat Washer WPL-M1D117
...
88
Door, Inner WPL-M85D55
...
89
Choke Filler WPL-33775P01
...
90
Window, Inner WPL-M51D34
...
91
Nut K WPL-M0282005
...
92
Antenna Pin Rear WPL-M2D565
...
93
Wshr-Rubber WPL-32383P01
...
94
Line Filter Kit WPL-M10D35
...
95
Sealer Assy WPL-33487A01
...
96
Jumper Lead Assy WPL-M5D345
...
97
Fuse- 3 Am WPL-Y0078733
...
98
Fan Blade, Motor Cooling WPL-M35D31
...
99
Capacitor 1.05mf Kit WPL-M10D78
