product name

Amana UK80/46.A00

Model: UK80/46.A00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Page 1

...
...
NI
Bowl, Power Test Kit WPL-M95D5
...
1
Ia Screw 10ab WPL-M1D369
...
2
Air Duct Exhaust Kit WPL-M65D232
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
7
Screw, Tf WPL-M0231704
...
8
Baffle Asm WPL-M65D211
...
9
Gasket-Rf WPL-M2D305
...
10
Net Use 39143p02 WPL-39143P01
...
11
Screw Thrm WPL-M1D666
...
12
Cover, Stirrer WPL-M46D19
...
13
Adhesive WPL-W10841140
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Nut K WPL-M0282005
...
16
Strike, Latch WPL-M8D191
...
17
Insulator, Switch WPL-M5D268
...
18
Screw WPL-WP489474
...
19
Sw-Monitor M14d212 WPL-M14D212
...
20
Nut WPL-WP488130
...
21
Spacer, Switch WPL-M8D190
...
22
Vp Timer WPL-M31D24
...
23
No.6 Hex Hd Machine Screw(25) WPL-M1D655
...
24
Capacitor-Doubler WPL-10366913
...
25
Motor, Blower WPL-M12D66
...
26
Plate, Blower WPL-M8D196
...
27
Wheel, Blower WPL-34487P01
...
28
Housing WPL-M65D210
...
29
Screw (25) WPL-M1D5
...
30
Flange, Blower Housing WPL-M8D197
...
31
Nut (25) WPL-M1D451
...
32
No.8 T X 1/4`` Screw WPL-M1D486
...
33
Termnl Block WPL-M4D55
...
34
Screw (25) WPL-M1D5
...
35
Relay WPL-M16D71
...
36
Screw, Tf WPL-M0231704
...
37
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
38
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
39
Lamp Holder WPL-M5D267
...
40
Lamp, Cavity WPL-M9D54
...
41
Harness Wire WPL-M27D299
...
42
Air Filter Kit WPL-M48D13
...
43
Res Asy Service M3d60 WPL-M3D60
...
44
Fan Blade, Motor Cooling WPL-M35D31
...
45
Resistor, Bleeder-Line Filter WPL-M3D45
...
46
Tape 8-Ft/pkg Kit WPL-M2D451
...
47
Transformer (M60d125) WPL-38437P01
...
48
Screw (25) WPL-M1D5
...
49
Fuse 20 A WPL-WPM0805101
...
50
Screw WPL-M1D764
...
51
Strain Relf WPL-26632P01
...
52
See Note Fuse, Model Uk Power Cord Type Bs1362, 13 Amp -- (Purchaselocally) WPL-Y00000000
...
53
Screw WPL-M1D764
...
54
Resistor, Bleeder WPL-M3D59
...
55
Not Available WPL-M2D453
...
56
Inlay, Door Handle WPL-M7D416
...
57
Dr Inlay Gold Kit WPL-M7D368
...
58
Clip, Casting Mtg. WPL-M1D759
...
59
Window, Outer WPL-M51D33
...
60
M70d60 Mask WPL-34429P01
...
61
Bracket, Latch Bar Mtg. WPL-M20D128
...
62
Bushing M2d46 WPL-25788P01
...
63
Spring Latch Kit WPL-M2D198
...
64
Nut, Locking WPL-M1D859
...
65
Screw Adjust M1d744 (10) WPL-M1D744
...
66
R F Gasket Kit WPL-M2D152
...
67
Screw Bkt Mtg WPL-M1D336
...
68
Cushion WPL-M2D452
...
69
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
70
Bearing Flng (10) WPL-M1D112
...
71
Set Screw Kit (1) WPL-M1D461
...
72
Flat Washer WPL-M1D117
...
73
Ia Outer Door WPL-M70D56
...
74
Choke Filler WPL-33775P01
...
75
Window, Inner WPL-M51D34
...
76
Plate, Seal WPL-M54D10
...
77
Line Filter Kit WPL-M10D35
...
78
Ia Screw No.10-32 WPL-M1D370
...
79
Wshr-Rubber WPL-32383P01
...
80
Fuse- 3 Am WPL-Y0078733
...
81
Sealer Assy WPL-33487A01

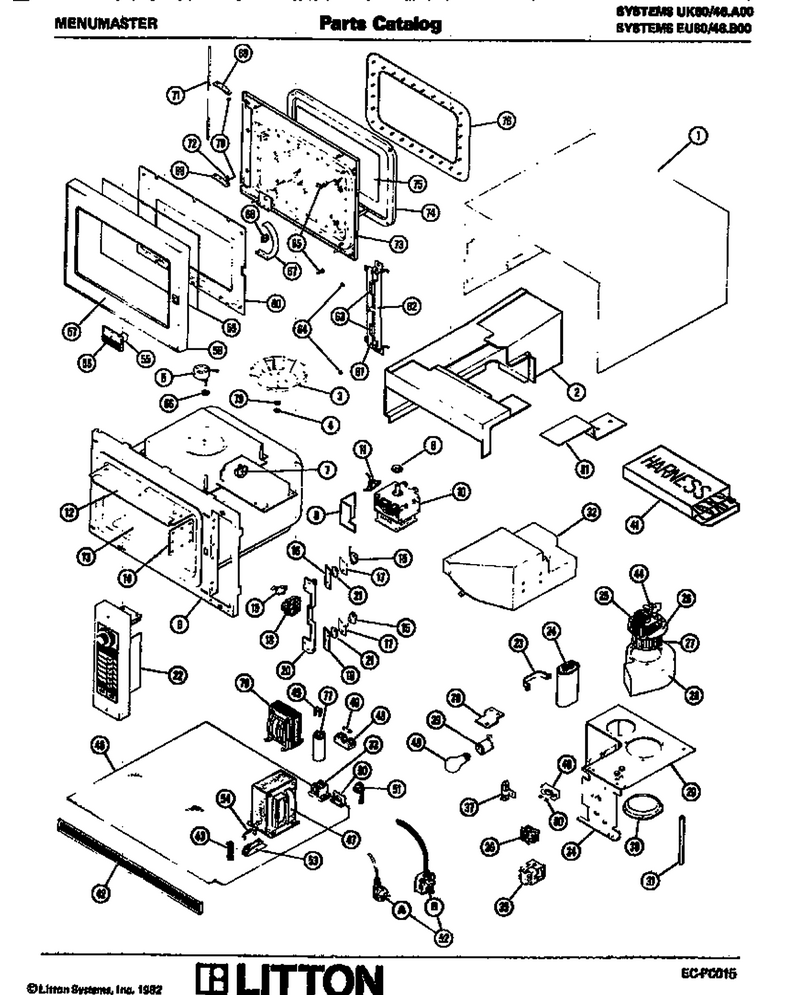

Schematic Image Zoomed
