Amana UJW1040.A

Model: UJW1040.A

Save Part Not Listed?
product name

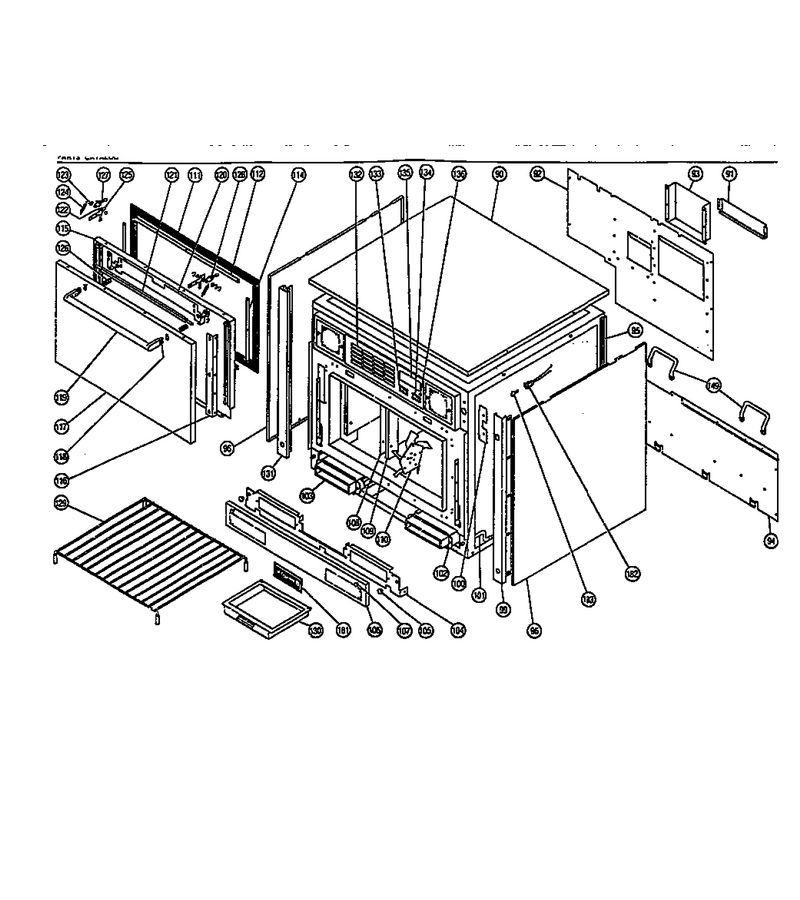

02 - Page 2

...
...
90
Screw WPL-WPW10348409
...
91
Screw WPL-WP90767
...
92
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
93
Screw WPL-WP90767
...
94
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
95
Rear Trim WPL-M75D113
...
96
Clip/nut (25) WPL-M1D951
...
99
Corner Trim WPL-M75D114
...
100
Filler Plate WPL-M8D323
...
101
Front Handle WPL-M49D19
...
102
Ass`y, Pocket (Jw) M20d273 WPL-44438P01
...
103
J. W. Filter Kit Bottom WPL-M48D23
...
104
Lower Front Trim WPL-M75D115
...
105
Handle Knob WPL-M11D76
...
106
Rivet (25) WPL-M1D692
...
107
Knob Lower Draw Kit WPL-M6D313
...
108
Nut Cover WPL-M1D932
...
109
Stir Cover Space WPL-M2D704
...
110
Jw Washer Thrst WPL-44197P01
...
111
Oven Gasket WPL-M25D77
...
112
Screw (25) WPL-M1D201
...
114
Screw (25) WPL-M1D201
...
115
Net Use 94358p02 WPL-M70D126
...
116
Bar Post WPL-M52D229
...
117
Jw Door Outer M70d118 WPL-44076P01
...
118
Handle Insert WPL-M2D705
...
119
Screw (25) WPL-M1D280
...
120
Nut WPL-WP3400029
...
121
Jw Pivot Rod WPL-44073P01
...
122
Jw Washer Thrst WPL-44197P01
...
123
E-Ring .250 Shaft Jw WPL-M2D581
...
124
Hook Spring WPL-M2D706
...
125
Jw Latch WPL-44072P01
...
126
Spring, Door WPL-41205P01
...
127
Ia Hook Asy Lh WPL-44070P01
...
128
Right Hook Assembly WPL-M2D710
...
129
Oven Rack WPL-M67D39
...
130
Drip Pan WPL-M67D48
...
131
No.10 T X 3/8`` Screw WPL-M1D479
...
132
Mem Swi Asy Jetwave WPL-M7D758
...
133
Jw Switch Rckr WPL-M14D271
...
134
Mode Switch WPL-M14D272
...
135
Jw Lens Controller WPL-46006P01
...
136
Ind Light WPL-M9D108
...
149
Screw (10) WPL-M1D936
...
181
Fastener(10) WPL-43415P01
...
182
Jw Switch - Security WPL-46711P01
...
183
Keys (2 Per Pkg) WPL-M95D27

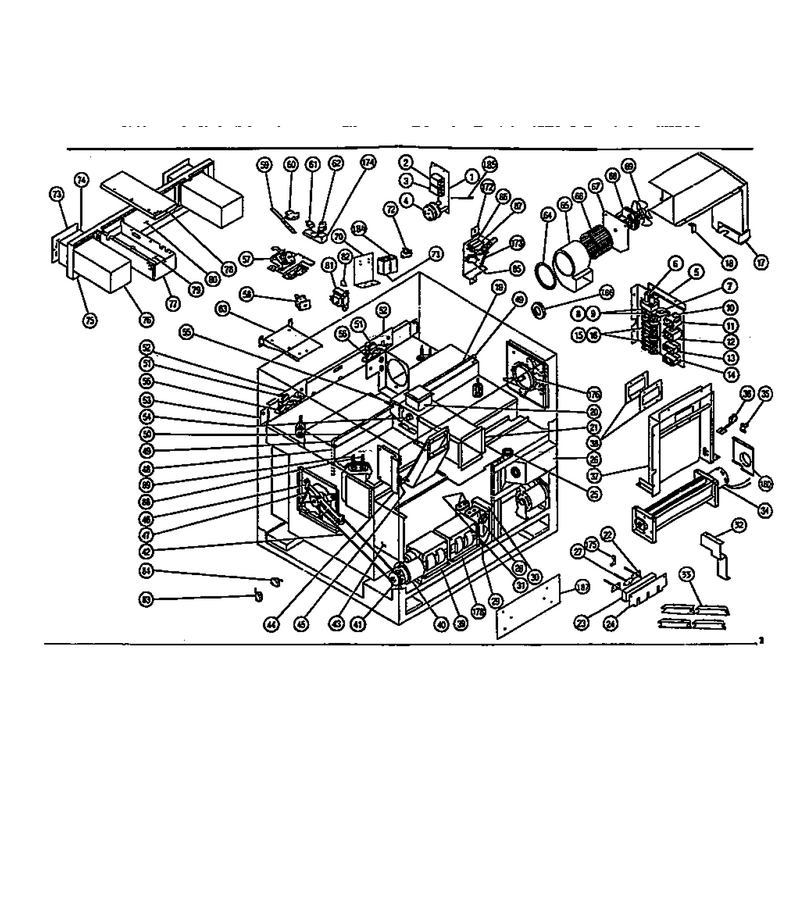

01 - Page 1

...
...
Note: Included In Spare Parts Package. WPL-NOTE:
...
NI
Bushing WPL-M2D690
...
1
Screw (25) WPL-M1D860
...
2
Screw, Tf WPL-M0231704
...
3
Screw, Tf WPL-M0231704
...
4
Screw, Tf WPL-M0231704
...
5
Screw (25) WPL-M1D860
...
6
Heater Relay WPL-M16D106
...
7
Harness Retainer WPL-M2D689
...
8
Pop Rivet WPL-A4539625
...
9
Jw Fuse 8 Amps WPL-M4D107
...
10
Brkt WPL-M8D230
...
11
Holding Relay Kit WPL-M16D95
...
12
Relay Sec/intlk WPL-M16D105
...
13
Screw (25) WPL-M1D599
...
14
Screw (25) WPL-M1D599
...
15
Pop Rivet WPL-A4539625
...
16
Fuse 20a WPL-A3410403
...
17
Fan Intake Duct WPL-M65D326
...
18
Screw WPL-WP90767
...
20
Screw (25) WPL-M1D413
...
21
Gasket WPL-A3030302
...
22
Ia 6-32 Screw (25) WPL-M1D835
...
23
Insulation WPL-M63D25
...
24
Insulation Cover WPL-M8D316
...
25
Bushing, Wire WPL-M2D647
...
26
Service Cover WPL-M8D317
...
27
Jw Harness No.11 WPL-44273P01
...
28
M10d120 Filament Cap 5mfd WPL-1241920312
...
29
Screw WPL-WPW10001160
...
30
Screw WPL-WPW10001160
...
31
Capacitor, H.v. WPL-44035P01
...
32
Xfmr Baffle WPL-M8D353
...
33
Screw WPL-WPW10001160
...
34
Speed Nut (25) WPL-M1D335
...
35
Air Switch Bkt WPL-M8D319
...
36
Jw Switch-Air Sense WPL-M14D290
...
37
Screw WPL-WP90767
...
38
Vent Gasket 2/pk WPL-M25D73
...
40
Screw (25) WPL-M1D387
...
41
Screw (5) WPL-M1D921
...
42
M25d72 Jw Belt Xcuc WPL-M25D72
...
43
Rear Baffle WPL-M65D319
...
44
Triac Bracket WPL-M8D320
...
45
Standoff, Triac Mtg WPL-M2D738
...
46
Assy, Stirrer Drive R. WPL-45517P01
...
47
Idler Spring WPL-M2D693
...
48
Extention Tube WPL-M65D325
...
49
Coupling WPL-M2D694
...
50
Bushing WPL-M2D690
...
51
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
52
Nut, Locking WPL-M1D859
...
53
Jw Plate Mtg WPL-44078P01
...
54
Cutout-Thermal-Control WPL-31866P01
...
55
Screw WPL-WP90767
...
56
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
57
Lock-Clean Cjw WPL-43262P02
...
58
Lock Solenoid WPL-M16D124
...
59
Screw WPL-M1D922
...
60
Solenoid Sw Cam WPL-M2D771
...
61
Jw Insul Switch WPL-44092P01
...
62
Jw Insul Switch WPL-44092P01
...
63
Nut, Bracket Mtg. WPL-N1D855
...
64
Screw WPL-WP90767
...
65
Screw WPL-WP90767
...
66
Jw Wheel, Blower WPL-M35D48
...
67
Plate, Motor (Jw) WPL-43845P01
...
68
Jw 230v 50hz Motor Mag Blowerx WPL-2012962505
...
69
Jw Fan-Mtr Cool WPL-M35D49
...
70
Relay Bracket WPL-M8D351
...
72
Screw WPL-WP90767
...
73
Jw Door Filter WPL-46160P01
...
74
J.w. Filter Kit Top WPL-M48D22
...
75
Cont Pnl Frame WPL-M82D199
...
76
Assy, J.w. Pocket M20d282 WPL-44441P01
...
77
Cont Box Bkt WPL-M20D271
...
78
Bushing-Snap WPL-A3293501
...
79
Screw WPL-WPW10348409
...
80
Nut WPL-WP3400029
...
81
Jw L.v. Xfmr WPL-M60D130
...
82
Ia Varistor Asy WPL-M3D73
...
83
Switch Snap Jetwave WPL-M14D273
...
84
Out Tray Switch WPL-M14D274
...
85
Nut, Switch Mtg. WPL-M1D829
...
86
M14d268 Jw Switch Inter. WPL-42345P01
...
87
M14d268 Jw Switch Inter. WPL-42345P01
...
88
Trim Strip Kit WPL-M7D701
...
89
Nut Heater WPL-M1D928
...
172
Screw WPL-WP90767
...
173
Spring, Switch Assembly WPL-M2D719
...
174
Switch Spacer WPL-M8D331
...
175
Screw (25) WPL-M1D939
...
176
Nut WPL-M0282009
...
178
Nut WPL-WP3400029
...
180
Jw Heatsink Exh Motor WPL-46275P01
...
184
No.2 Clean Relay WPL-M16D116
...
185
Blocking Diode WPL-M3D82
...
187
Diode Baffle WPL-M8D352

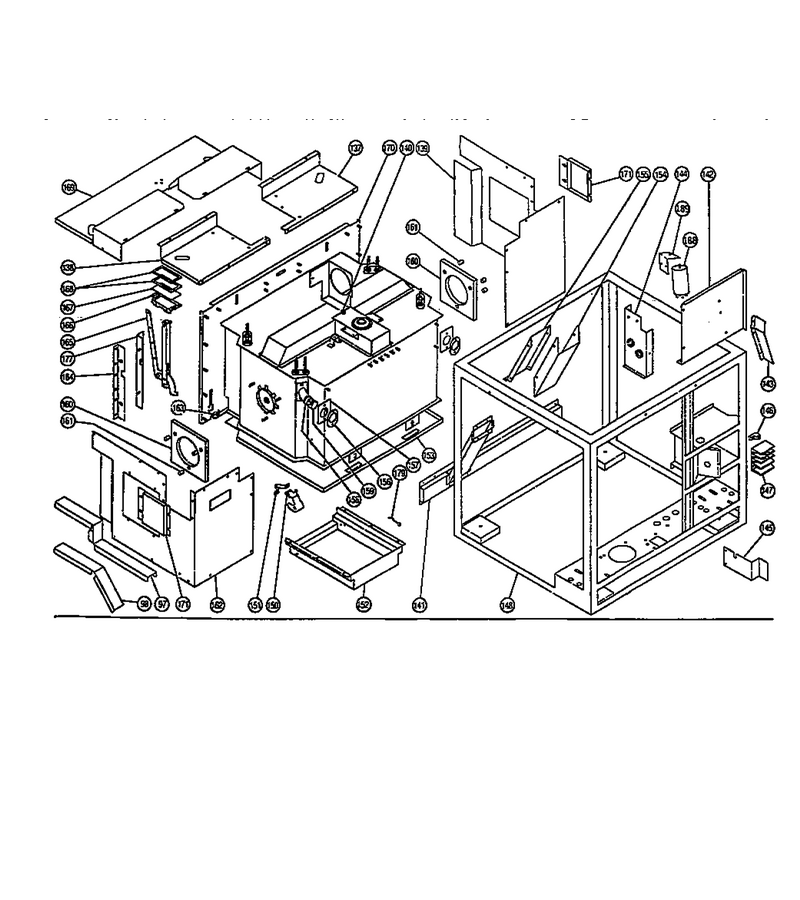

03 - Page 3

...
...
NI
Caster W/brake WPL-M8D341
...
97
Top Baffle WPL-M52D227
...
98
Screw WPL-WP90767
...
137
Screw WPL-WP90767
...
138
Screw WPL-WP90767
...
139
Screw WPL-WP90767
...
140
Tuning Stub WPL-M2D711
...
141
Exhaust Header WPL-M52D232
...
142
Front Duct WPL-M20D275
...
143
Duct Baffle WPL-M8D327
...
144
Side Duct WPL-M20D276
...
145
Screw WPL-WP90767
...
146
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
147
Terminal Block WPL-M4D125
...
148
Main Frame WPL-M83D14
...
150
Grease Stop Assy WPL-M20D326
...
151
Jw Clamp Grease Stop WPL-3000011301
...
152
Screw WPL-WP90767
...
153
Screw WPL-WP90767
...
154
Screw WPL-WP90767
...
155
Bot Vent Insl Co WPL-M20D277
...
156
Gasket WPL-M25D75
...
157
Nut WPL-WP3400029
...
158
Catalytic Smk El WPL-M67D38
...
159
Exhaust Tube WPL-M65D323
...
160
Stir Insulation WPL-M63D26
...
161
Spacer WPL-M2D716
...
162
Screw WPL-WP90767
...
163
Ball Stud Recpt WPL-M2D717
...
164
Hinge Bracket WPL-M52D235
...
165
Ia Use M52d250 WPL-M8D329
...
166
No.10 Hex Wshr Hd Mach Scr WPL-M1D937
...
167
Wave Guide Wind. Kit WPL-M2D718
...
168
Jw Gasket Wdo M25d76 WPL-M25D76
...
169
Screw WPL-WP90767
...
170
Net-Assy,oven Cavity(Jw) WPL-M77D139
...
171
Access Panel WPL-M20D280
...
177
Hinge Bracket WPL-M52D234
...
179
Spring WPL-M2D736
...
185
Blocking Diode WPL-M3D82
...
186
Toroid (Arc Suppressor) WPL-44780P01
...
188
Nut (25) WPL-M1D728
...
189
Filter Baffle WPL-M8D354
