product name

Amana UFSP-14.B

Model: UFSP-14.B

Save Part Not Listed?
product name

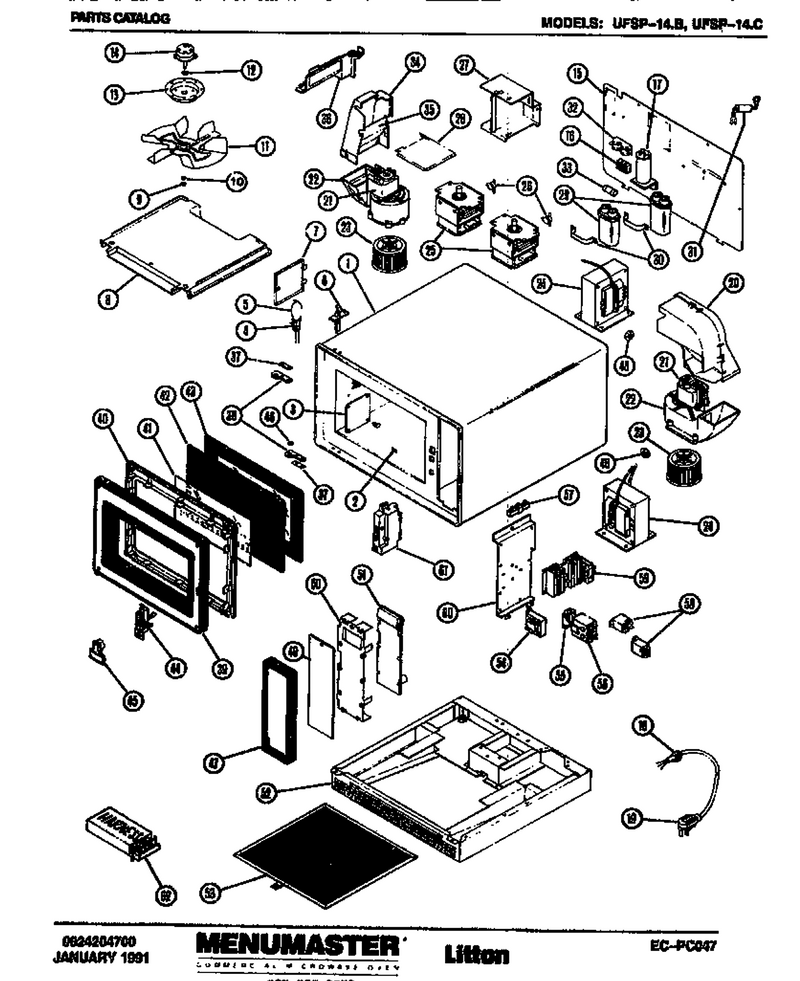

01 - Page 1

...
...
NI
H.v. Lead Kit WPL-M5D350
...
1
Cavity Assy WPL-M77D179
...
2
Kit, Shelf WPL-R0156904
...
3
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
4
Screw WPL-WP90767
...
5
Light Bulb WPL-59002071
...
6
Sensor, Cavity WPL-R0163326
...
7
Cover Light (Gray) WPL-M7X11
...
8
Stirrer Cover WPL-45422P01
...
9
Nut, Push WPL-Y04100035
...
10
Wshr-Rubber WPL-32383P01
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw (25) WPL-M1D638
...
14
Stirrer Motor Kit WPL-R0163263
...
15
No.8 U-Clip WPL-M1D93
...
16
Rivet, Block Mtg. WPL-M1D743
...
17
Line Filter Kit WPL-M10D81
...
18
Strain Relf WPL-26632P01
...
19
See Note Fuse, Type Bs1362, 13 Amp -- (Purchase Locally) WPL-Y00000000
...
20
Duct Assembly WPL-46385P01
...
21
Kit, Blower Motor WPL-R0150121
...
22
Housing, Blower WPL-45559P01
...
23
Wheel, Blower M35d39 WPL-36300P01
...
24
Kit,transformer WPL-M60D151
...
25
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
26
Protector WPL-1751800025
...
27
Screw WPL-WP90767
...
28
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
29
Capacitor- WPL-WP59001168
...
30
Screw WPL-WP90767
...
31
Screw WPL-WPW10001160
...
32
Pop Rivet WPL-A4539625
...
33
Fuse WPL-WPM0805102
...
34
Screw WPL-WP90767
...
35
M65d346 Divider Air WPL-45402P01
...
36
Transition-Cav Exh Fs-10 WPL-45753P01
...
37
Shim-Hinge WPL-45540P01
...
38
Assy, Hinge WPL-4180032601Q
...
39
Fastener(10) WPL-43415P01
...
40
Door Filler Kit WPL-M55D18
...
41
Outer Window Kit WPL-M70D158
...
42
No.8 Ab X 3/8`` Screw WPL-M1D906
...
43
Window, Inner Door WPL-10785001
...
44
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
45
Handle Inlay WPL-M7X69
...
46
Foam Insulator WPL-M2D744
...
47
Control Panel Frame WPL-M7D853
...
48
Toroid (Arc Suppressor) WPL-44780P01
...
49
Membrane Touch Panelx WPL-M7X67
...
50
Backer Plt Asy WPL-4180001602
...
51
Controller WPL-M31R55
...
52
.187 Dia Pop Rivet Steel WPL-M1D349
...
53
Air Filter WPL-M478D24
...
54
Lv Transformer Kit WPL-M60D149
...
55
Screw WPL-WP90767
...
56
Relay Sec/intlk WPL-M16D105
...
57
Resistor WPL-31860P01
...
58
Screw (25) WPL-M1D609
...
59
Screw WPL-WPW10348409
...
60
Panel, Component WPL-10791901
...
61
Screw WPL-WP98165
...
62
Wire Harness Kit WPL-M27D503
