Amana UFSP-10.C

Model: UFSP-10.C

Save Part Not Listed?
product name

Popular Parts

Popular Parts

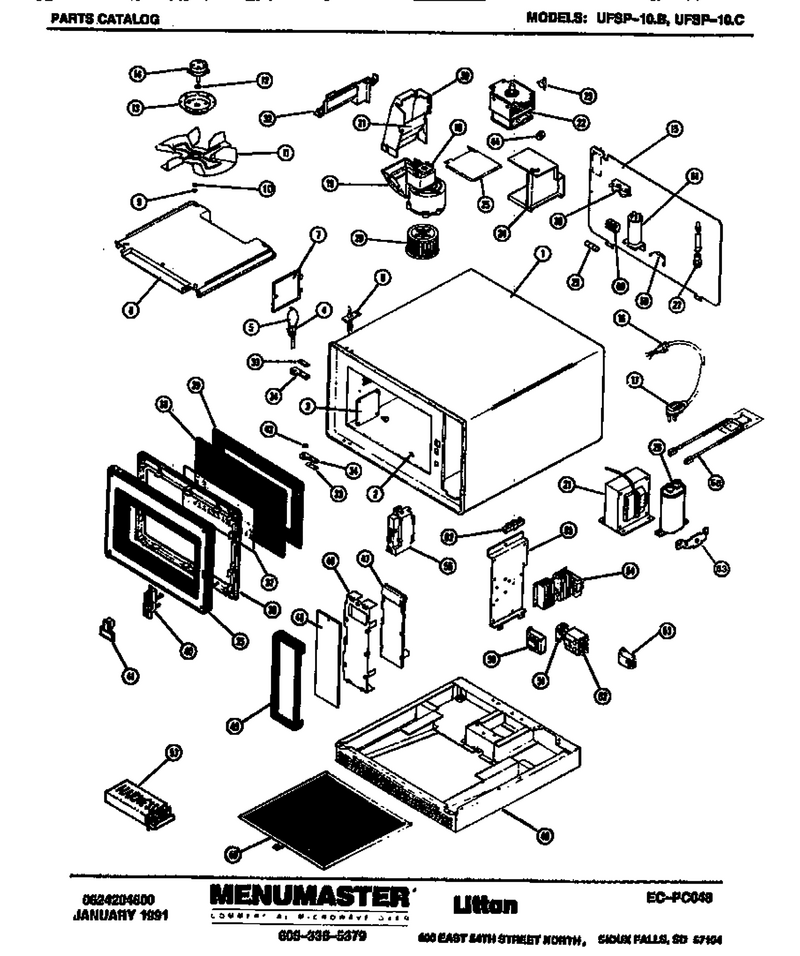

01 - Page 1

...
...
NI
Torx Driver, T-20 (M95d23) WPL-M95D23
...
1
Cavity Asy Gray Kit WPL-M77D177
...
2
Kit, Shelf WPL-R0156904
...
3
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
4
Light Holder WPL-46534P01
...
5
Light Bulb WPL-59002071
...
6
Screw WPL-WP90767
...
7
Clip WPL-M1D884
...
8
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
9
Nut, Push WPL-Y04100035
...
10
Wshr-Rubber WPL-32383P01
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw WPL-WPW10001160
...
14
Stirrer Motor Kit WPL-R0163263
...
15
No.8 U-Clip WPL-M1D93
...
16
Strain Relf WPL-26632P01
...
17
See Note Fuse, Type Bs1362, 13 Amp -- (Purchase Locally) WPL-Y00000000
...
18
Screw WPL-WPW10001160
...
19
Ia No.8 T X 1`` Screw WPL-M1D943
...
20
Wheel, Blower M35d39 WPL-36300P01
...
21
Hv Xfmr 240v50hz 1kw M60d152 WPL-46374P01
...
22
Gasket-Rf WPL-M2D305
...
23
Protector WPL-1751800025
...
24
Screw WPL-WP90767
...
25
Deflector-Air M65d344 WPL-46762P01
...
26
Hvcap1.05mfd 2500v80deg C WPL-1241524333
...
27
Rectifier WPL-WP13091701
...
28
Pop Rivet WPL-A4539625
...
29
Fuse WPL-WPM0805102
...
30
M65d345 Duct, Air WPL-45407P01
...
31
M65d346 Divider Air WPL-45402P01
...
32
Transition-Cav Exh Fs-10 WPL-45753P01
...
33
Shim-Hinge WPL-45540P01
...
34
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
35
Fastener(10) WPL-43415P01
...
36
Door Filler Kit WPL-M55D18
...
37
Outer Window Kit WPL-M70D158
...
38
Inner Door Kit WPL-R0163255
...
39
Window, Inner Door WPL-10785001
...
40
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
41
Handle Kit WPL-M11D64
...
42
Foam Insulator WPL-M2D744
...
43
Control Panel Frame WPL-M7D853
...
44
Toroid (Arc Suppressor) WPL-44780P01
...
45
Membrane Touch Panelx WPL-M7X67
...
46
Backer Plt Asy WPL-4180001602
...
47
Controller WPL-M31R55
...
48
Tape 8-Ft/pkg Kit WPL-M2D451
...
49
Filter Air WPL-45412P01
...
50
Screw WPL-WP90767
...
51
Screw WPL-WP90767
...
52
Relay Sec/intlk WPL-M16D105
...
53
Relay WPL-38806P01
...
54
Triac - Comm/jetwave Lst Iv WPL-4070001301
...
55
Nut WPL-WP488130
...
56
Svc Interlock Switch Asy WPL-4002006801
...
57
H.v. Lead Kit WPL-M5D350
...
58
Protector, Trans Therm WPL-M4D128
...
59
Bleeder Resistor WPL-M3D62
...
60
Rivet, Block Mtg. WPL-M1D743
...
61
Line Filter Kit WPL-M10D81
...
62
Resistor WPL-31860P01
...
63
Bracket WPL-10825501
