Amana UFS-7EVP.B (BOM: UFS-7EVP. B)

Model: UFS-7EVP.B (BOM: UFS-7EVP. B)

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Use And Care Manual WPL-M95D431
...
1
Clip WPL-M1D884
...
2
Adhesive WPL-W10841140
...
3
Poly Rivet (10) WPL-M1D896
...
4
Rivet WPL-WP210720
...
5
Speed-Clinch WPL-M2D574
...
6
Speed-Clinch WPL-M2D574
...
7
Speed-Clinch WPL-M2D574
...
8
Stirrer Support Cover WPL-46800P01
...
9
Insert Stirrer Kit WPL-M2D571
...
10
Blade, Stirrer WPL-10826002Q
...
11
Kit, Exhaust Baffle WPL-R0163287
...
12
Sensor, Cavity Kit WPL-M4D131
...
13
Screw WPL-WP90767
...
14
Screw WPL-WP90767
...
15
Light Bulb WPL-59002071
...
16
Screw WPL-WP90767
...
17
Light Cover WPL-M7D583
...
18
Screw WPL-WP90767
...
19
Cavity Plug (10) WPL-M1D755
...
20
Strain Relf WPL-26632P01
...
21
Powercord 250v 10/16 Amps WPL-1738379615
...
22
No.4-40 Twin Whiz-Lock Nut WPL-M1D965
...
23
Termnl Block WPL-M4D55
...
24
Capacitor, H.v. WPL-44035P01
...
25
Bracket WPL-10825501
...
26
Cable Clip WPL-M2D580
...
27
Fuse, 10 Amp WPL-M0805106
...
28
Fuse Holder WPL-M4D72
...
29
Svc Interlock Switch Asy WPL-4002006801
...
30
Duct Cavity WPL-M65D301
...
31
Gasket-Rf WPL-M2D296
...
32
Sensor Magnetron Kit WPL-M4D101
...
33
Screw WPL-WP90767
...
34
Assy, Hinge WPL-4180032601Q
...
35
No.10 Wave Washer WPL-M2D583
...
36
Nylon Flat Washer WPL-40370P01
...
37
Assy, Hinge WPL-4180032601Q
...
38
Screw WPL-WP8533976
...
39
Spring, Door WPL-41205P01
...
40
Clip, Inlay Mtg. WPL-M2D659
...
41
Door Filler Kit WPL-M55D18
...
42
Outer Window Kit WPL-M70D246
...
43
No.8 Ab X 3/8`` Screw WPL-M1D906
...
44
Window, Inner Door WPL-10785001
...
45
Touch Panel Assy M7d649 WPL-94331P01
...
46
Display Window Kit WPL-M2D632
...
47
Controller WPL-M31R55
...
48
Screw WPL-WP90767
...
49
Screw (25) WPL-M1D590
...
50
Relay WPL-38806P01
...
51
Resistor WPL-31860P01
...
52
Wiring Harness WPL-M27D338
...
53
Screw WPL-WPW10001160
...
54
Blower Bracket WPL-M20D372
...
55
Wheel Blower M35d37 WPL-45146P01
...
56
Blwr Hsg M65d293 WPL-42553P01
...
57
Retainer WPL-M1D892
...
58
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
59
Lock Washer WPL-M0272803
...
60
No.10 T X 3/8`` Screw WPL-M1D479
...
61
No.10 T X 3/8`` Screw WPL-M1D479
...
62
M53d56 Panel, Access Bot Rt WPL-92664P01
...
63
Shim-Hinge WPL-45540P01
...
64
Protector, Trans Therm WPL-M4D128

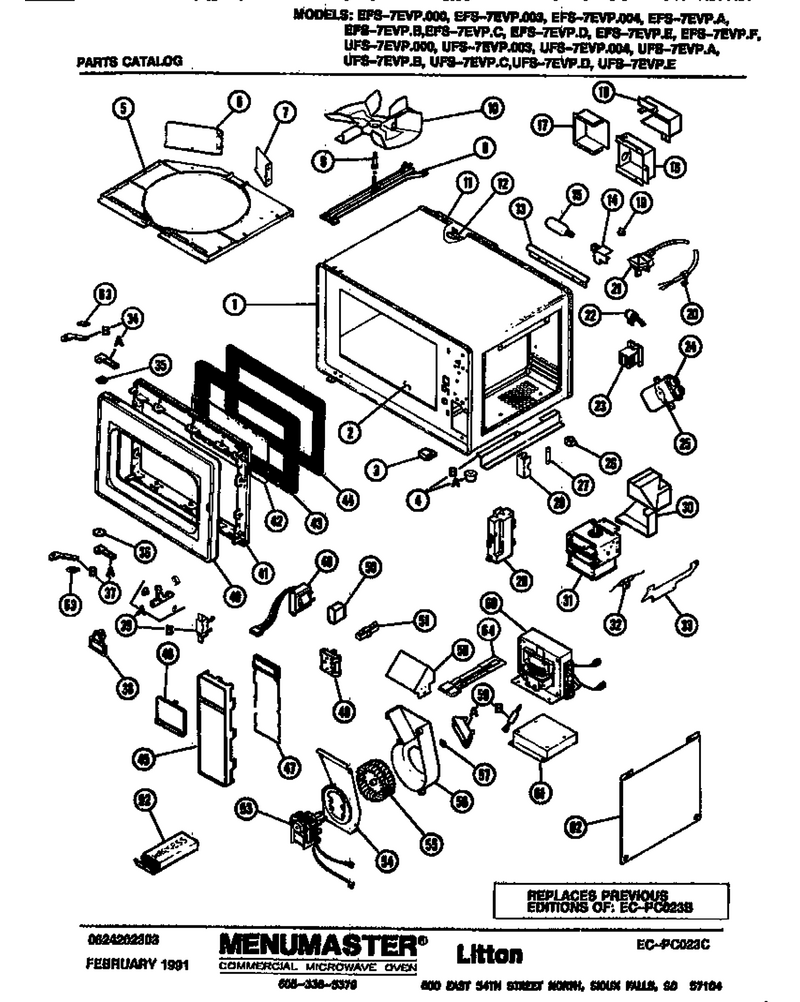

Schematic Image Zoomed
