product name

Amana UF16F-C (BOM: P6011705W C)

Model: UF16F-C (BOM: P6011705W C)

Save Part Not Listed?
product name

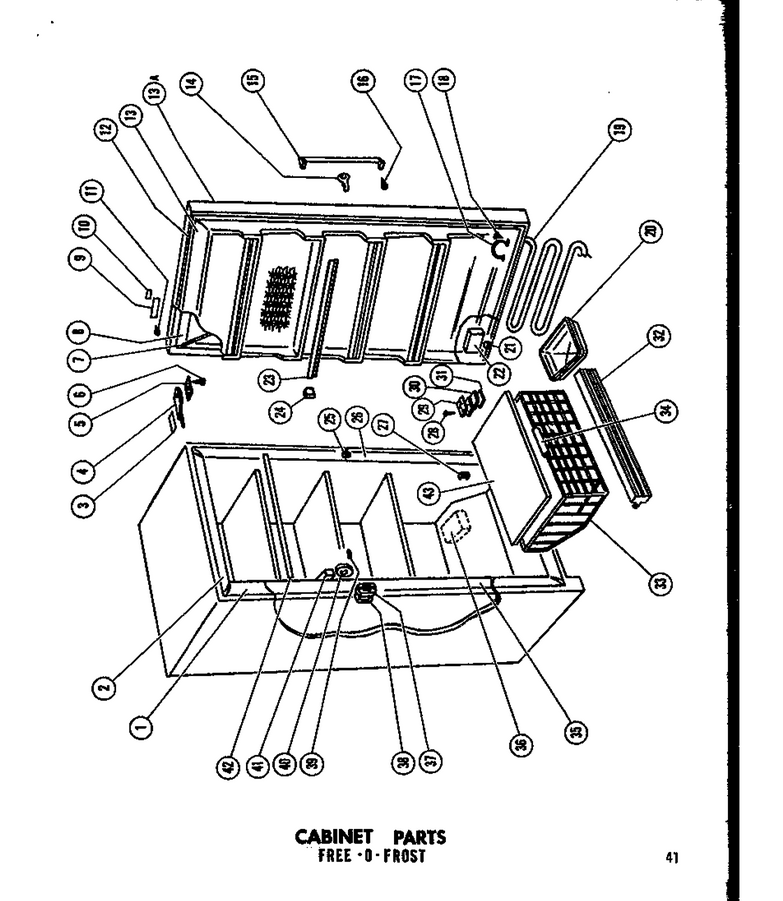

01 - Cabinet Parts

...
...
NI
Strike, Light Switch WPL-A3163002
...
1
Breaker Frame WPL-D3914002
...
2
Breaker Frame WPL-D3710305
...
4
Top Hinge Shim WPL-A3009801
...
5
Top Hinge Plate WPL-B0525801
...
6
Screw WPL-M0247058
...
7
Tie Rod WPL-B0569802
...
8
Insulation WPL-B0566703
...
9
Escutcheon WPL-C3577601
...
10
Nameplate WPL-C3578004
...
11
Stud WPL-M0550001
...
12
Gasket, Door WPL-D3880402
...
13
Outer Door Shell, Coppertone WPL-D7017017
...
14
Washer WPL-M0274016
...
15
Handle, Door WPL-D3890301
...
16
Screw WPL-M0248231
...
17
Spring Clip WPL-B0544001
...
18
Sems Fastner WPL-M0243037
...
19
Wiring Harness WPL-C3643801
...
20
Drain Pan WPL-C3523101
...
21
Vent Assy WPL-A3101901
...
22
Insulation WPL-A3126701
...
23
Package Retainer WPL-D3976703
...
24
Support WPL-D3976806
...
25
Screw WPL-WP90767
...
26
Br Frame WPL-D3914005
...
27
Glide Basket WPL-B0543101
...
28
Screw WPL-WP67006715
...
29
Shim WPL-A3015201
...
30
Flat Bearing (Bottom Hinge) WPL-B0539807
...
31
Hinge Plate, Bottom WPL-B0528101
...
32
Toe Plate Or Grille WPL-C3563607
...
33
Basket WPL-D3853307
...
34
Handle WPL-B0571801
...
35
Insulation Batt, Bottom WPL-B0535003
...
36
Insulation WPL-A3130001
...
37
Strike Lock WPL-B0570101
...
38
Strike Pad WPL-D3913901
...
39
Rivet Plastic WPL-A3032601
...
40
Knob, Control WPL-C3577902
...
41
Control WPL-B0543811
...
42
Trim, Shelf WPL-B0560001
...
43
Shelf, Bottom WPL-D3777801

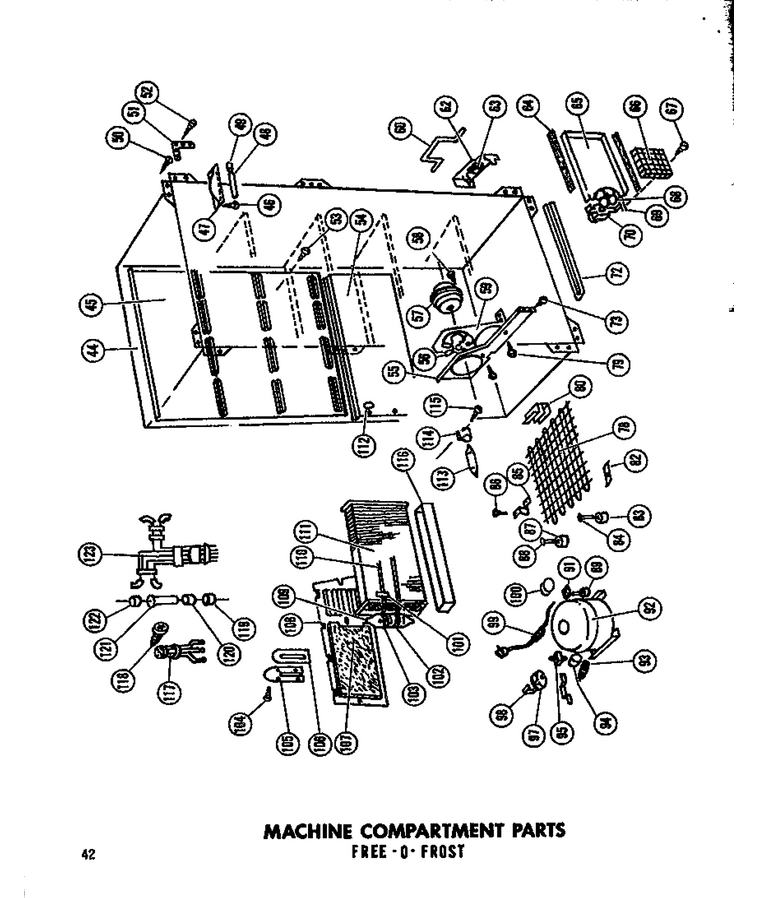

02 - Machine Compartment Parts

...
...
NI
Clip K WPL-M0110501
...
44
Liner Assy WPL-D7051071
...
45
Liner Back, Upper WPL-D7020001
...
46
Screw WPL-M0217516
...
47
Light Housing WPL-C3540301
...
48
Light Bulb WPL-A0318001
...
49
Socket WPL-B0542702
...
50
Tap Strip WPL-A3013201
...
51
Liner Gusset WPL-C3523801
...
52
Screw WPL-M0250531
...
53
Screw WPL-W11233072
...
54
Drain Baffle, Evaporator WPL-B0540501
...
55
Fan Shroud WPL-D3768501
...
56
Fan Blade WPL-B0487801
...
57
Motor-Cond WPL-833697
...
58
Sems Fastner WPL-M0255116
...
59
Bracket WPL-C3505801
...
60
Water Trap WPL-D3775201
...
62
Bracket WPL-C3565001
...
63
Timer WPL-C3565502
...
64
Gasket WPL-A4076001
...
65
Inlet Plate, Air WPL-D3786702
...
66
Grille WPL-C3561101
...
67
Screw WPL-M0202642
...
68
Fan Blade WPL-B0535401
...
69
Bracket, Motor WPL-C3536201
...
70
Motor Kit WPL-C3565605
...
72
Heater WPL-B0562209
...
73
Nut WPL-M0282009
...
78
Condenser Asembly WPL-D3884201
...
79
Screw-Sm WPL-M0241118
...
80
Spacer WPL-B0544101
...
82
Nut A WPL-M0286003
...
83
Spacer, 2-5/16`` X 1-1/2`` WPL-A3013908
...
84
Sems Fastner WPL-M0257037
...
85
Clip-Cond WPL-A3054502
...
86
Kit, Screw WPL-R9800670
...
87
Spacer WPL-A3013909
...
88
Sems Fastner WPL-M0257039
...
89
Grommet K WPL-A3026101
...
91
Clip WPL-M0111001
...
92
Compresssor WPL-D3871701
...
93
Spring K WPL-A3043601
...
94
Overload WPL-C3552901
...
95
Relay WPL-C3553401
...
97
Terminal Cover WPL-B0551801
...
98
Strap K WPL-A3041801
...
99
Wiring Harness, Cabinet WPL-D7076401
...
100
Thermostat WPL-B0556907
...
101
Spacer Block WPL-A3030701
...
102
Clamp WPL-M0103101
...
103
Clamp WPL-M0103101
...
104
Screw WPL-M0216532
...
105
Cover Plate WPL-A0382903
...
106
Gasket WPL-A0382801
...
107
Insulation, Compartment Back WPL-B0570301
...
108
Back WPL-C3574406
...
109
Accumulator WPL-B0553001
...
110
Heater WPL-C3566401
...
111
Coil WPL-D3897301
...
113
Drier WPL-WPB2150504
...
114
Clamp WPL-M0102315
...
115
Clamp WPL-M0102315
...
116
Drip Tray To Evaporator WPL-D3770801
