Amana UF12W (BOM: P6034501W)

Model: UF12W (BOM: P6034501W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

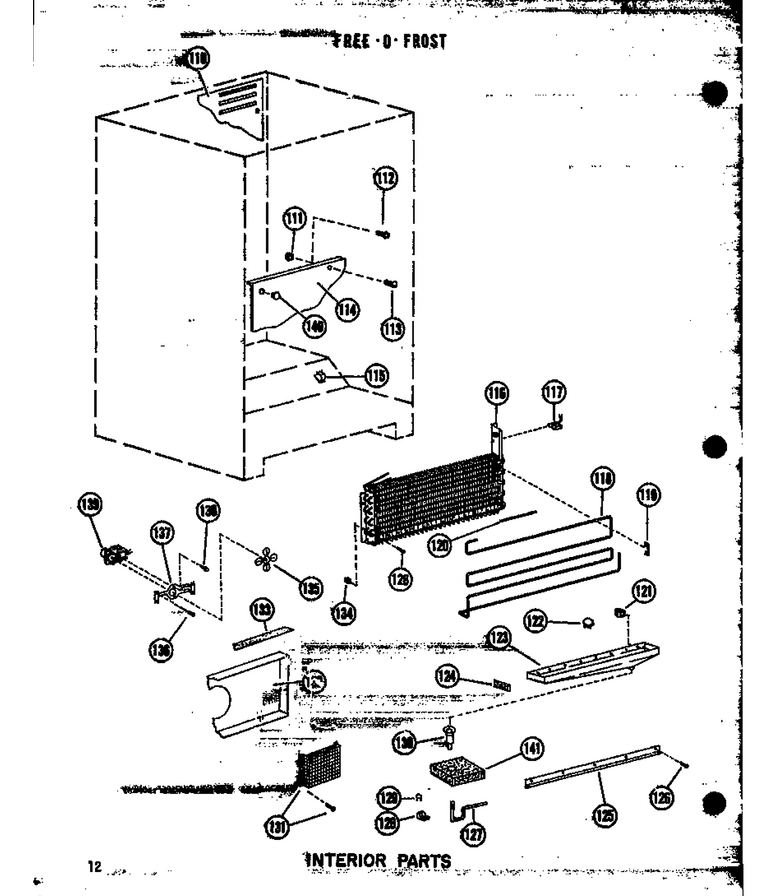

05 - Interior Parts

...
...
110
Plate-Plenum WPL-D7170801
...
111
Nut WPL-M0287105
...
112
Screw WPL-WP90767
...
113
Screw WPL-W11233072
...
114
Evap Cover WPL-D7169406
...
115
Clip WPL-M0110801
...
116
Evporator WPL-D7183901
...
117
Thermostat K WPL-C3686602
...
118
Heater-Evap WPL-D7185801
...
119
Clip WPL-M0110301
...
120
Control Well WPL-A3205801
...
121
Grommet, Screw WPL-M0580007
...
123
Drip Tray WPL-D7168902
...
124
Gasket WPL-A3207001
...
125
Clamp WPL-B5686801
...
126
Screw WPL-WP98165
...
127
Drain Tube WPL-C3686901
...
128
Clamp WPL-M0102314
...
129
Clamp, Drain Grommet WPL-M0103001
...
130
Condensate Out WPL-B0527101
...
131
Screw WPL-WP90767
...
132
Plate-Air Inlet WPL-D7169101
...
133
Gasket-Per Ft WPL-A3030329
...
134
Grommet WPL-M0580003
...
135
Fan Blade WPL-B5622101
...
136
Screw WPL-W11233072
...
137
Bracket WPL-C3681602
...
138
Screw WPL-M0202642
...
139
Mtr Evap Fan, 3050 Rpm, 115 V. WPL-C3690103
...
140
Plug WPL-A3026301
...
141
Support Block WPL-C3524701

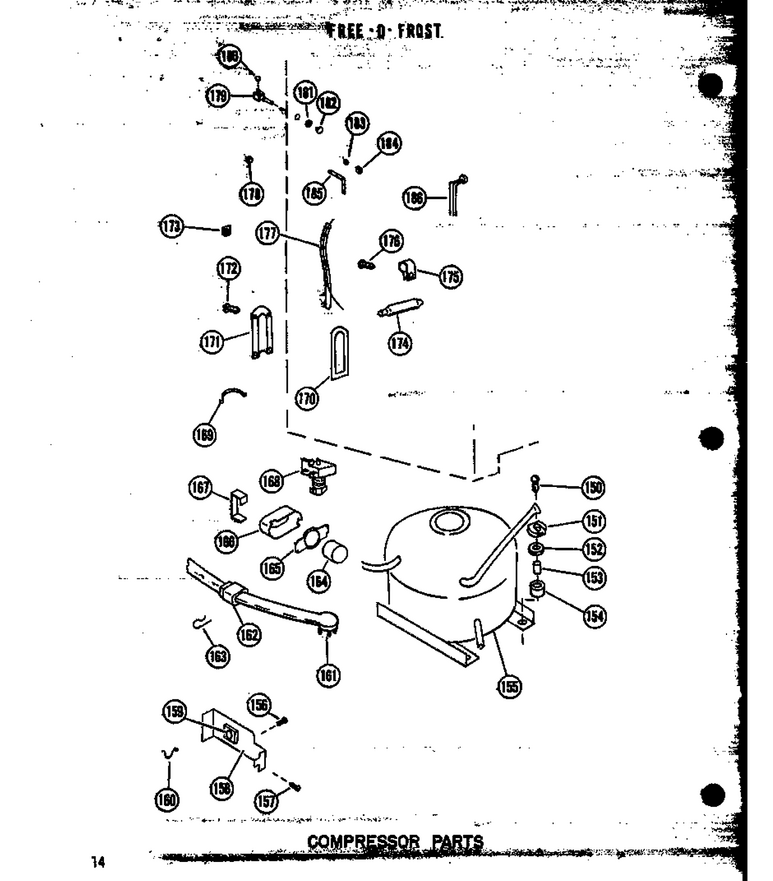

01 - Compressor Parts

...
...
150
Screw WPL-M0250561
...
152
Washer, Flat Steel, Cond. Fan WPL-M0270523
...
153
Grommet Sleeve K WPL-A4002901
...
154
Grommet K WPL-A4002702
...
155
Compressor Ae1410a WPL-C3667102
...
156
Screw,tc WPL-M0230017
...
157
Screw WPL-WP489464
...
158
Bracket, Timer WPL-C3647901
...
159
Timer-Def WPL-WP10129301
...
160
Tie WPL-M0321401
...
161
Wiring Harness WPL-D7186102
...
162
Grommet, Cord WPL-211881
...
163
Clip WPL-M0110502
...
164
Overload WPL-C3689103
...
165
Spring K WPL-A3043601
...
166
Cover K WPL-B0559501
...
167
Strap K WPL-A3041801
...
168
Relay WPL-C3689201
...
169
Wall Spacer WPL-A3032901
...
170
Gasket WPL-A0382801
...
171
Cover Plate-L WPL-A0382905
...
172
Screw WPL-WP90767
...
173
Clip WPL-M0113402
...
174
Drier WPL-WPB2150504
...
175
Clamp WPL-M0102315
...
176
Screw WPL-WP90767
...
177
Heat Exchanger WPL-D7196001
...
178
Plug WPL-A0353901
...
183
Button- Pl WPL-WP67001130
...
184
Cap WPL-B5636301
...
185
Tap Plate,i.m. WPL-B5639801
...
186
Wiring Harness WPL-D7185701

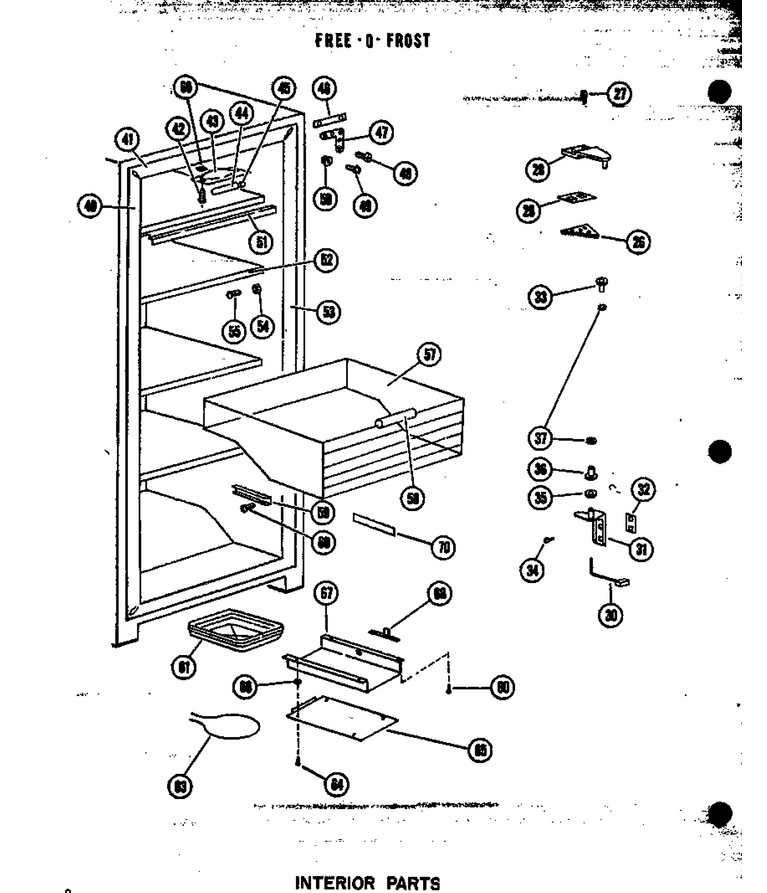

03 - Interior Parts

...
...
26
Tap Strip WPL-A3139701
...
27
Kit, Screw WPL-R9800670
...
28
Hinge-Top WPL-B5721501
...
29
Shim WPL-A3143701
...
30
Hinge Wire WPL-C3685701
...
31
Hinge WPL-C3682102
...
32
Shim WPL-A3061902
...
33
Bearing Flat (Top Hinge) WPL-B0539806
...
34
Screw WPL-WP67006715
...
35
Washer K WPL-M0274013
...
36
Flat Bearing (Bottom Hinge) WPL-B0539807
...
37
Washer WPL-M0274027
...
40
Breaker Frame WPL-D7158802
...
41
Breaker Frame WPL-D3710305
...
46
Tap Strip WPL-A3013202
...
47
Liner Gusset WPL-C3523802
...
48
Screw WPL-M0250531
...
49
Sems Fastner WPL-M0252047
...
50
Grommet WPL-A0381802
...
51
Trim WPL-B5688802
...
52
Shelf WPL-D7170302
...
53
Breaker Frame WPL-D3914006
...
54
Nut A WPL-M0281204
...
55
Screw WPL-WP90767
...
57
Trivet-Wire WPL-B5699901
...
60
Screw WPL-W11233072
...
61
Drain Pan WPL-C3523101
...
63
Heater WPL-D7173901
...
64
Screw WPL-M0230015
...
65
Heater Shield WPL-C3686801
...
66
Washer WPL-M0270301
...
67
Support WPL-D7170701
...
68
Clip WPL-C3687201
...
69
Speed Nut WPL-M0288010
...
70
Tap Strip-Glide WPL-B5695201

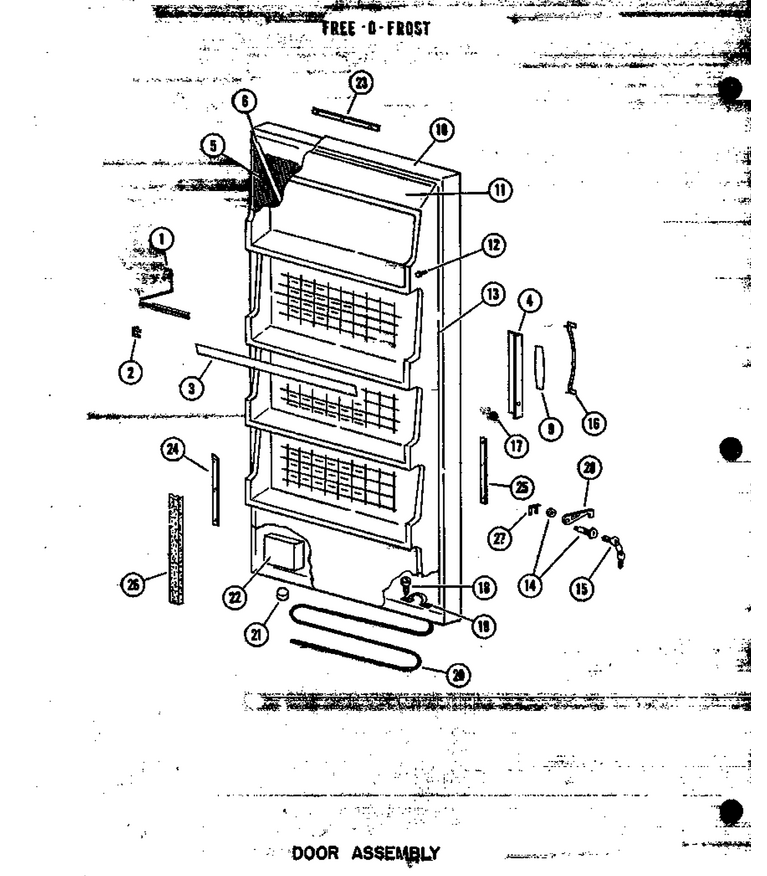

02 - Door Assy

...
...
1
Retainer WPL-C3683101
...
2
End Cap WPL-B5687901
...
3
Retainer WPL-B5632008
...
4
Pad-Handle WPL-D7162501
...
5
Insulation WPL-B0565607
...
6
Tie Rods WPL-B0569801
...
9
Nameplate WPL-C3682705
...
10
Door G-Uf12k WPL-D7017028
...
11
Inner Door Panel WPL-D7159301
...
12
Screw WPL-WP98165
...
13
Gasket, Door WPL-D7158701
...
14
Barrel Lock K WPL-B5688002
...
15
Key K WPL-A3199101
...
16
Handle WPL-D7096001
...
17
Nut WPL-M0289801
...
18
Sems Fastner WPL-M0243037
...
19
Spring Clip WPL-B0544001
...
20
Wiring Harness WPL-C3643801
...
21
Vent Assy WPL-A3101901
...
22
Block-Air Vent WPL-C3684701
...
23
Retainer-Gasket WPL-D7158601
...
24
Retainer-Gasket WPL-D7158602
...
25
Retainer-Gasket WPL-D7158603
...
26
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
27
Clip K WPL-A3199001
...
28
Bolt K WPL-C3682301

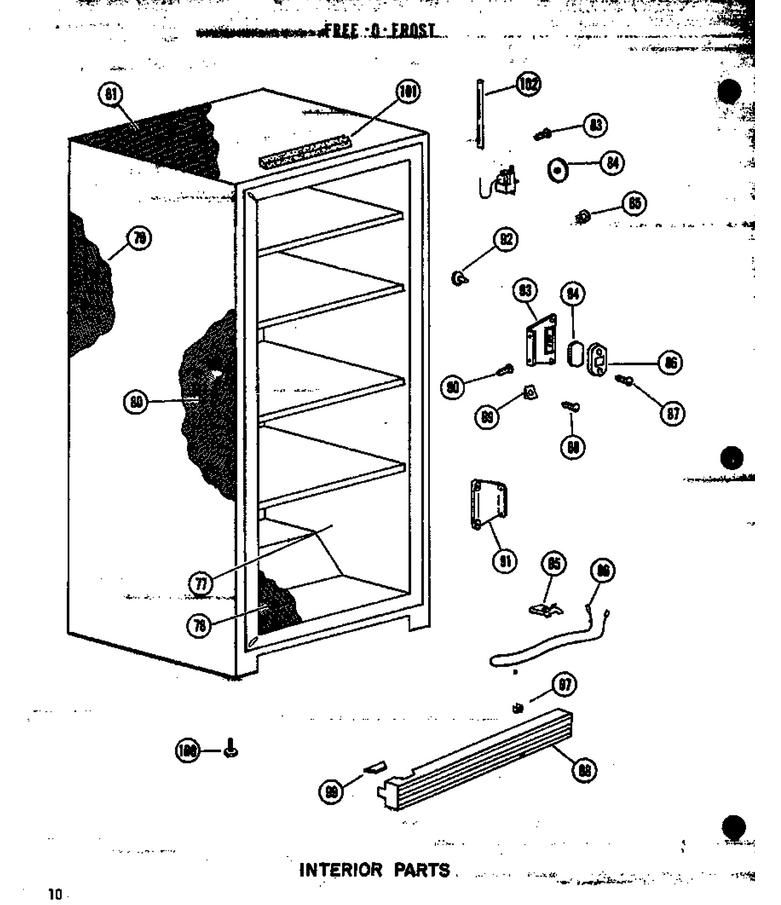

04 - Interior Parts

...
...
77
X$x Liner & Tub Assy WPL-N6025907
...
78
Insulation Batt, Bottom WPL-B0535004
...
79
Insulation Batt, Back WPL-B0534907
...
80
Insulation Batt, Sides WPL-B0572904
...
81
Insulation Batt, Top WPL-B0535212
...
82
Control, Temperature WPL-B0543813
...
83
Screw WPL-M0202528
...
84
Knob, Control WPL-C3577902
...
85
Rivet Plastic WPL-A3032601
...
86
Strike Lock WPL-B0570101
...
87
Screw WPL-M0230834
...
88
Screw WPL-WP489464
...
89
Speed Nut WPL-M0288107
...
90
Screw WPL-WP90767
...
91
Tie Strip WPL-D3913801
...
92
Switch WPL-C3689701
...
93
Strike Pad WPL-D3913901
...
94
Shim WPL-A3063202
...
95
Clip WPL-M0110502
...
96
Heater WPL-C3684901
...
97
Clip WPL-WPM0117303
...
98
Grille-Toe WPL-D7070202
...
99
Grille-Toe WPL-B5641301
...
100
Glider Bolt WPL-M0266510
...
101
Insulation Ft. K WPL-B0572828
...
102
Tube-Control Guide WPL-A0322808
