product name

Amana UCO-300.004

Model: UCO-300.004

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
U&c Mnl 300.004 WPL-M94D477
...
1
Screw WPL-WP90767
...
2
Light Bulb WPL-8009
...
3
Lamp Holder WPL-40082P01
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
6
Foot, Outer Case WPL-C8960601
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Insert Stirrer Kit WPL-M2D571
...
9
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
10
Cover, Stir WPL-M45D32
...
11
Screw Plastc (25) WPL-M1D897
...
12
Fuse- Ther WPL-59001951
...
13
Cavity Assy WPL-M77D132
...
14
Adhesive WPL-W10841140
...
15
Rack Support Set WPL-M2D601
...
16
Cavity Plug (10) WPL-M1D755
...
17
Switch, Interlock WPL-M14D253
...
18
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
19
Gasket-Rf WPL-M2D296
...
20
Cutout-Thermal-Control WPL-31866P01
...
21
Screw WPL-WP90767
...
22
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
23
Gasket-R.f. WPL-38874P01
...
24
Cap Inner Door Assy Kit WPL-M55D17
...
25
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
26
Screw Frame WPL-41327P01
...
27
No.10 Flat Hd Machine Screw M1d9 WPL-M1D901
...
28
Insert Kit WPL-M7D588
...
29
No.8 Ab X 3/8`` Screw WPL-M1D900
...
30
Speed Clip WPL-41657P01
...
31
Base WPL-M79D89
...
32
Fuse 20 A WPL-WPM0805101
...
33
Ia Screw WPL-M1D329
...
34
Lock Washer WPL-M0272803
...
35
H.v. Relay Kit WPL-M16D88
...
36
Foot WPL-M2D179
...
37
High Voltage Capacitor WPL-M10D87
...
38
Screw WPL-WP90767
...
39
Motor, Blower WPL-46587P01
...
40
Bracket Blower WPL-M20D219
...
41
Fan Blade WPL-M35D40
...
42
Screw Plastc (25) WPL-M1D897
...
43
Power Cord WPL-1731300202
...
44
Strain Relief WPL-Y0057183
...
45
No.10 T X 3/8`` Screw WPL-M1D479
...
46
H.v. Lead Kit WPL-M5D350
...
47
M7d779 Mem Tch Pnl Uco300 WPL-92735P01
...
48
Display Window WPL-M2D722
...
49
Not Available WPL-M8D253
...
50
Screw (25) WPL-M1D590
...
51
Screw WPL-WP90767
...
52
Screw WPL-WP90767
...
53
Screw WPL-WP90767
...
54
Not Available WPL-M2D598

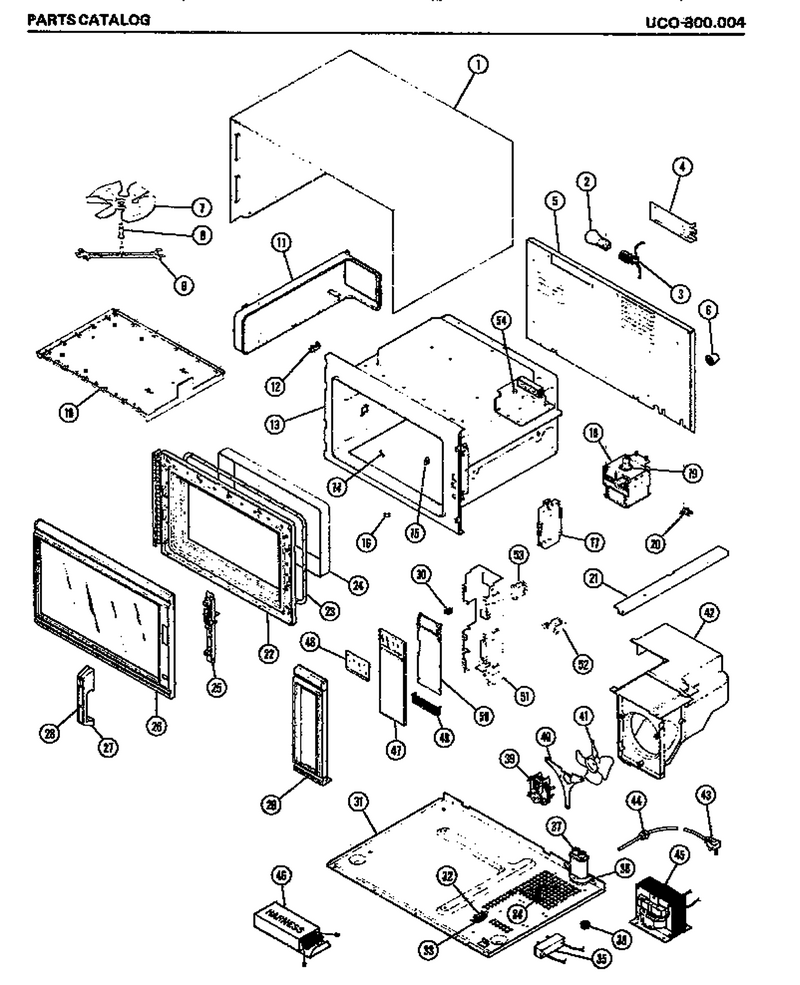

Schematic Image Zoomed
